Whirlpool W3CG3014XS02 counter unit Parts

Here are the diagrams and repair parts for Whirlpool W3CG3014XS02 counter unit, as well as links to manuals and error code tables, if available.

Whirlpool W3CG3014XS02 counter unit
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forW3CG3014XS02 Cooktops

  • Range Screw for Whirlpool W3CG3014XS02 - Part WP7101P434-60

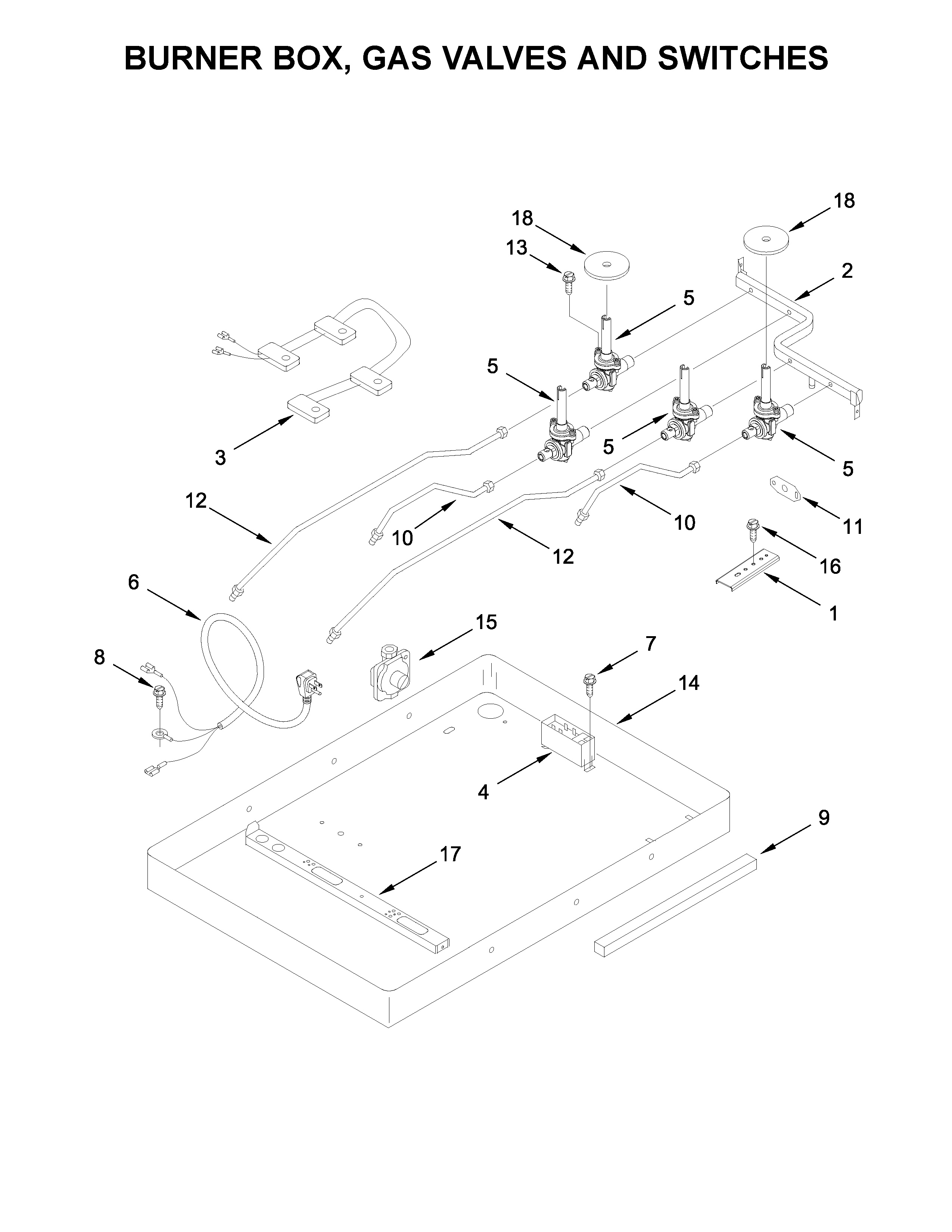

    Burner box, gas valves and switches diagram

    Screw- Sho

    Part #7101P434-60

    Replaced by #WP7101P434-60

    Info Icon
    Manufacturer substitution
    This part replaces 7101P434-60. Substitute parts can look different from the original.
    In Stock
    $28.64
    Minus Item
    Qty
    Plus Item
  • Cooktop Main Top (stainless) for Whirlpool W3CG3014XS02 - Part W11230936

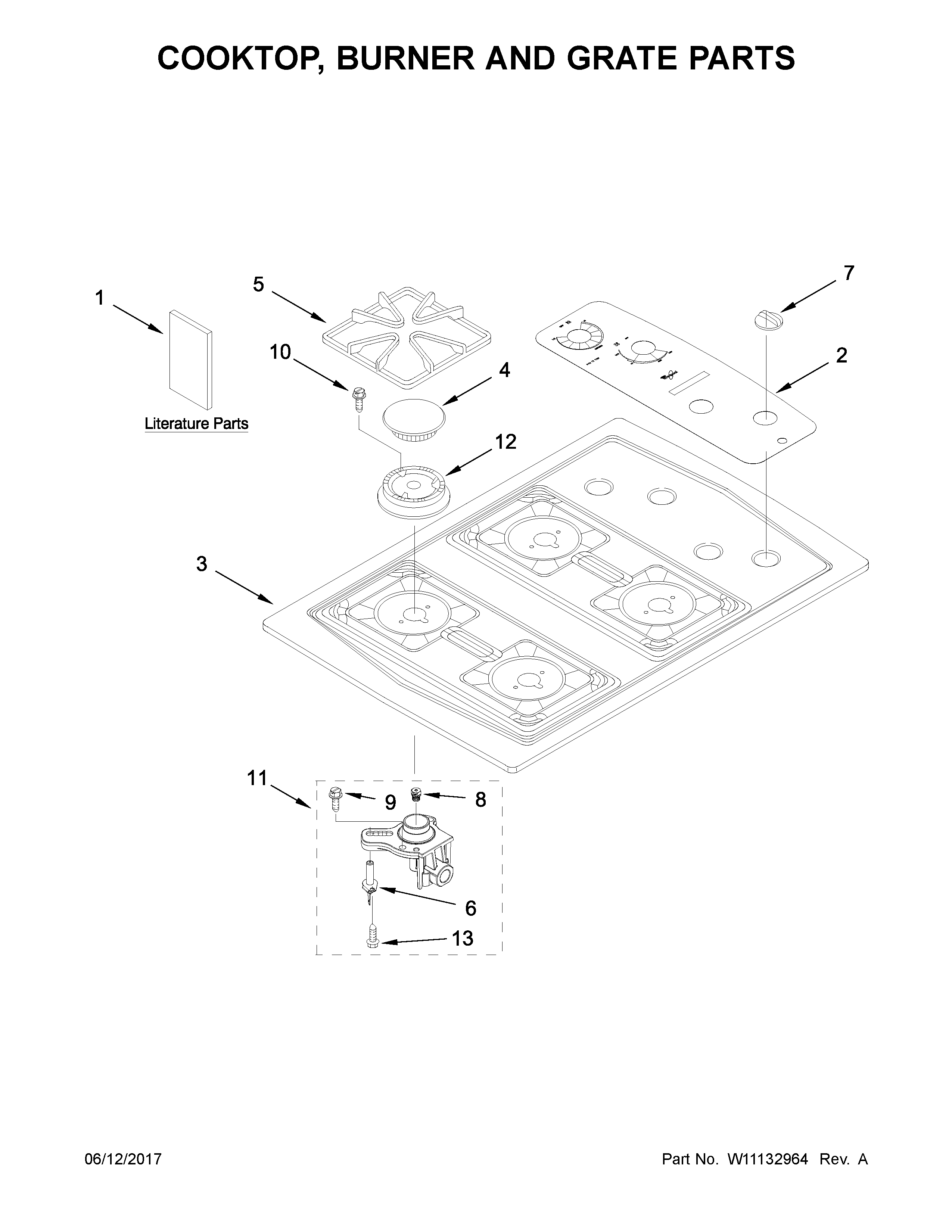

    Cooktop, burner and grate parts diagram

    Cooktop Main Top Assembly

    Part #W10157843

    Replaced by #W11230936

    Info Icon
    Manufacturer substitution
    This part replaces W10157843. Substitute parts can look different from the original.
    In Stock
    $331.72
    $12.00 OFF Phone Price : $343.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Installation Bracket for Whirlpool W3CG3014XS02 - Part 8186533

    Burner box, gas valves and switches diagram

    Mounting Bracket

    Part #4455917

    Replaced by #8186533

    Info Icon
    Manufacturer substitution
    This part replaces 4455917. Substitute parts can look different from the original.
    In Stock
    $8.35
    50% OFF Was : $16.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Gas Valve for Whirlpool W3CG3014XS02 - Part 12002277

    Burner box, gas valves and switches diagram

    Screw- Val

    Part #7101P640-60

    Replaced by #12002277

    Info Icon
    Manufacturer substitution
    This part replaces 7101P640-60. Substitute parts can look different from the original.
    In Stock
    $135.48
    8% OFF Phone Price : $147.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Screw for Whirlpool W3CG3014XS02 - Part WP3400093

    Burner box, gas valves and switches diagram

    Screw

    Part #3400093

    Replaced by #WP3400093

    Info Icon
    Manufacturer substitution
    This part replaces 3400093. Substitute parts can look different from the original.
    In Stock
    $33.43
    Minus Item
    Qty
    Plus Item
  • Cooktop Main Top (black) for Whirlpool W3CG3014XS02 - Part WP3191242

    Cooktop, burner and grate parts diagram

    Cooktop Main Top

    Part #3191242

    Replaced by #WP3191242

    Info Icon
    Manufacturer substitution
    This part replaces 3191242. Substitute parts can look different from the original.
    In Stock
    $276.90
    $12.00 OFF Phone Price : $288.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Burner Cap Set (gray) for Whirlpool W3CG3014XS02 - Part W11189648

    Cooktop, burner and grate parts diagram

    Cooktop Burner Cap

    Part #W10237940

    Replaced by #W11189648

    Info Icon
    Manufacturer substitution
    This part replaces W10237940. Substitute parts can look different from the original.
    In Stock
    $69.09
    8% OFF Phone Price : $75.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Knob for Whirlpool W3CG3014XS02 - Part WP8286057WH

    Cooktop, burner and grate parts diagram

    Cooktop Burner Knob

    Part #8286057WH

    Replaced by #WP8286057WH

    Info Icon
    Manufacturer substitution
    This part replaces 8286057WH. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.44
    12% OFF Phone Price : $8.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve for Whirlpool W3CG3014XS02 - Part WP4456816

    Burner box, gas valves and switches diagram

    Surface Burner Valve (red)

    Part #4456816

    Replaced by #WP4456816

    Info Icon
    Manufacturer substitution
    This part replaces 4456816. Substitute parts can look different from the original.
    In Stock
    $159.10
    7% OFF Phone Price : $171.10Info Icon
    Minus Item
    Qty
    Plus Item
  • Orifice for Whirlpool W3CG3014XS02 - Part WP9753929

    Cooktop, burner and grate parts diagram

    Orifice

    Part #9753929

    Replaced by #WP9753929

    Info Icon
    Manufacturer substitution
    This part replaces 9753929. Substitute parts can look different from the original.
    In Stock
    $99.17
    Minus Item
    Qty
    Plus Item
