Kenmore 9119398710 electric range Parts
Here are the diagrams and repair parts for Kenmore 9119398710 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

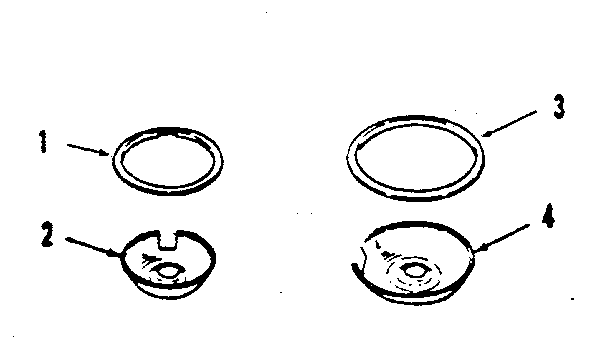

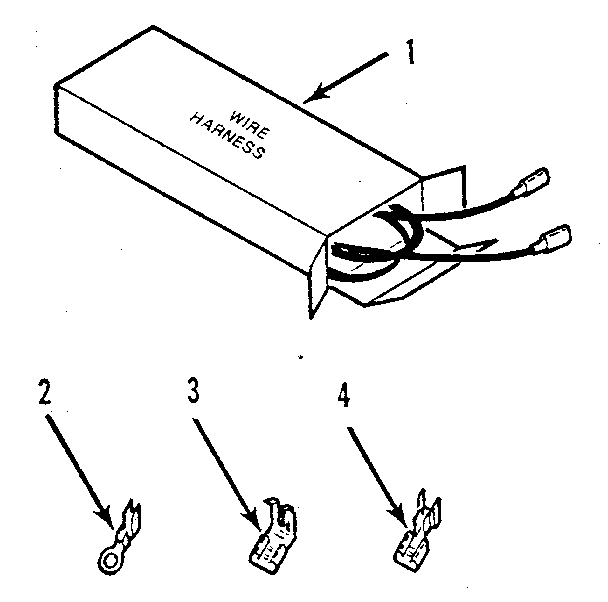

Browse Parts for 9119398710 Ranges

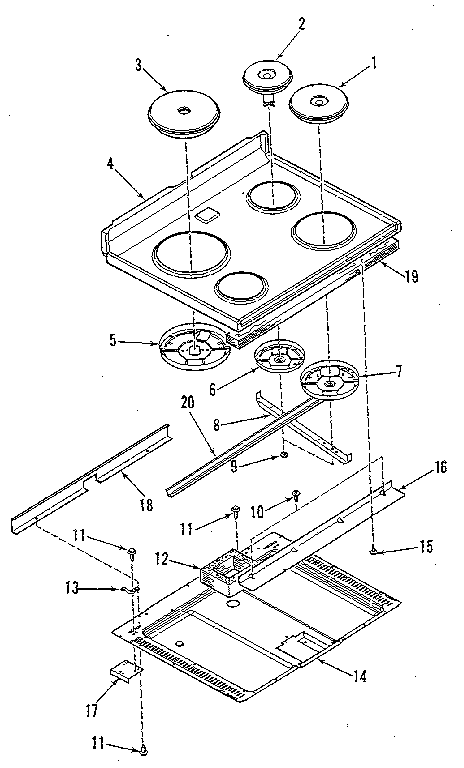

Main top section diagram
Hinge
Part #334089Replaced by #WB14X127
Manufacturer substitutionThis part replaces 334089. Substitute parts can look different from the original.In Stock$36.36
Qty

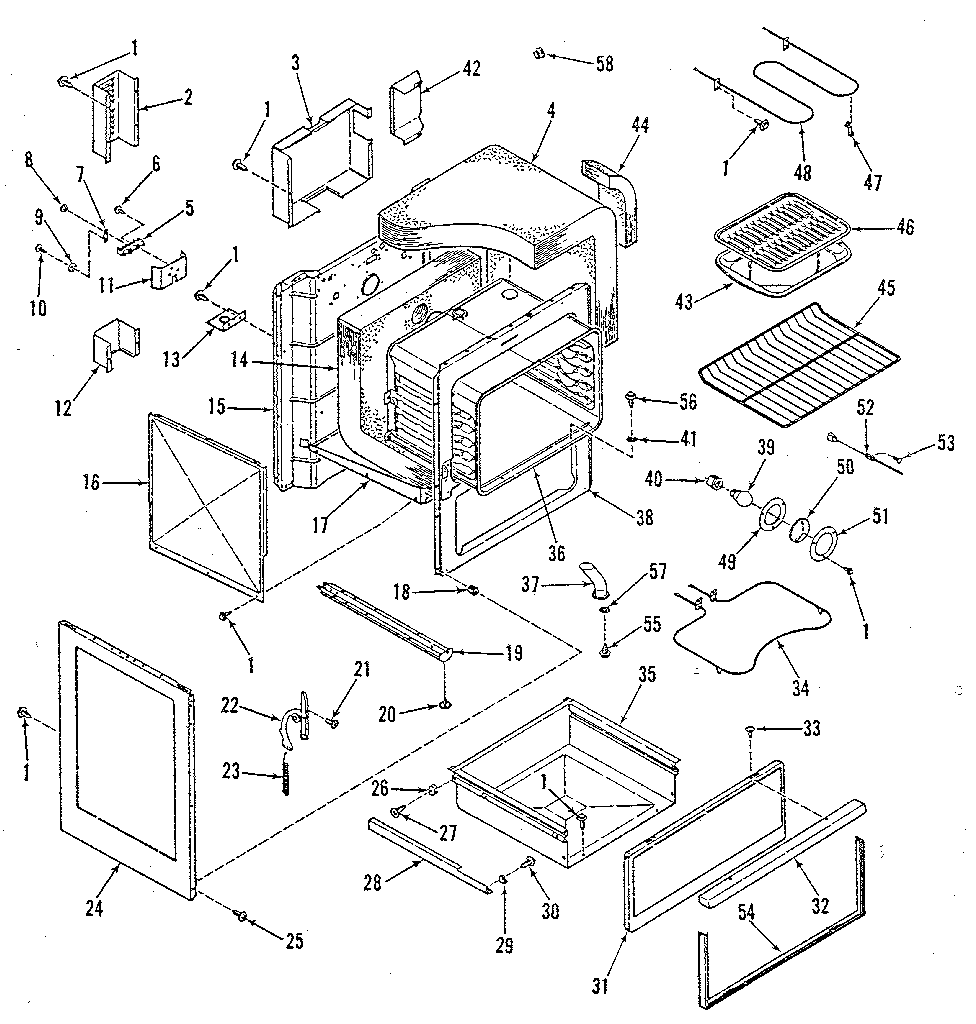

Body section diagram
Hex Nut
Part #339957Replaced by #WB1X1259
Manufacturer substitutionThis part replaces 339957. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38
QtyWasher
Part #335178Replaced by #WB1K5054

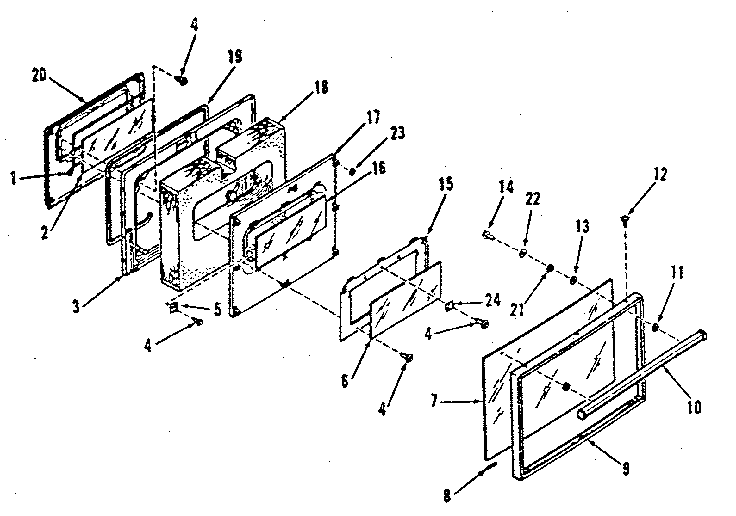

Manufacturer substitutionThis part replaces 335178. Substitute parts can look different from the original.In Stock$29.26QtyOven door section diagram
Spacer
Part #333015Replaced by #WB2X9039
Manufacturer substitutionThis part replaces 333015. Substitute parts can look different from the original.In Stock$31.64QtyBody section diagram
Support
Part #339593Replaced by #WB2X9719

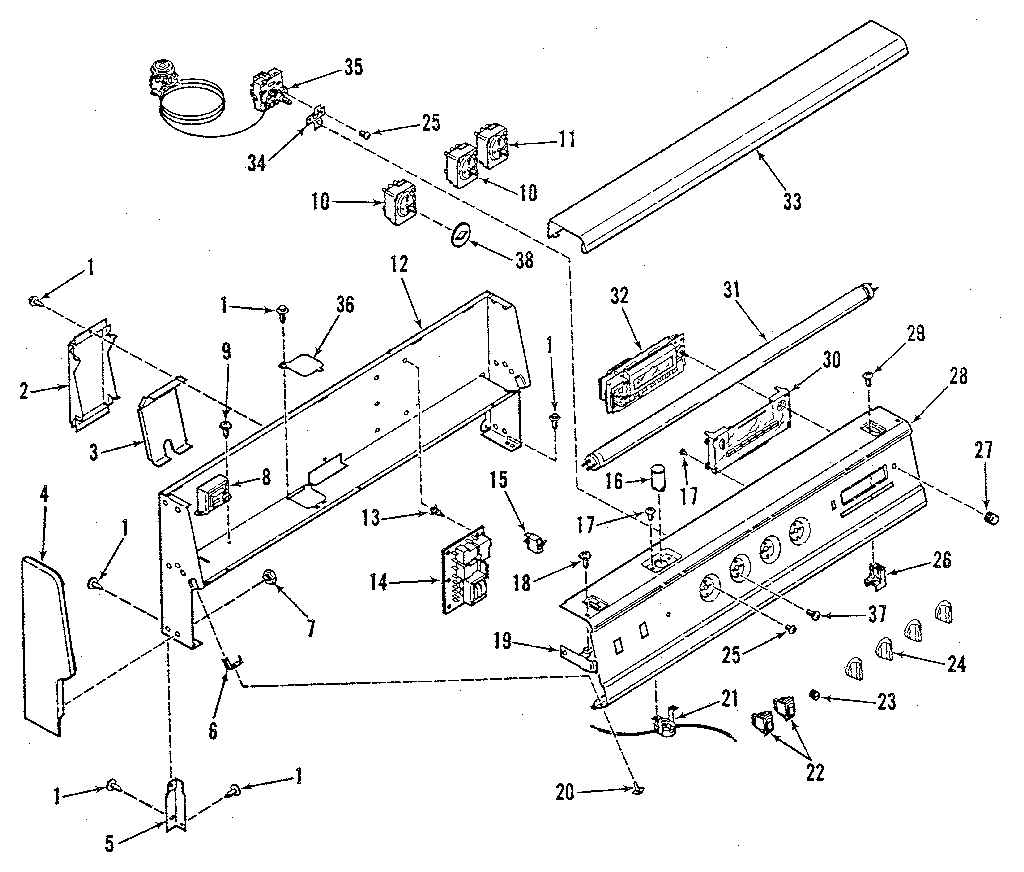

Manufacturer substitutionThis part replaces 339593. Substitute parts can look different from the original.In Stock$10.8416% OFF Phone Price : $12.84QtyBackguard section diagram
Infinite Switch
Part #336120Replaced by #WB21X36771

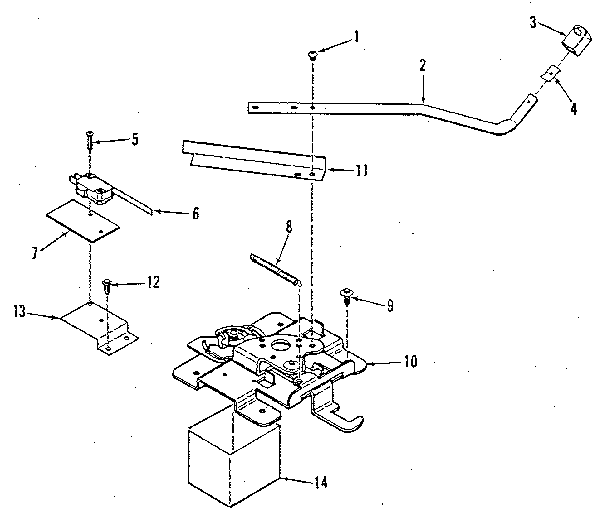

Manufacturer substitutionThis part replaces 336120. Substitute parts can look different from the original.In Stock$36.0014% OFF Phone Price : $42.00QtyPower lock section diagram
Lever
Part #336027Replaced by #WB2X9881
Manufacturer substitutionThis part replaces 336027. Substitute parts can look different from the original.In Stock$28.22QtyBackguard section diagram
Lamp Holder
Part #334173Replaced by #WB8X291
Manufacturer substitutionThis part replaces 334173. Substitute parts can look different from the original.In Stock$29.79QtyBody section diagram
Door Hinge
Part #332346Replaced by #WB14X103
Manufacturer substitutionThis part replaces 332346. Substitute parts can look different from the original.In Stock$47.1020% OFF Was : $59.15QtyOven door section diagram
Insulation
Part #335782Replaced by #WB35M2
Manufacturer substitutionThis part replaces 335782. Substitute parts can look different from the original.In Stock$137.50Qty
