Model #FRS26ZTHQ3 Frigidaire refrigerator

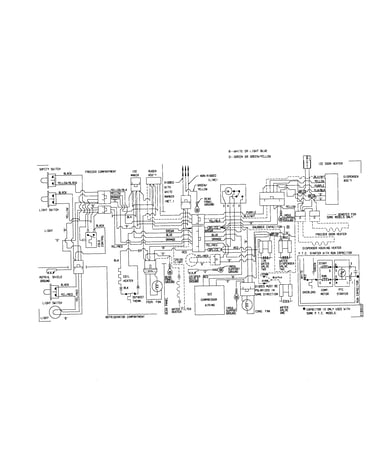

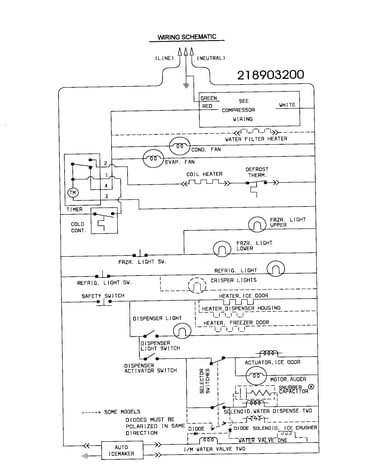

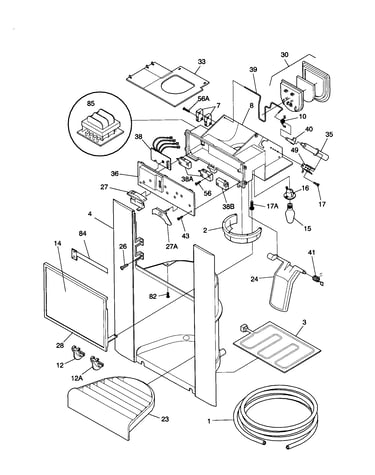

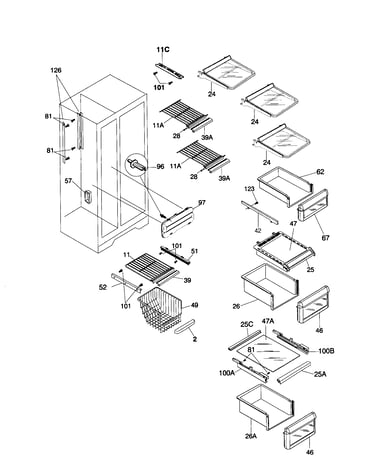

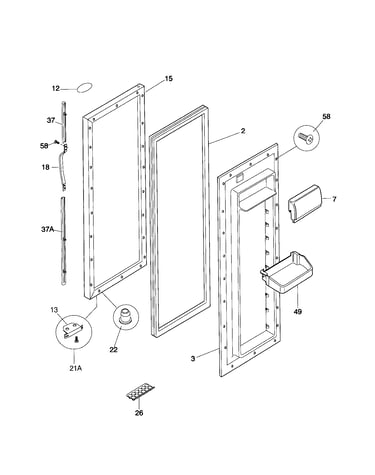

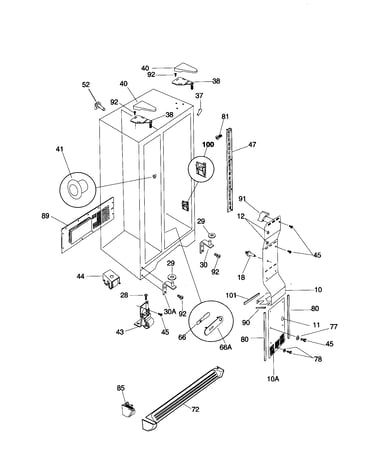

Here are the diagrams and repair parts for Frigidaire FRS26ZTHQ3 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

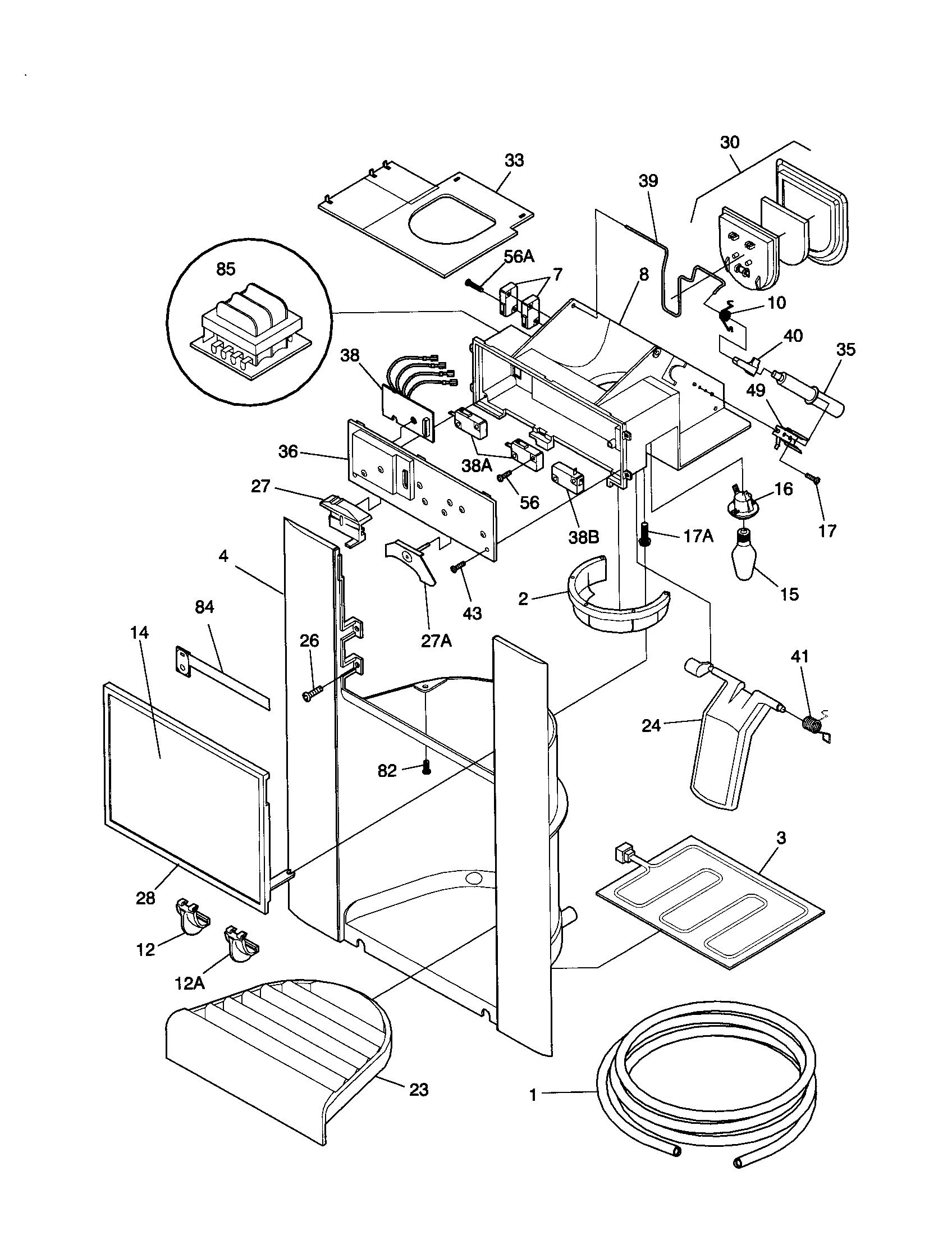

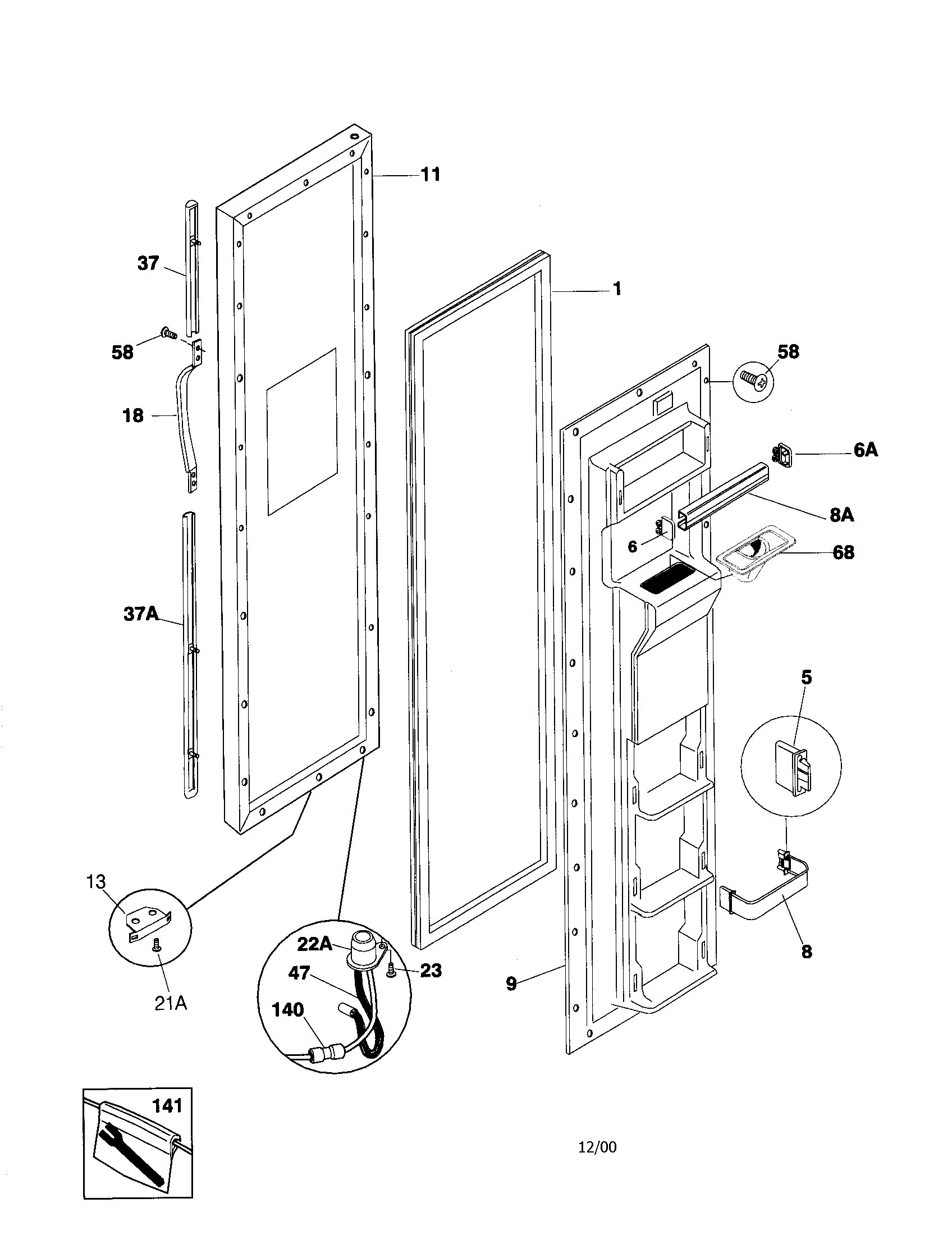

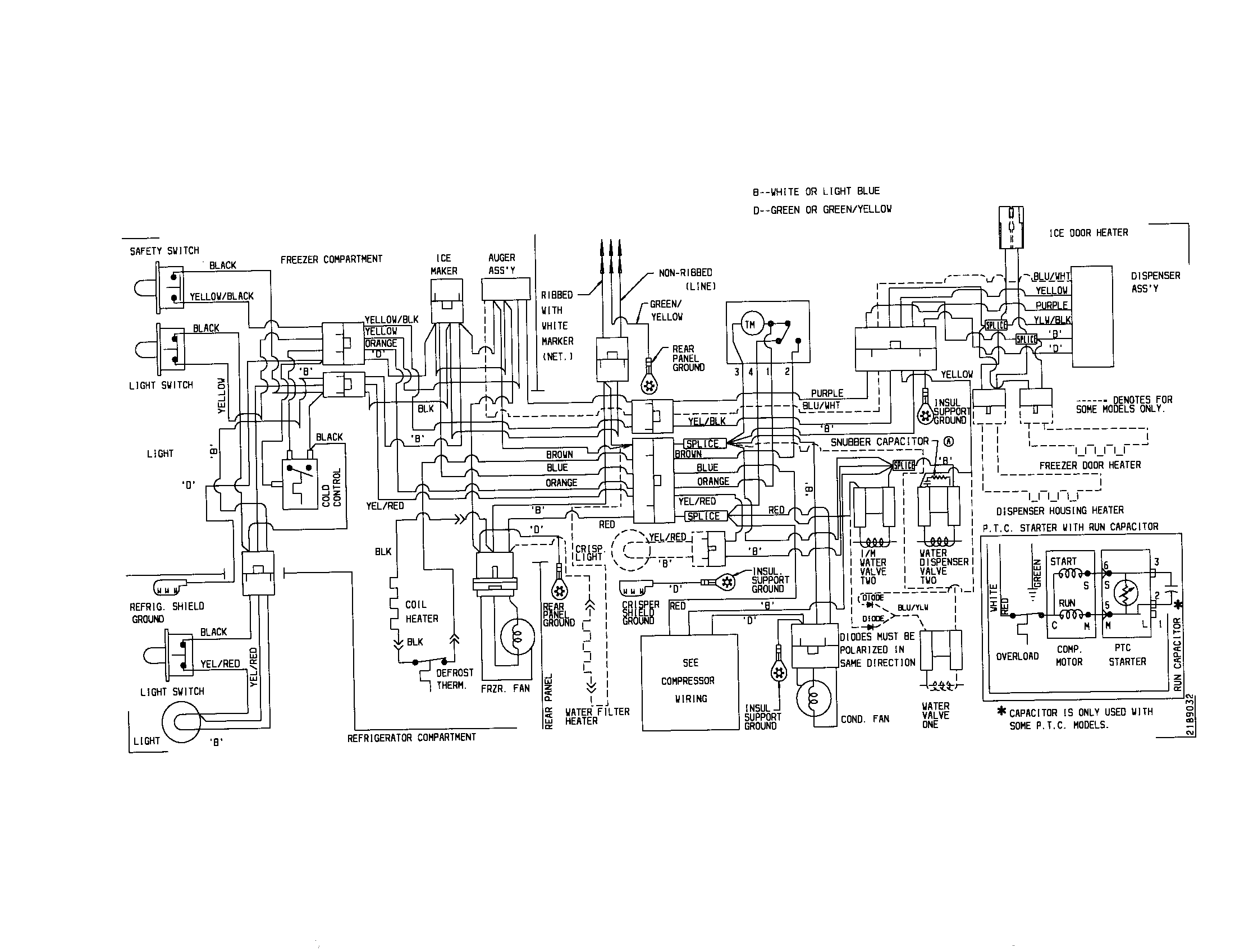

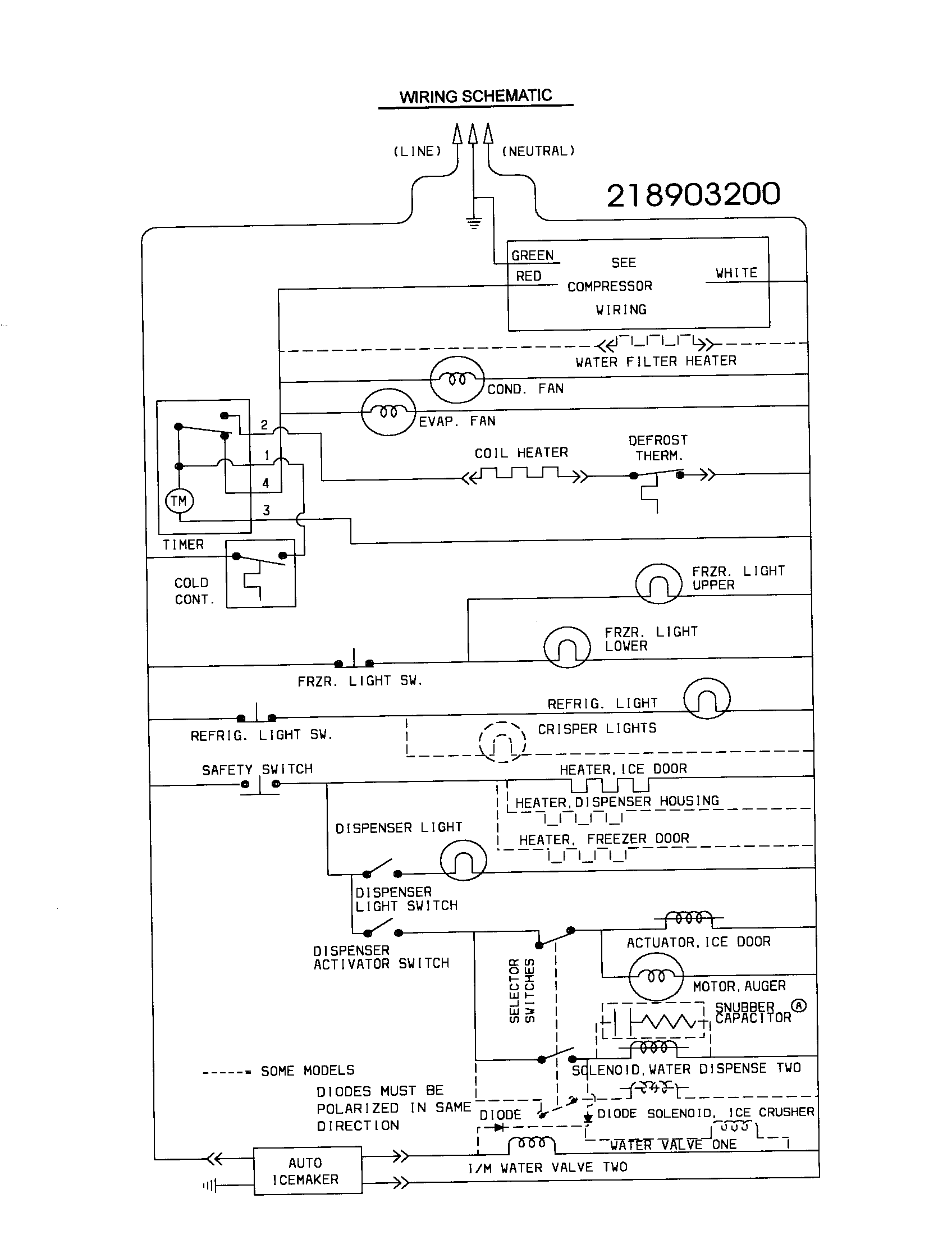

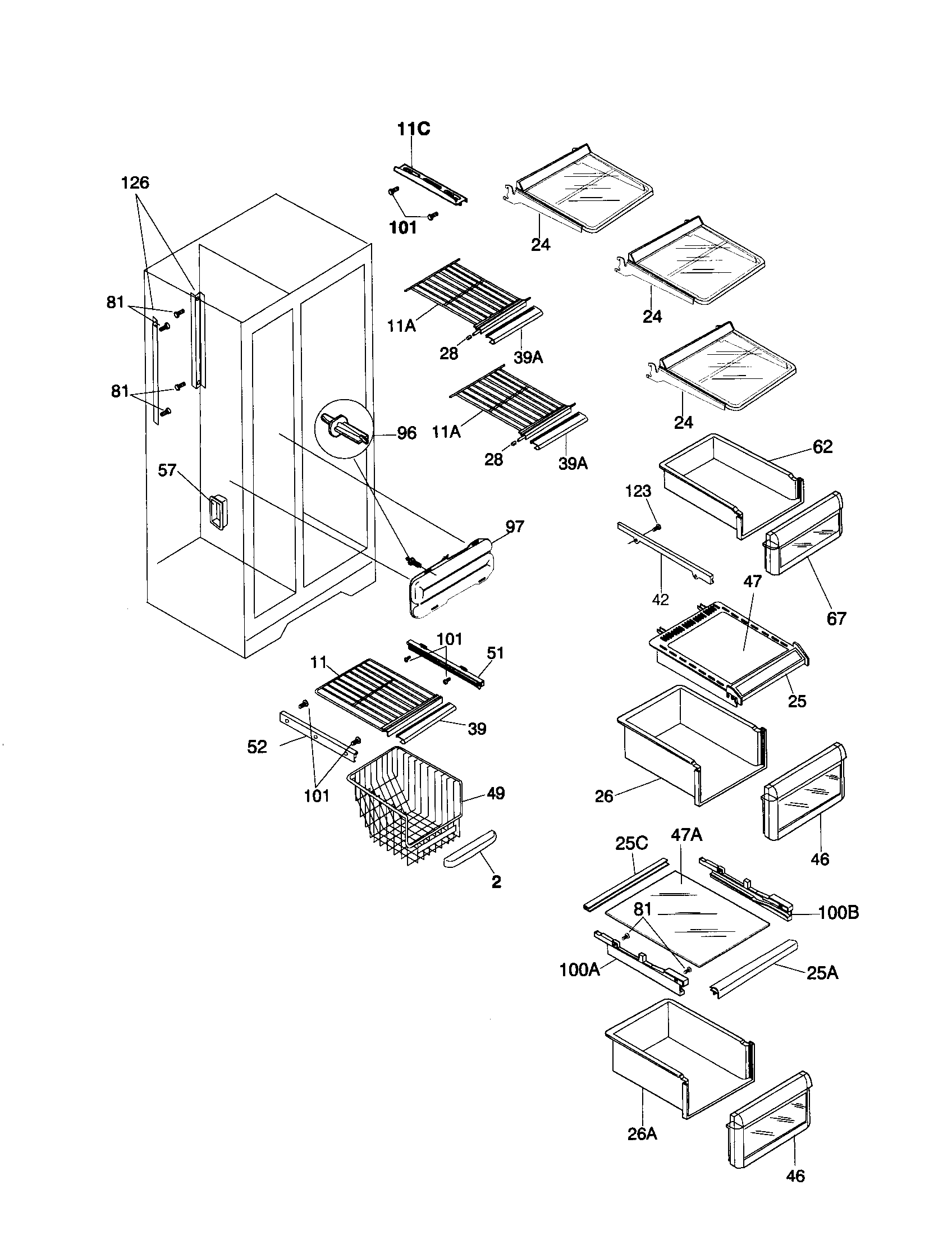

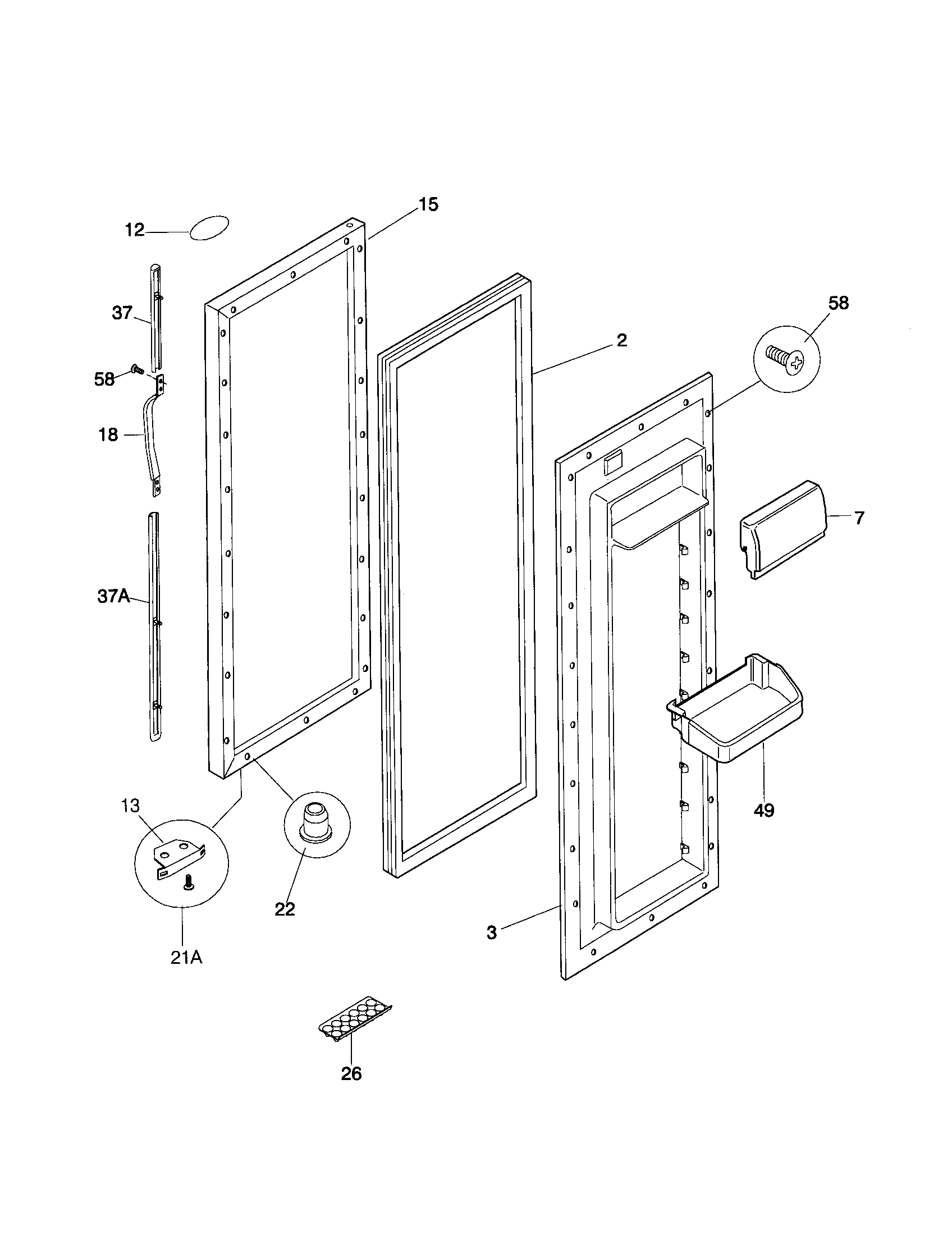

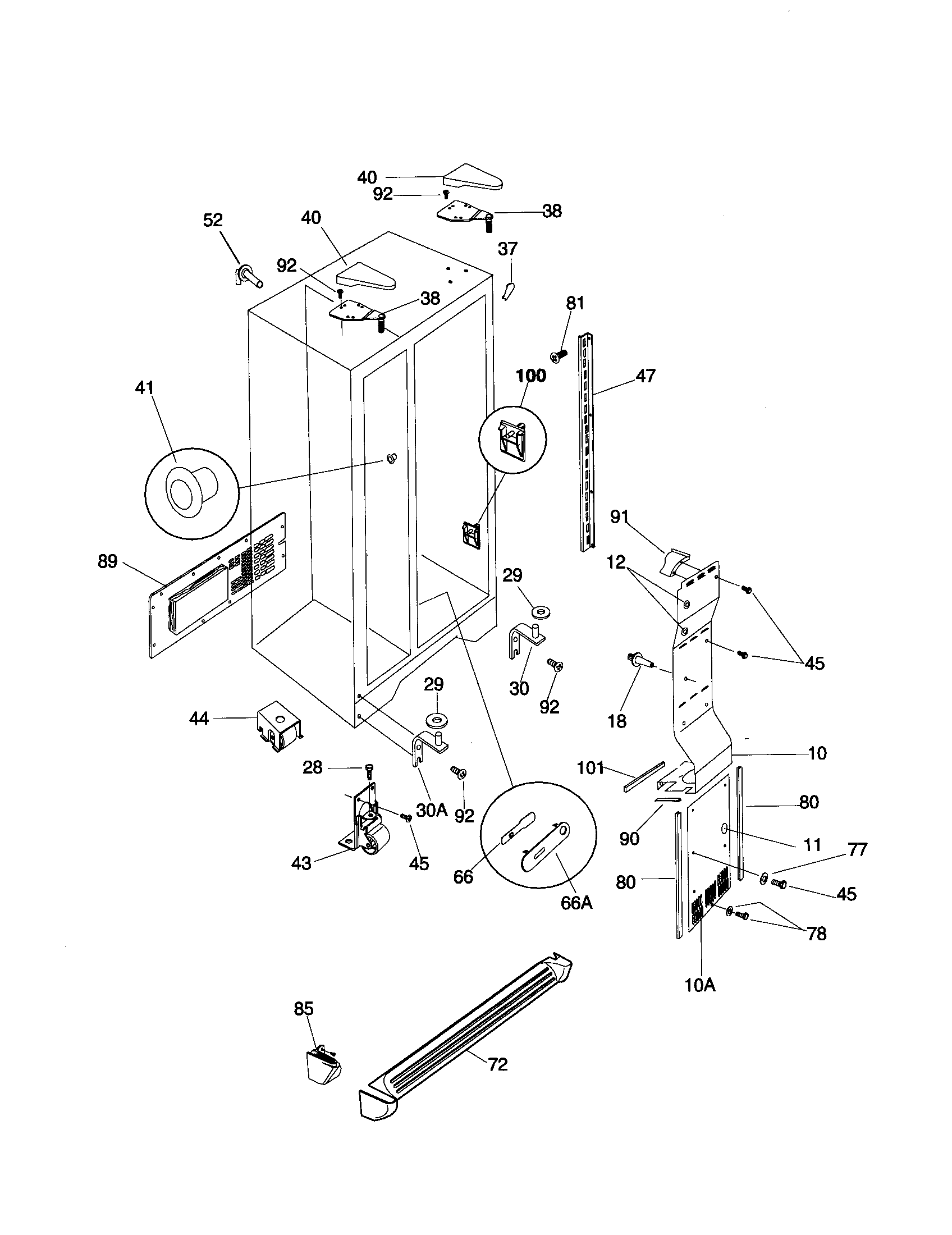

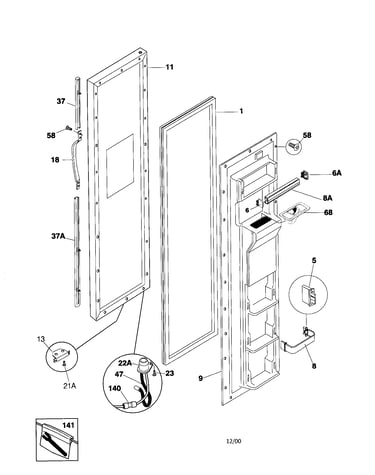

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 350 parts

    Refrigerator Ice Maker#17

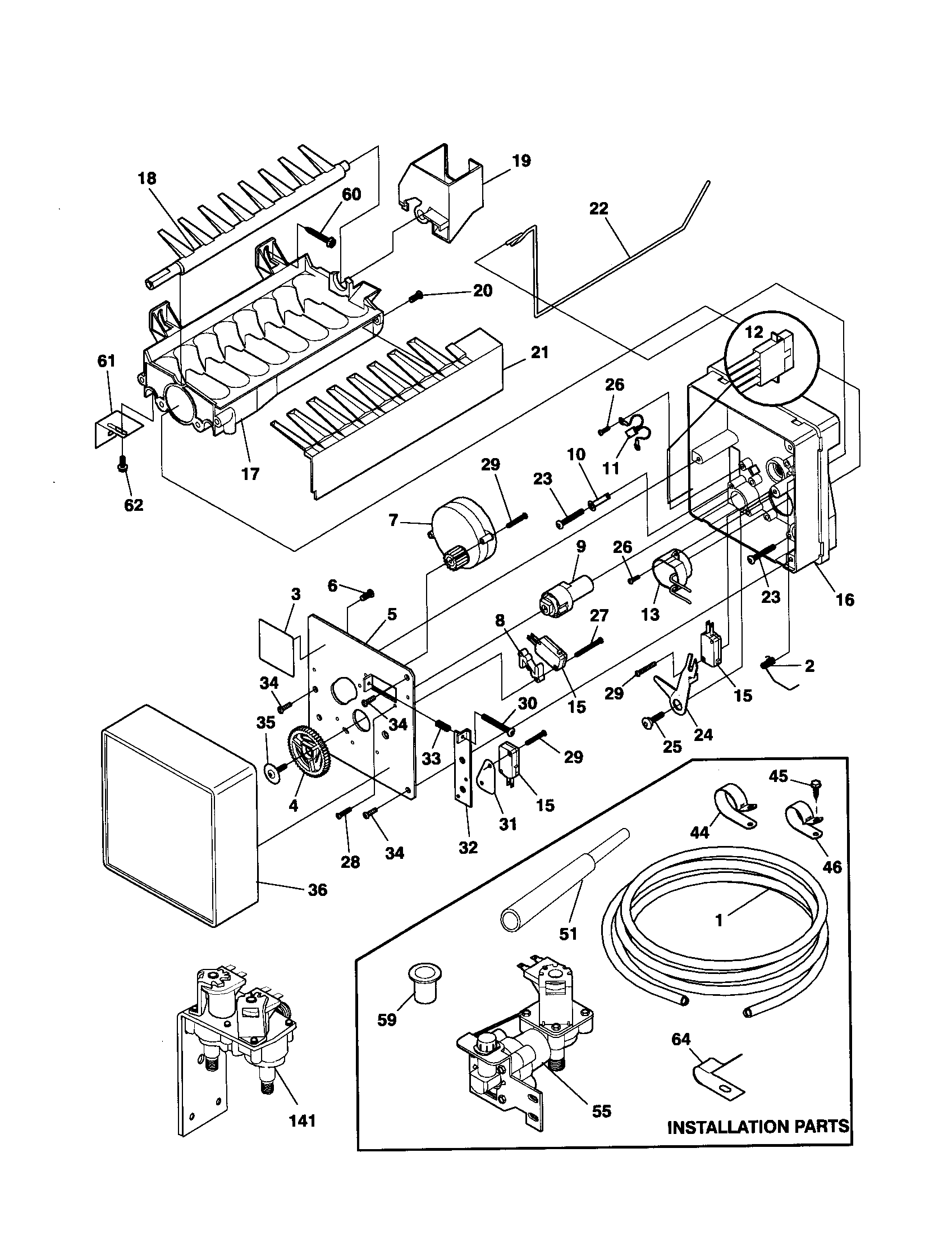

    Ice maker Diagram

    Ice maker mold

    Part #5303320545
    Replaced by #241798231
    ?
    Manufacturer substitution
    This part replaces 5303320545. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $126.84 |
    9% OFF
    MSRP: $140.00
    Frigidaire PureSource Plus Refrigerator Water Filter#137

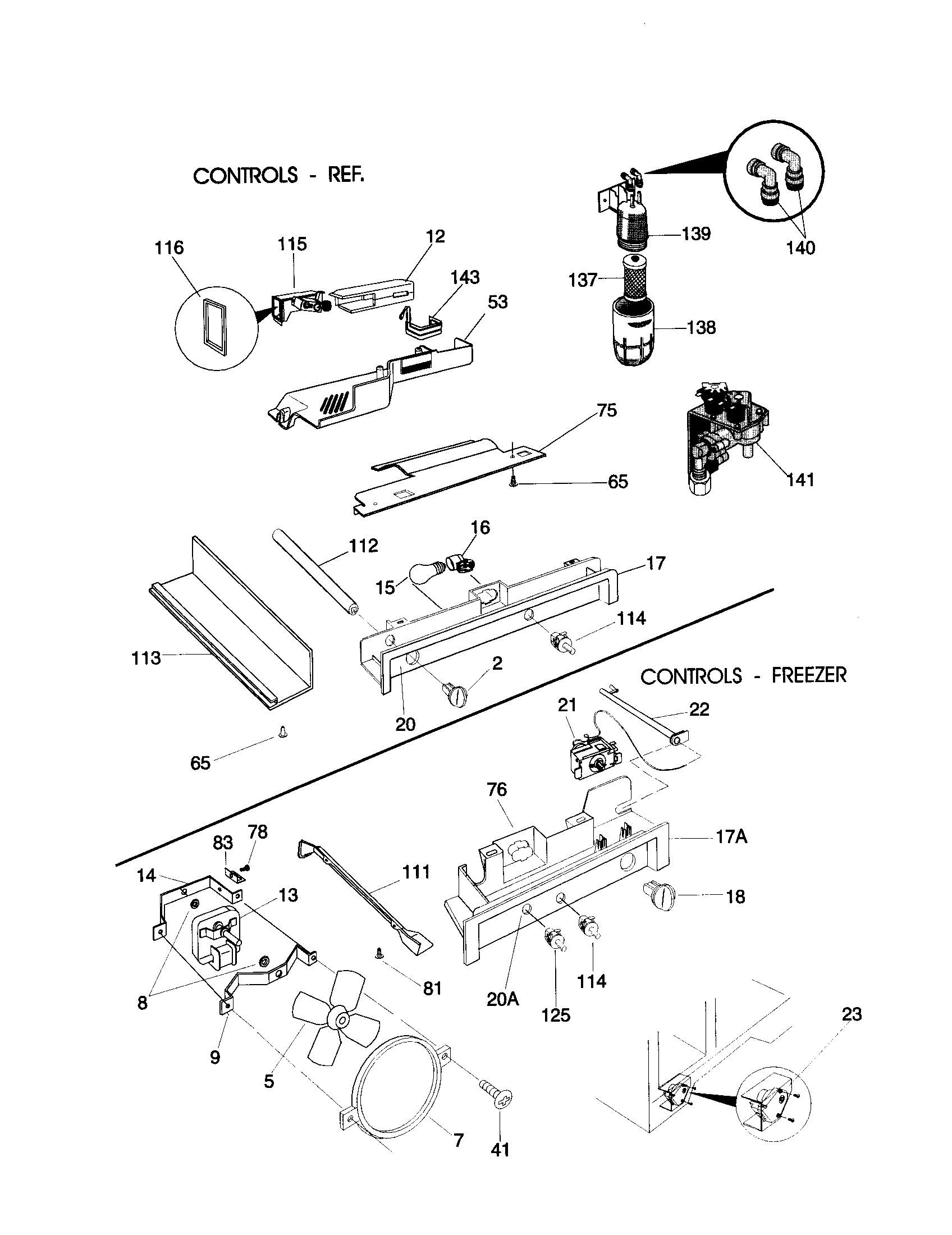

    Controls Diagram

    Frigidaire puresource plus refrigerator water filter

    Part #WFCB
    BEST SELLER

    Get free shipping with Automatic Reorder

    Back Order
    $34.98 |
    8% OFF
    MSRP: $38.00
    Range Oven Light Bulb

    See All Related Diagrams

    Appliance light bulb, 40-watt

    Part #5303001179
    Replaced by #316538904
    ?
    Manufacturer substitution
    This part replaces 5303001179. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.09 |
    19% OFF
    Phone Price: $26.09
    Refrigeration Appliance Defrost Bi-Metal Thermostat#21

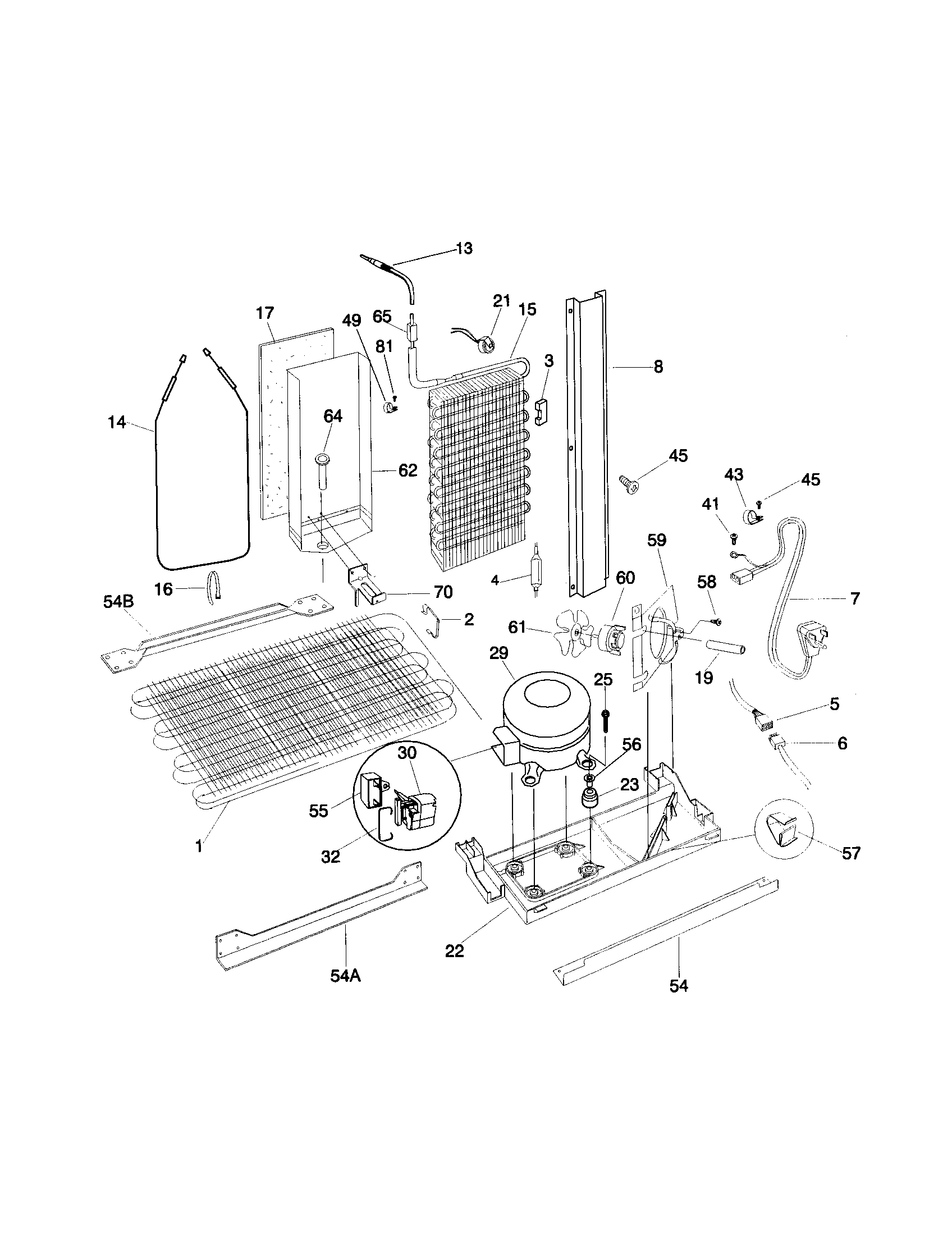

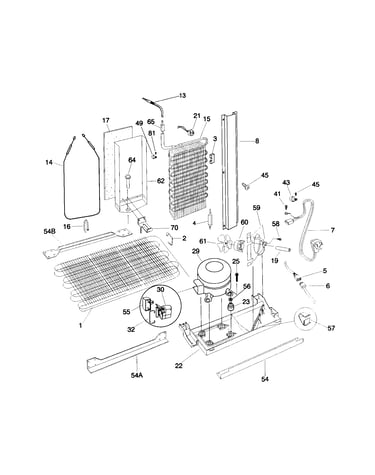

    System Diagram

    Thermostat

    Part #218969902
    Replaced by #297216600
    ?
    Manufacturer substitution
    This part replaces 218969902. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.39 |
    9% OFF
    Phone Price: $21.39
    Refrigerator Defrost Timer#23

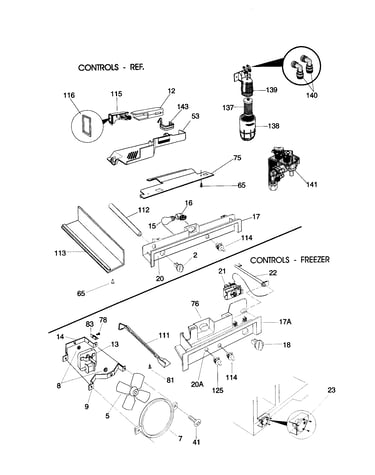

    Controls Diagram

    Refrigerator defrost timer

    Part #215846602
    BEST SELLER
    In Stock
    $27.79 |
    15% OFF
    Phone Price: $32.79
    Refrigerator Run Capacitor#55

    System Diagram

    Chest freezer run capacitor

    Part #218909901
    Replaced by #5304464438
    ?
    Manufacturer substitution
    This part replaces 218909901. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $42.39 |
    11% OFF
    Phone Price: $47.39
    Refrigerator Ice Maker Assembly

    #NI

    All parts Diagram

    I/m assy 115

    Part #218699501
    Replaced by #5303918277
    ?
    Manufacturer substitution
    This part replaces 218699501. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $179.19 |
    5% OFF
    Phone Price: $189.19

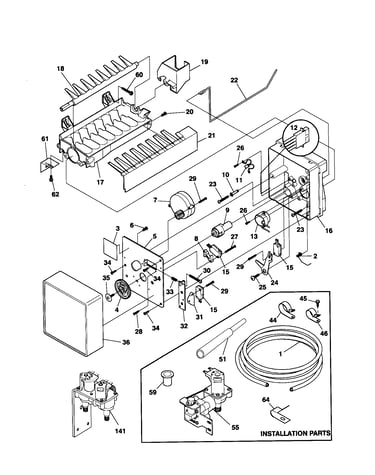

    Refrigerator Ice Maker Assembly#7

    Ice maker Diagram

    Refrigerator ice maker assembly

    Part #3206306
    Replaced by #5303918277
    ?
    Manufacturer substitution
    This part replaces 3206306. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $179.19 |
    5% OFF
    Phone Price: $189.19
    Refrigerator Filter Dryer#4

    System Diagram

    Refrigerator filter drier

    Part #218944001
    Replaced by #5303305677
    ?
    Manufacturer substitution
    This part replaces 218944001. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $11.44 |
    46% OFF
    Was: $21.09

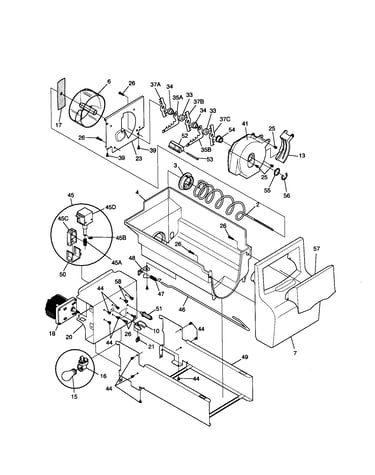

    Refrigerator Auger Drum#6

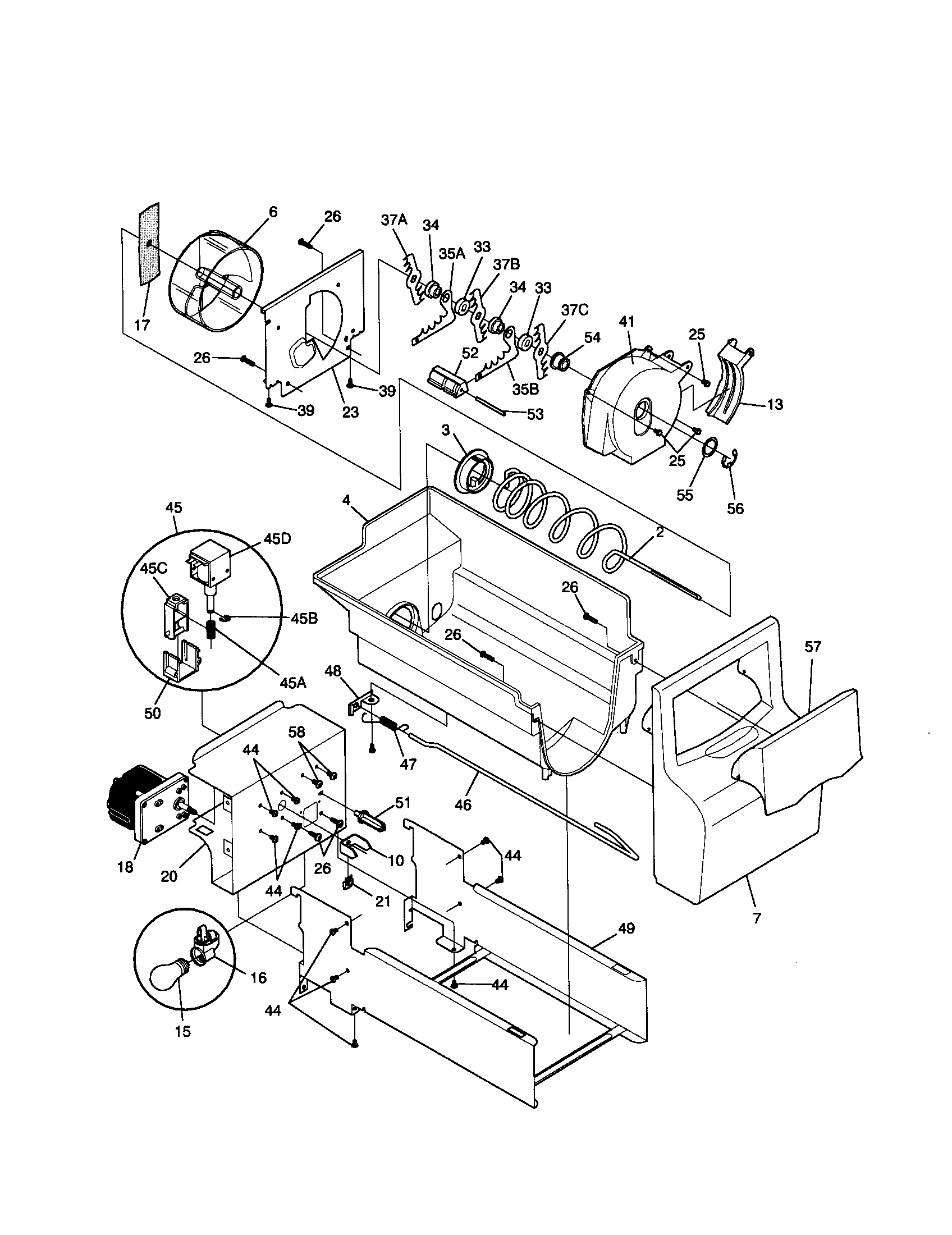

    Ice container Diagram

    Refrigerator dispenser drum

    Part #5304404346
    Replaced by #241685101
    ?
    Manufacturer substitution
    This part replaces 5304404346. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $40.89 |
    11% OFF
    Phone Price: $45.89
