GE PNS20KSEAFSS bottom-mount refrigerator Parts

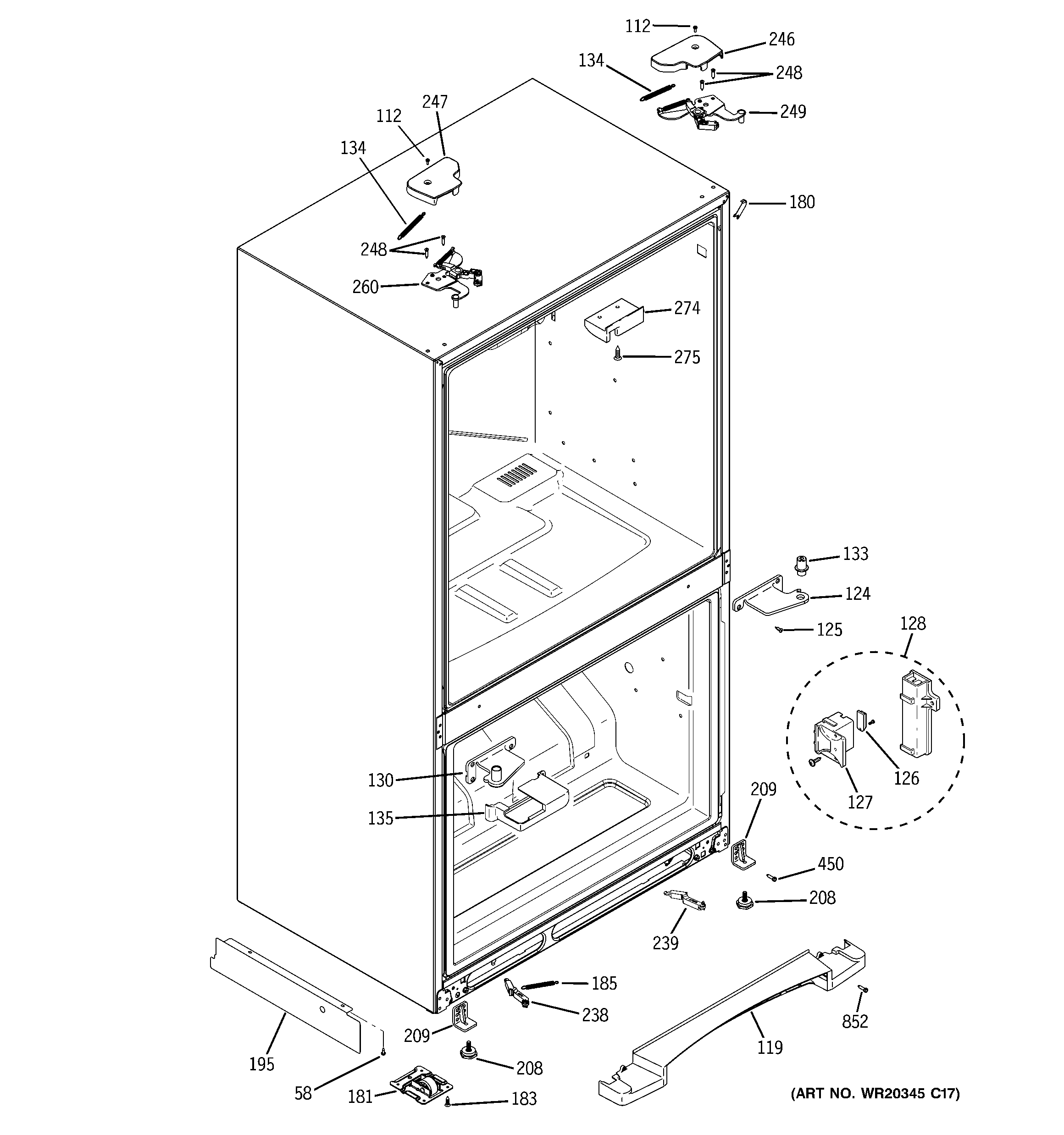

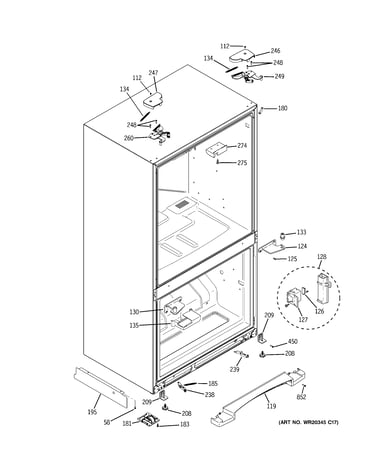

On the GE PNS20KSEAFSS bottom-mount refrigerator, you reinstall the bottom grille (base grille) by positioning it at the bottom front of the cabinet, lining up the mounting holes, and securing it with the two Phillips-head screws you removed.

• Unplug the refrigerator or switch off power at the breaker.
• Position the base grille at the bottom front of the refrigerator.
• Align the grille mounting holes with the cabinet holes.
• Install and tighten the two Phillips-head screws.
• Confirm the grille sits flush and does not rub the freezer drawer.

For the exact screw locations and related leveling steps, follow the PNS20KSEAFSS owner's manual.

These are the most common causes on bottom-mount models:

• The grille is upside down or not centered.
• One side is caught behind the cabinet lip.
• The refrigerator is not level, so the grille opening is slightly skewed.

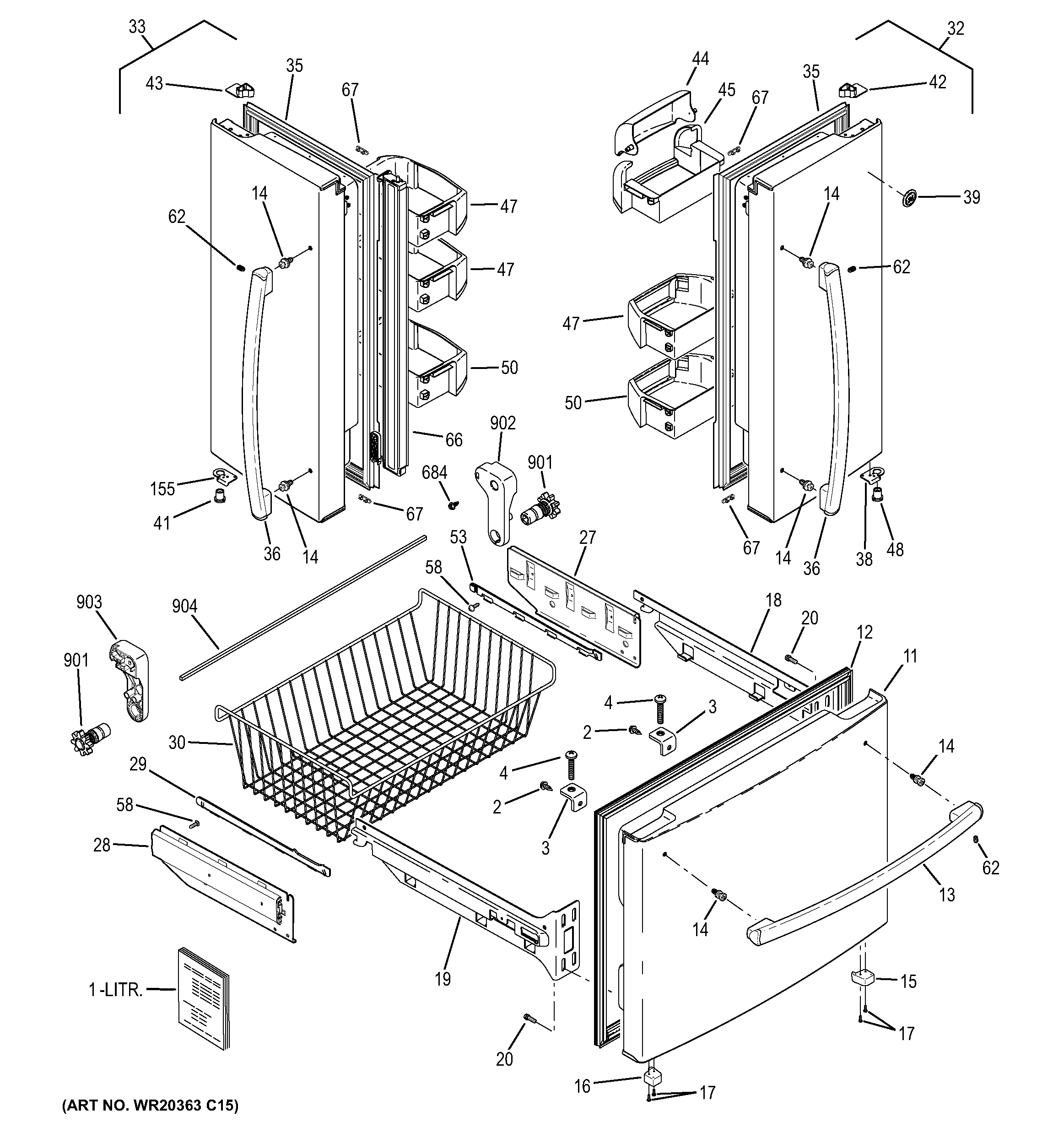

• The freezer drawer front is not fully seated on the rails.
• A mounting screw is cross-threaded or missing.

The base grille helps protect components at the bottom front of the refrigerator and keeps airflow and clearances consistent around the lower cabinet area. A loose or misaligned grille can rattle, interfere with the freezer drawer, or make leveling adjustments harder.

Last updated: February 2026

A bottom-mount refrigerator like the GE PNS20KSEAFSS is better when you want everyday convenience and organization because the fresh-food section sits at eye level. A top-mount is better when you want the simplest layout and typically lower energy use.

• If you cook often and use fresh foods daily, bottom-mount usually feels better because the refrigerator shelves are at eye level.
• If you use the freezer more than the refrigerator, a top-mount can be more convenient.
• If you have tight doorways or a tight install space, check depth and clearance needs before deciding; the owner's manual lists installation clearances and notes this refrigerator is about 34-1/2 inches deep.
• If you want fewer door-swing and alignment headaches, focus on proper leveling and clearances during install; leveling legs and correct placement help doors close correctly.
• If energy cost is your top priority, compare the EnergyGuide label for the exact models you are considering.

Bottom-mount designs prioritize comfort and food visibility, which can reduce forgotten items and improve day-to-day usability. Top-mount designs prioritize simplicity and can be a strong fit for smaller budgets and freezer-forward households.

Last updated: February 2026

The most common issues we see with the GE PNS20KSEAFSS bottom-mount refrigerator are ice maker performance problems (slow or no ice) and cooling complaints tied to airflow and temperature sensing. Many symptoms trace back to door openings, control settings, or a failing sensor or fan.

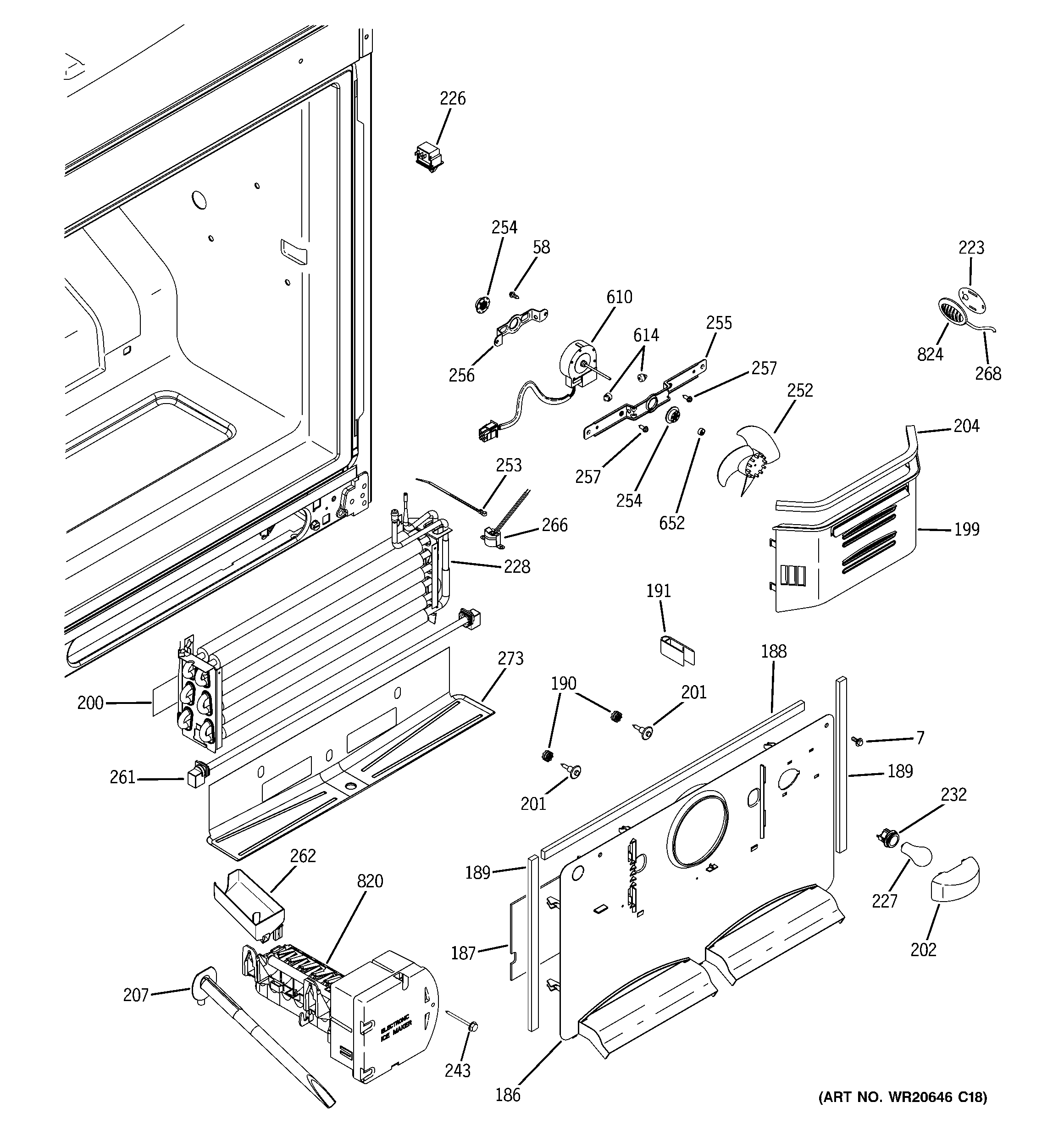

• Ice maker not making ice or cubes freezing slowly
• Ice cubes taste or smell bad
• Fresh food section too warm while freezer seems OK
• Food freezing in the refrigerator section (too cold near the rear vent)
• Moisture inside the refrigerator during humid weather
• Light not working (bulb loose or burned out)

Start with these basics before replacing parts:

• Confirm doors fully close and nothing is holding them open (this can slow ice production).
• Adjust temperature controls one step at a time; if food freezes in the refrigerator, move the refrigerator control warmer.
• Keep food away from the rear air vent to prevent freezing and airflow blockage.
• If ice tastes or smells off, wrap strong-odor foods and clean the interior; keep an open box of baking soda and replace it every 3 months.
• If the ice maker power light is off, close the freezer door (the light can be off when the door is open).

If the basics do not solve it, these model-matched parts are often involved in ice and cooling complaints:

Ice maker and cooling problems usually get worse over time. Fixing airflow restrictions, door-closing issues, and temperature sensing early helps protect food, reduce frost buildup, and prevent the compressor from running excessively.

For troubleshooting steps and control-setting guidance specific to this GE refrigerator, use the owner's manual.

Last updated: February 2026
