How many cubic feet is a Kenmore freezer model 25326093100?
Kenmore Elite upright freezer model 25326093100 has a capacity of 20.5 cubic feet. This is the total interior storage volume used to compare freezer sizes and plan how much frozen food you can store.
| Model | Freezer type | Capacity |
|---|---|---|
| 25326093100 | Upright freezer | 20.5 cu. ft. |
A 20.5 cu. ft. upright freezer is a full-size unit designed for family storage and bulk buying. To get the best performance and usable space:
- Leave space around air vents so cold air can circulate
- Avoid packing items tightly against the back wall
- Let hot foods cool before loading to reduce pull-down time
- Keep the door gasket sealing tightly to prevent frost and temperature swings
- Use baskets and shelves to separate frequently used items from long-term storage
You can verify the capacity and other key specs directly on the freezer:
- Check the rating plate inside the cabinet (commonly on the upper left interior wall on upright models)
- Review the model identification and feature information in the 25326093100 owner's manual
- Match the model number exactly (25326093100) when comparing specifications
Capacity helps you choose the right freezer size for your household, set expectations for freezing performance after large grocery loads, and plan organization so airflow stays open for consistent temperatures.
Last updated: January 2026
What are the most common issues with 25326093100?
The most common problems we see with the Kenmore Elite 25326093100 upright freezer are warm temperatures, heavy frost buildup, water leaking inside the cabinet, and ice maker issues (no ice or leaking). These symptoms usually trace to airflow, defrost, door sealing, or control and compressor-start components.
- Freezer not cold enough: dirty condenser coil, weak evaporator fan motor, sealed-system issue, or a control problem
- Frost or ice on the back wall: defrost heater or defrost thermostat issue, or a door not sealing
- Water pooling or ice on the floor of the freezer: clogged or frozen drain tube
- Door hard to open or moisture around the door: worn door gasket or breather valve issue

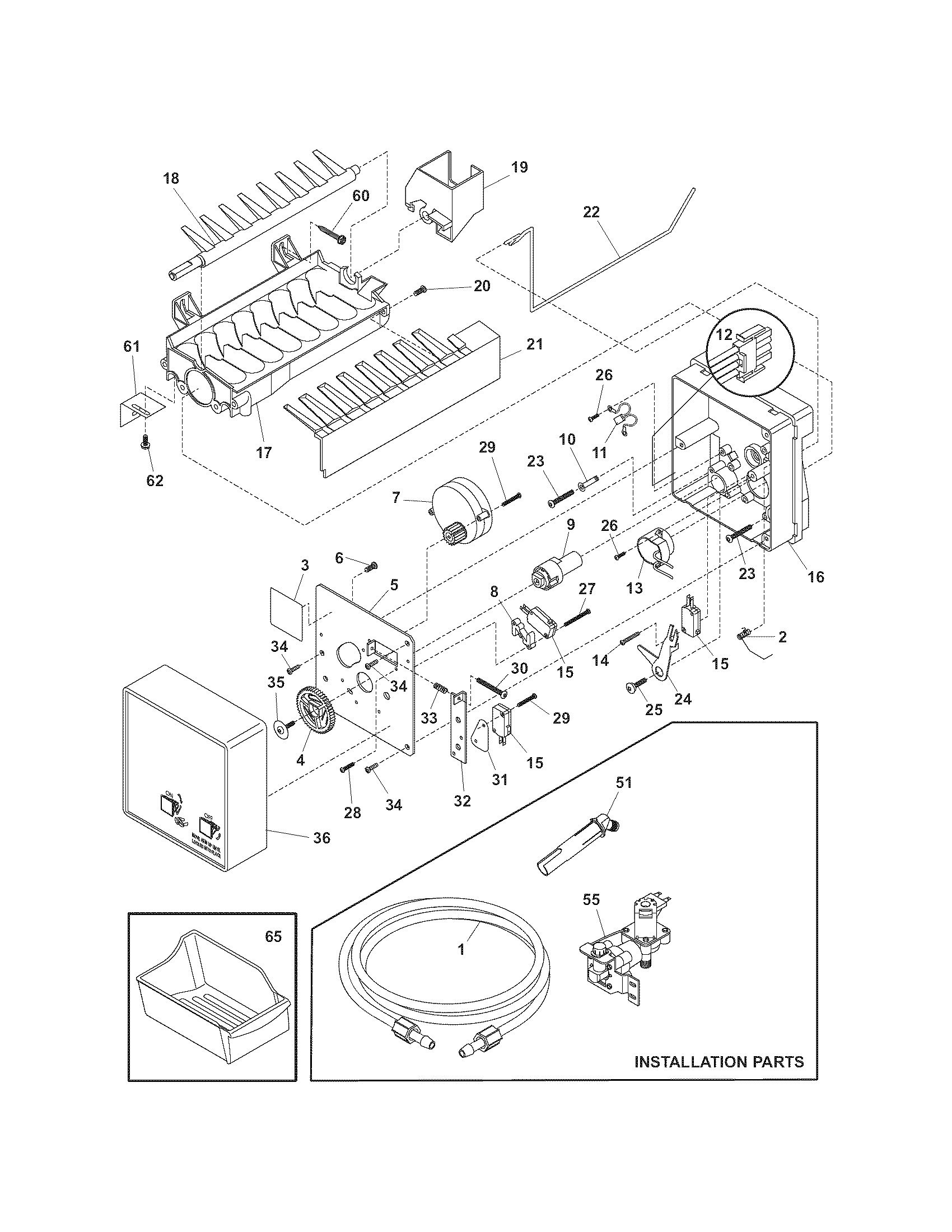

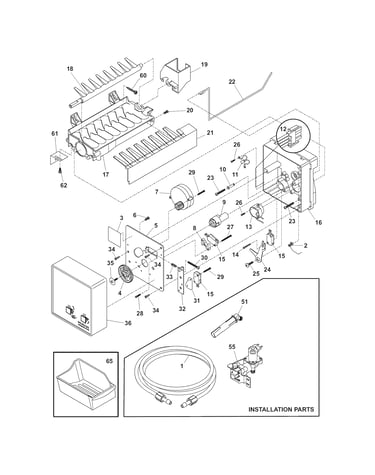

- Ice maker not working: ice maker assembly, fill tube icing, or ice maker thermostat issue
If your symptom matches, these model-compatible parts are often involved:
| Symptom | Commonly involved part | Example part on this model page |
|---|---|---|
| Frost buildup | Defrost system | Freezer defrost heater 216730700, chest freezer defrost thermostat 297216600 |
| Warm temps | Airflow or control | Motor 297309000, frigidaire freezer electronic control board 216979700 |
| Leaking/ice on bottom | Drain system | Freezer drain tube 5304512272 |
| Door sweating/frost | Door seal | Freezer door gasket 5304507205 |
- Set the control colder and give it 24 hours to stabilize.
- Make sure vents are not blocked by food packages or baskets.
- Clean dust from the condenser area and confirm the fan runs (if equipped).
- Inspect the door gasket for gaps, tears, or areas that do not grip paper.
- If you see a solid ice sheet on the back wall, plan to troubleshoot the defrost system.
A warm freezer or frost buildup can force the compressor to run longer, increase energy use, and lead to food thawing. Catching a drain or gasket problem early also prevents recurring ice and water damage inside the cabinet.
For model-specific operating details and troubleshooting steps, use the 25326093100 owner's manual.
Last updated: March 2026
Why is my Kenmore Elite freezer not freezing?
If your Kenmore Elite upright freezer 25326093100 is running but not freezing, the most common causes are incorrect temperature control settings, poor airflow around the cabinet, a door that is not sealing, or a defrost system problem that lets frost block cold-air circulation.
- Confirm the temperature control is not set to OFF and adjust it colder, then allow 24 hours to stabilize.
- Make sure the freezer is fully plugged in and the outlet and breaker are OK.
- Check that the door closes easily and seals all the way around.
- Verify the cabinet has space for airflow; the compressor area can run warm during normal heat transfer.
- If the red temperature alarm light is blinking or the buzzer sounds, press ALARM OFF and focus on restoring freezing temperatures.
For model-specific operating steps and control locations, follow the 25326093100 owner's manual.
| What you notice | What it usually points to | What to do next |
|---|---|---|
| Freezer runs a lot but stays warm | Door slightly open, warm room, recent loading of warm food | Improve sealing, reduce door openings, allow 24 hours |
| Frost or ice buildup inside | Defrost system issue restricting airflow | Inspect for heavy frost; plan defrost-system testing |
| Door hard to close or gaps at corners | Cabinet not level or gasket not sealing | Level the unit; inspect gasket for dirt, wear, or deformation |
| No fan airflow sound inside | Evaporator fan problem | Check the evaporator fan motor and blade |
If basic checks do not restore freezing, these parts are common suspects for the 25326093100 cooling system:
- Freezer evaporator 297414901 (where refrigerant absorbs heat; airflow across it is critical)
- Motor 297309000 (evaporator fan motor that moves cold air)
- Blade 5308000010 (fan blade that pushes air through the evaporator area)
- Freezer defrost heater 216730700 (melts frost so airflow does not get blocked)
- Chest freezer defrost thermostat 297216600 (defrost temperature sensing control)
When an upright freezer cannot circulate air or cannot reject heat properly, temperatures rise quickly and the unit may run continuously. Fixing door sealing, leveling, and defrost-related airflow issues often restores normal freezing without replacing major sealed-system components.
