Craftsman
Gas Walk-Behind Mower

Model #917387691 Craftsman rotary lawn mower

Here are the diagrams and repair parts for Craftsman 917387691 rotary lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 199 parts

Lawn & Garden Equipment Washer

#30

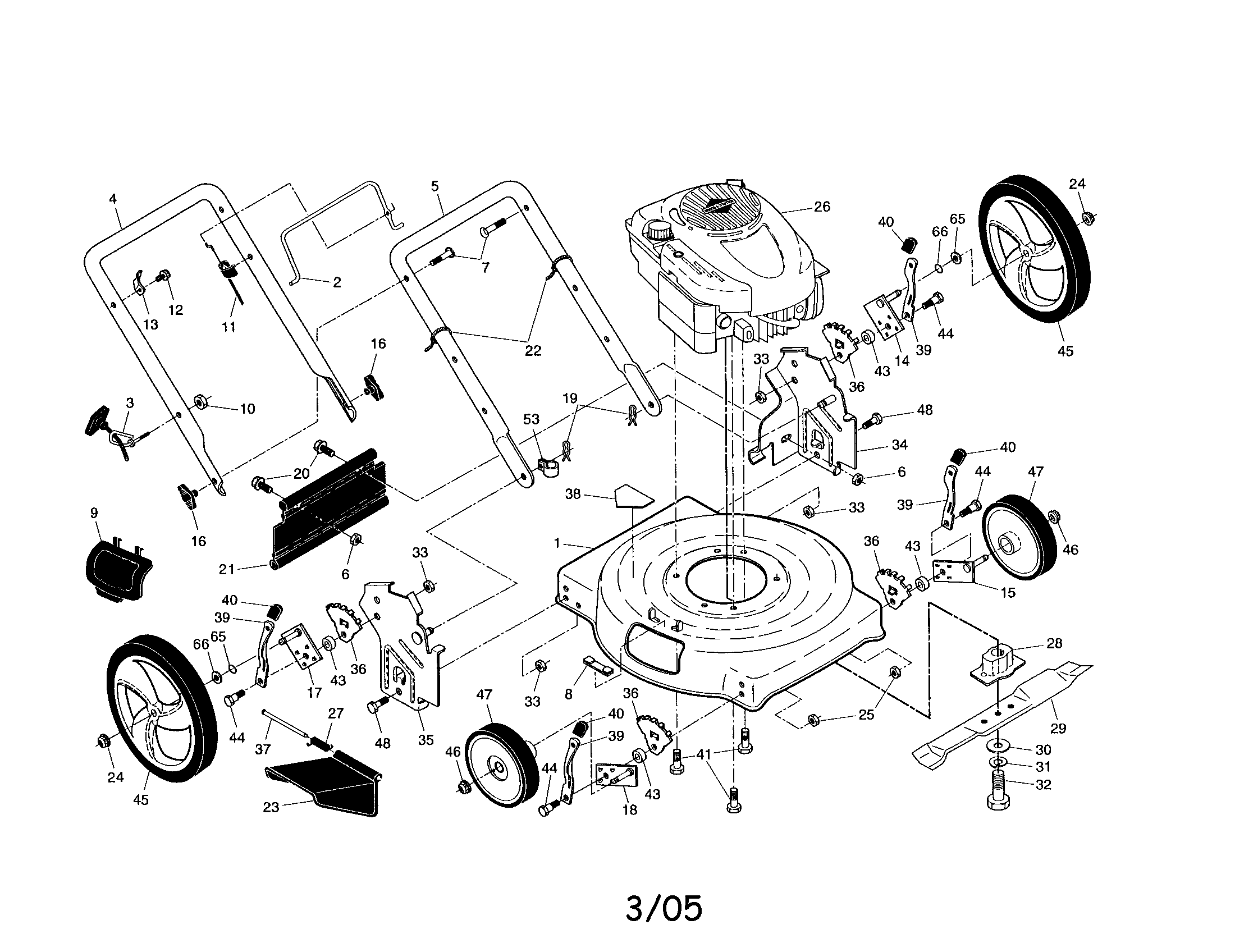

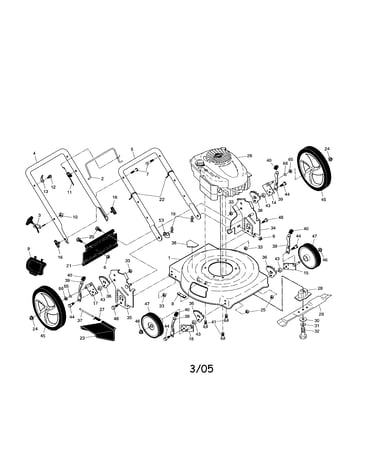

Engine/housing/handle/wheels Diagram

Lawn & garden equipment washer

Part #851074
This item is not returnable
$2.72 |
9% OFF MSRP:$3.00

In Stock

Lawn Mower Discharge Chute Deflector

#23

Engine/housing/handle/wheels Diagram

Lawn mower discharge chute deflector

Part #160831
This item is not returnable
$5.58 |
44% OFF MSRP:$10.00

In Stock

Lawn Mower Discharge Chute Hinge Rod

#37

Engine/housing/handle/wheels Diagram

Lawn mower discharge chute hinge rod

Part #160833
This item is not returnable
$4.01

In Stock

Lawn & Garden Equipment Bolt

#41

Engine/housing/handle/wheels Diagram

Lawn & garden equipment bolt

Part #150406
This item is not returnable
$4.40

In Stock

Lawn & Garden Equipment Washer

#66

Engine/housing/handle/wheels Diagram

Lawn & garden equipment washer

Part #88348
This item is not returnable
$4.94

In Stock

Lawn & Garden Equipment Self-Tapping Screw

#12

Engine/housing/handle/wheels Diagram

Lawn & garden equipment self-tapping screw

Part #750634
This item is not returnable
$3.33

In Stock

Lawn Mower Cable Clip

#53

Engine/housing/handle/wheels Diagram

Lawn mower cable clip

Part #192770
This item is not returnable
$3.75

In Stock

Lawn Tractor Bolt

#20

Engine/housing/handle/wheels Diagram

Lawn tractor bolt

Part #74760412
This item is not returnable
$3.71 |
12% OFF MSRP:$4.20

In Stock

Lawn & Garden Equipment Hex Head Bolt, 3/8-24 x 1-1/8-in

#32

Engine/housing/handle/wheels Diagram

Lawn & garden equipment hex head bolt, 3/8-24 x 1-1/8-in

Part #532435345
?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
This part replaces 851084
This item is not returnable
$3.16

In Stock

Gas Can 2.5

#NI03

All parts Diagram

Gas can 2.5

Part #33623

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
