Dirt Devil
Canister Vacuum

Model # 2155 Official Dirt Devil canister vacuum

Here are the diagrams and repair parts for Official Dirt Devil 2155 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

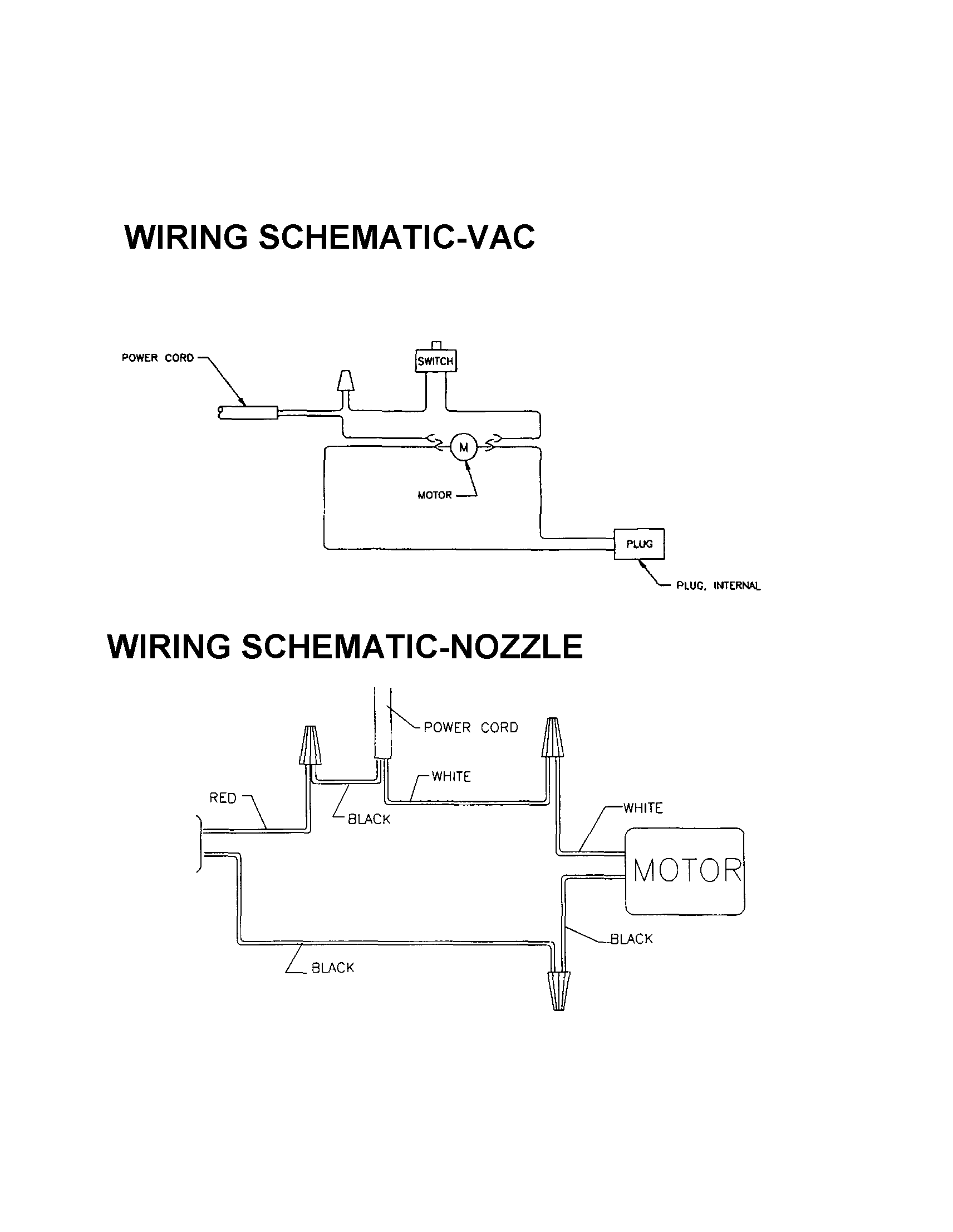

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Valve 1-300458-600
#11

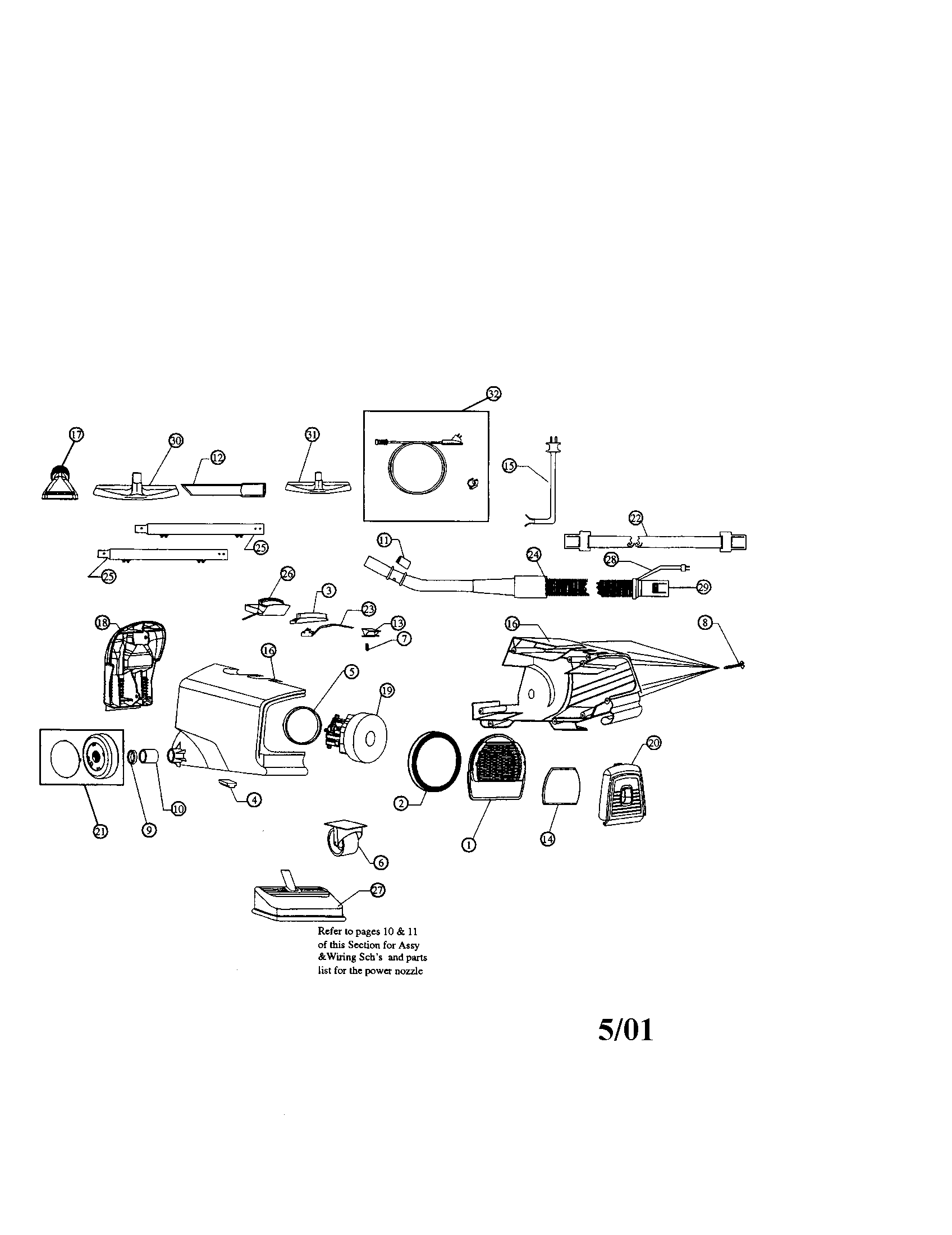

Frame, can vac diagram

Valve

Part #1-300458-600

The manufacturer no longer makes this part, and there's no substitute part

Strap 3-200319-600
#22

Frame, can vac diagram

Strap

Part #3-200319-600

The manufacturer no longer makes this part, and there's no substitute part

Clip 2-082425-600
#32

Frame, can vac diagram

Clip

Part #2-082425-600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush 3-097682-600
#30

Frame, can vac diagram

Vacuum floor brush

Part #3-097682-600

The manufacturer no longer makes this part, and there's no substitute part

Pigtail 2-210315-600
#28

Frame, can vac diagram

Pigtail

Part #2-210315-600

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 1-250100-000
#8

Frame, can vac diagram

Upright vacuum screw

Part #1-250100-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Door 3-200105-600
#20

Frame, can vac diagram

Vacuum door

Part #3-200105-600

The manufacturer no longer makes this part, and there's no substitute part

Connector 1-255100-600
#29

Frame, can vac diagram

Connector

Part #1-255100-600

The manufacturer no longer makes this part, and there's no substitute part

Gasket 1-200150-000
#5

Frame, can vac diagram

Gasket

Part #1-200150-000

The manufacturer no longer makes this part, and there's no substitute part

Brush 3-098584-600
#31

Frame, can vac diagram

Brush

Part #3-098584-600

The manufacturer no longer makes this part, and there's no substitute part
