Model #JGB920BEF1BB GE gas range

Here are the diagrams and repair parts for GE JGB920BEF1BB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 278 parts

    Appliance Light Bulb, 40-watt#235

    Body parts Diagram

    40a15bulb

    Part #STD372401
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces STD372401. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.09 |
    12% OFF
    Phone Price: $8.09
    Range Oven Burner Igniter#218

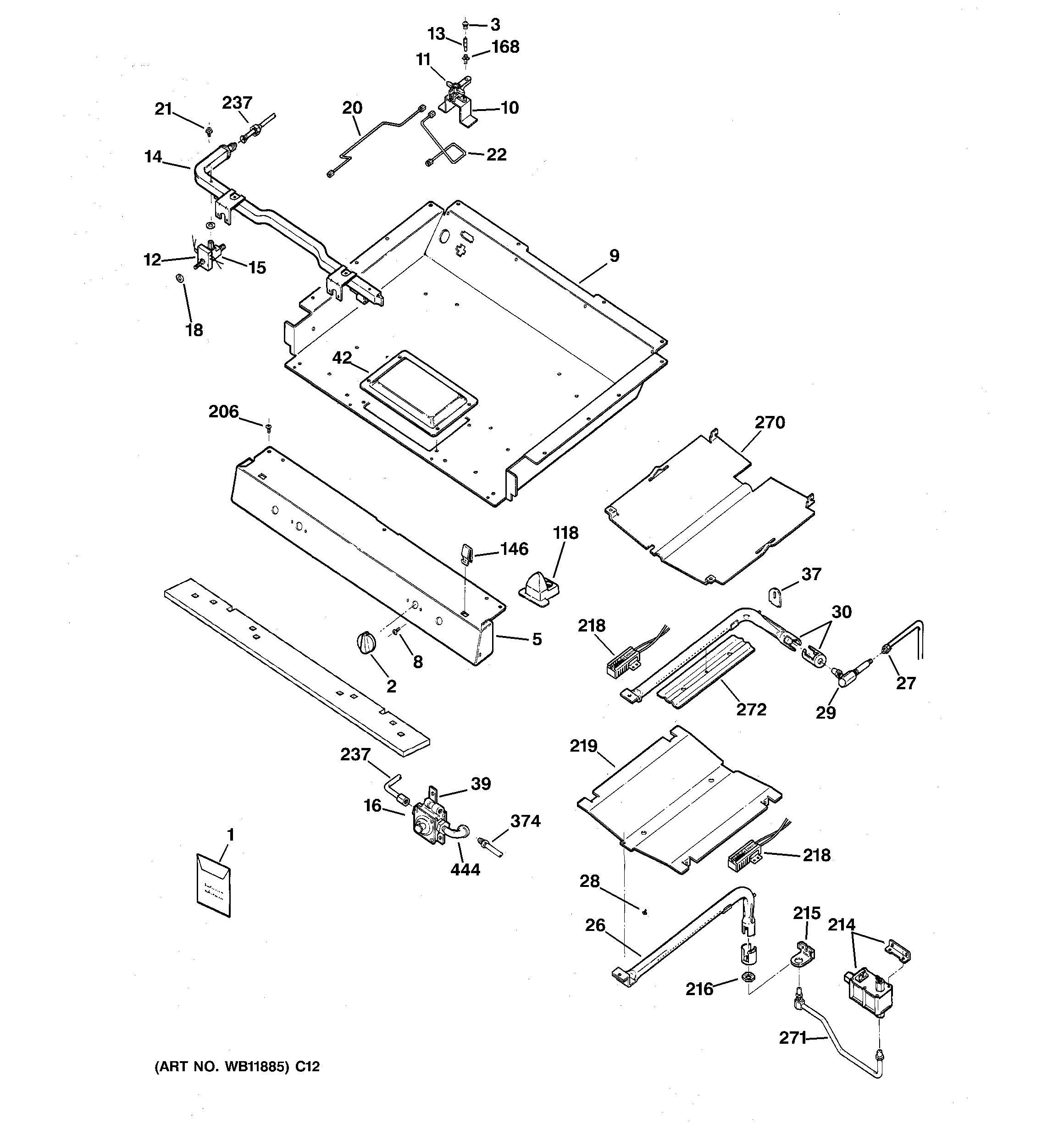

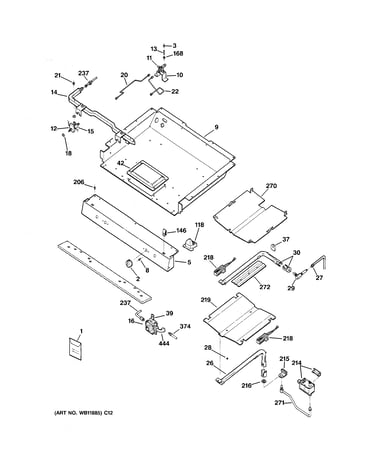

    Gas & burner parts Diagram

    Bake burner ignition

    Part #WB13K0021
    Replaced by #WB13K21
    ?
    Manufacturer substitution
    This part replaces WB13K0021. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $63.79 |
    7% OFF
    Phone Price: $68.79
    Range Oven Temperature Sensor#43

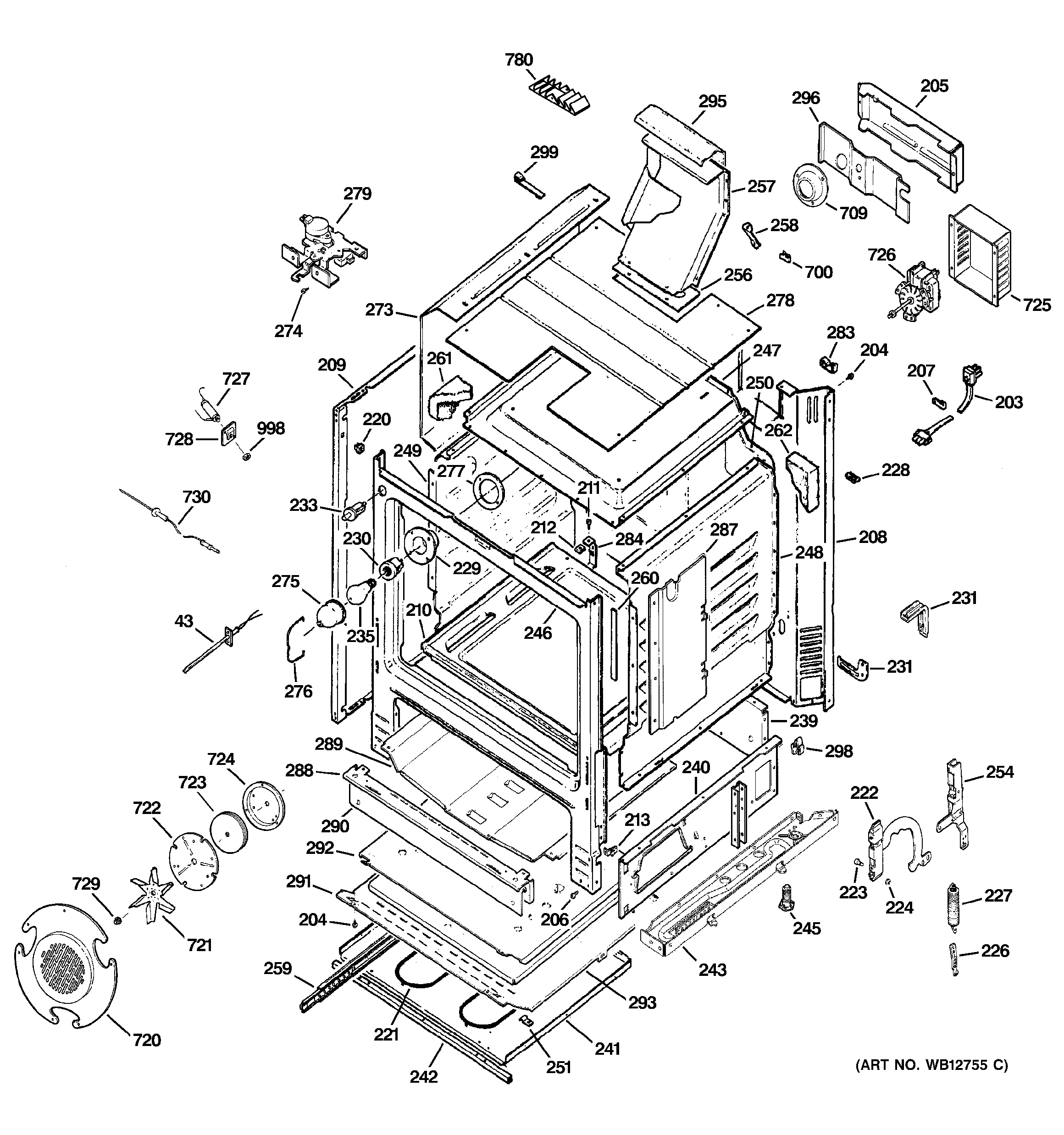

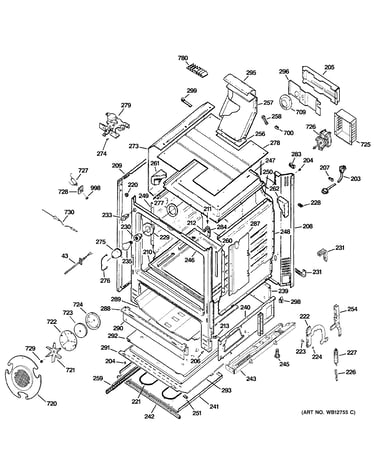

    Body parts Diagram

    Sensor

    Part #WB20K0004
    Replaced by #WB21X5301
    ?
    Manufacturer substitution
    This part replaces WB20K0004. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $95.19 |
    10% OFF
    Phone Price: $105.19
    Range Oven Rack#200

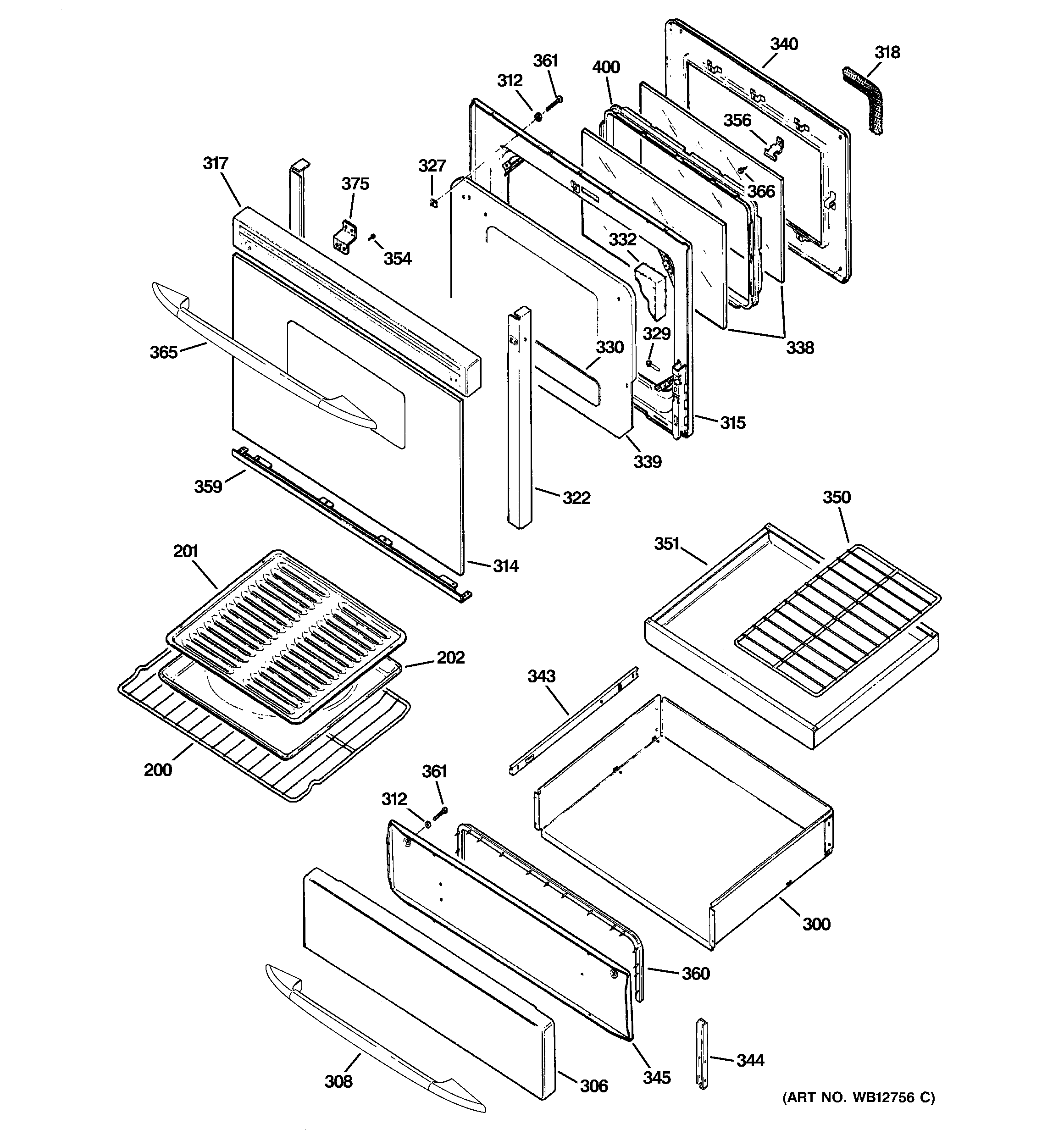

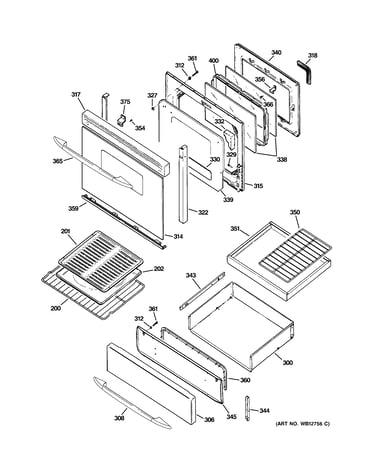

    Door & drawer parts Diagram

    Oven rack

    Part #WB48K0004
    Replaced by #WB48T10095
    ?
    Manufacturer substitution
    This part replaces WB48K0004. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $43.09 |
    10% OFF
    Phone Price: $48.09
    Range Bake Burner#26

    Gas & burner parts Diagram

    Range bake burner

    Part #WB16K10035
    BEST SELLER
    In Stock
    $91.45 |
    19% OFF
    Was: $113.39
    Range Spark Module#110

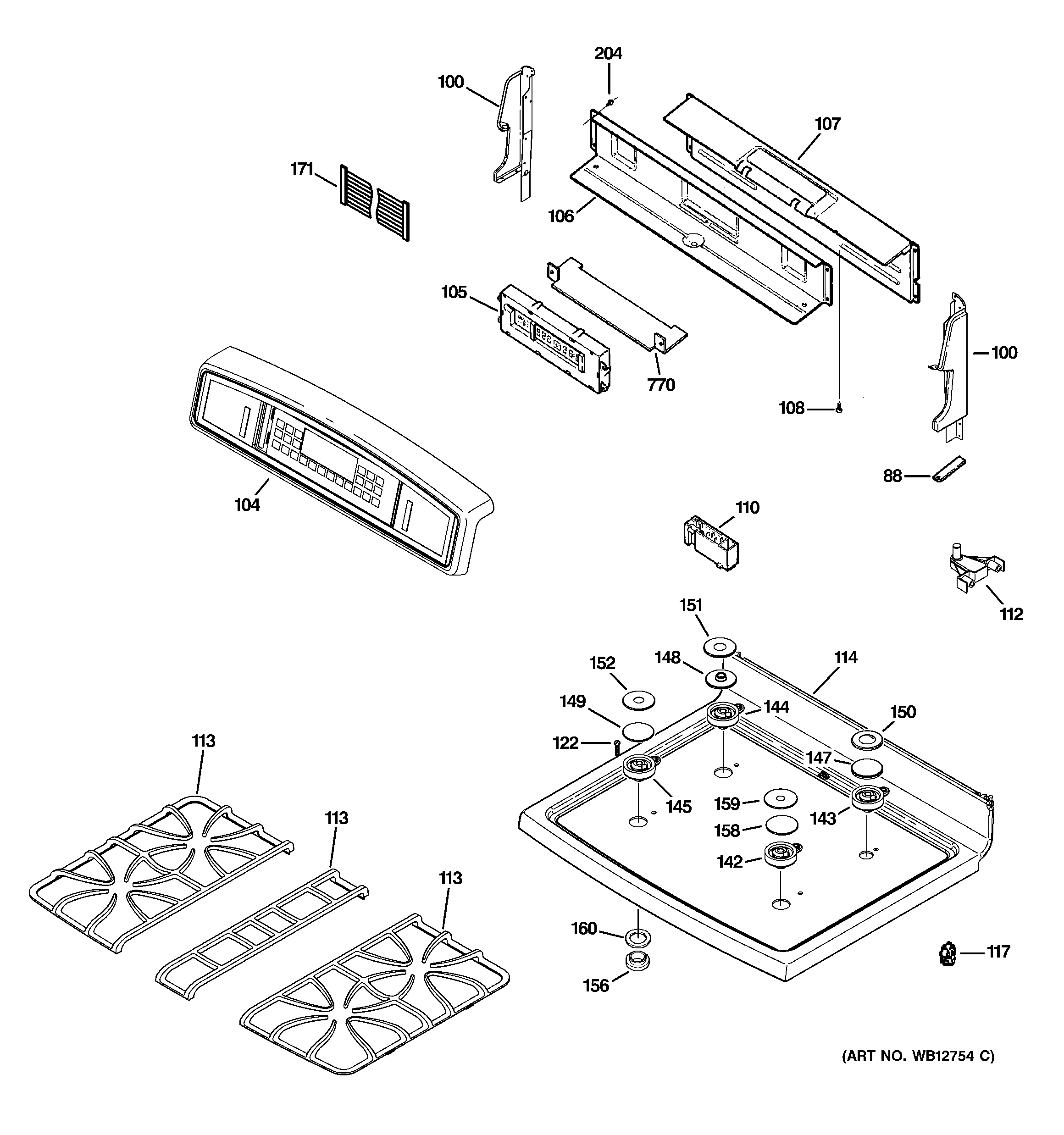

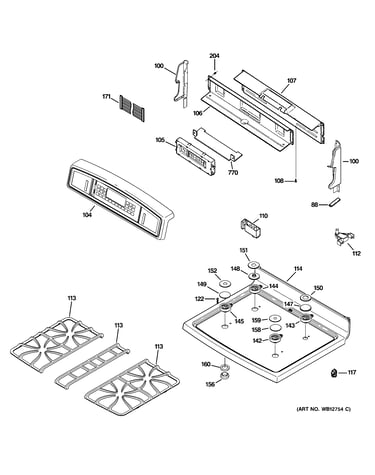

    Control panel & cooktop Diagram

    Spark module

    Part #WB13K0025
    Replaced by #WB13K25
    ?
    Manufacturer substitution
    This part replaces WB13K0025. Substitute parts can look different from the original.
    In Stock
    $90.79 |
    5% OFF
    Phone Price: $95.79
    Range Leveling Leg#245

    Body parts Diagram

    Range leveling leg

    Part #WB02X10521
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Trim#359

    Door & drawer parts Diagram

    Trim

    Part #WB07K0384

    The manufacturer no longer makes this part, and there's no substitute part

    Range Surface Burner Head#147

    Control panel & cooktop Diagram

    In Stock
    $63.59 |
    7% OFF
    Phone Price: $68.59
    Range Screw#28

    Gas & burner parts Diagram

    Hex washer head screw

    Part #WB01K0050
    Replaced by #WB1X1293
    ?
    Manufacturer substitution
    This part replaces WB01K0050. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
