Kenmore 6286628312 electric range Parts
Here are the diagrams and repair parts for Kenmore 6286628312 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 6286628312 Ranges
Door and drawer assemblies diagram
Insulation
Part #1312279Replaced by #3008677
Manufacturer substitutionThis part replaces 1312279. Substitute parts can look different from the original.In Stock$49.79
Qty
Door and drawer assemblies diagram
Drawer Guide
Part #1324091Replaced by #5303209487
Manufacturer substitutionThis part replaces 1324091. Substitute parts can look different from the original.In Stock$43.25QtyDoor and drawer assemblies diagram
Spacer
Part #1311965Replaced by #5308003153
Manufacturer substitutionThis part replaces 1311965. Substitute parts can look different from the original.In Stock$30.08QtyControl panel and cooktop assemblies diagram
Pilot Light
Part #5005802Replaced by #5301167858

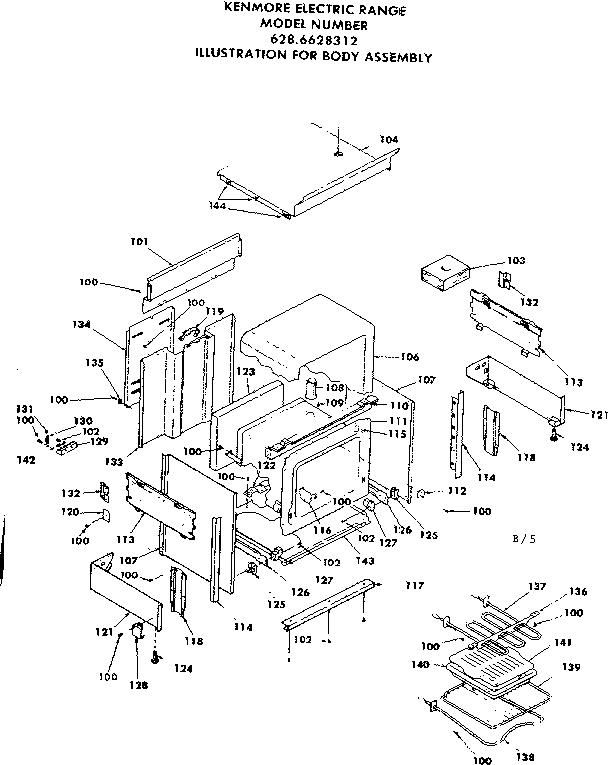

Manufacturer substitutionThis part replaces 5005802. Substitute parts can look different from the original.In Stock$133.06QtyBody assembly diagram
Drawer Guide
Part #1315216Replaced by #318161600
Manufacturer substitutionThis part replaces 1315216. Substitute parts can look different from the original.In Stock$112.09QtyWiring and wiring terminals diagram
Blue Wire
Part #1167813Replaced by #5301167813
Manufacturer substitutionThis part replaces 1167813. Substitute parts can look different from the original.In Stock$25.75QtyBody assembly diagram
Toe Plate
Part #1325189Replaced by #08012736
Manufacturer substitutionThis part replaces 1325189. Substitute parts can look different from the original.In Stock$26.55QtyBody assembly diagram
Back
Part #1324754Replaced by #5303274091
Manufacturer substitutionThis part replaces 1324754. Substitute parts can look different from the original.In Stock$61.45QtyControl panel and cooktop assemblies diagram
Nut
Part #GM274796Replaced by #08015925
Manufacturer substitutionThis part replaces GM274796. Substitute parts can look different from the original.In Stock$25.22QtyBody assembly diagram
Filler Strip
Part #1324691Replaced by #318175100
Manufacturer substitutionThis part replaces 1324691. Substitute parts can look different from the original.In Stock$31.37Qty
