Wall Oven/Microwave Combo

Model # 79048803100 Official Kenmore Elite wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore Elite 79048803100 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
By Part

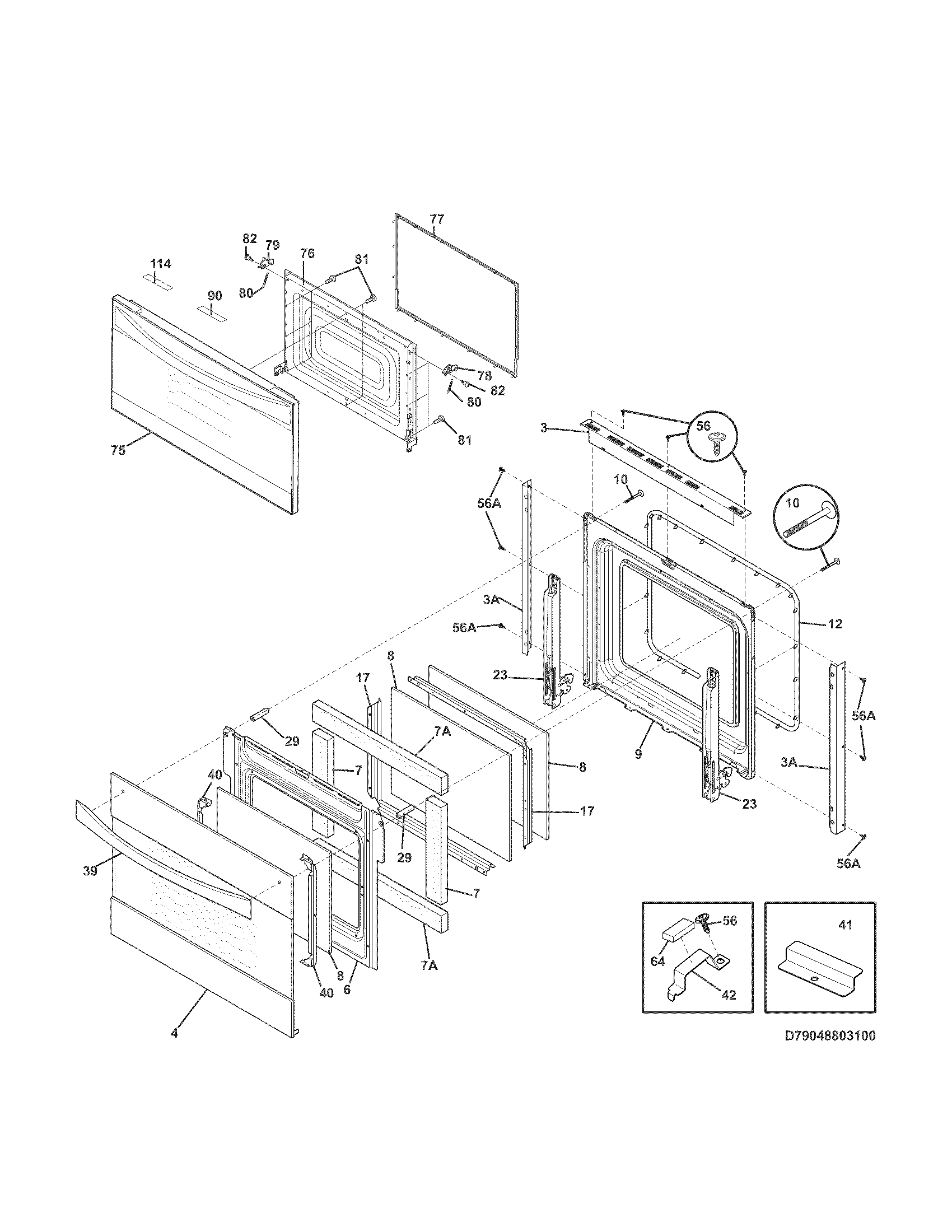

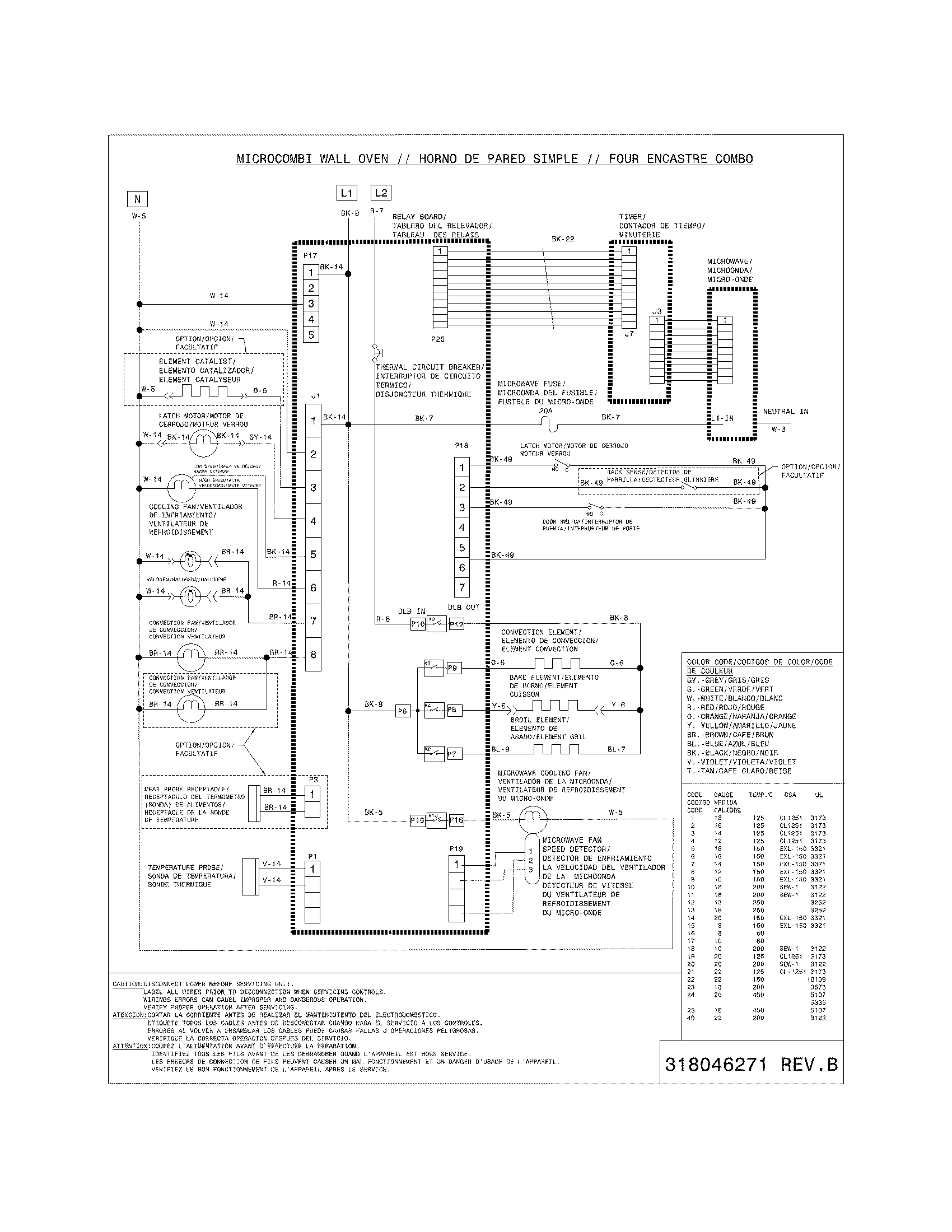

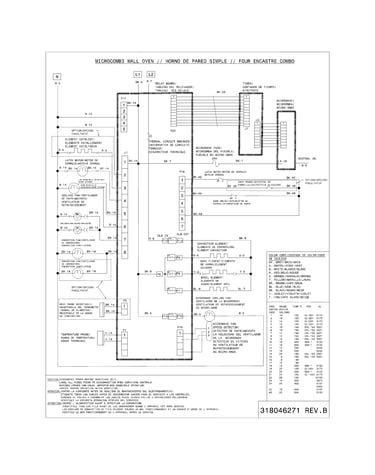

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for79048803100 Wall Oven/Microwave Combo

  • Microwave Door Interlock Switch 5304440026
    #4

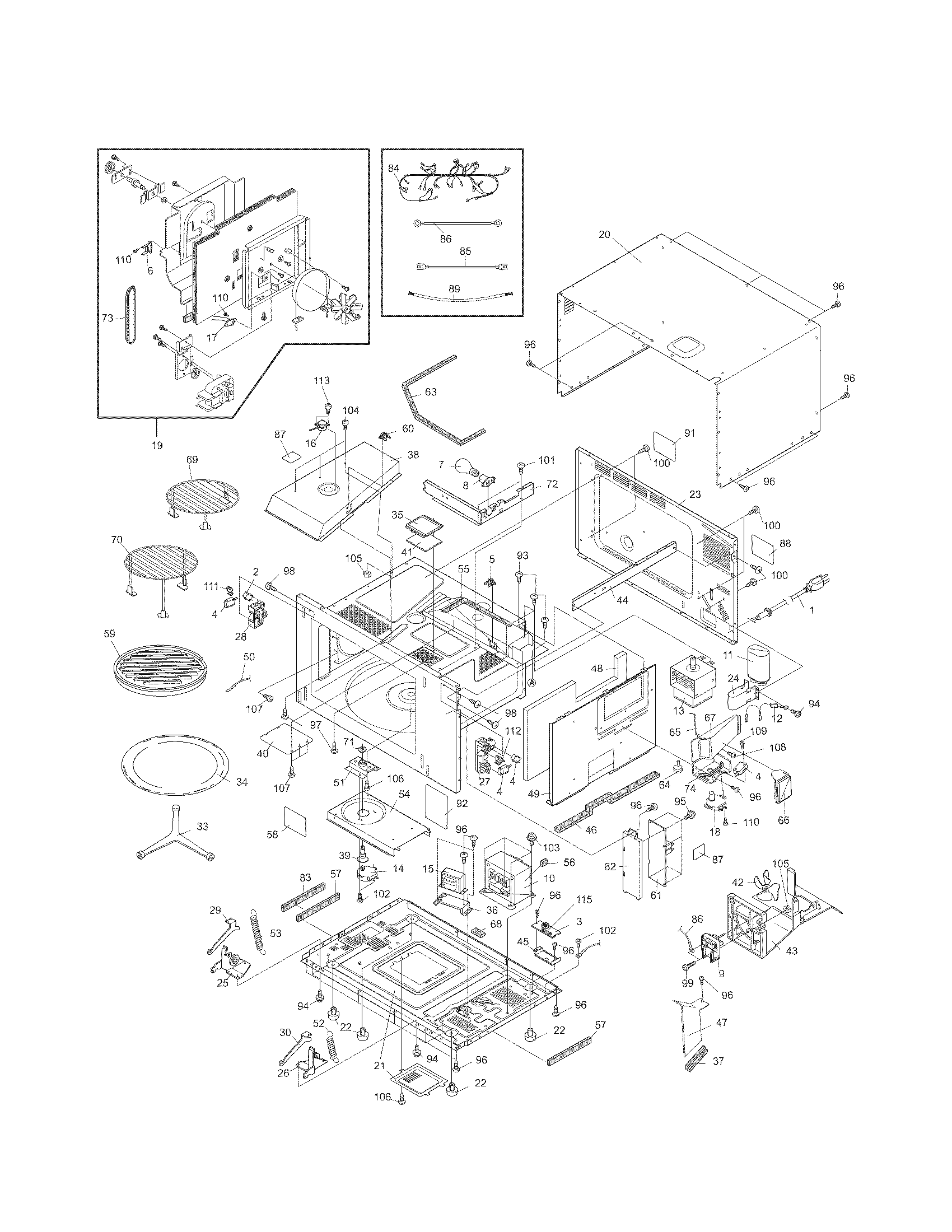

    Microwave diagram

    Microwave door interlock switch

    Part #5304440026

    Replaced by #5304493153

    ?
    Manufacturer substitution
    This part replaces 5304440026. Substitute parts can look different from the original.
    BEST SELLER
    $51.42 |
    10% OFF Phone Price : $57.42
    In Stock
  • Range Oven Temperature Sensor 318562500
    #37

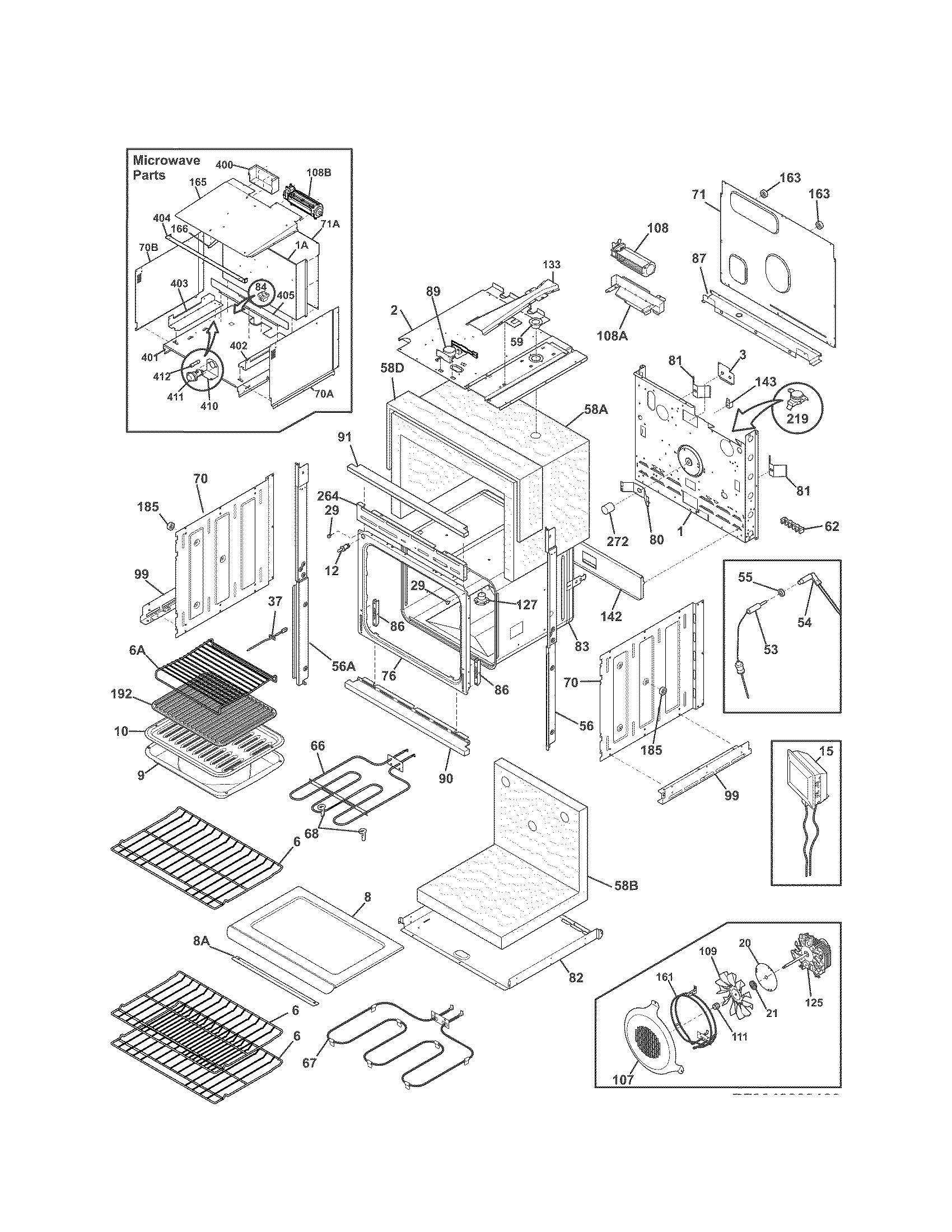

    Lower oven diagram

    Range oven temperature sensor

    Part #318562500

    Replaced by #5304504897

    ?
    Manufacturer substitution
    This part replaces 318562500. Substitute parts can look different from the original.
    BEST SELLER
    $32.02 |
    16% OFF Phone Price : $38.02
    In Stock
  • Holder 318576200
    #411

    Lower oven diagram

    Holder

    Part #318576200

    Replaced by #318647300

    ?
    Manufacturer substitution
    This part replaces 318576200. Substitute parts can look different from the original.
    BEST SELLER
    $131.23 |
    8% OFF Phone Price : $143.23
    In Stock
  • Fuse 318576100
    #412

    Lower oven diagram

    Fuse

    Part #318576100

    Replaced by #318647300

    ?
    Manufacturer substitution
    This part replaces 318576100. Substitute parts can look different from the original.
    BEST SELLER
    $131.23 |
    8% OFF Phone Price : $143.23
    In Stock
  • Terminal Block 316056000
    #62

    Lower oven diagram

    Terminal block

    Part #316056000

    Replaced by #5304409888

    ?
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    BEST SELLER
    $22.93 |
    21% OFF Phone Price : $28.93
    In Stock
  • Range Convection Fan Blade 318398302
    #109

    Lower oven diagram

    Range convection fan blade

    Part #318398302

    BEST SELLER
    $23.24 |
    21% OFF Phone Price : $29.24
    In Stock
  • Frigidaire Range Bake Element 318254902
    #67

    Lower oven diagram

    Frigidaire range bake element

    Part #318254902

    BEST SELLER
    $127.56 |
    9% OFF Phone Price : $139.56
    In Stock
  • Range Screw 5304454881
    #NI

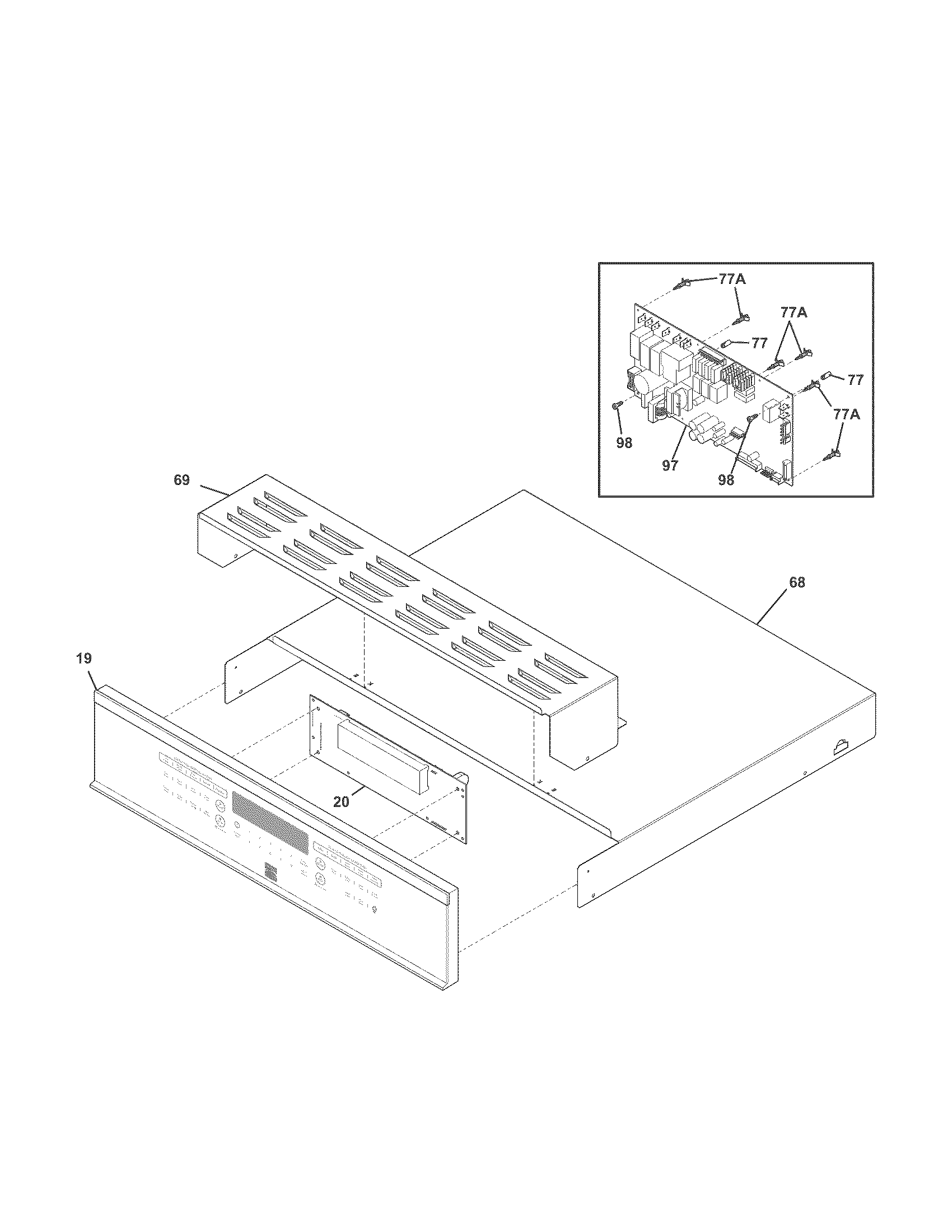

    Control panel diagram

    Range screw

    Part #5304454881

    Replaced by #131243700

    ?
    Manufacturer substitution
    This part replaces 5304454881. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
  • Screw 08016432
    #NI

    Lower oven diagram

    Screw

    Part #08016432

    Replaced by #131243700

    ?
    Manufacturer substitution
    This part replaces 08016432. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
  • Switch 5304440027
    #2

    Microwave diagram

    Switch

    Part #5304440027

    Replaced by #5304468224

    ?
    Manufacturer substitution
    This part replaces 5304440027. Substitute parts can look different from the original.
    BEST SELLER
    $56.66 |
    10% OFF Phone Price : $62.66
    In Stock
