Whirlpool AD0402XS0 dehumidifier Parts
Here are the diagrams and repair parts for Whirlpool AD0402XS0 dehumidifier, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for AD0402XS0 Dehumidifier

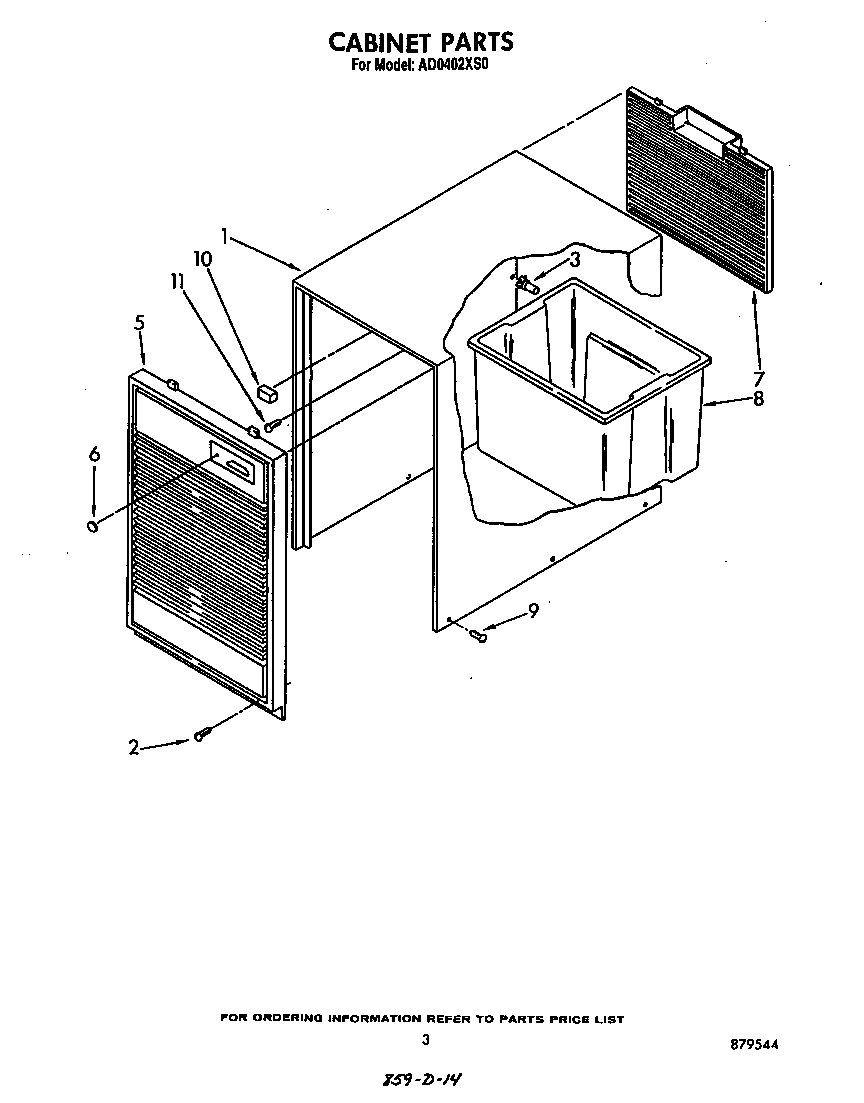

Cabinet parts diagram
Valve Kit
Part #978025Replaced by #WP978025
Manufacturer substitutionThis part replaces 978025. Substitute parts can look different from the original.In Stock$41.1813% OFF Phone Price : $47.18
Qty
Cabinet parts diagram
Washer
Part #647338Replaced by #WP16123
Manufacturer substitutionThis part replaces 647338. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyAir flow and control parts diagram

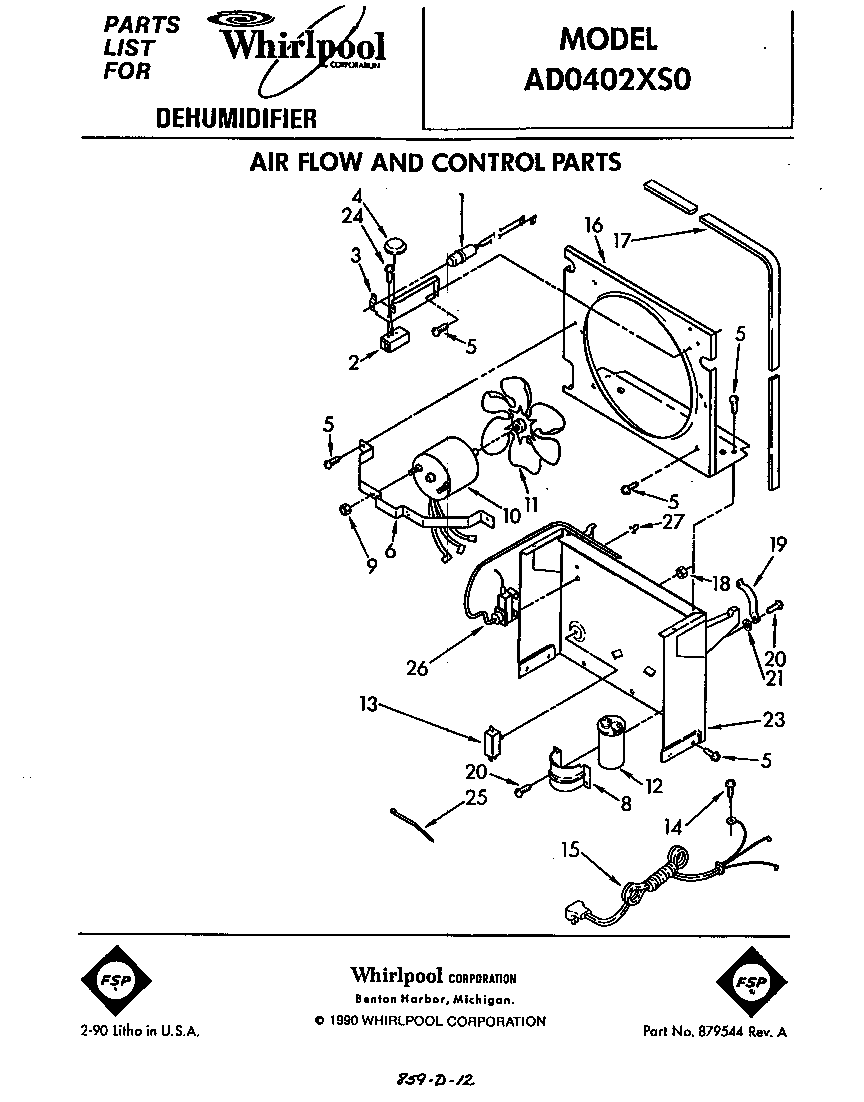

Capacitor
Part #951363Replaced by #12931
Manufacturer substitutionThis part replaces 951363. Substitute parts can look different from the original.This item is not returnableIn Stock$6.3914% OFF Phone Price : $7.39QtyCabinet parts diagram
Valve Kit
In Stock$100.59QtyCabinet parts diagram
Valve Kit
In Stock$103.21QtyCabinet parts diagram
Valve Kit
In Stock$105.69QtyAir flow and control parts diagram
Wire Tie
Part #602851Replaced by #WPW10339879

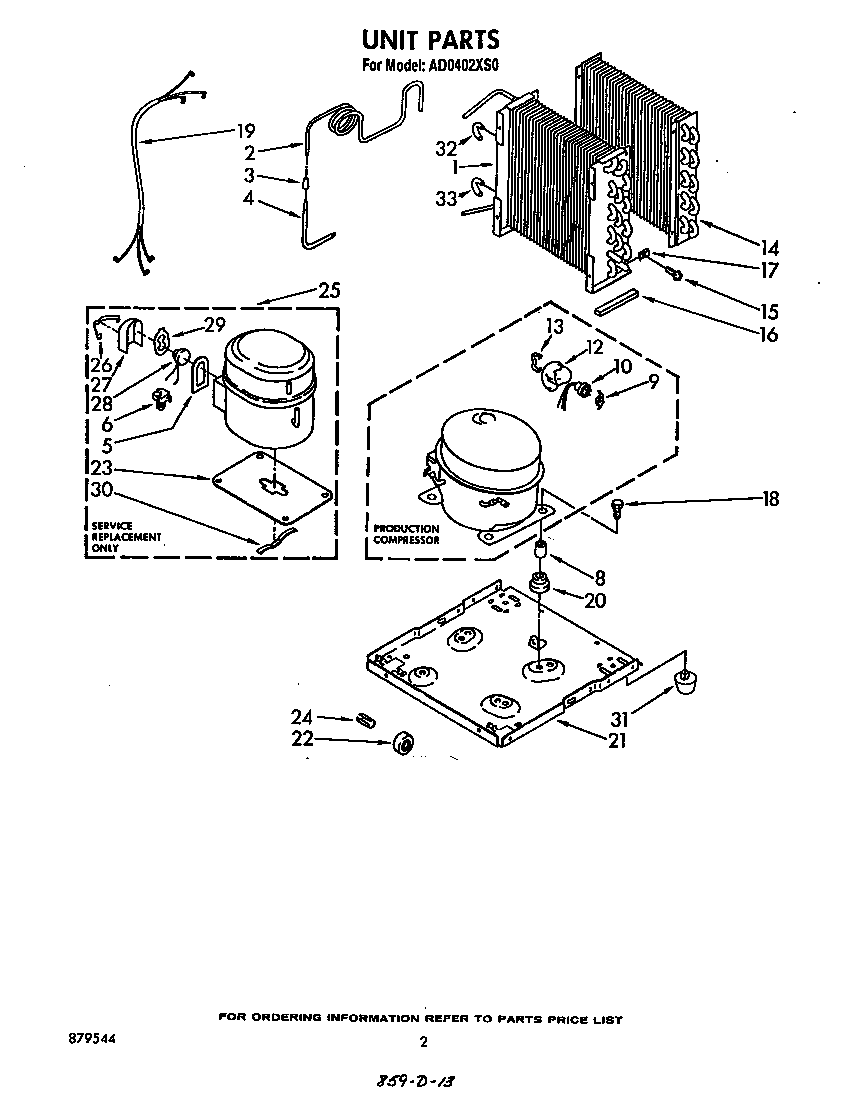

Manufacturer substitutionThis part replaces 602851. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyUnit parts diagram
Nut
Part #486197Replaced by #488660
Manufacturer substitutionThis part replaces 486197. Substitute parts can look different from the original.In Stock$18.0710% OFF Phone Price : $20.07QtyAir flow and control parts diagram
Screw, 8 X 1
Part #488480Replaced by #WP489069
Manufacturer substitutionThis part replaces 488480. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyAir flow and control parts diagram
Washer
Part #489083Replaced by #STD551025
Manufacturer substitutionThis part replaces 489083. Substitute parts can look different from the original.In Stock$36.61Qty
