Model # 3DWTW3000FW1 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool 3DWTW3000FW1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

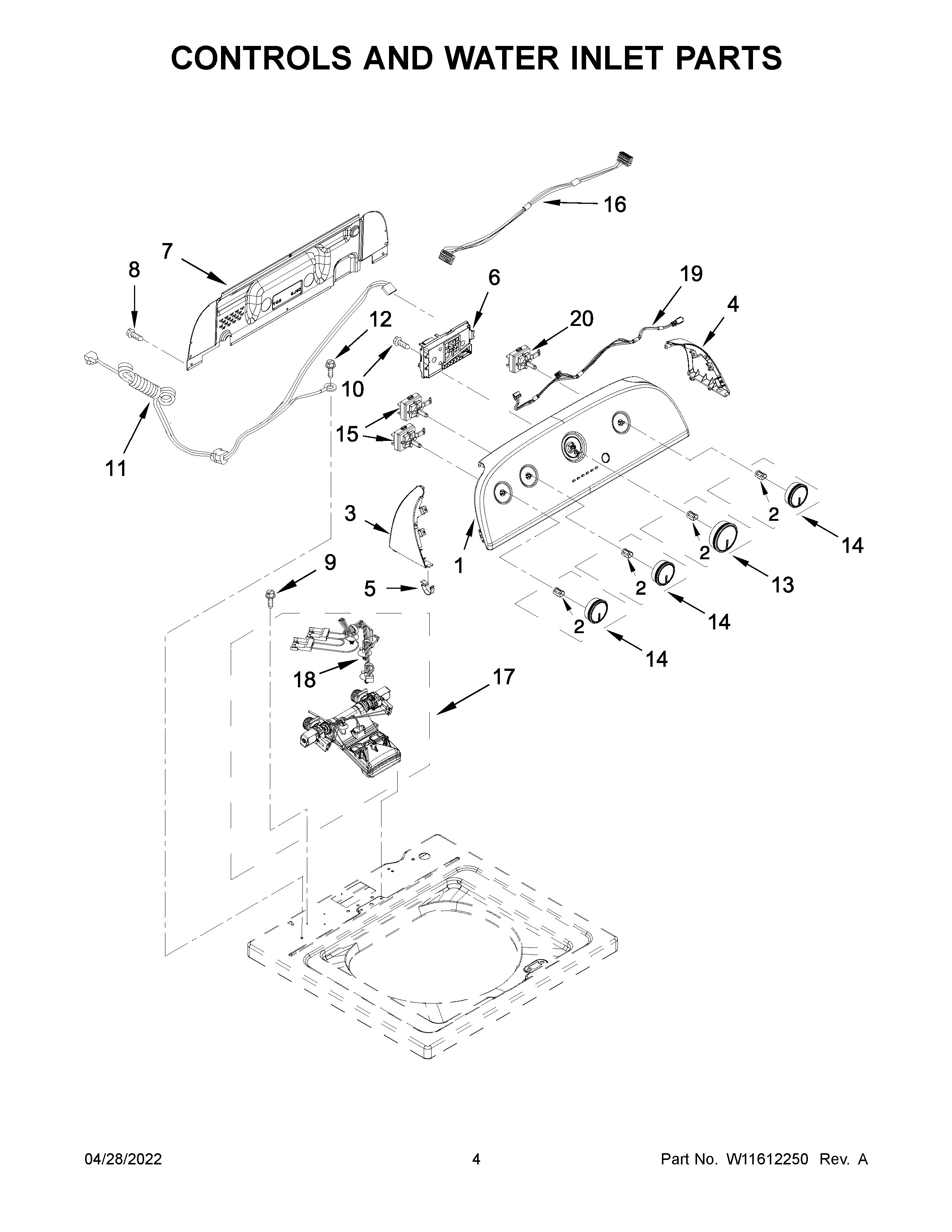

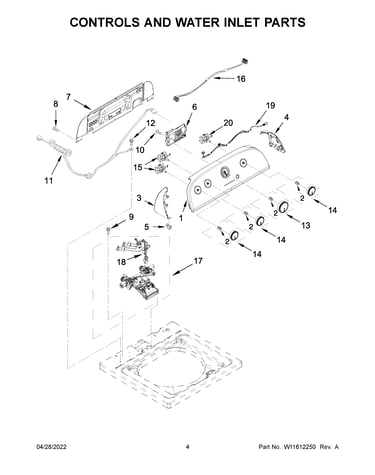

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Agitator Dog 3366877
#6

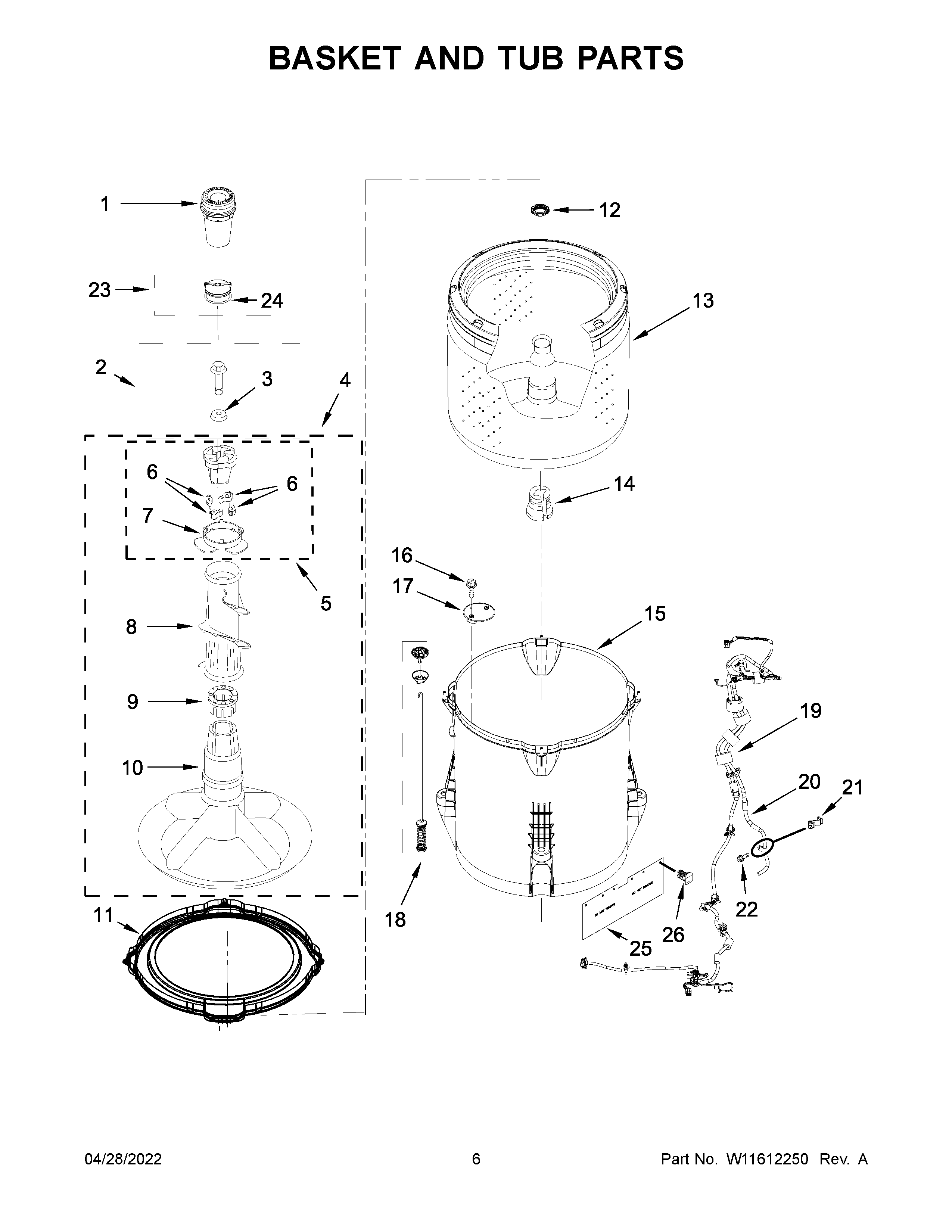

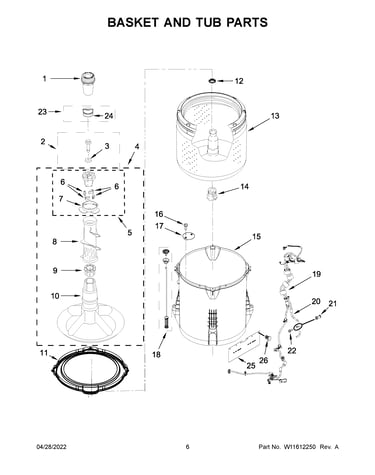

Basket and tub parts diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.48 |
18% OFF Phone Price : $5.48
In Stock
Damper Assembly W10821951
#18

Basket and tub parts diagram

Damper assembly

Part #W10821951

Replaced by #W10780045

?
Manufacturer substitution
This part replaces W10821951. Substitute parts can look different from the original.
BEST SELLER
$68.05 |
28% OFF MSRP : $95.00
In Stock
Washer Drive Block 389140
#14

Basket and tub parts diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$26.04 |
16% OFF Phone Price : $31.04
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$12.27 |
44% OFF MSRP : $22.00
In Stock
Washer Spanner Nut 21366
#12

Basket and tub parts diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
62% OFF MSRP : $17.00
In Stock
Gear Case Assembly W10870910
#5

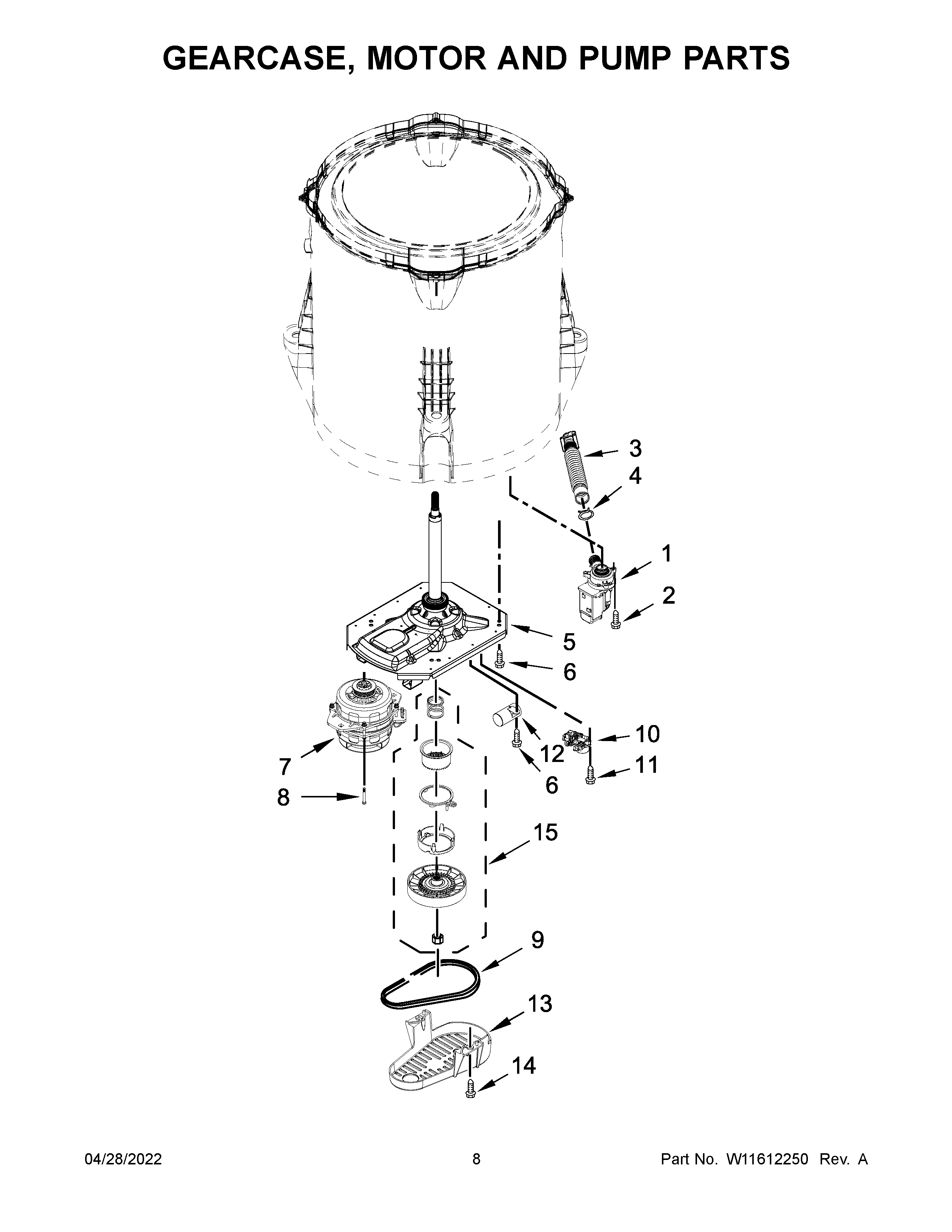

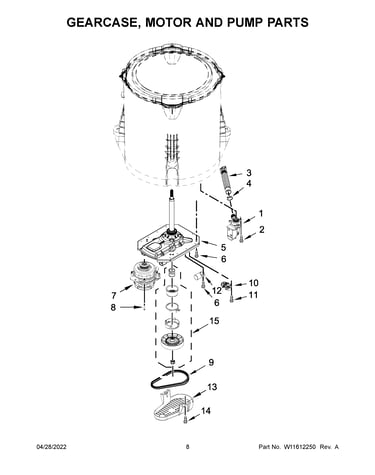

Gearcase, motor and pump parts diagram

Gear case assembly

Part #W10870910

Replaced by #W11454741

?
Manufacturer substitution
This part replaces W10870910. Substitute parts can look different from the original.
BEST SELLER
$201.81 |
5% OFF Phone Price : $211.81
In Stock
Hose Asm - D W11203364
#24

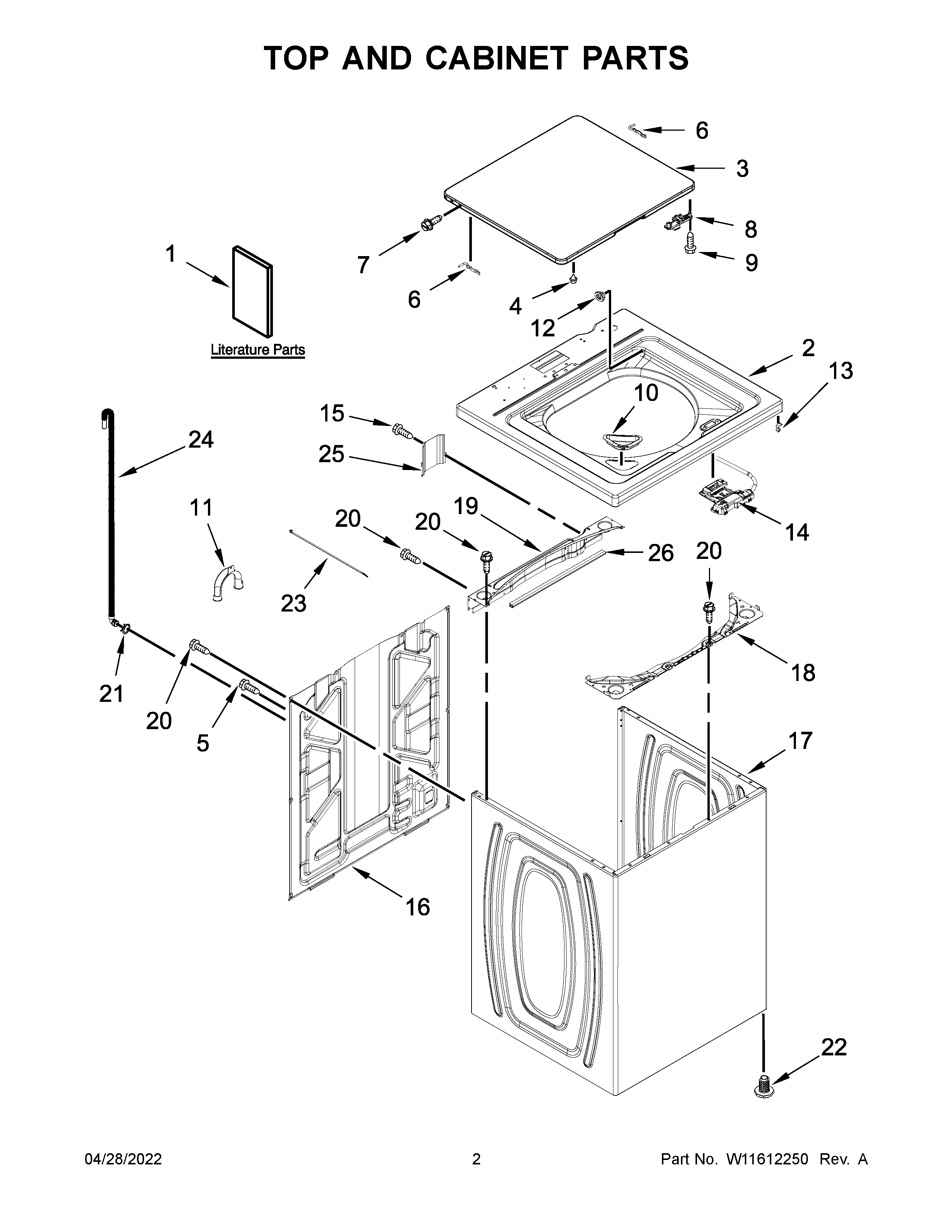

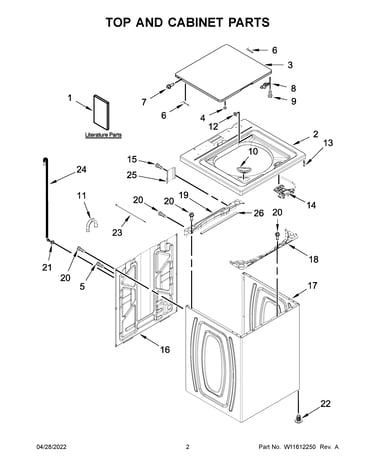

Top and cabinet parts diagram
