Hoover
Canister Vacuum

Model #S3565 Hoover vacuum cleaner

Here are the diagrams and repair parts for Hoover S3565 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

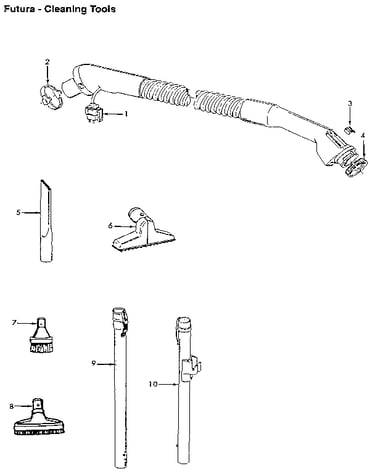

    Showing 10 of 110 parts

    Vacuum Beater Bar Bearing

    #2

    Agitator Diagram

    Vacuum beater bar bearing

    Part #43267002

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #11

    Motor assembly Diagram

    Screw

    Part #21429406

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Beater Bar Housing End Cap, Left

    #7

    Agitator Diagram

    Vacuum beater bar housing end cap, left

    Part #36423017

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Light Bulb

    #27

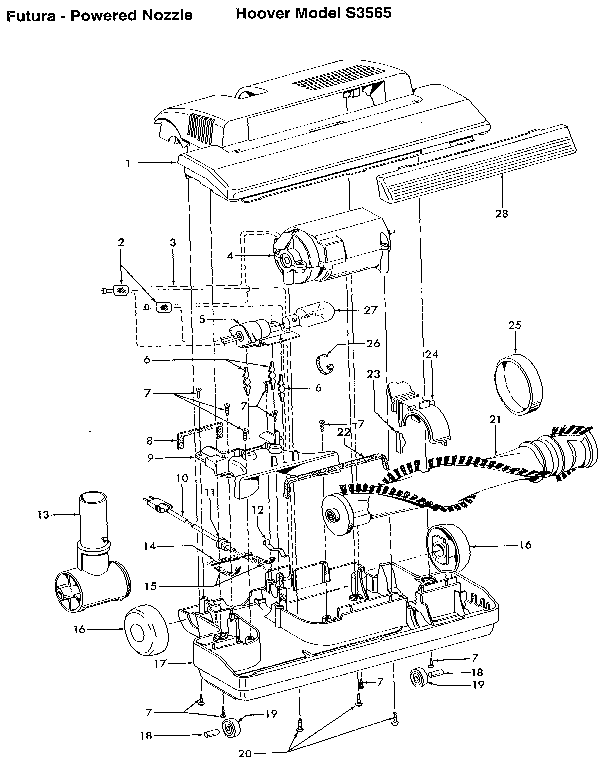

    Powered nozzle Diagram

    Vacuum light bulb

    Part #27317307

    The manufacturer no longer makes this part, and there's no substitute part

    Seal-12 Pk

    #15

    Powered nozzle Diagram

    Seal-12 pk

    Part #34122014

    The manufacturer no longer makes this part, and there's no substitute part

    Bag Support

    #34

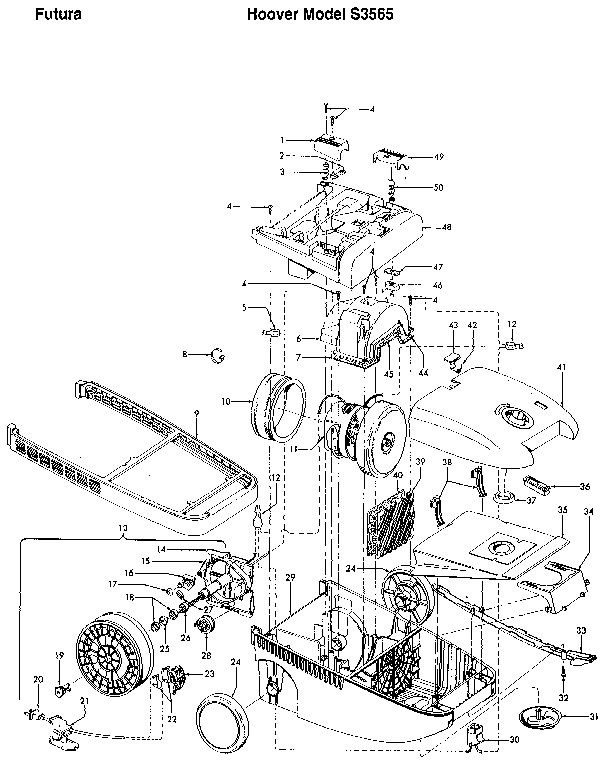

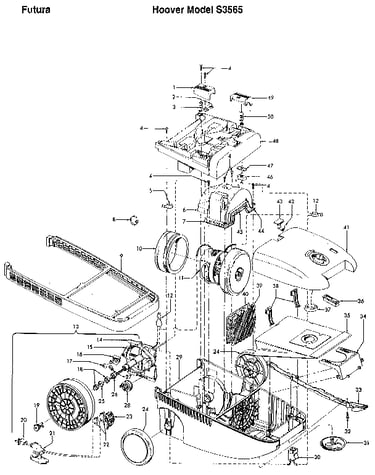

    Unit parts Diagram

    Bag support

    Part #36424010

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #16

    Motor assembly Diagram

    Screw

    Part #21447221

    The manufacturer no longer makes this part, and there's no substitute part

    Detent Spring

    #12

    Powered nozzle Diagram

    Detent spring

    Part #35276008

    The manufacturer no longer makes this part, and there's no substitute part

    Fan Cover

    #3

    Motor assembly Diagram

    Fan cover

    Part #37196065

    The manufacturer no longer makes this part, and there's no substitute part

    Spacer

    #22

    Motor assembly Diagram

    Spacer

    Part #31148011

    The manufacturer no longer makes this part, and there's no substitute part
