Kenmore 1163238090 upright vacuum Parts
Here are the diagrams and repair parts for Kenmore 1163238090 upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1163238090 Vacuum Cleaners

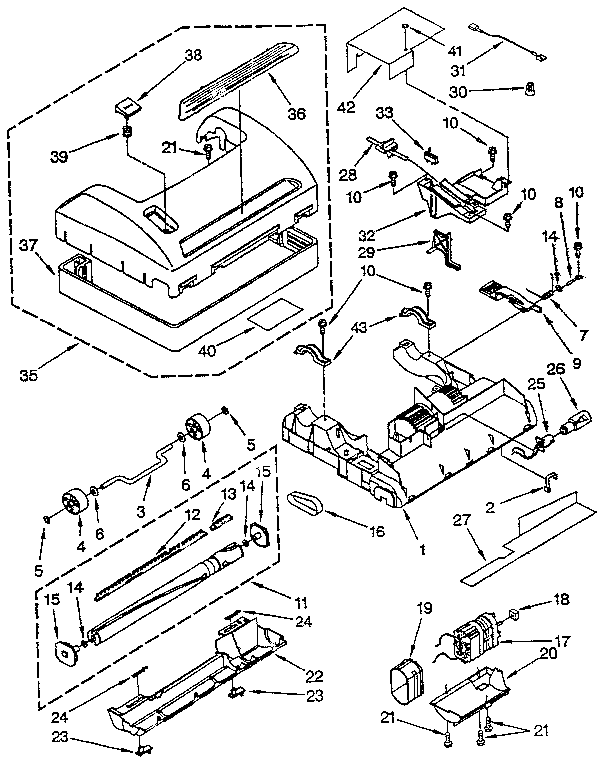

Nozzle and motor diagram
Light Bulb
Part #4368637Replaced by #5240
Manufacturer substitutionThis part replaces 4368637. Substitute parts can look different from the original.In Stock$10.2416% OFFÂ Phone Price : $12.24
Qty

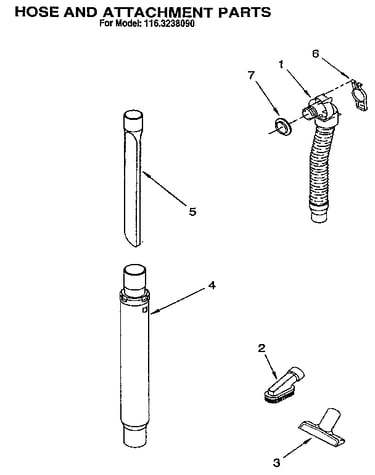

Hose and attachment diagram
Vacuum Crevice Tool
Part #4368684
The manufacturer no longer makes this part, and there's no substitute part

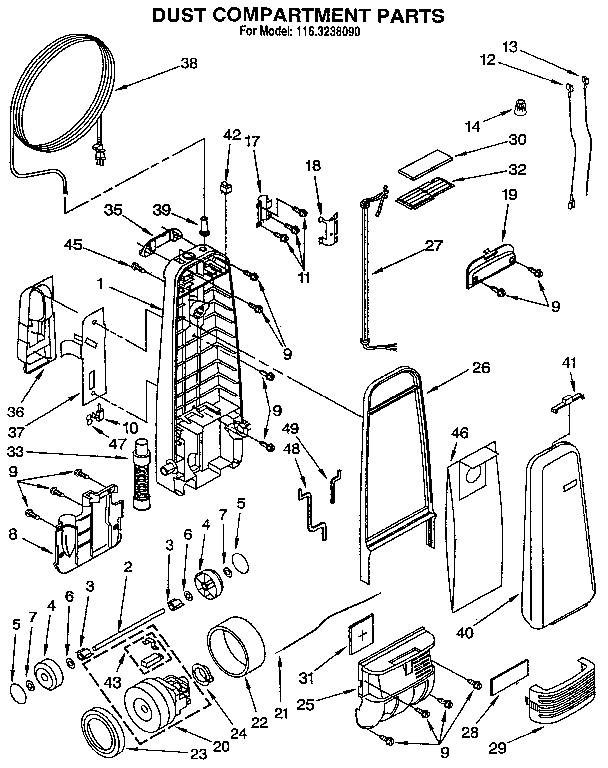

Dust compartment diagram
Vacuum Handle Switch
Part #4368653
The manufacturer no longer makes this part, and there's no substitute part
Vacuum Screw
Part #4368563
The manufacturer no longer makes this part, and there's no substitute part

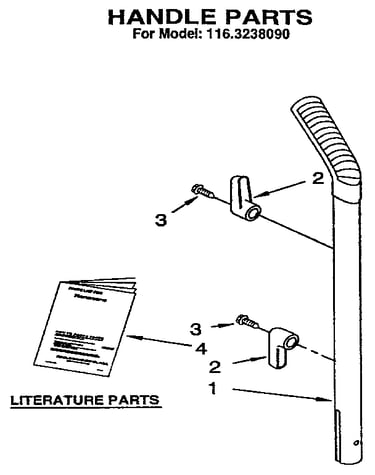

Handle diagram
(not Serviced, Use Old ) Screw, Motor Brush
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part

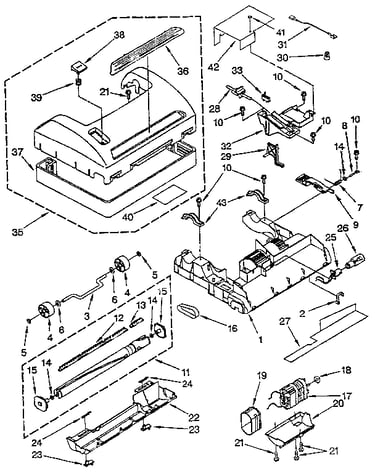

Nozzle and motor diagram
Bearing
Part #4368577
The manufacturer no longer makes this part, and there's no substitute part
Handle diagram
Parts List
Part #LIT4368613
The manufacturer no longer makes this part, and there's no substitute part
Nozzle and motor diagram
Reset Button
Part #4368756
The manufacturer no longer makes this part, and there's no substitute part
Dust compartment diagram
Packing
Part #4368606
The manufacturer no longer makes this part, and there's no substitute part
Nozzle and motor diagram
Bulb-suprt
Part #4368645
The manufacturer no longer makes this part, and there's no substitute part
