Frigidaire
Electric Cooktop

Model # FFEC3025UB Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FFEC3025UB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

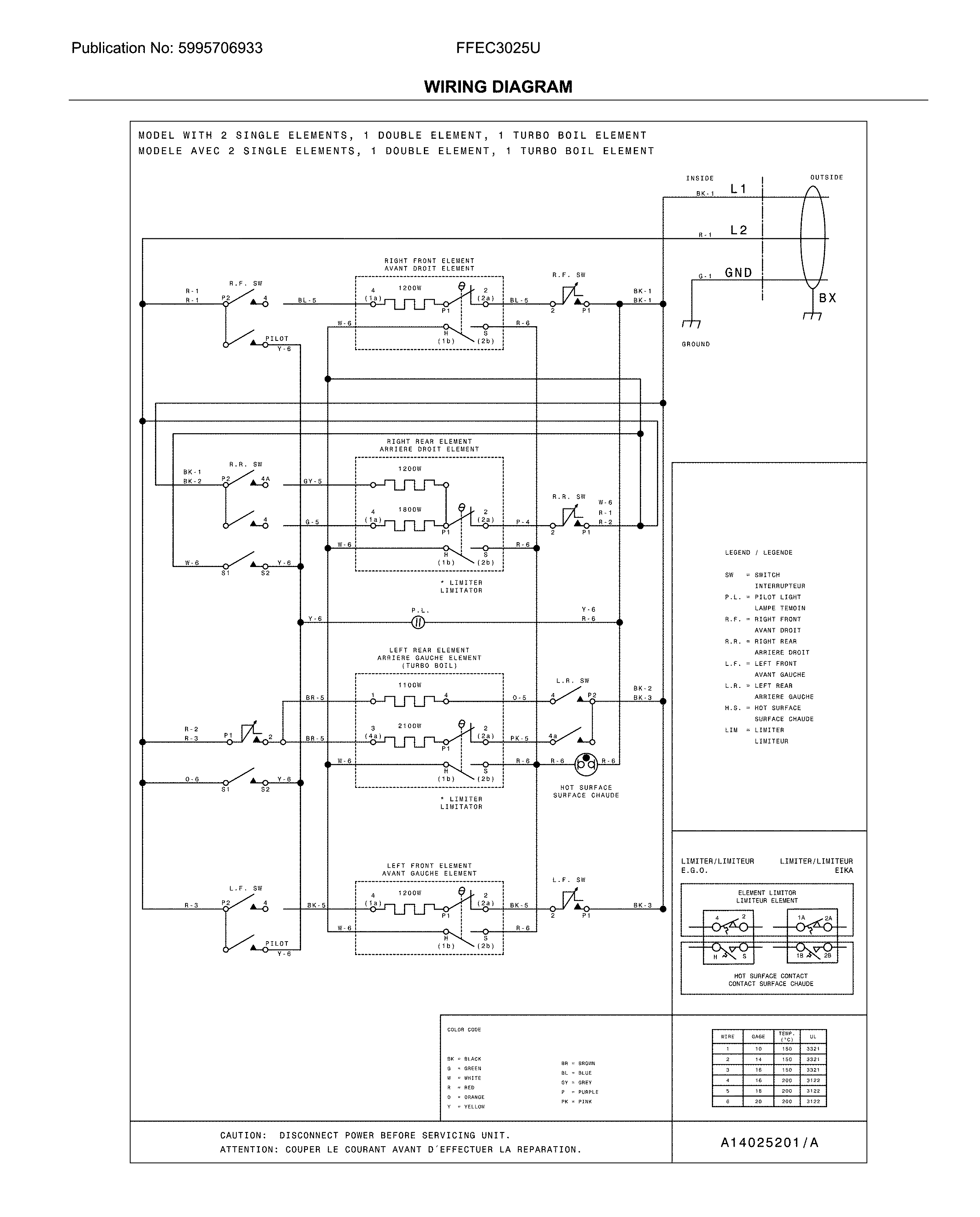

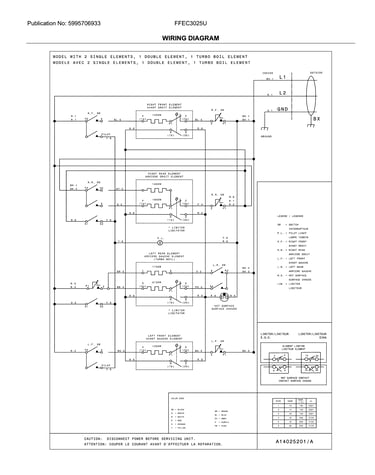

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |

*infinite 318191001
#54A

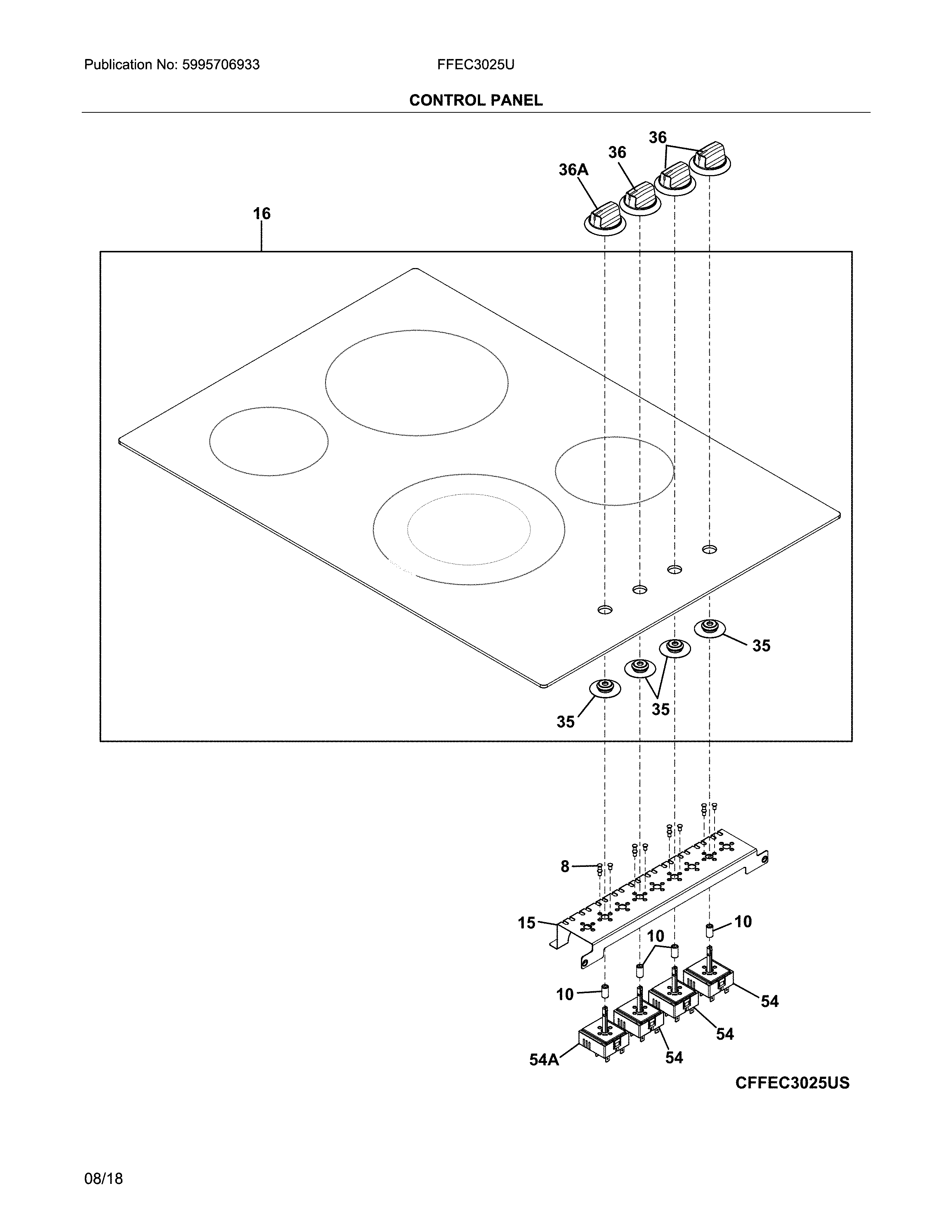

Control panel diagram

*infinite

Part #318191001

Replaced by #903097-9040

?
Manufacturer substitution
This part replaces 318191001. Substitute parts can look different from the original.
$62.55
7% OFF Phone Price : $67.55
In Stock
Cooktop Element Control Switch 305458905
#54

Control panel diagram

Cooktop element control switch

Part #305458905

Replaced by #5304526190

?
Manufacturer substitution
This part replaces 305458905. Substitute parts can look different from the original.
$69.07
7% OFF Phone Price : $74.07
In Stock
Screw 305376101
#NI

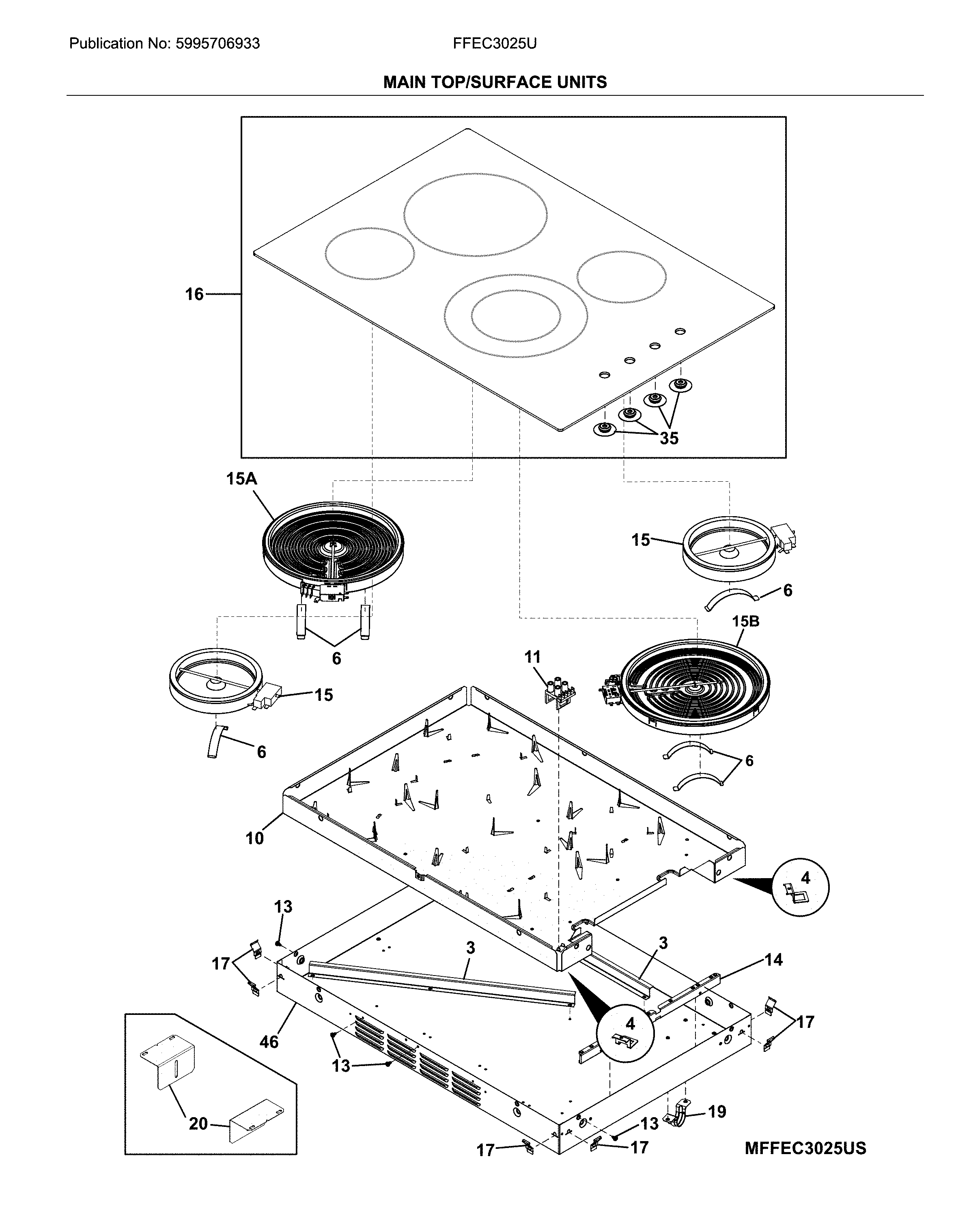

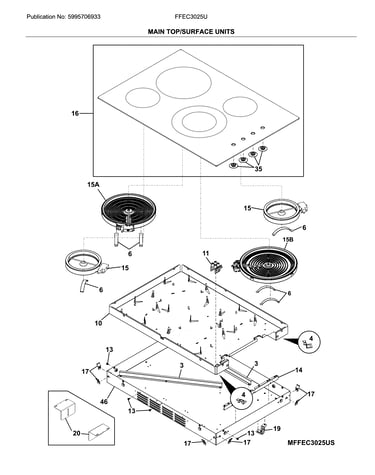

Main top/surface units diagram

Screw

Part #305376101

Replaced by #5308014215

?
Manufacturer substitution
This part replaces 305376101. Substitute parts can look different from the original.
This item is not returnable
In Stock
Support,beam 5304518260
#14

Main top/surface units diagram

Support,beam

Part #5304518260

In Stock
Cooktop Radiant Element, 9-in 305440417
#15A

Main top/surface units diagram

Cooktop radiant element, 9-in

Part #305440417

$170.89
6% OFF Phone Price : $180.89
In Stock
Cooktop Centering Spring 387174602
#17

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
In Stock
Cooktop Main Top Assembly (black) (replaces 5304518626) 5304518625
Cooktop main top assembly (black) (replaces 5304518626)

Part #5304518625

$361.55
$10.00 OFF Phone Price : $371.55
In Stock
Cooktop Radiant Element Support Bracket 387683300
#4

Main top/surface units diagram

Cooktop radiant element support bracket

Part #387683300

In Stock
Knob,control ,black ,dual Element 5304518269
#36A

Control panel diagram

Knob,control ,black ,dual element

Part #5304518269

In Stock
Bushing 5304515130
Bushing

Part #5304515130

In Stock
