Model # FDB1051REM2 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDB1051REM2 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |

Gasket 154561001
#3

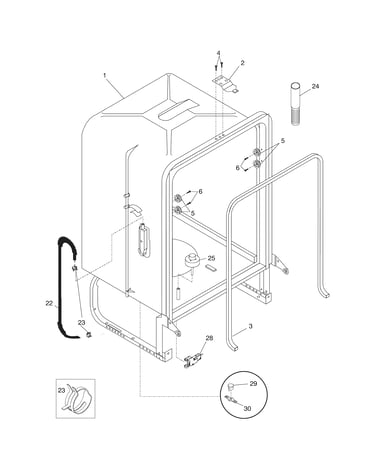

Tub diagram

Gasket

Part #154561001

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154561001. Substitute parts can look different from the original.
BEST SELLER
$31.02
26% OFF MSRP : $42.00
In Stock
Dishwasher Door Seal 154576501
#49

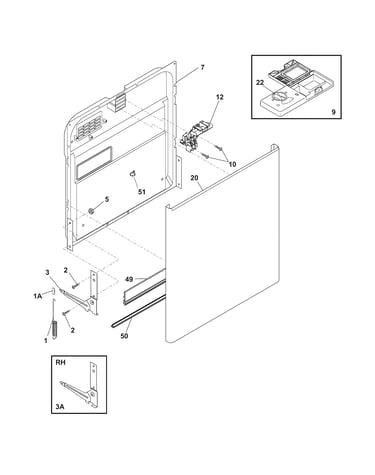

Door diagram

Dishwasher door seal

Part #154576501

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154576501. Substitute parts can look different from the original.
BEST SELLER
$23.26
18% OFF Phone Price : $28.26
In Stock
Dishwasher Lower Spray Arm Support 154294101
#62

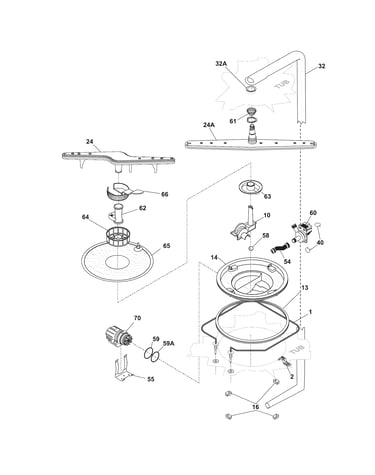

Motor & pump diagram

Dishwasher lower spray arm support

Part #154294101

Replaced by #5304518968

?
Manufacturer substitution
This part replaces 154294101. Substitute parts can look different from the original.
BEST SELLER
$14.24
12% OFF Phone Price : $16.24
In Stock
Rack-lower 154319706
#1

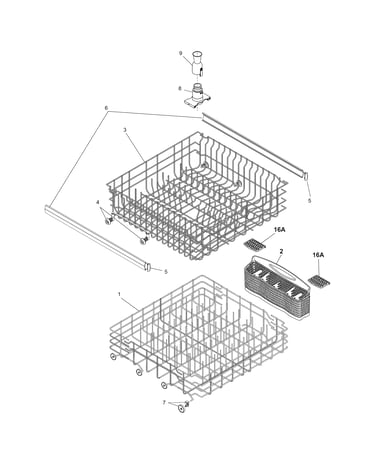

Racks diagram

Rack-lower

Part #154319706

Replaced by #808602302

?
Manufacturer substitution
This part replaces 154319706. Substitute parts can look different from the original.
BEST SELLER
$81.69
6% OFF Phone Price : $86.69
Back Order
Valve 154476101
#3

Frame diagram

Valve

Part #154476101

Replaced by #154637401

?
Manufacturer substitution
This part replaces 154476101. Substitute parts can look different from the original.
BEST SELLER
$58.78
8% OFF Phone Price : $63.78
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87
11% OFF Phone Price : $43.87
In Stock
Hose 154525301
#24

Tub diagram

Hose

Part #154525301

Replaced by #807117001

?
Manufacturer substitution
This part replaces 154525301. Substitute parts can look different from the original.
BEST SELLER
$31.65
14% OFF Phone Price : $36.65
In Stock
Dishwasher Dishrack Roller, Lower 154174502
#7

Racks diagram

Dishwasher dishrack roller, lower

Part #154174502

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174502. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.04
17% OFF Phone Price : $6.04
In Stock
Motor Bracket 154362301
#55

Motor & pump diagram

Motor bracket

Part #154362301

Replaced by #5304534830

?
Manufacturer substitution
This part replaces 154362301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Dishwasher Filter 154252401
#65

Motor & pump diagram

Dishwasher filter

Part #154252401

Replaced by #5304506525

?
Manufacturer substitution
This part replaces 154252401. Substitute parts can look different from the original.
BEST SELLER
$24.66
17% OFF Phone Price : $29.66
In Stock
