Model # WPDH8910K0WW Official GE washer

Here are the diagrams and repair parts for Official GE WPDH8910K0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Washer Door Lock WH10X10006
#217

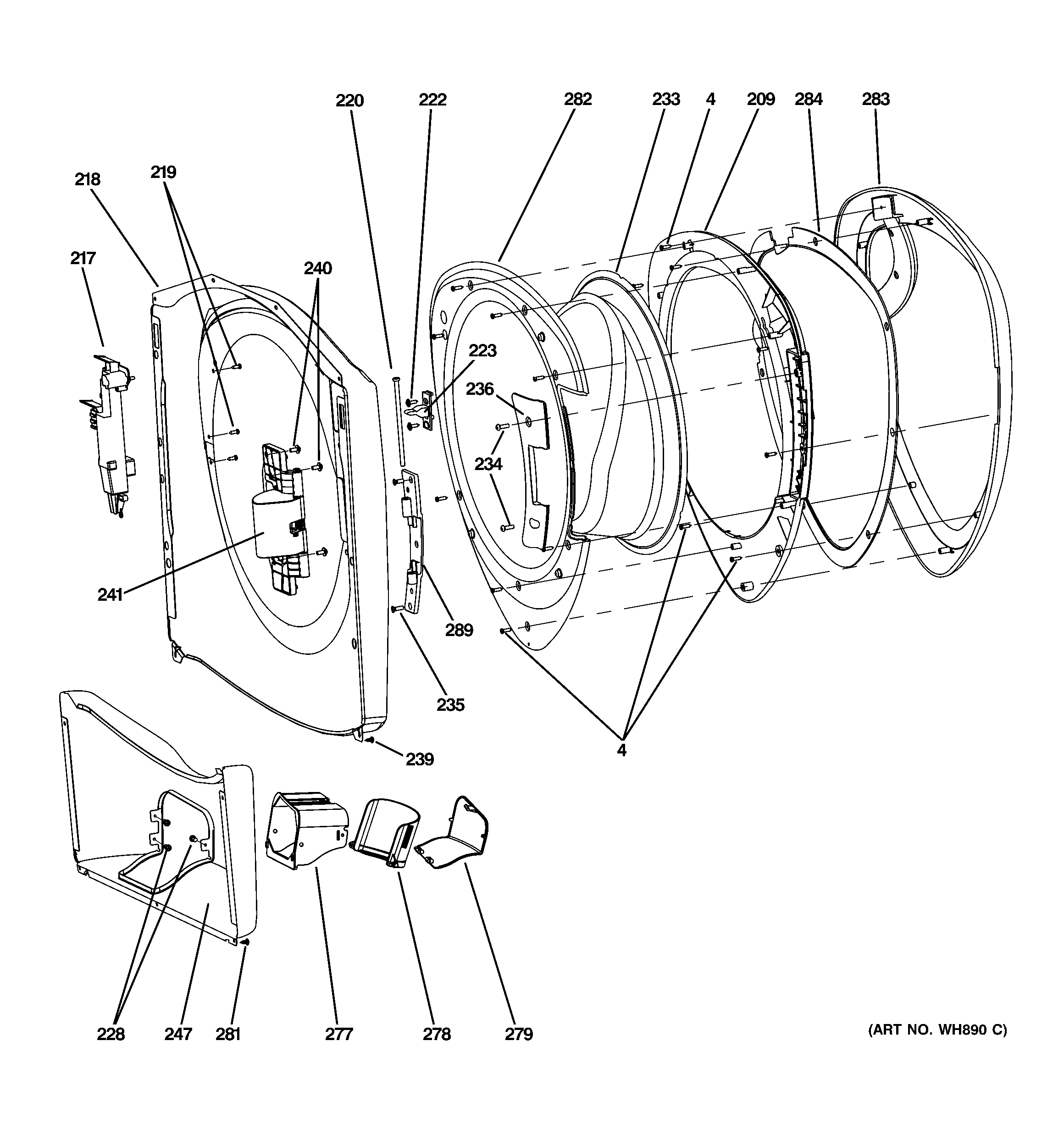

Front panel & door diagram

Washer door lock

Part #WH10X10006

$158.03 |
6% OFF Phone Price : $168.03
In Stock
Diverter WH43X10031
#140

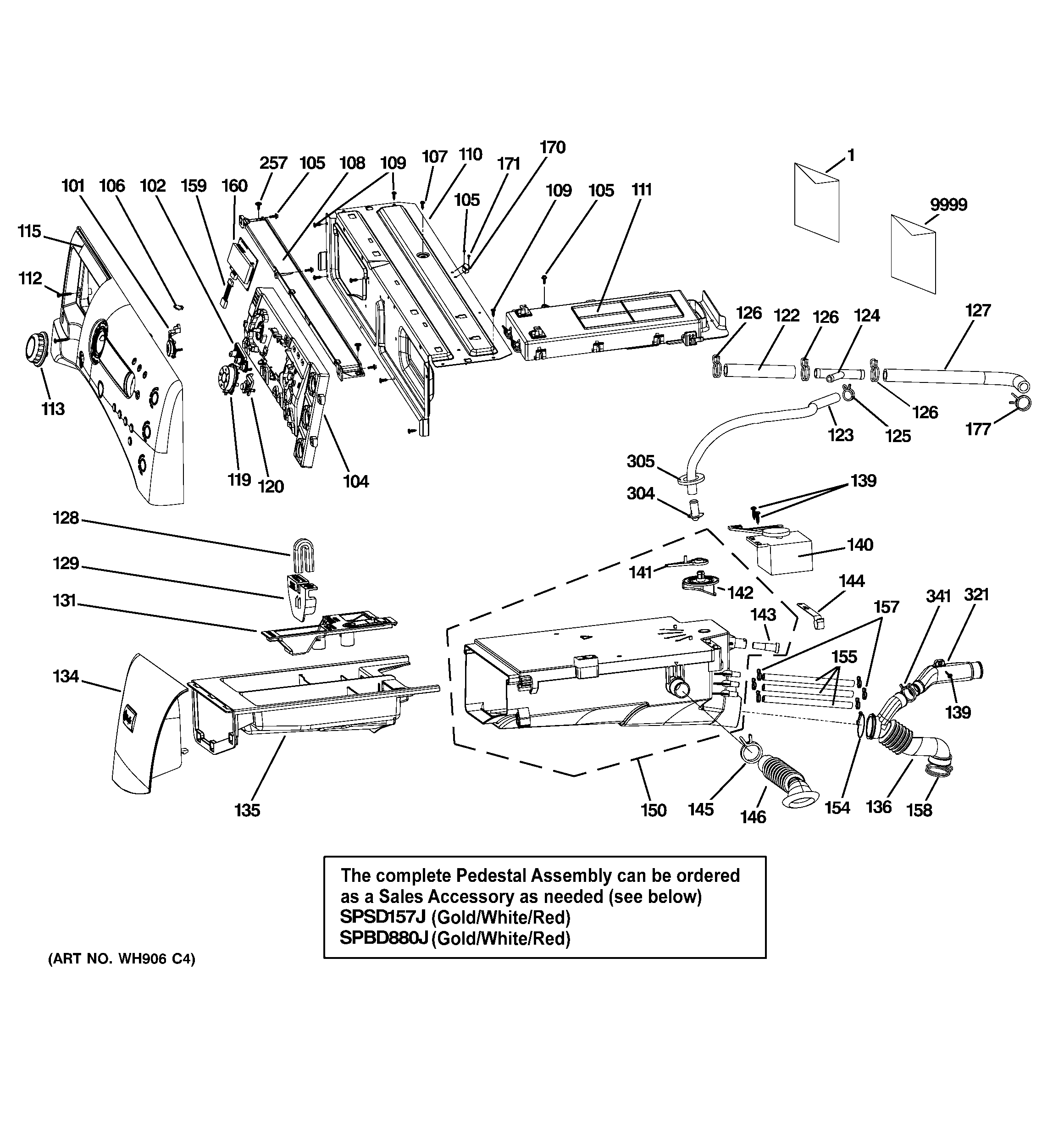

Controls & dispenser diagram

Diverter

Part #WH43X10031

Replaced by #WH43X10059

?
Manufacturer substitution
This part replaces WH43X10031. Substitute parts can look different from the original.
$129.55 |
7% OFF Phone Price : $139.55
In Stock
Washer Drive Belt WH08X10024
#326

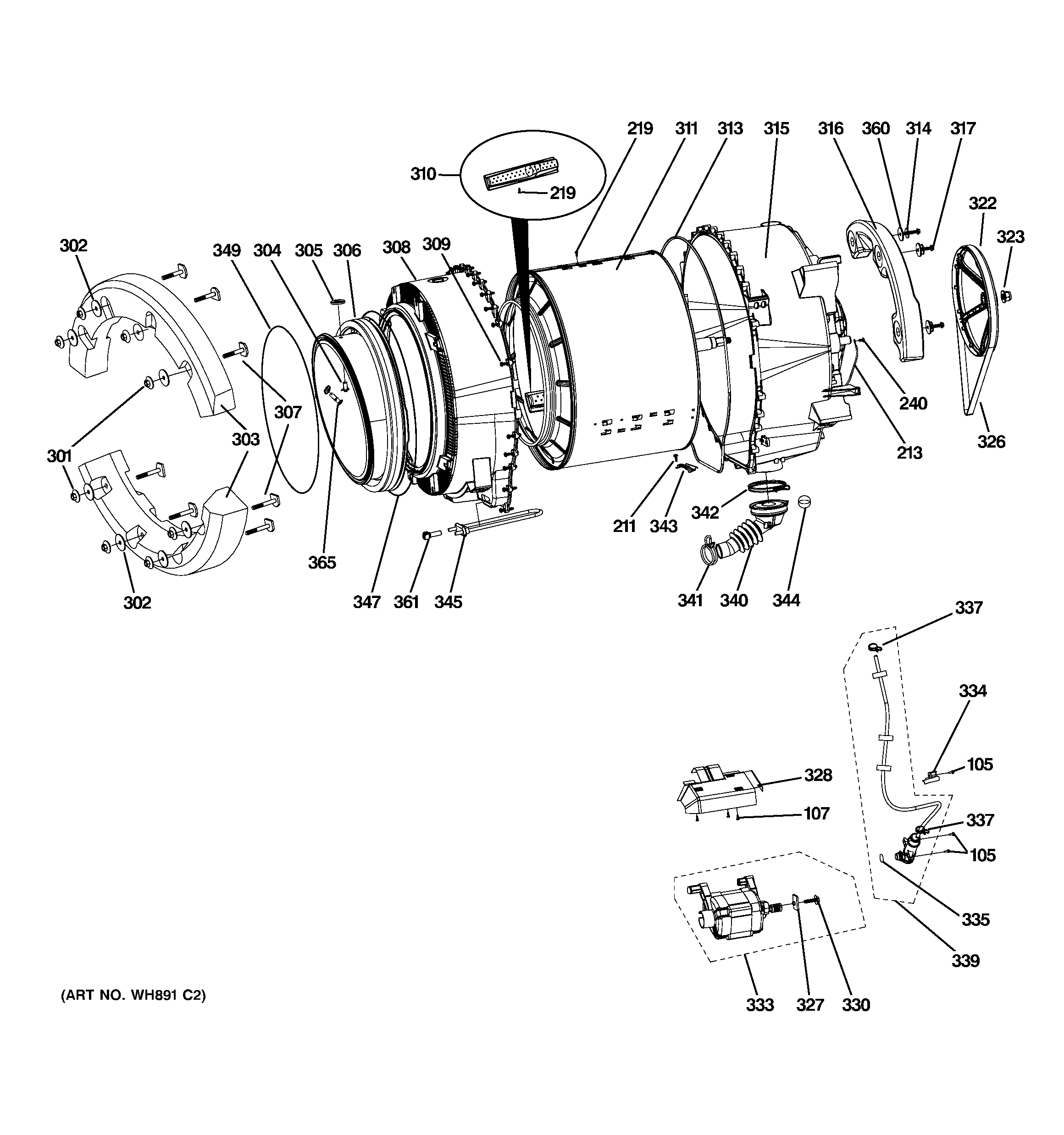

Tub & motor diagram

Washer drive belt

Part #WH08X10024

$88.14 |
5% OFF Phone Price : $93.14
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

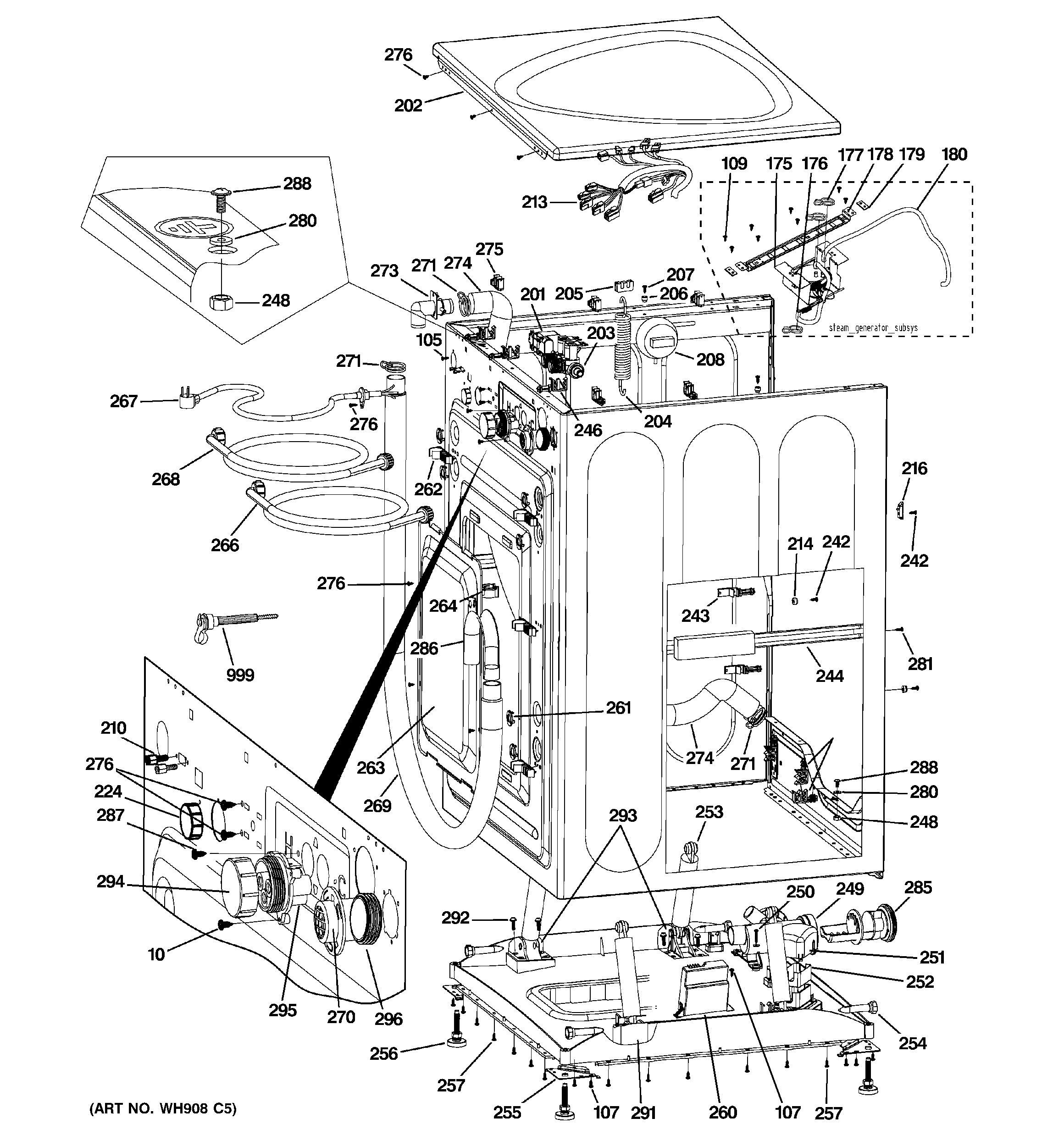

Cabinet & top panel diagram
