Craftsman
Gas Line Trimmer

Model # 358796120-1980 Official Craftsman gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 358796120-1980 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

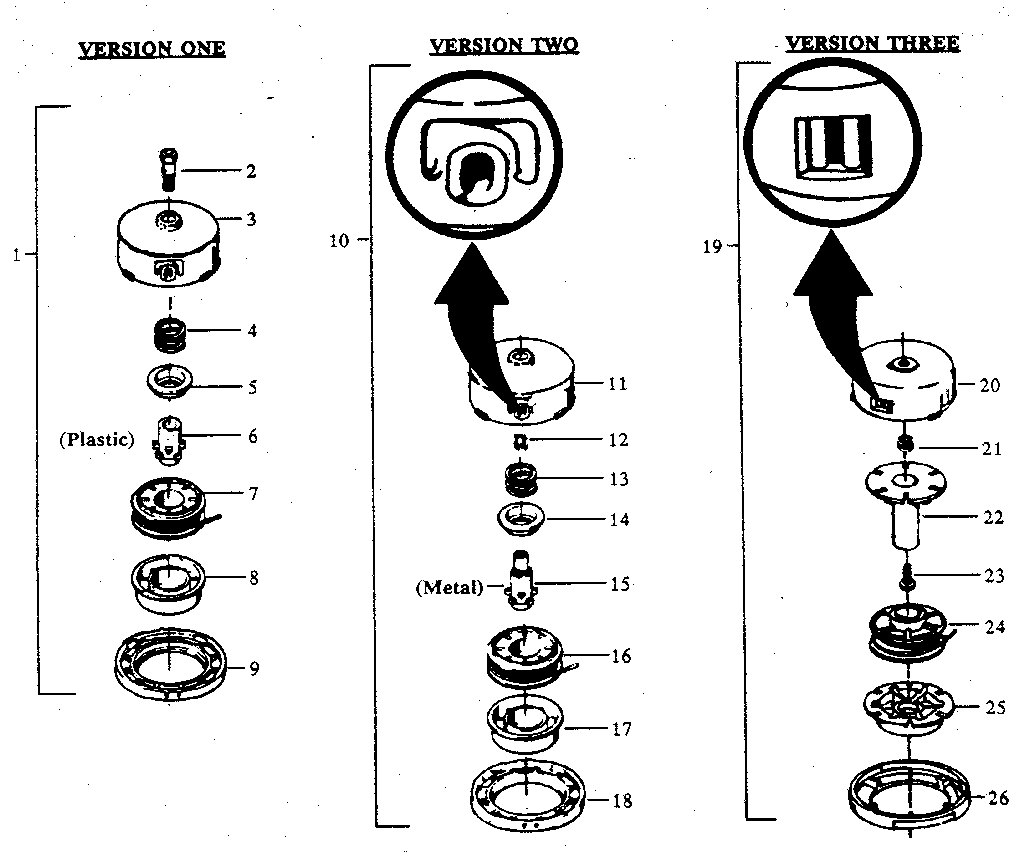

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Line Kit 530-069247
#16

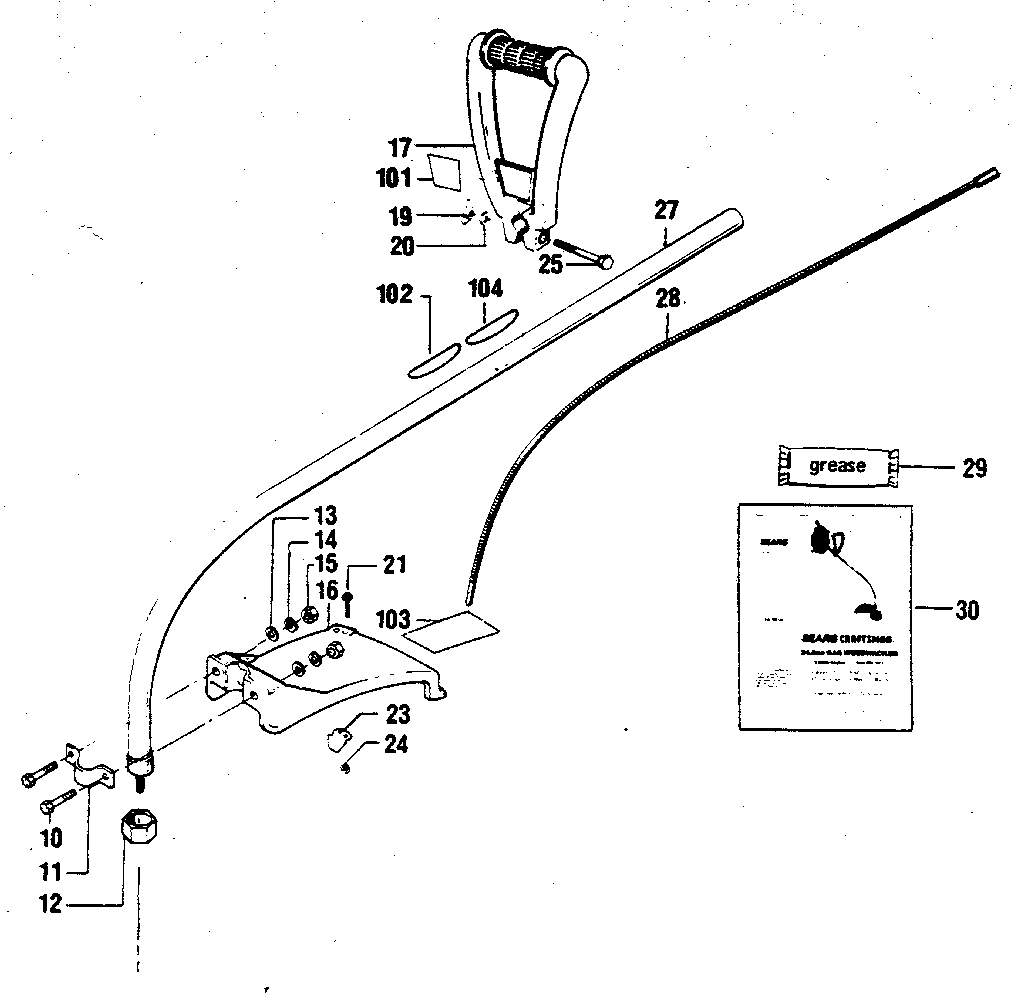

Engine diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
$6.60
13% OFF Phone Price : $7.60
In Stock
Fuel Assembly 530-014362
#16A

Engine diagram

Fuel assembly

Part #530-014362

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530-014362. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.07
16% OFF Phone Price : $6.07
In Stock
Gasket Kit 35186

#NI

All parts diagram

Gasket kit

Part #35186

Replaced by #530069844

?
Manufacturer substitution
This part replaces 35186. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.37
12% OFF Phone Price : $16.37
Back Order
Check Valve 26119
#12

Engine diagram

Check valve

Part #26119

Replaced by #530026119

?
Manufacturer substitution
This part replaces 26119. Substitute parts can look different from the original.
This item is not returnable
Back Order
Fuel Line 21044
#34

Engine diagram

Fuel line

Part #21044

Replaced by #530069571

?
Manufacturer substitution
This part replaces 21044. Substitute parts can look different from the original.
This item is not returnable
In Stock
Fuel Line 21045
#15

Engine diagram

Fuel line

Part #21045

Replaced by #530069571

?
Manufacturer substitution
This part replaces 21045. Substitute parts can look different from the original.
This item is not returnable
In Stock
Gasket 35164
#3

Carburetor assembly #35183 diagram

Gasket

Part #35164

Replaced by #530035164

?
Manufacturer substitution
This part replaces 35164. Substitute parts can look different from the original.
This item is not returnable
In Stock
Retainer Ring 15162
#56

Engine diagram

Retainer ring

Part #15162

Replaced by #530015162

?
Manufacturer substitution
This part replaces 15162. Substitute parts can look different from the original.
This item is not returnable
In Stock
Air Filter 24371
#8

Engine diagram

Air filter

Part #24371

Replaced by #530024371

?
Manufacturer substitution
This part replaces 24371. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
In Stock
Diaphragm 35166
#6

Carburetor assembly #35183 diagram

Diaphragm

Part #35166

Replaced by #504130807

?
Manufacturer substitution
This part replaces 35166. Substitute parts can look different from the original.
This item is not returnable
$4.09
20% OFF Phone Price : $5.09
Back Order
