Jenn-Air JBZFL18IGX00 upright freezer Parts
Here are the diagrams and repair parts for Jenn-Air JBZFL18IGX00 upright freezer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

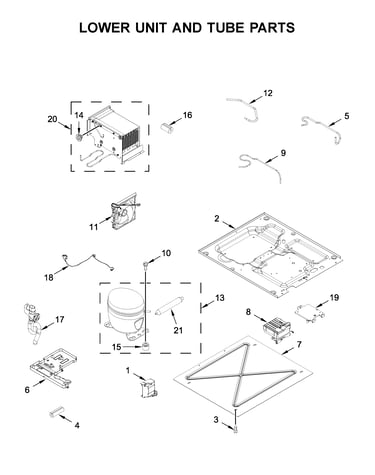

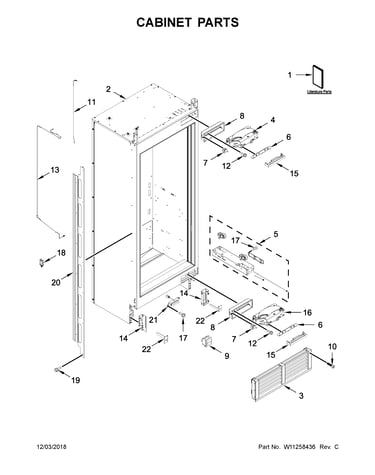

Browse Parts for JBZFL18IGX00 Freestanding Freezers

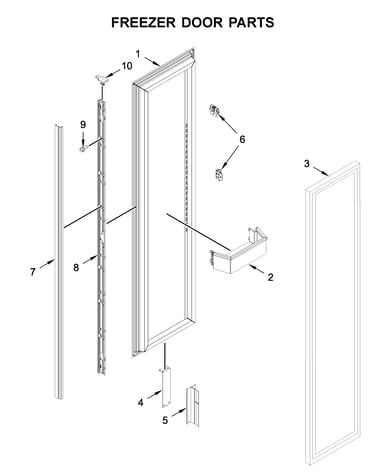

Freezer door parts diagram
Trim, Panel Adjust
Part #W11105109Replaced by #W11299811
Manufacturer substitutionThis part replaces W11105109. Substitute parts can look different from the original.In Stock$86.396% OFF Phone Price : $92.39
Qty
Optional parts diagram
Join Kit, Hinge - Left Hand / Non Hinge - Right Hand
Part #W11103738Replaced by #W11247577
Manufacturer substitutionThis part replaces W11103738. Substitute parts can look different from the original.In Stock$504.27QtyScrew
Part #W10882791Replaced by #W11247538

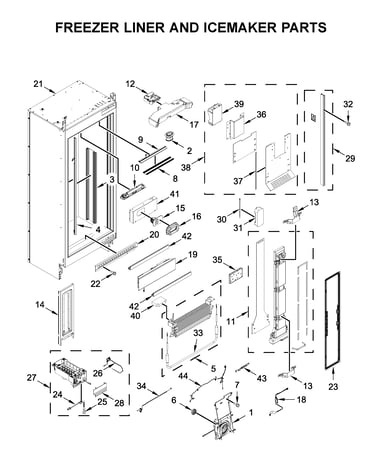

Manufacturer substitutionThis part replaces W10882791. Substitute parts can look different from the original.In Stock$44.08QtyFreezer liner and icemaker parts diagram
Damper Assembly
Part #W10872906Replaced by #W11235115
Manufacturer substitutionThis part replaces W10872906. Substitute parts can look different from the original.In Stock$152.76QtyFreezer door parts diagram
Screw
Part #W11085874Replaced by #W11302041

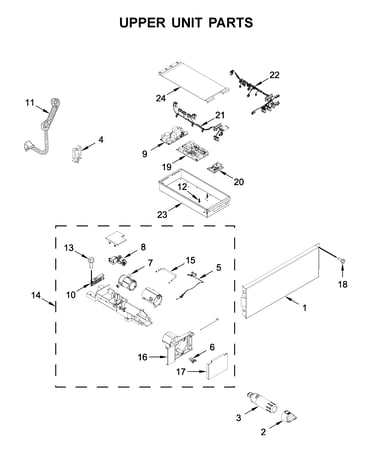

Manufacturer substitutionThis part replaces W11085874. Substitute parts can look different from the original.In Stock$39.12QtyUpper unit parts diagram
Harness, Valve
Part #W10873611Replaced by #W11247637
Manufacturer substitutionThis part replaces W10873611. Substitute parts can look different from the original.In Stock$191.28QtyUpper unit parts diagram
Lid, Cover
Part #W10822213Replaced by #W11302065

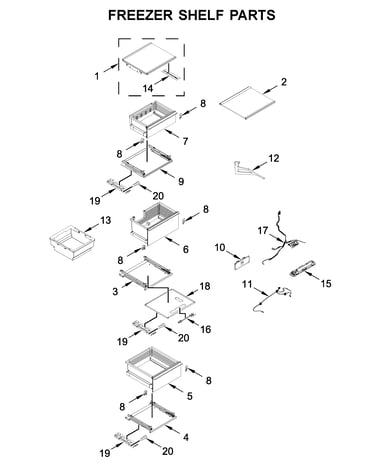

Manufacturer substitutionThis part replaces W10822213. Substitute parts can look different from the original.In Stock$96.21QtyFreezer shelf parts diagram
Assembly, Deli Shelf (includes Thermistor)
Part #W10824593Replaced by #W11307252
Manufacturer substitutionThis part replaces W10824593. Substitute parts can look different from the original.In Stock$349.84QtyUpper unit parts diagram
Tube-water,i
Part #W11050485Replaced by #W11233371
Manufacturer substitutionThis part replaces W11050485. Substitute parts can look different from the original.In Stock$110.66QtyFreezer door parts diagram
Assembly, Panel Adjuster (horizontal)
Part #W10873319Replaced by #W11235097
Manufacturer substitutionThis part replaces W10873319. Substitute parts can look different from the original.In Stock$112.85Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$43.86
12% OFF Phone Price : $49.86
Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
