Porter Cable
Air Compressor

Model # CF1400 Official Porter Cable pancake compressor

Here are the diagrams and repair parts for Official Porter Cable CF1400 pancake compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Valve 889111
#17

Pump/hose/tank diagram

Valve

Part #889111

The manufacturer no longer makes this part, and there's no substitute part

Screw 889172
#24

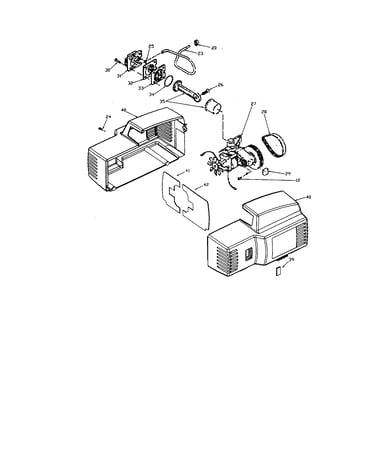

Motor/shroud diagram

Screw

Part #889172

The manufacturer no longer makes this part, and there's no substitute part

Piston Kit 889967
#35

Motor/shroud diagram

Piston kit

Part #889967

The manufacturer no longer makes this part, and there's no substitute part

Head Gasket 889158
#32

Motor/shroud diagram

Head gasket

Part #889158

The manufacturer no longer makes this part, and there's no substitute part

Motor 889165
#27

Motor/shroud diagram

Motor

Part #889165

The manufacturer no longer makes this part, and there's no substitute part

Regulator 889106
#8

Pump/hose/tank diagram

Regulator

Part #889106

The manufacturer no longer makes this part, and there's no substitute part

Tube Seal 889157
#25

Motor/shroud diagram

Tube seal

Part #889157

The manufacturer no longer makes this part, and there's no substitute part

Timing Belt 889166
#28

Motor/shroud diagram

Timing belt

Part #889166

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 889108
#38

Pump/hose/tank diagram

Power cord

Part #889108

The manufacturer no longer makes this part, and there's no substitute part

Regulator 889146
#10

Pump/hose/tank diagram

Regulator

Part #889146

The manufacturer no longer makes this part, and there's no substitute part
