Bosch HBL5660UC/03 electric wall oven Parts
Here are the diagrams and repair parts for Bosch HBL5660UC/03 electric wall oven, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

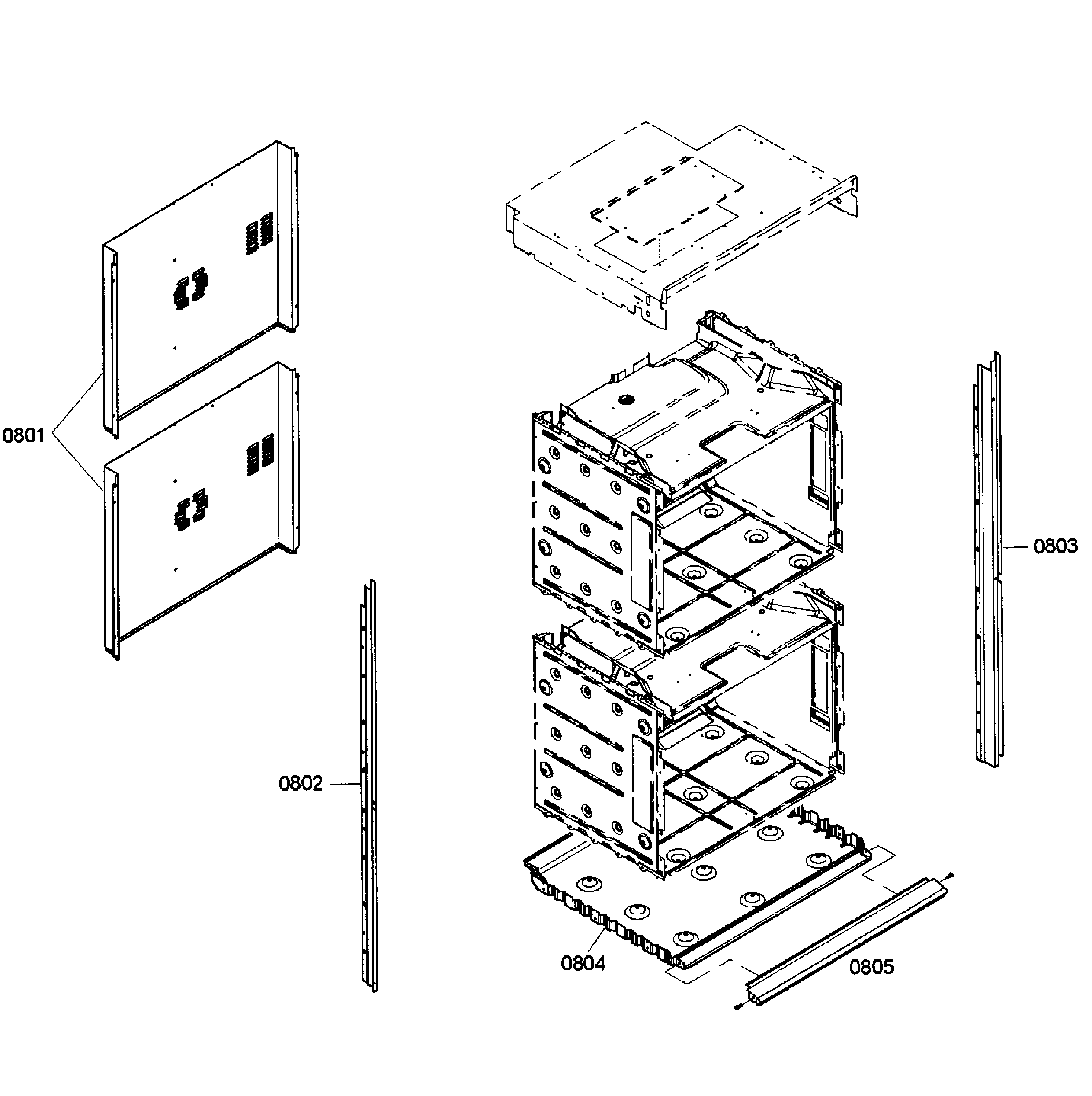

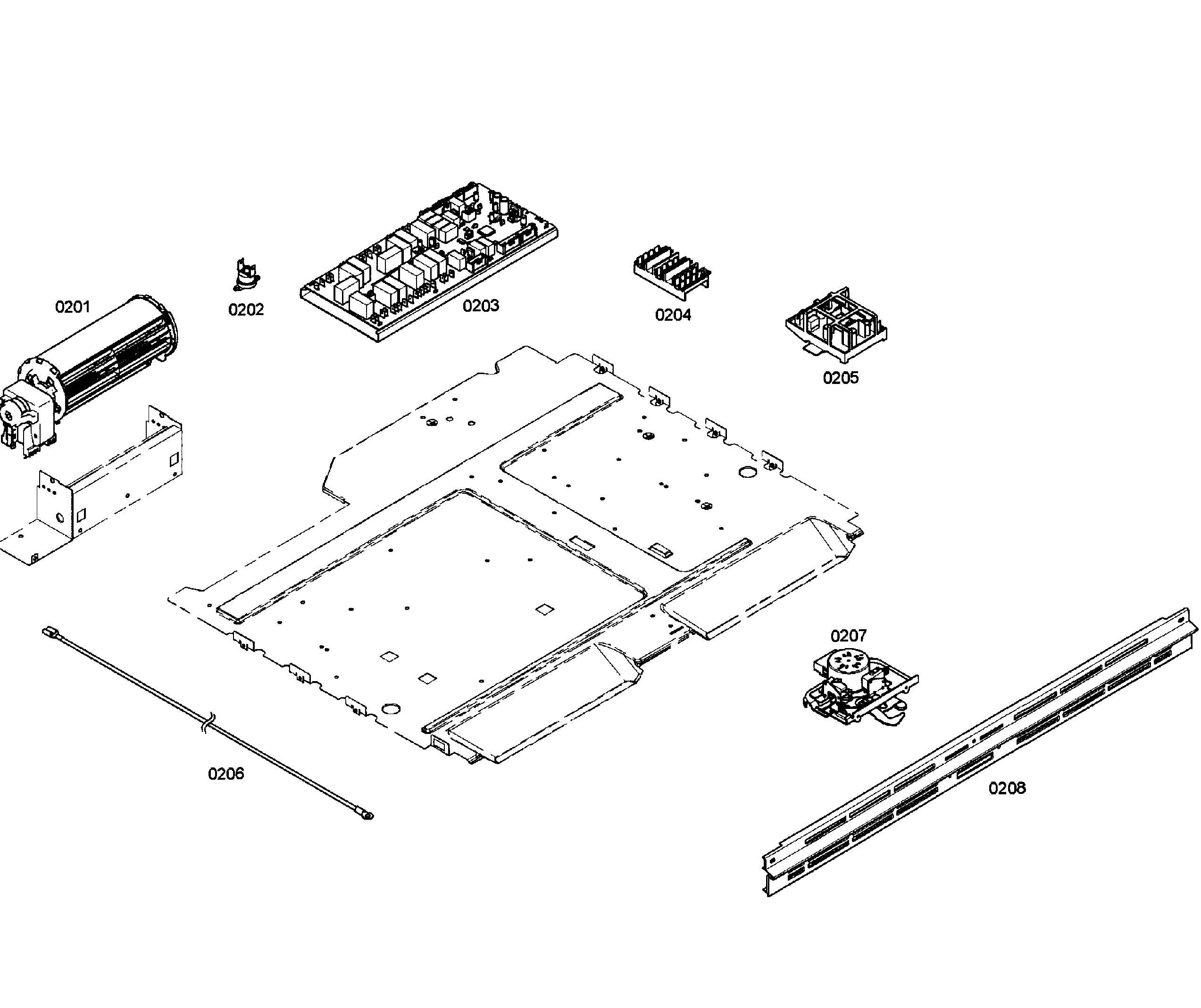

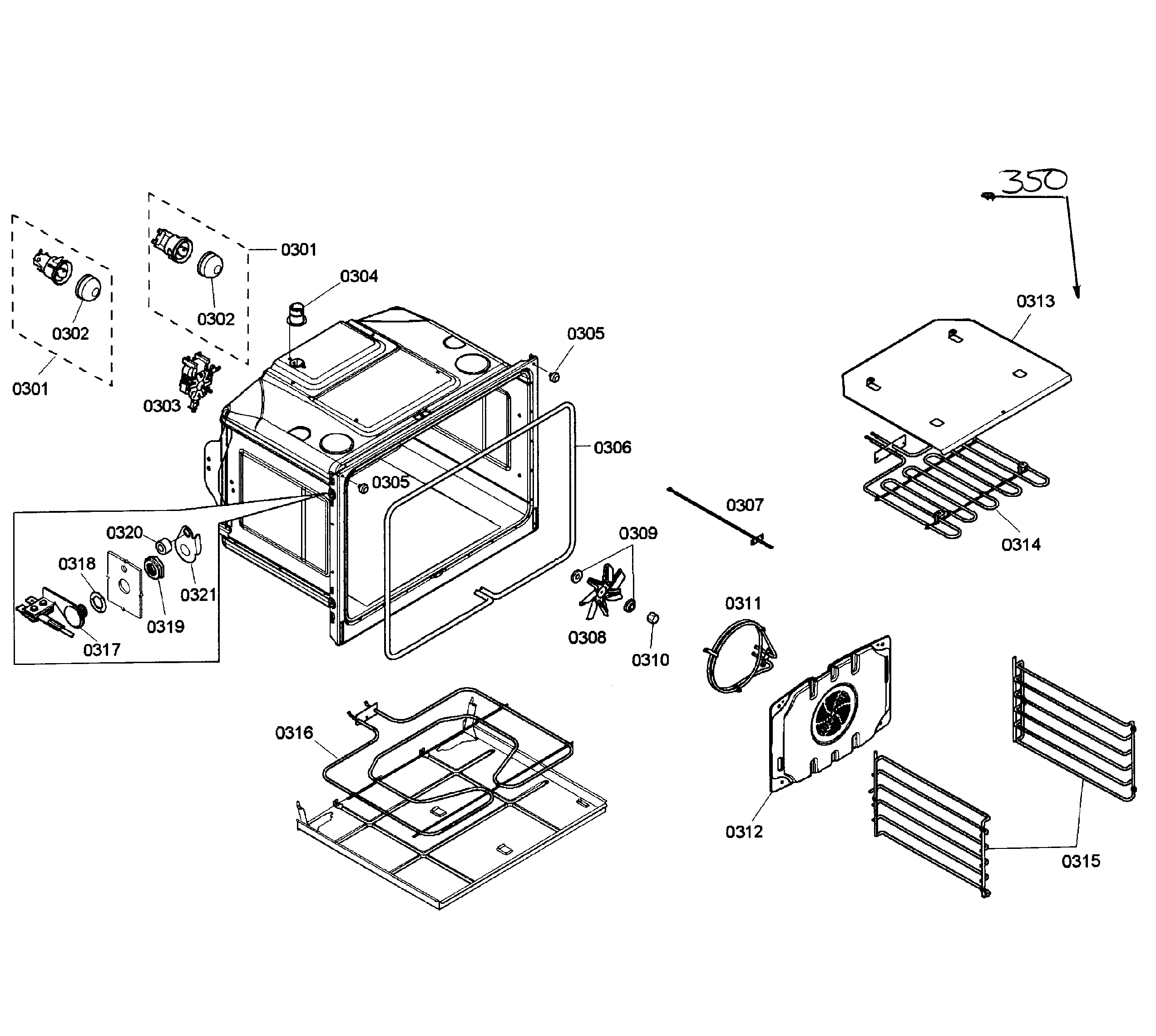

SELECT DIAGRAM
Browse Parts for HBL5660UC/03 Wall Ovens
Door Gasket
Part #491569Replaced by #00491569
Manufacturer substitutionThis part replaces 491569. Substitute parts can look different from the original.In Stock$88.866% OFF Phone Price : $94.86
Qty

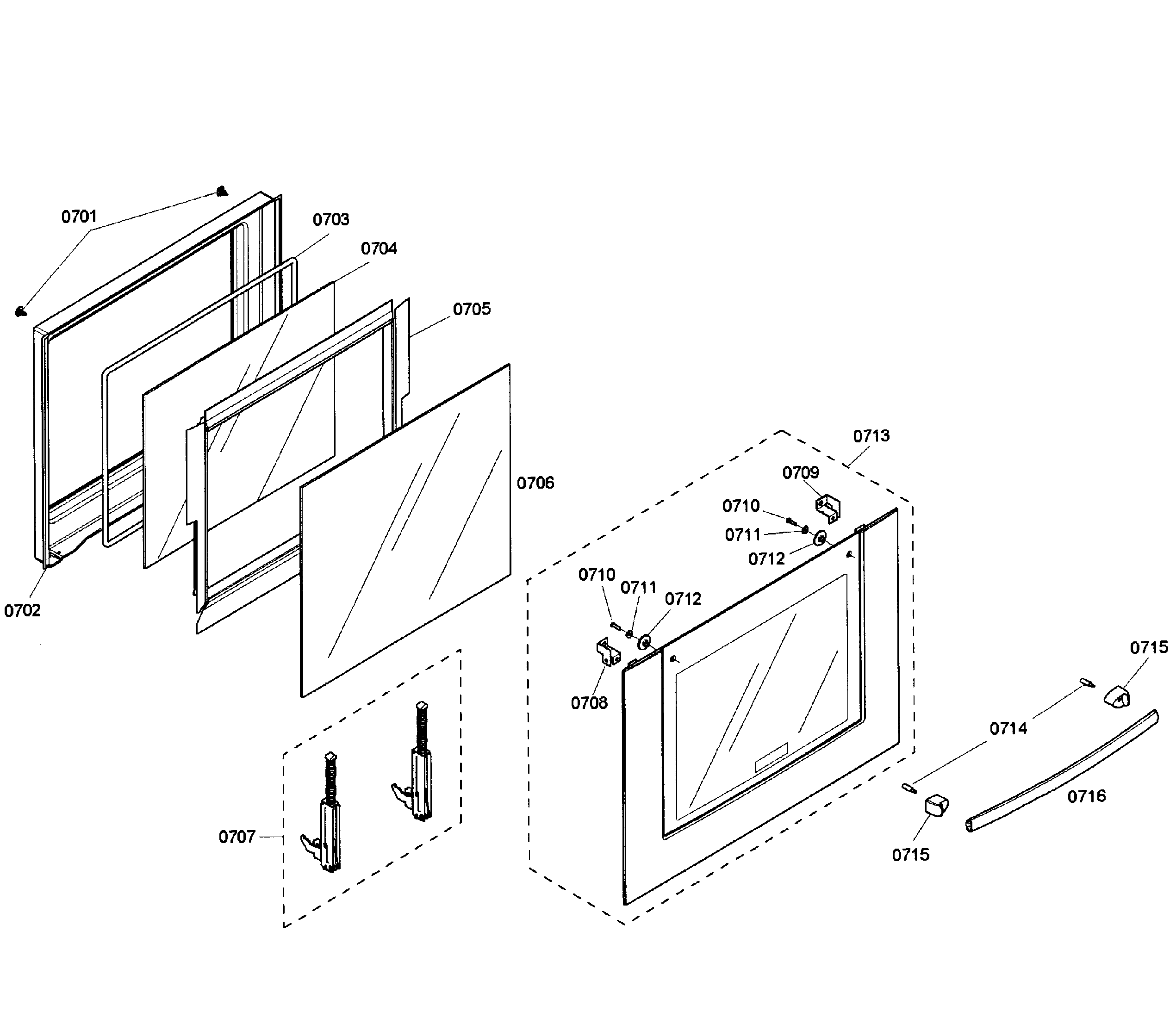

Door lower diagram
Oven Outer Door
Part #246547Replaced by #00246547
Manufacturer substitutionThis part replaces 246547. Substitute parts can look different from the original.In Stock$588.50$12.00 OFF Phone Price : $600.50QtyOven lower diagram
Plug
Part #413573Replaced by #00413573

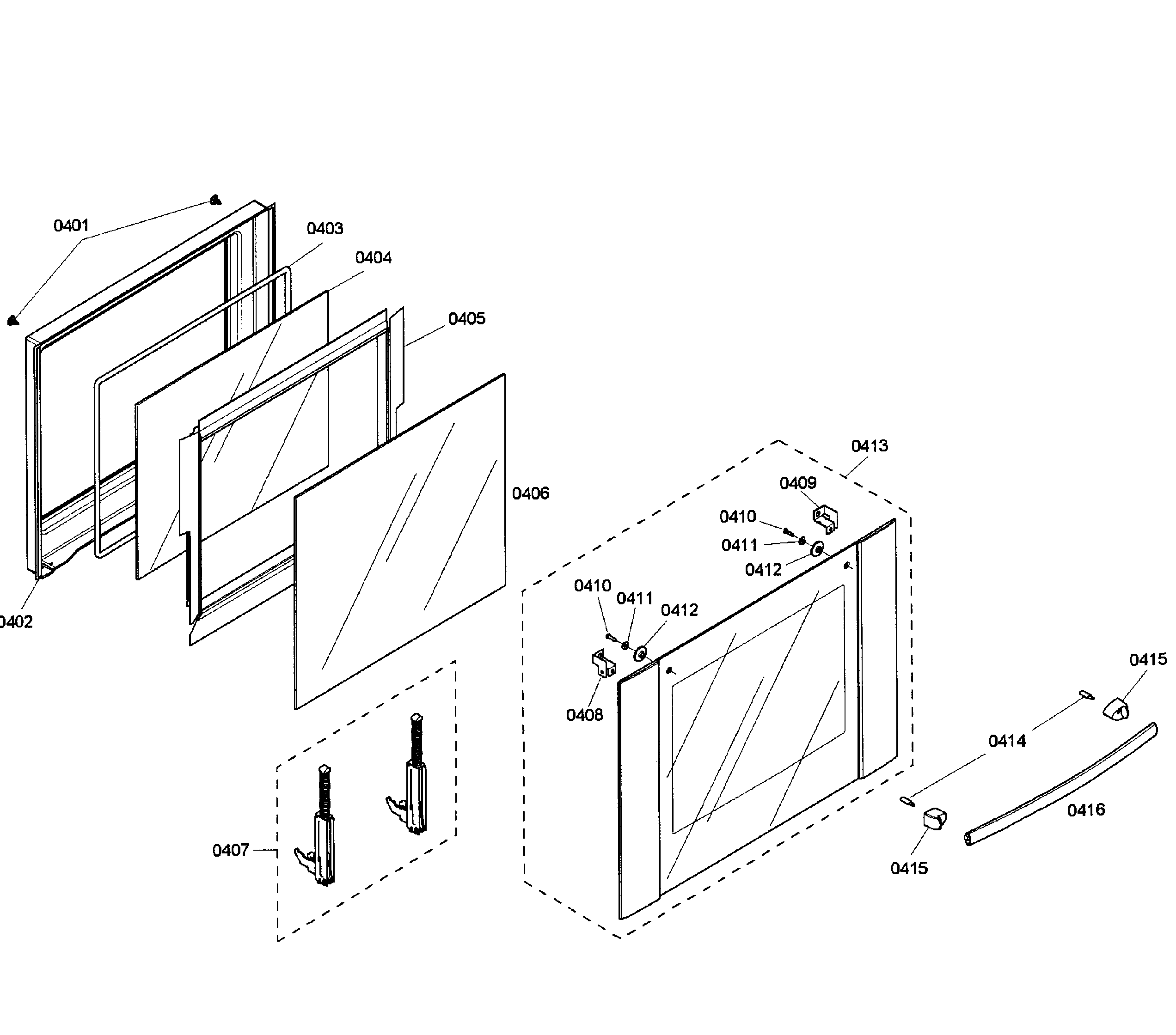

Manufacturer substitutionThis part replaces 413573. Substitute parts can look different from the original.In Stock$26.94QtyDoor upper diagram
Door
Part #680087
The manufacturer no longer makes this part, and there's no substitute part

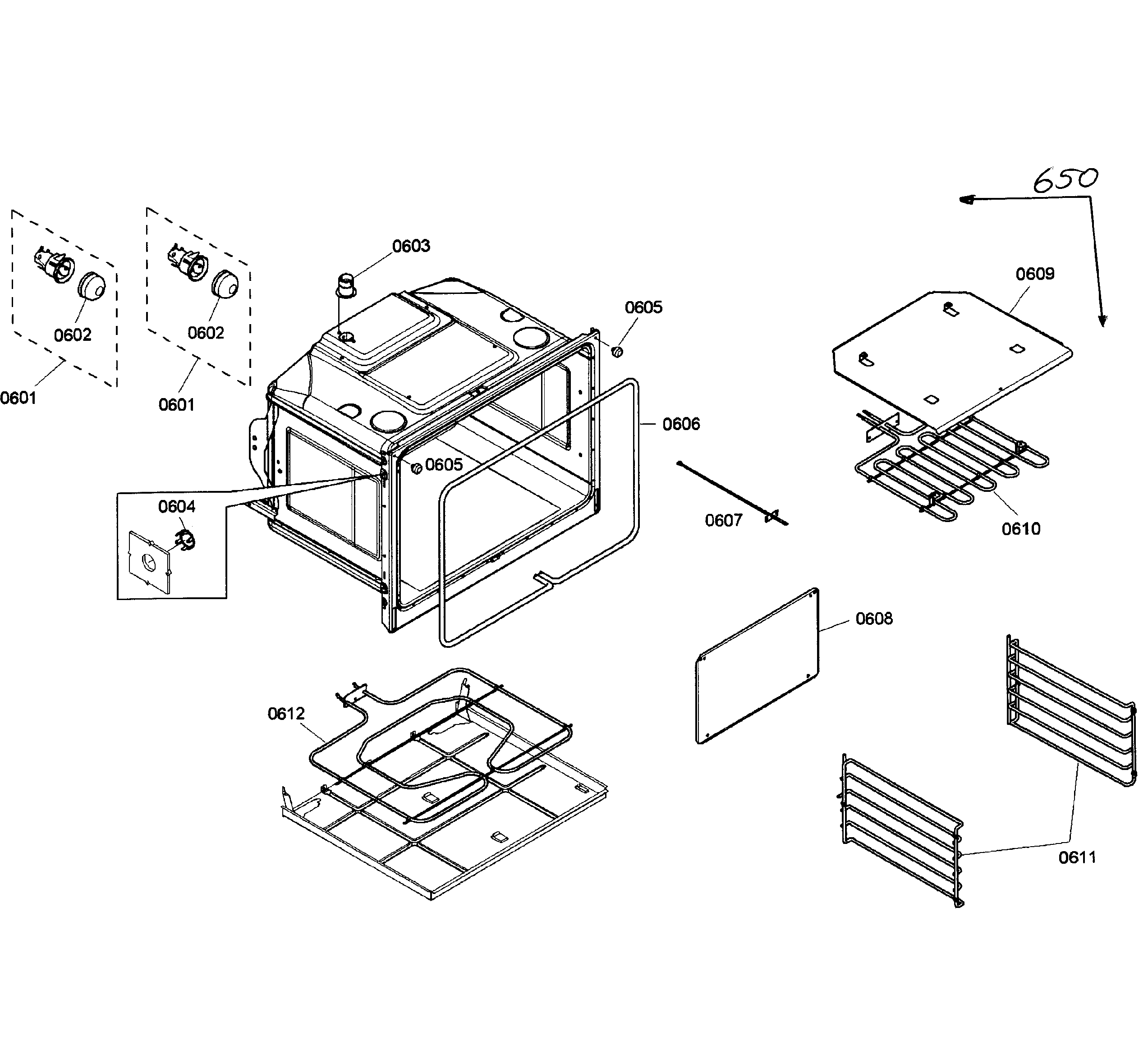

Oven lower diagram
Cover
Part #478399
The manufacturer no longer makes this part, and there's no substitute part

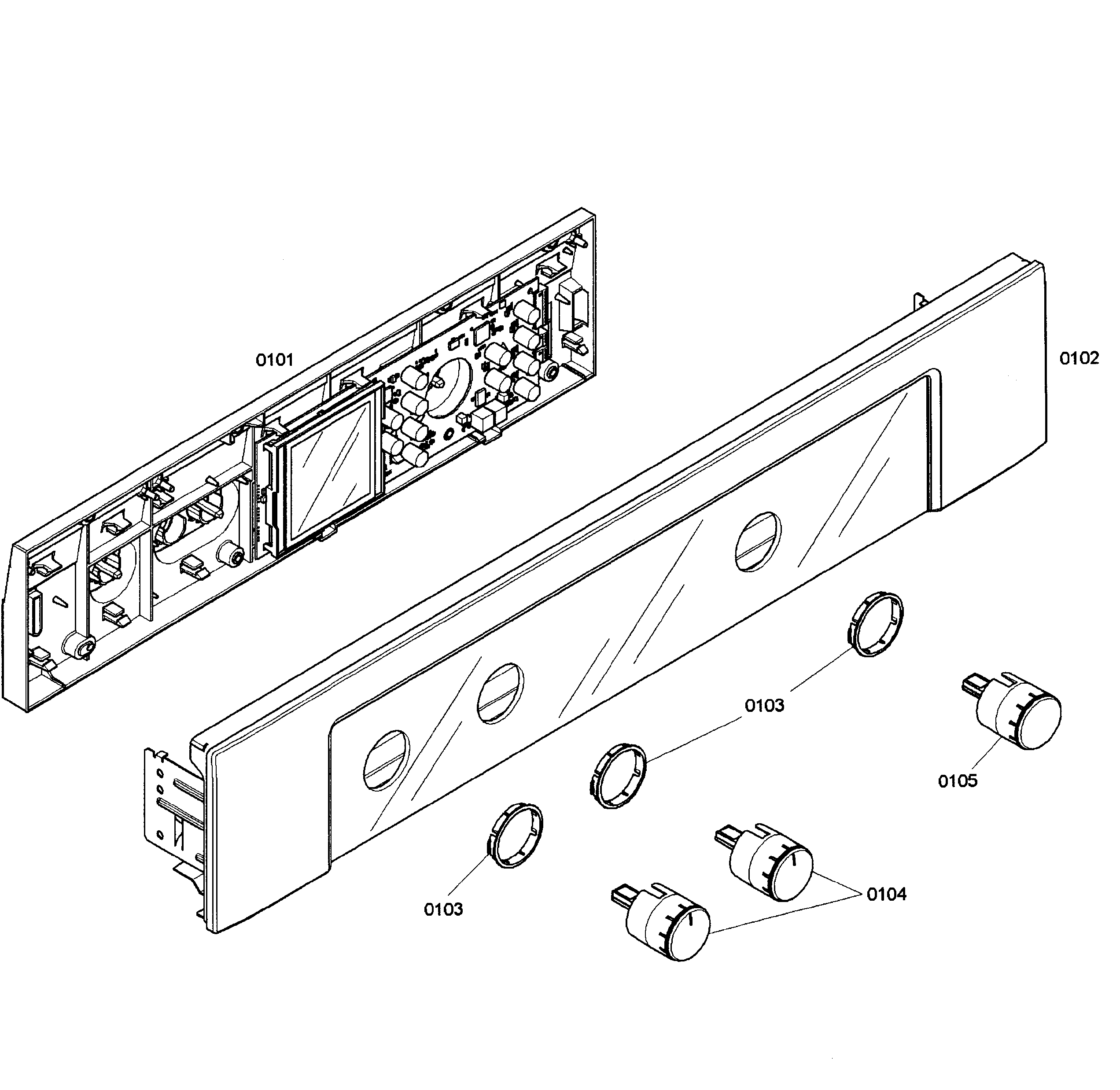

Control panel diagram
Harness
Part #643539
The manufacturer no longer makes this part, and there's no substitute part
Fan cooling diagram
Grease Filter
Part #664912
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Insert
Part #553103
The manufacturer no longer makes this part, and there's no substitute part
Adhesive T
Part #423241
The manufacturer no longer makes this part, and there's no substitute part

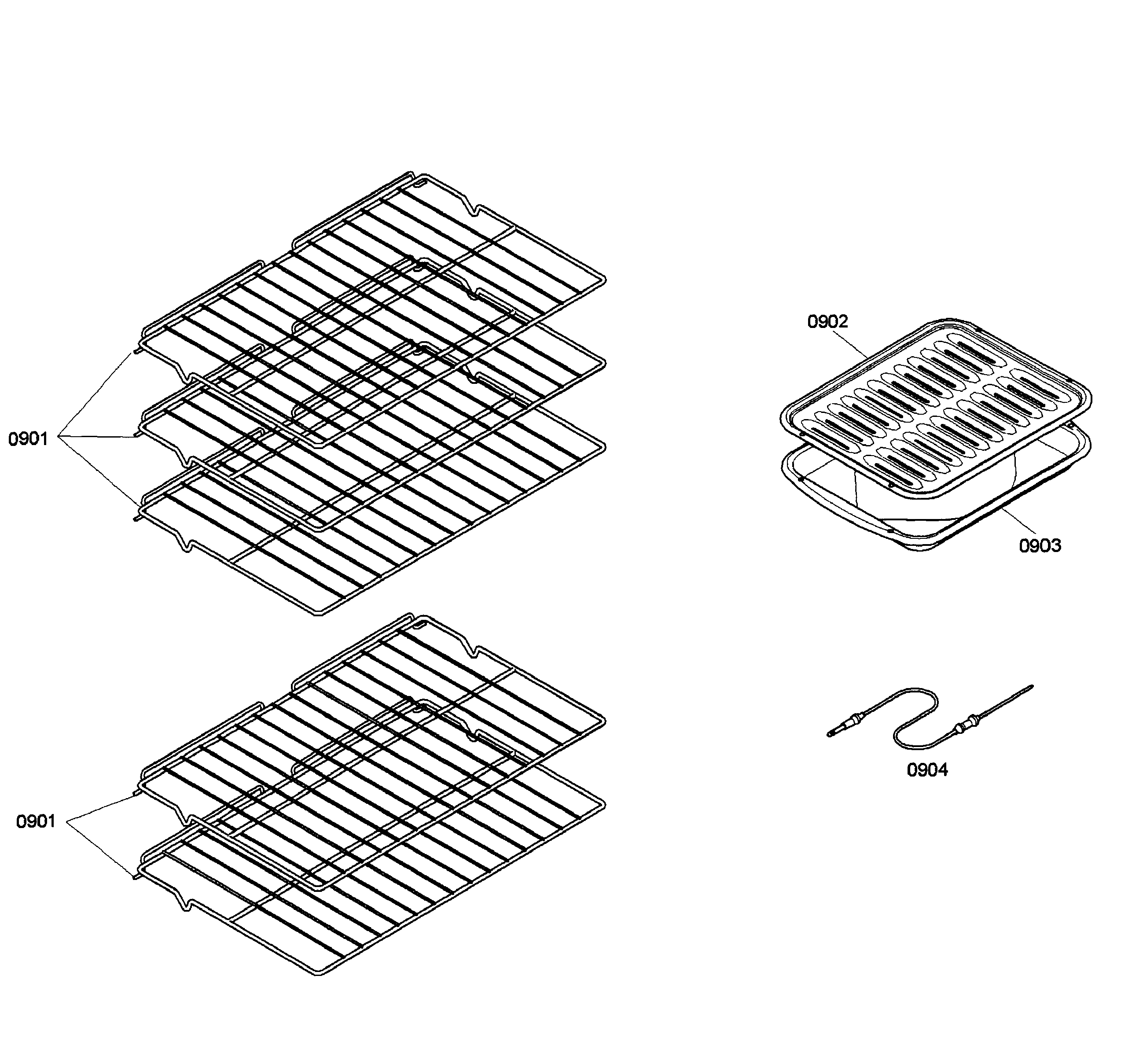

Shelfs diagram
Pan
Part #449757
The manufacturer no longer makes this part, and there's no substitute part
