Model # LGD512/P7762224W Official Amana dryer

Here are the diagrams and repair parts for Official Amana LGD512-P7762224W dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

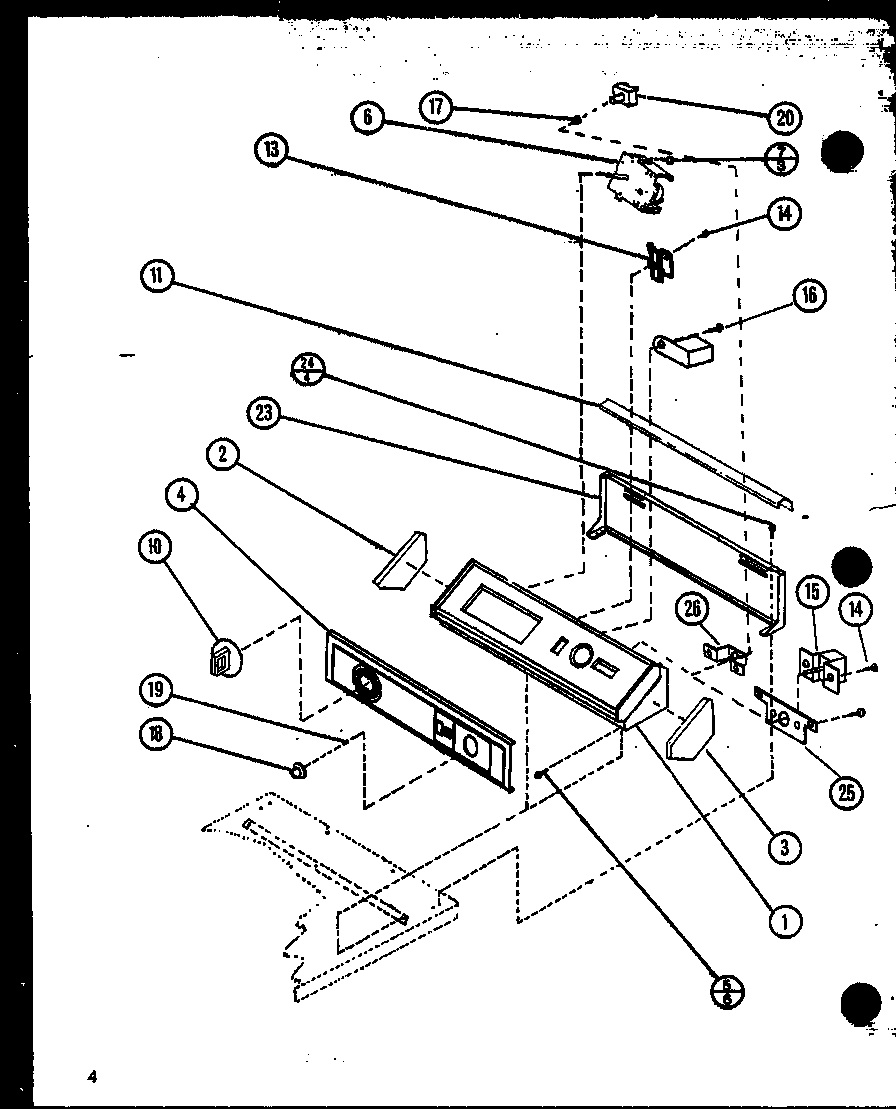

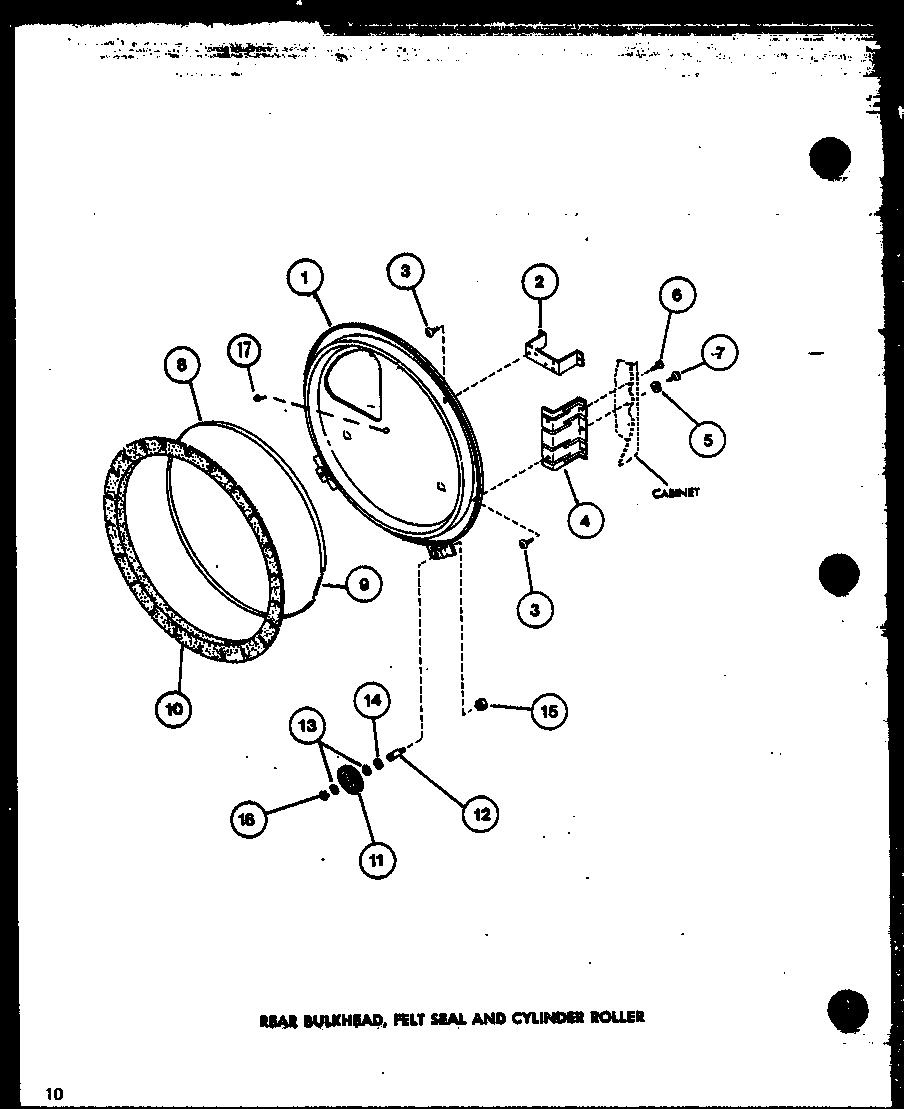

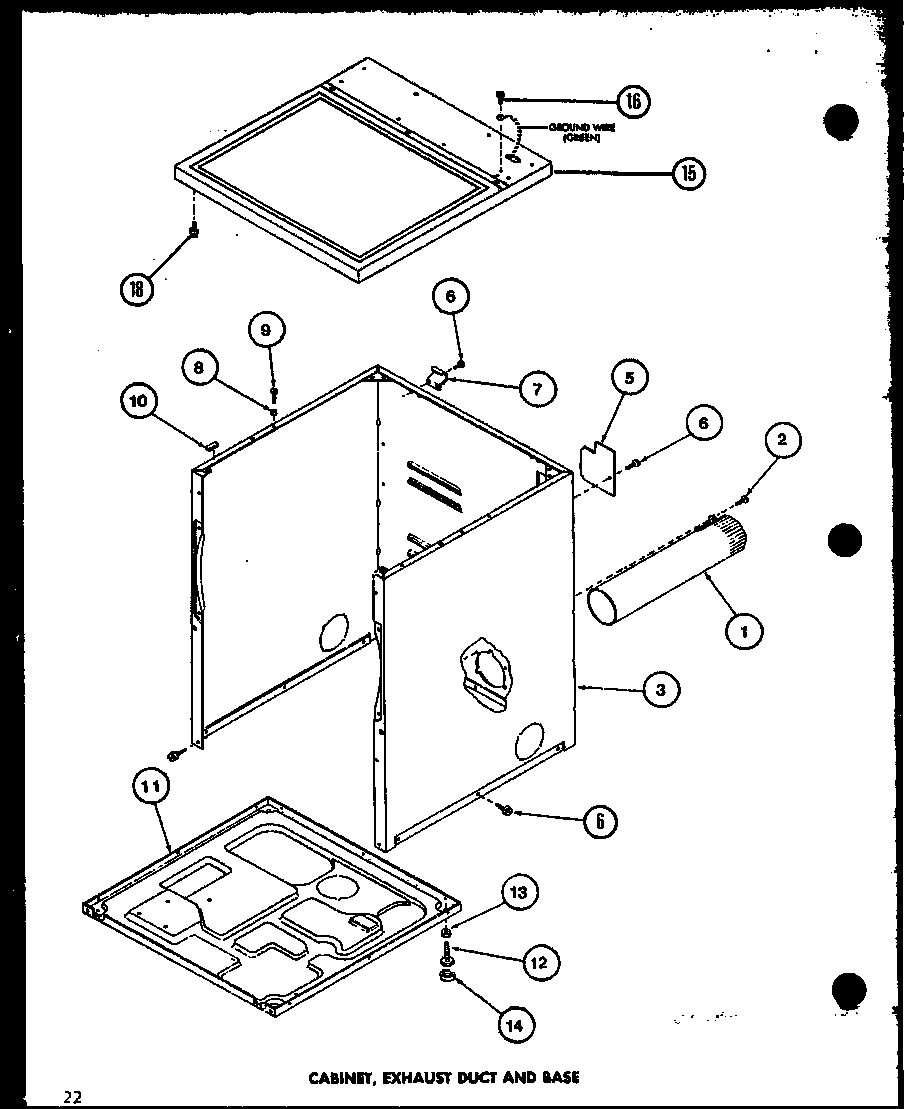

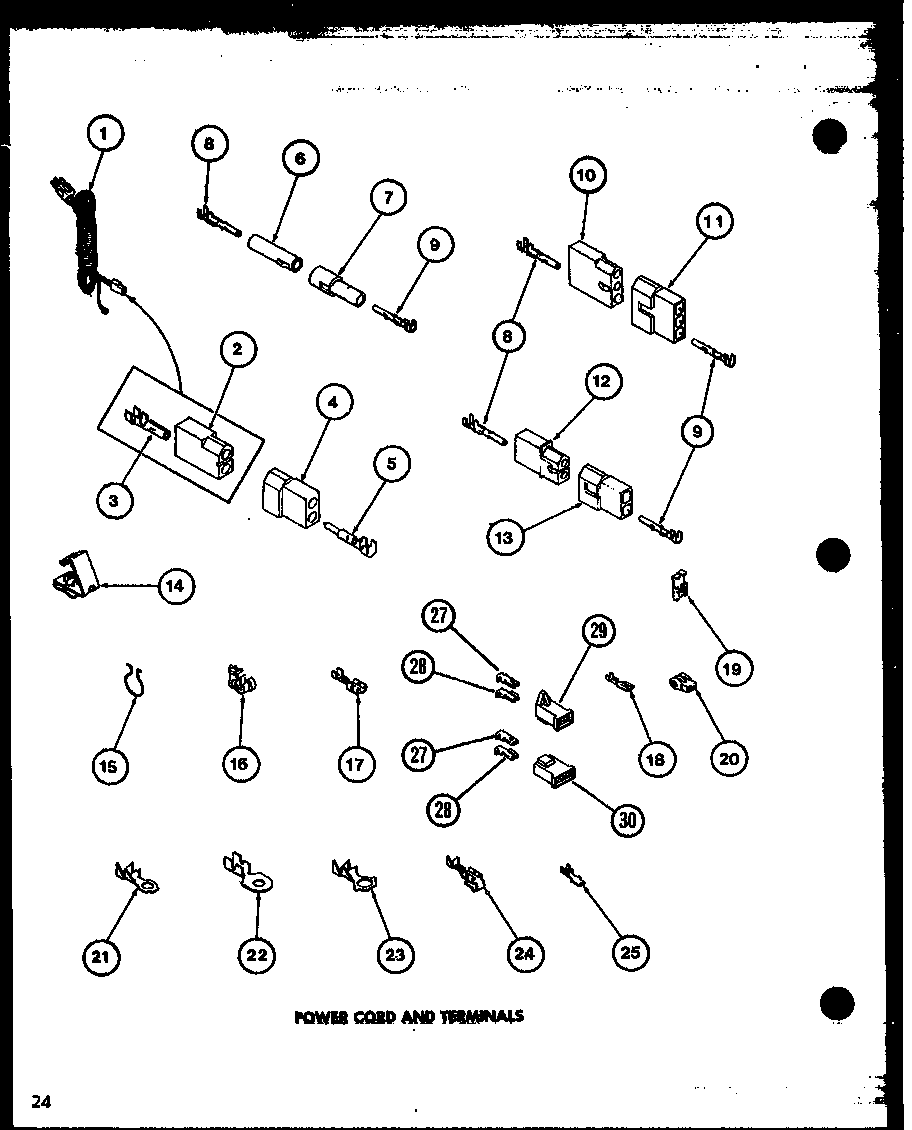

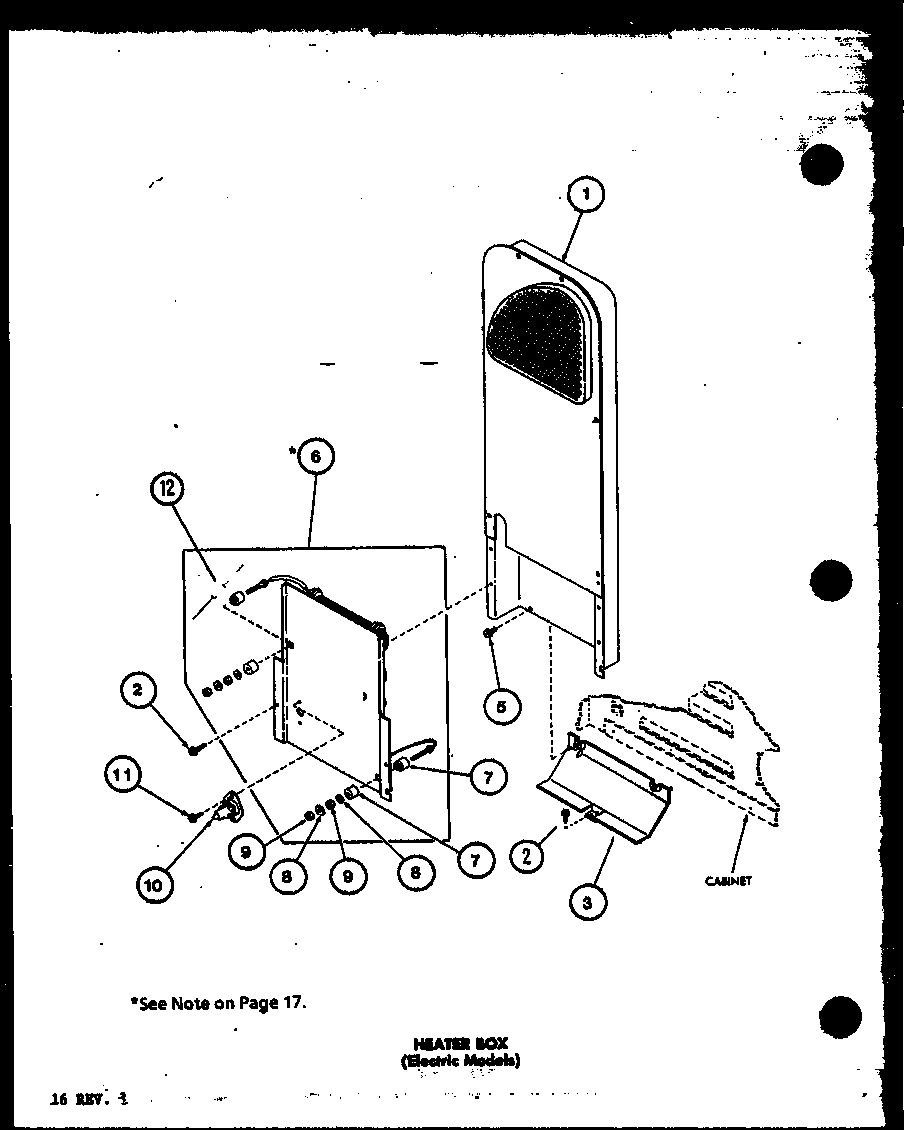

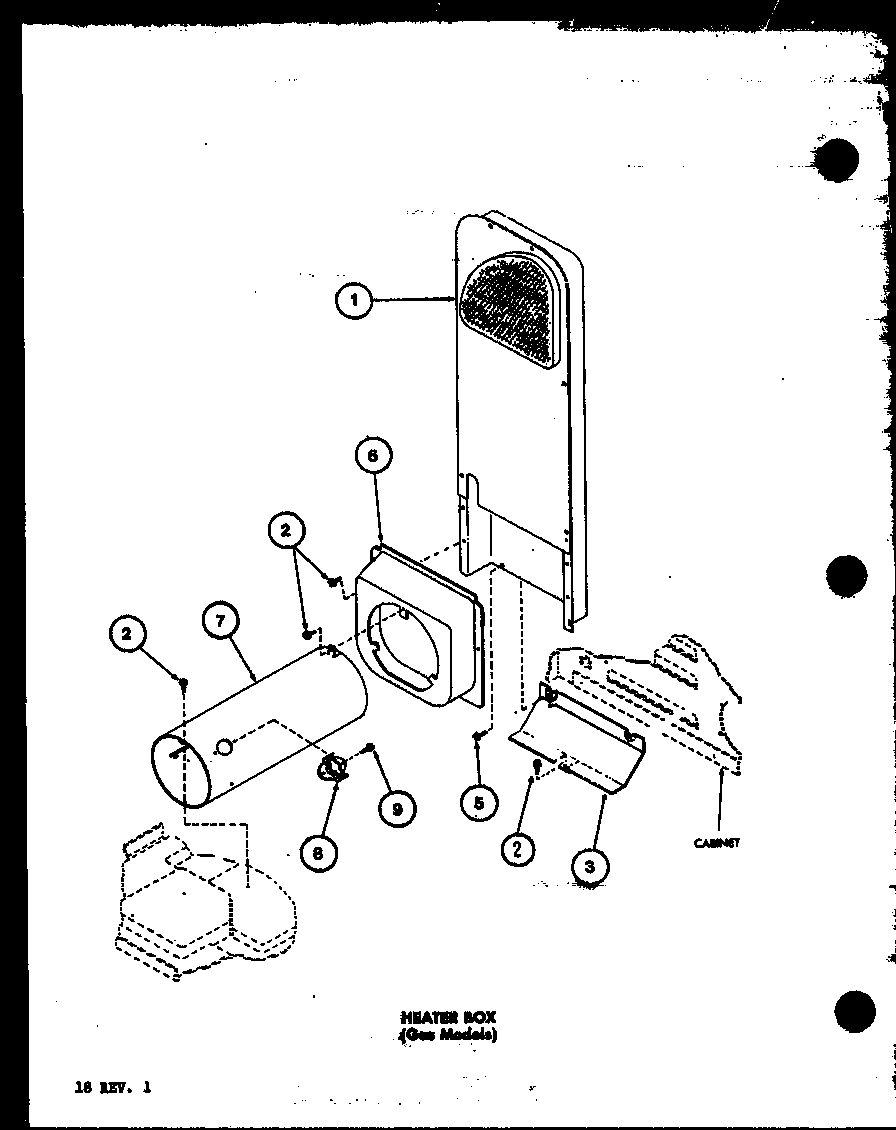

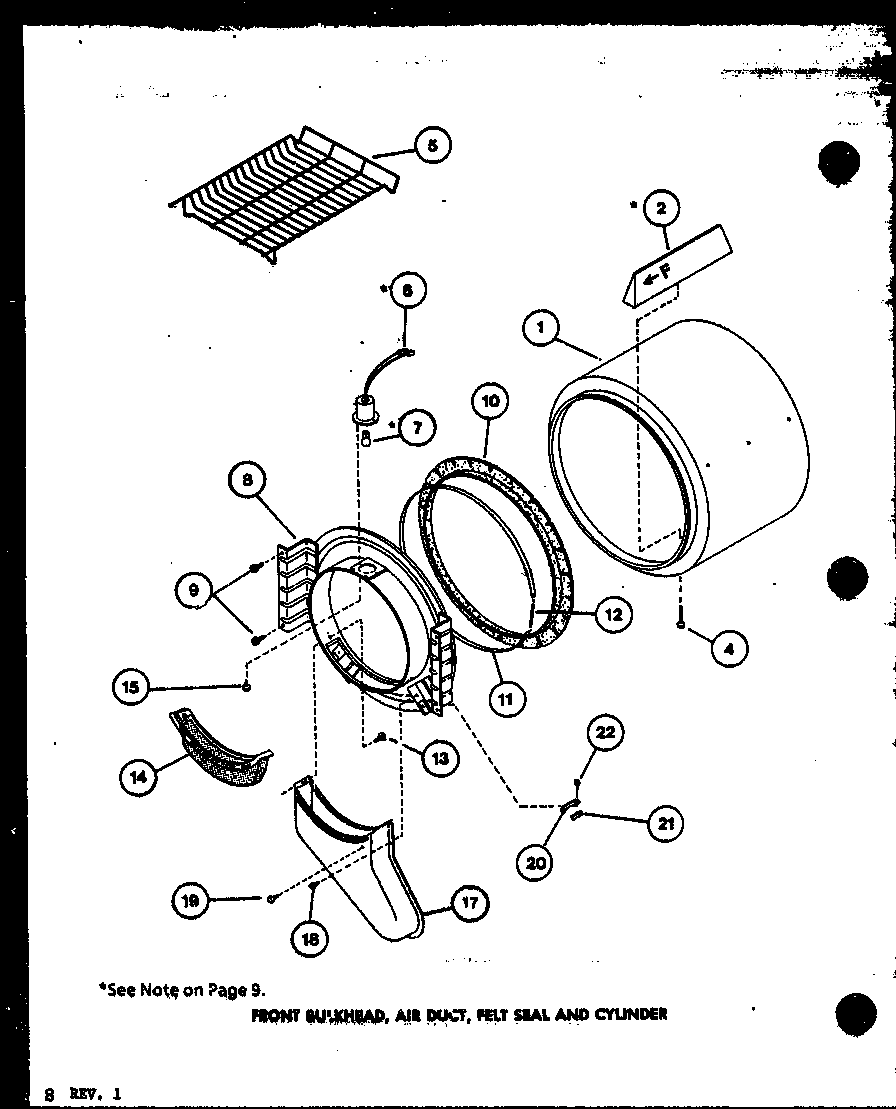

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |

Dryer Drum B R0606549
#6

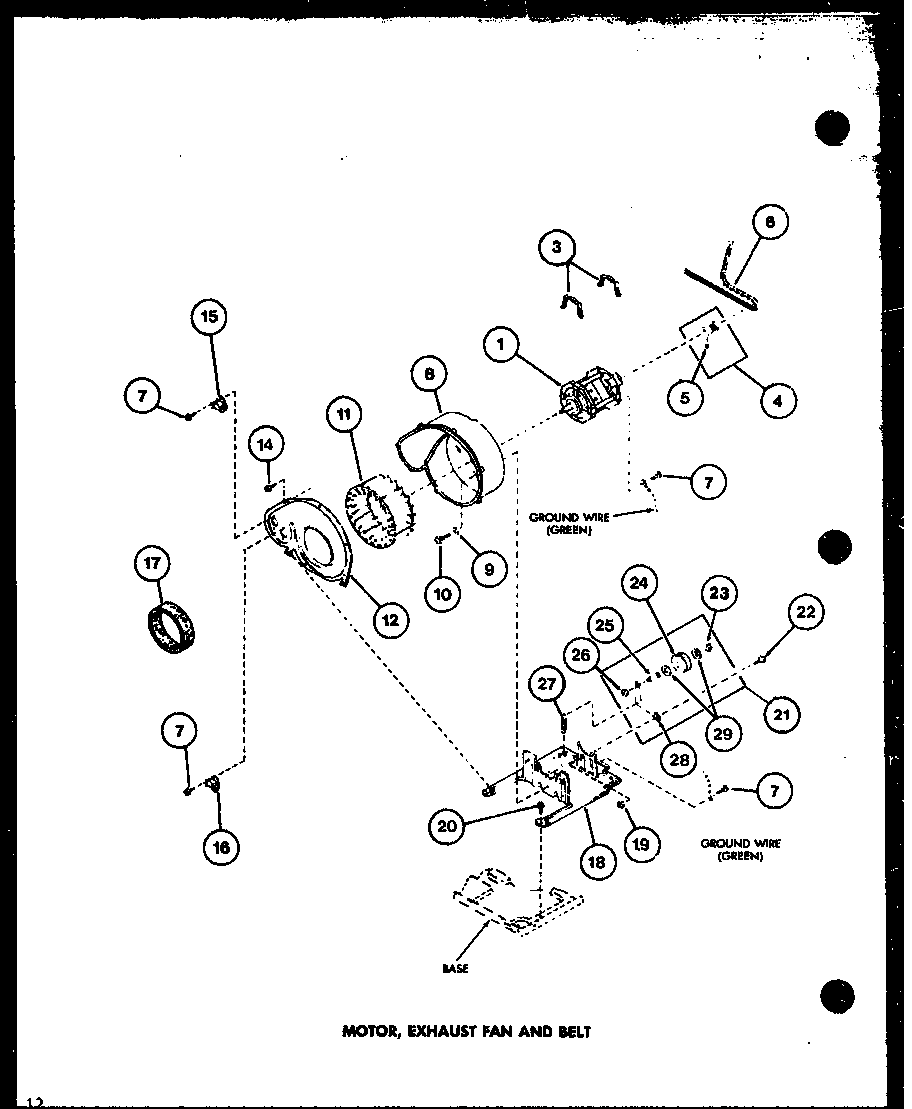

Motor diagram

Dryer drum b

Part #R0606549

Replaced by #661570V

?
Manufacturer substitution
This part replaces R0606549. Substitute parts can look different from the original.
BEST SELLER
$22.87
21% OFF MSRP : $29.00
In Stock
Coil R0610050
#3

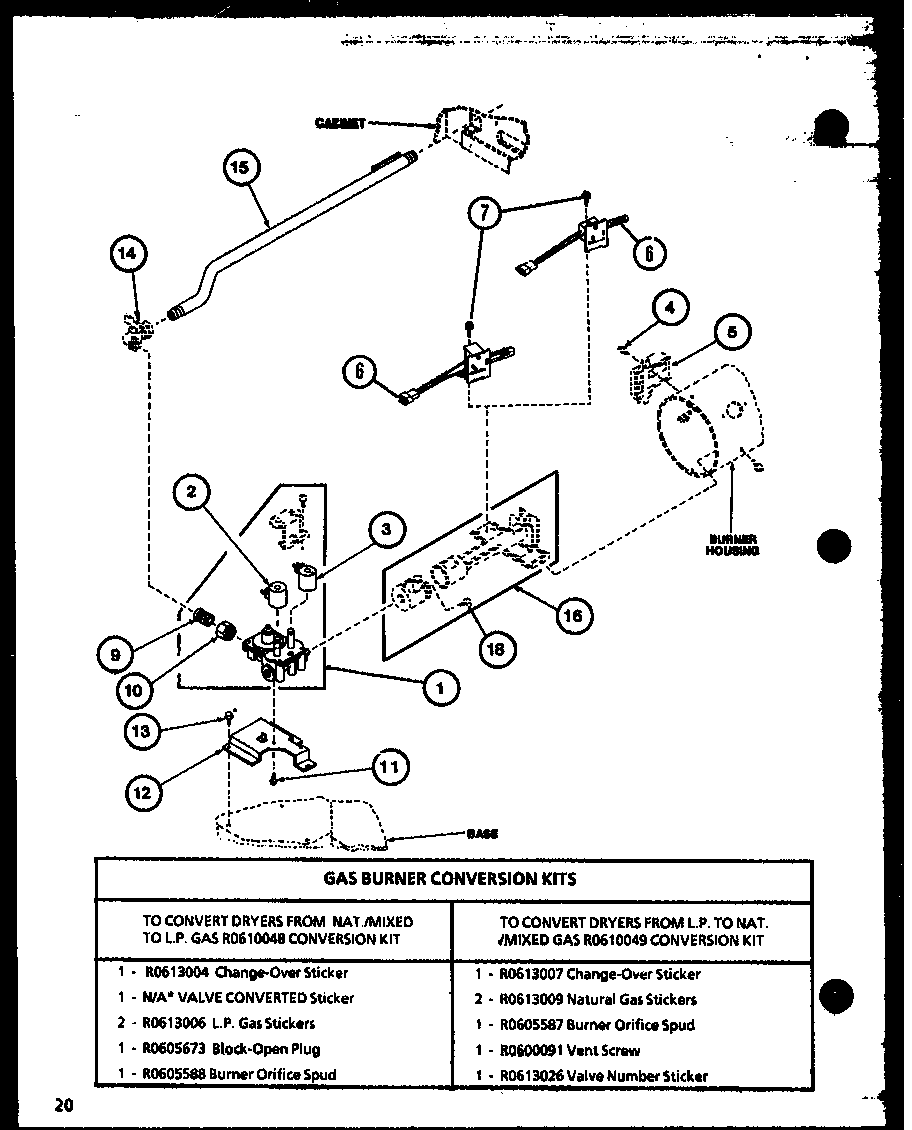

Gas burner conversion kits (lgd512/p7762224w) diagram

Coil

Part #R0610050

Replaced by #279834

?
Manufacturer substitution
This part replaces R0610050. Substitute parts can look different from the original.
BEST SELLER
$26.23
16% OFF Phone Price : $31.23
In Stock
Coil R0610003
#2

Gas burner conversion kits (lgd512/p7762224w) diagram

Coil

Part #R0610003

Replaced by #279834

?
Manufacturer substitution
This part replaces R0610003. Substitute parts can look different from the original.
BEST SELLER
$26.23
16% OFF Phone Price : $31.23
In Stock
Switch R0602515
#2

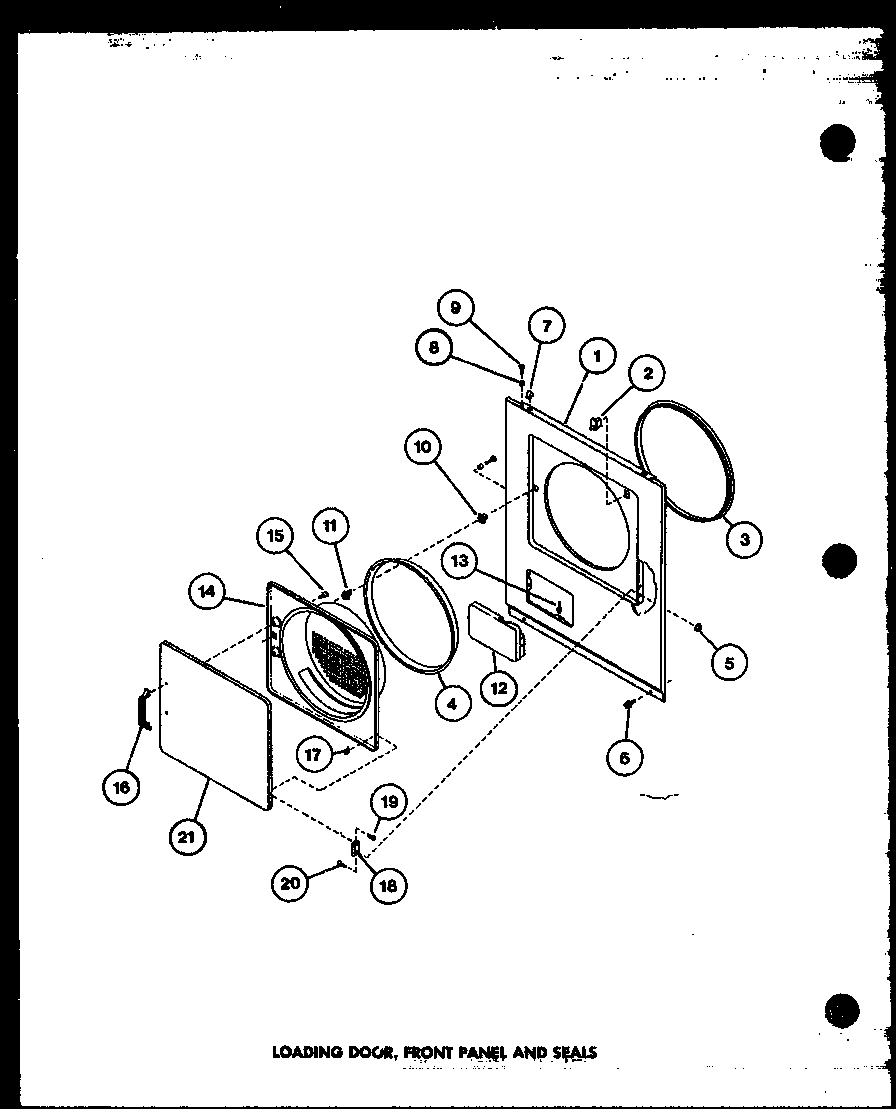

Loading door diagram

Switch

Part #R0602515

Replaced by #W10169313

?
Manufacturer substitution
This part replaces R0602515. Substitute parts can look different from the original.
BEST SELLER
$15.00
48% OFF MSRP : $29.00
In Stock
Use 40064801 R0600032
Use 40064801

Part #R0600032

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces R0600032. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Strike R0601524
#11

Loading door diagram

Strike

Part #R0601524

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces R0601524. Substitute parts can look different from the original.
This item is not returnable
$20.69
19% OFF Phone Price : $25.69
In Stock
Catch R0601523
#10

Loading door diagram

Catch

Part #R0601523

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces R0601523. Substitute parts can look different from the original.
This item is not returnable
$20.69
19% OFF Phone Price : $25.69
In Stock
Clip R0601520
#7

Loading door diagram

Clip

Part #R0601520

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces R0601520. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
Thermostat R0611013
#16

Motor diagram

Thermostat

Part #R0611013

Replaced by #WPY61372

?
Manufacturer substitution
This part replaces R0611013. Substitute parts can look different from the original.
In Stock
Dryer Blower Fan R0603532
#11

Motor diagram

Dryer blower fan

Part #R0603532

Replaced by #56000

?
Manufacturer substitution
This part replaces R0603532. Substitute parts can look different from the original.
$44.86
23% OFF MSRP : $58.00
In Stock
