On the Frigidaire FGHN2868TF1 bottom-mount refrigerator, door alignment is corrected by leveling the cabinet first, then raising or lowering the front rollers so the doors sit even and seal. Use a 3/8-inch socket wrench on the roller adjustment screws (one per side). See the FGHN2868TF1 installation guide.

Quick steps to align the doors

• Confirm the refrigerator is fully loaded and sitting on a solid, level floor.
• Remove the toe grille (open the freezer drawer slightly, lift the toe grille, pull forward).
• Use a 3/8-inch socket wrench to turn the front roller height adjusting screws.
• Raise the low side until the doors are level with each other.
• Set the cabinet so it tilts about 1/4 inch (6 mm) from front to back to help doors close and seal.
• Reinstall the toe grille and recheck door closing and gasket contact.

What to check if the doors still look uneven

If leveling does not fully correct the look or sealing, check these common causes:

• Food bins or shelves preventing a door from closing fully
• A twisted cabinet from an uneven floor (re-level and recheck)
• A door gasket that is folded, torn, or not sealing evenly (warm and reshape minor waves)
• A loose hinge or hinge cover (tighten mounting screws carefully)
• A handle that is loose and making the door feel misaligned (tighten set screws per the FGHN2868TF1 owner’s manual)

Door alignment targets (what “correct” looks like)

Item to verify	What we look for	Why it matters
Cabinet stance	Front slightly higher than rear	Helps doors self-close and seal
Door-to-door height	Doors align and are level	Prevents air leaks and sweating
Door seal	Gasket contacts cabinet evenly	Prevents frost, warm temps, and long run times

Why it matters

A small door alignment issue can cause warm refrigerator temperatures, freezer frost buildup, moisture on the gasket area, and longer compressor run time. Leveling the cabinet correctly is the foundation for reliable sealing on French door and bottom-mount designs.

Last updated: January 2026

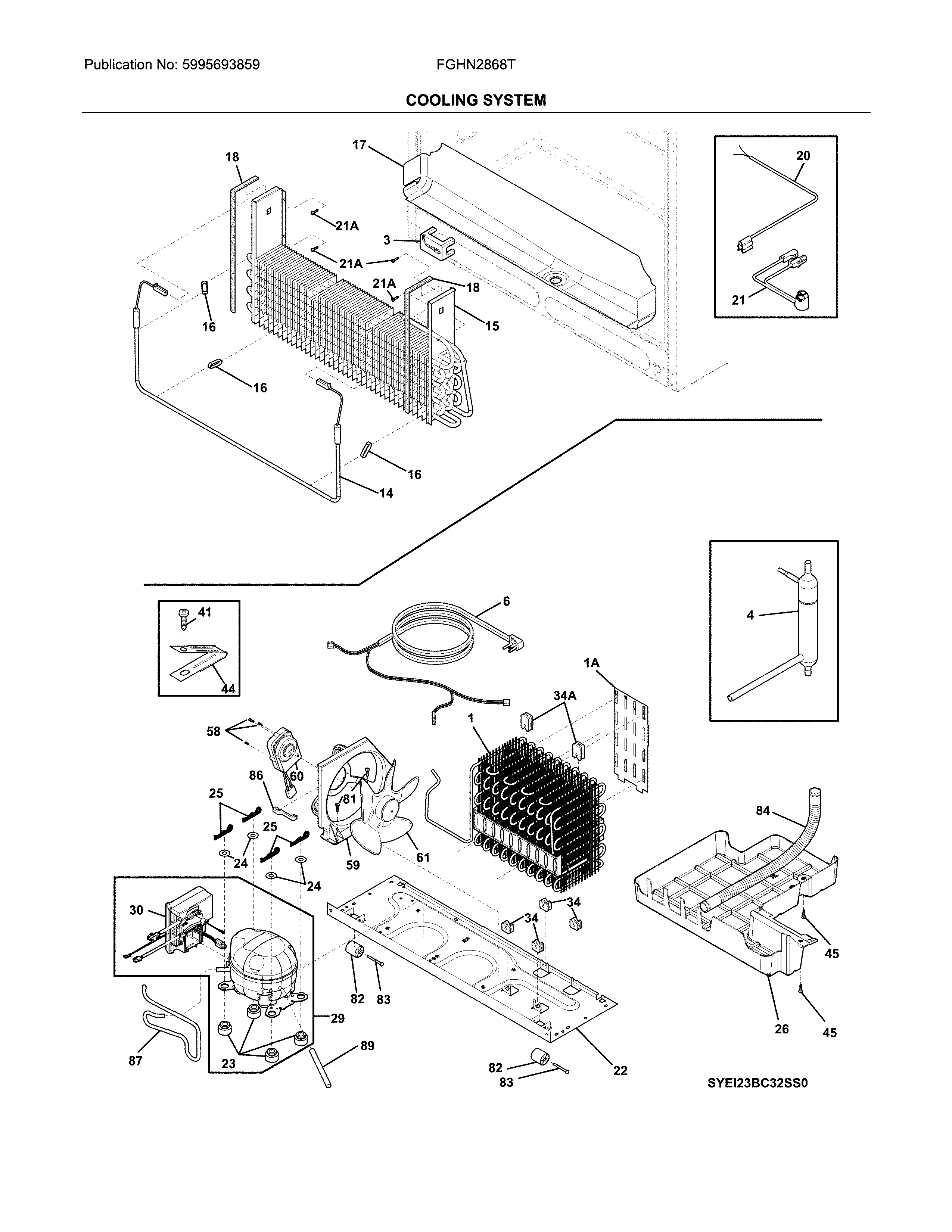

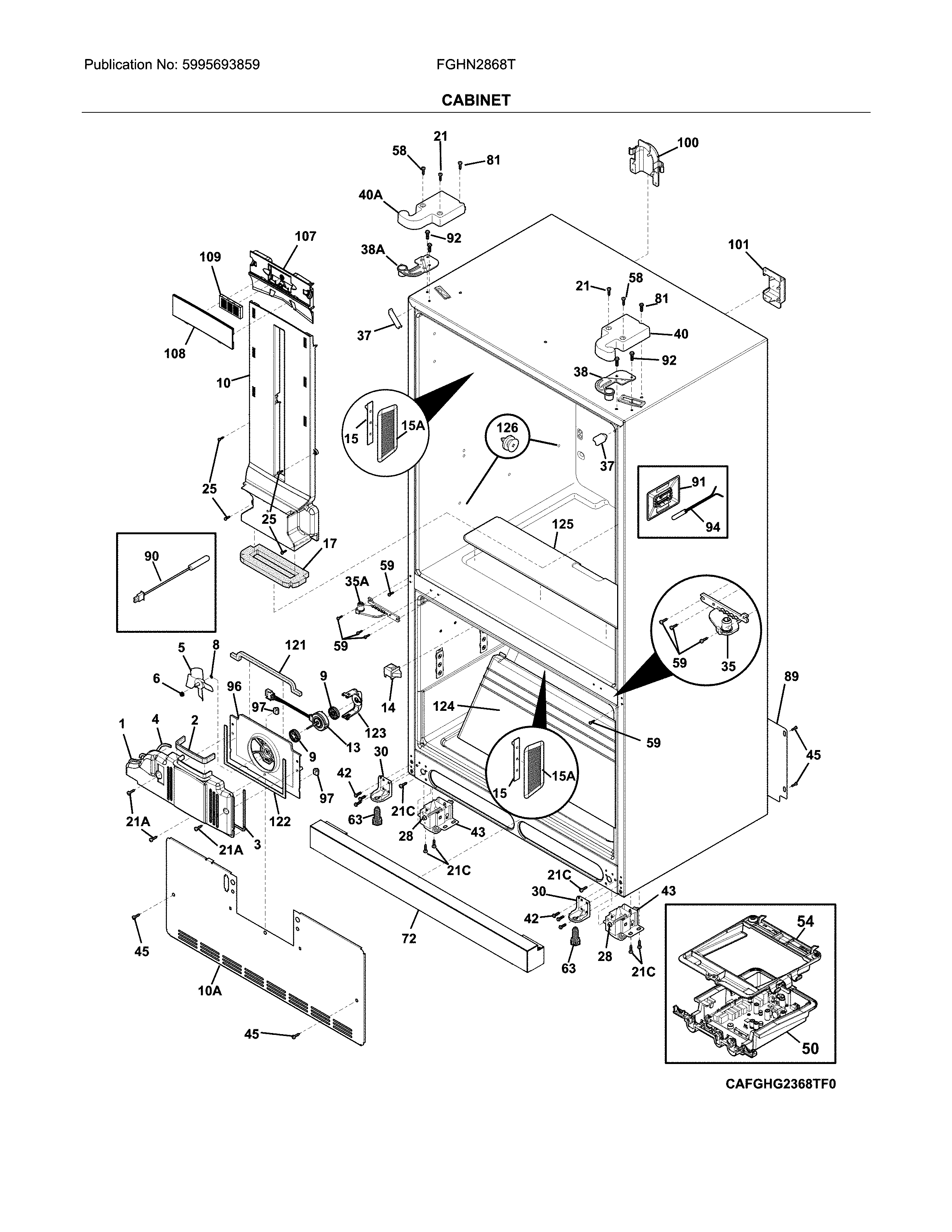

On a Frigidaire FGHN2868TF1 bottom-mount refrigerator, the “bottom part” is most often the machine compartment (where the compressor and condenser components sit) and the toe grille area at the lower front that helps airflow. The freezer drawer is also located at the bottom on this style.

Common names you’ll hear (and what they mean)

• Machine compartment: Lower rear area that houses the compressor, condenser, and related cooling parts.
• Toe grille (kick plate): Lower front grille that allows airflow; it should not be blocked.

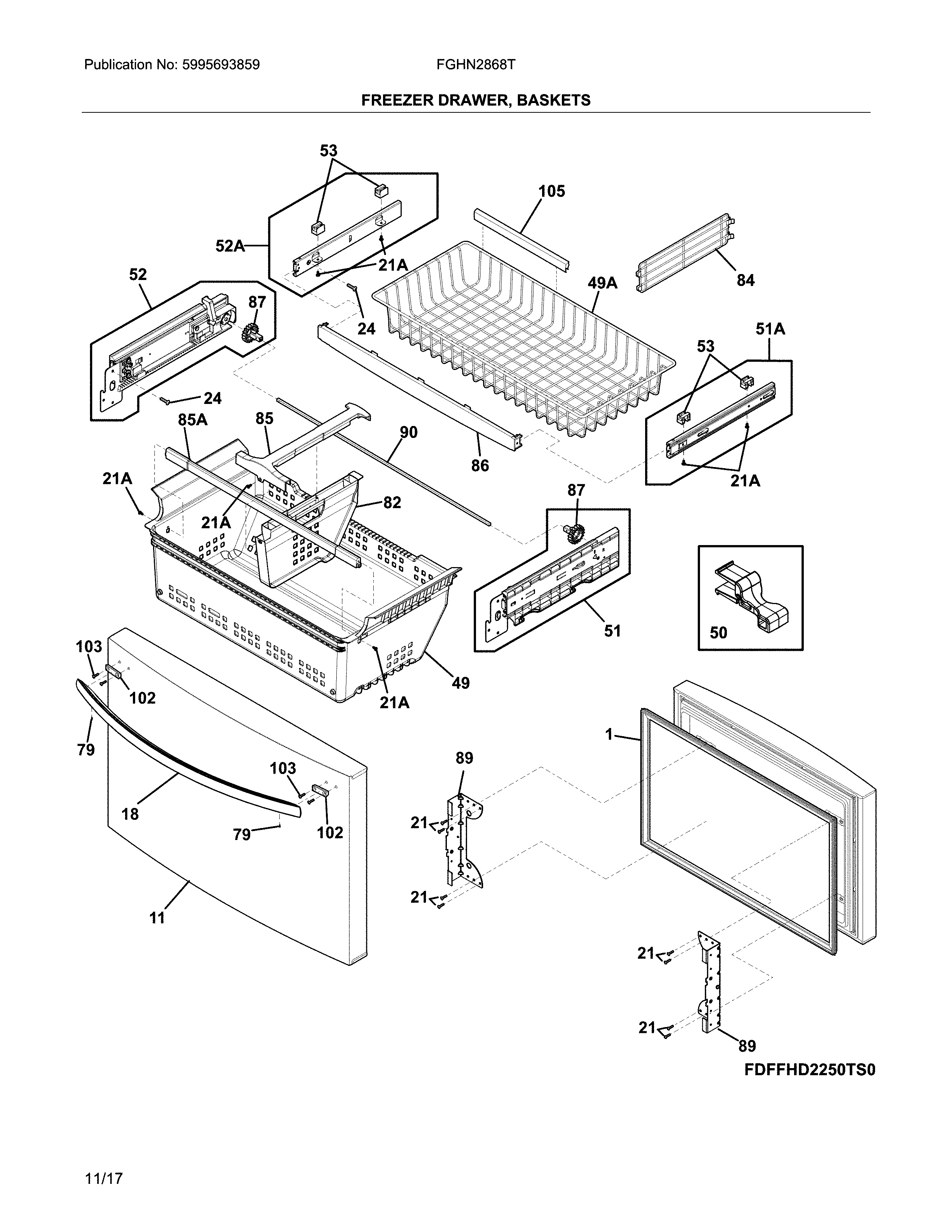

• Freezer drawer / freezer compartment: The bottom storage section on a bottom-mount design.
• Drain pan: A pan underneath that collects defrost water so it can evaporate.
• Lower hinge area: Bottom door hinge zone (important when aligning doors).

Quick guide: which “bottom part” matches your situation?

If you mean…	You’re probably referring to…	Why it matters
The vented piece at the very front bottom	Toe grille	Air circulation for proper operation
The noisy or warm area behind the unit	Machine compartment	Normal heat release and compressor operation
The bottom storage section	Freezer drawer	Access, sealing, and basket clearance
Water under the refrigerator	Drain pan or drain system	Can indicate a drain issue or condensation

Why it matters

Using the right name helps you troubleshoot faster and order the correct Frigidaire parts. For example, blocking the toe grille can reduce airflow and affect cooling performance.

Helpful next steps for this model

• Confirm which area you mean: front grille, rear lower panel, or freezer drawer.
• Keep the lower front grille area clear for airflow.
• Follow the clearance guidance (sides/top and rear) so the bottom cooling area can breathe.
• If you’re moving the refrigerator, avoid using the handles; move from the cabinet sides.
• For door and drawer access, make sure the doors can fully open in your space.

For diagrams and location details specific to FGHN2868TF1, use the FGHN2868TF1 owner’s manual and the FGHN2868TF1 installation guide.

Last updated: January 2026

Most modern refrigerators, including the Frigidaire FGHN2868TF1 bottom-mount refrigerator, use a condensate (drip) pan to collect defrost water, but not every model has a pan you can easily see or remove from underneath. Many pans are tucked behind the toe grille or integrated near the compressor area.

Where the drip pan usually is

On refrigerators like the FGHN2868TF1, the drip pan is typically located in the lower rear or behind the front toe grille area so water can evaporate from compressor heat. Use the FGHN2868TF1 owner's manual for the exact access method and safety steps.

• Behind the toe grille (kick plate) at the bottom front
• Under the cabinet near the compressor (often rear-access)
• Mounted to the base frame (may slide out, or may be fixed)
• Not designed for routine removal on many newer models

How to check if your refrigerator has an accessible pan

Before moving the refrigerator, protect floors and avoid stressing the water line.

1. Unplug the refrigerator (lights may stay on if you only turn cooling off).
2. Look for a removable toe grille at the bottom front.
3. If nothing is visible, check the rear lower access area (if your layout allows).
4. Confirm the design and access steps in the FGHN2868TF1 installation guide.

Quick comparison: accessible vs. non-accessible drip pans

Design	What you’ll notice	What it means for cleaning
Slide-out pan	Pan can be pulled forward after removing toe grille	Clean periodically if odors or spills occur
Fixed/integrated pan	No obvious pan underneath	Cleaning is usually limited to vacuuming dust and wiping reachable areas

Why it matters

The drip pan manages defrost condensation. If it overflows, smells, or you see water near the refrigerator, the real issue is often a clogged defrost drain, a door not sealing, or the unit not sitting level, not the pan itself.

• Check that doors seal fully on all sides
• Make sure the cabinet is solid on all corners
• Keep the toe grille area clear for airflow

Last updated: January 2026

Cooling performance and ice maker or water dispenser issues are the most common problems we see on Frigidaire refrigerators like model FGHN2868TF1. In many cases, the root cause is airflow restriction (dirty coils, a weak evaporator fan) or water supply and filter problems that reduce ice production and water flow.

Most common symptoms (and what they usually point to)

• Fridge warm or temps swing: airflow problem, sensor issue, or door not sealing
• Freezer cold but fridge warm: evaporator fan or air damper/air tower issue
• Ice maker not making ice: ice maker turned off, water valve closed, kinked line, filter not seated, or clogged filter
• Water tastes odd or smells: water not dispensed for a while, or unit not on a cold water line
• Doors not closing well: unit not level, cabinet interference, or gasket not sealing

Quick checks we recommend first (FGHN2868TF1)

Start with these no-tools steps from the operating and installation guidance in the FGHN2868TF1 owner’s manual and FGHN2868TF1 installation guide:

• Confirm the refrigerator is level and slightly tilted back (helps doors close and seal)
• Make sure doors can fully open and the cabinet is not touching walls
• Verify the ice maker is turned on and the water valve is open
• Check the water line for kinks
• Reseat the water filter; replace it if flow is weak or ice slows down
• If water tastes stale, dispense and discard 10 to 12 glasses to refresh the supply

Parts that commonly solve these problems

If troubleshooting points to a worn or restricted component, these model-matched parts are common fixes:

Problem area	Common fix	Example model-matched part
Low water flow, poor ice	Replace water filter	Refrigerator filter assembly EPTWFU01
Frost, warm temps, defrost issues	Check defrost controls	Refrigerator defrost bi-metal thermostat 5304521781
Warm fridge section, weak airflow	Restore evaporator airflow	Frigidaire refrigerator evaporator fan motor 809069206

Why it matters

Cooling and ice issues often get worse over time; warm temperatures can spoil food, and low water flow can stop ice production entirely. Catching a door seal, airflow, or filter problem early usually prevents bigger repairs.

Last updated: January 2026
