Kenmore
Room Air Conditioner

Model # 58073089300 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58073089300 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Room Air Conditioner Drain Pipe 3H02773A
#16-C

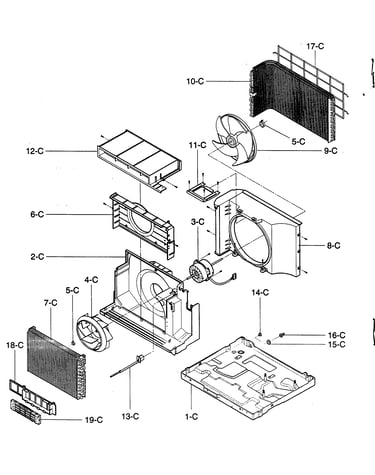

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#5-C

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Accordion Filler, Left 4959AR3402A
#1-E

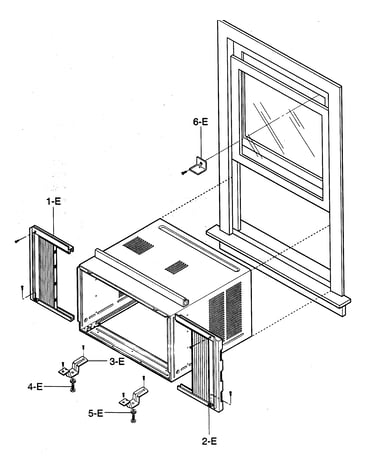

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402A

Replaced by #3127A20074X

?
Manufacturer substitution
This part replaces 4959AR3402A. Substitute parts can look different from the original.
$38.30 |
12% OFF Phone Price : $43.30
In Stock
Room Air Conditioner Window Lock Bracket 4H01785B
#6-E

Installation kit assy diagram

Room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.06 |
20% OFF Phone Price : $5.06
In Stock
Bushing 4830AR4335A
#1-D

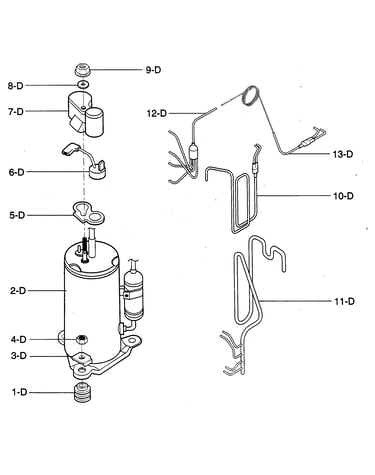

Compressor parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Thermistor 6323A20004D
#9-B

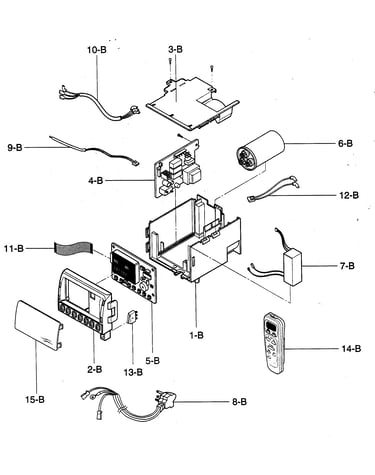

Control box assy diagram

Thermistor

Part #6323A20004D

Replaced by #EBG61106846

?
Manufacturer substitution
This part replaces 6323A20004D. Substitute parts can look different from the original.
This item is not returnable
$10.60
In Stock
Hex Nut 1NHA0801206
#4-D

Compressor parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#12-B

Control box assy diagram

Room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
Vent Damper 4900A20003A
#13-C

Air handling/cycle parts diagram

Vent damper

Part #4900A20003A

This item is not returnable
$3.69
In Stock
Room Air Conditioner Louver 4758A20040A
#5-A

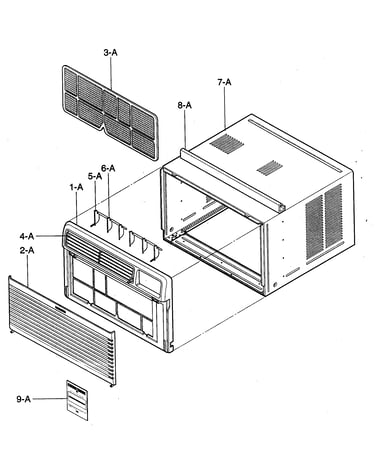

Cabinet/front grille assy diagram

Room air conditioner louver

Part #4758A20040A

This item is not returnable
$4.51
In Stock
