On a Whirlpool dishwasher like model DU3000XR1, the F9 E1 error points to a drain problem (the unit is not pumping water out fast enough). We fix it by clearing the drain path first, then checking the drain pump and related wiring if the problem returns.

Step-by-step checks (start with the easiest)

• Cancel and drain: Press Cancel/Drain (or Cancel) and listen for the drain pump running.
• Check the sink/disposer connection: Make sure the dishwasher drain line is not blocked where it connects to the garbage disposer or sink drain.
• Inspect the drain hose: Look for kinks, crushing, or a sag that traps water; confirm the hose has a proper high loop.
• Clear the filter area and sump: Remove standing water (if present) and clear debris near the sump inlet.

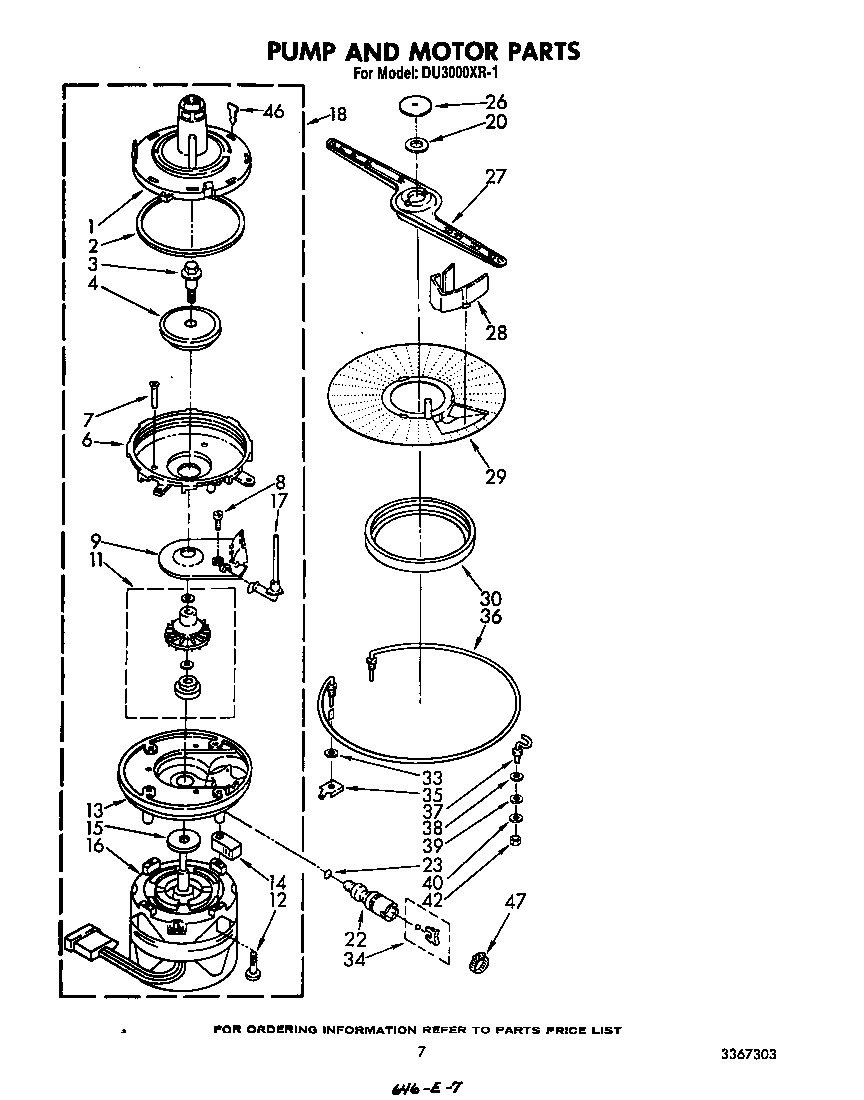

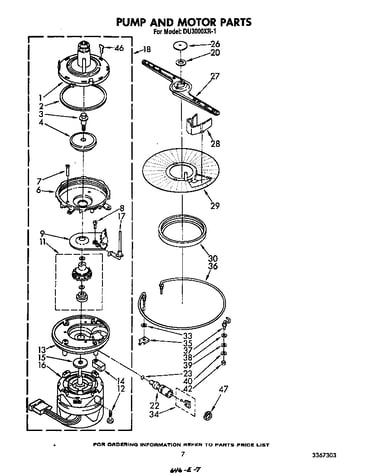

• Verify the drain pump can spin: If you can access it safely, check for broken glass, labels, or food blocking the impeller.
• Confirm the drain hose clamp is tight: A loose connection can leak and reduce drain performance; replace the clamp if it will not hold tension.

Parts that commonly help for DU3000XR1 drain issues

If you find a loose or damaged clamp at the drain hose connection, these model-compatible clamps are common fixes:

What you’re fixing	Part to consider	What it does
Loose hose connection at pump or drain outlet	Dishwasher hose clamp WP3367052	Secures the drain hose to prevent leaks and air gaps
Clamp that is bent, rusted, or won’t tighten	Clamp WP596669	General-purpose clamp used on appliance hoses

Quick “why it matters”

When the dishwasher cannot drain, dirty water can remain in the sump and trigger repeated F9 E1 errors. Clearing restrictions and ensuring tight hose connections restores normal drain flow and helps prevent odors and poor cleaning.

If the error comes back after clearing the drain path

Use our how to reset a Whirlpool dishwasher steps, then run a short cycle and recheck draining. If the pump runs but water still drains slowly, the next likely causes are a partially blocked hose, a failing drain pump motor, or a wiring/control issue.

Last updated: January 2026

To clear many error codes on your Whirlpool dishwasher model DU3000XR1, reset power to the control: stop the cycle, remove power for 5 to 10 minutes, then restore power and run a short cycle to confirm the code is gone.

Steps to reset the code

• Press Cancel/Drain (or Off) to stop the current cycle.
• Turn the dishwasher off.
• Remove power: unplug the dishwasher or switch off the circuit breaker.
• Wait 5 to 10 minutes.
• Restore power and start a short cycle.

If the code comes back

A returning code means the dishwasher is still detecting a problem (commonly drain, fill, heating, or door latch). Start with these quick checks:

• Confirm the door fully latches and nothing blocks it.
• Verify the water supply valve under the sink is fully open.
• Check the drain hose for kinks and a clear sink/disposer connection.
• Clean the filter area and make sure spray paths are not blocked.

Common symptoms and what they point to

What you notice	What it often means	What to check first
Standing water, won’t drain	Drain restriction or drain system issue	Drain hose routing, sink/disposer inlet, filter area
Stops mid-cycle, poor drying	Heating-related issue	Water temp, heating circuit, loading
Won’t start, beeps	Door not latched or control not reset	Door latch engagement, power reset

Parts that may be involved (when symptoms match)

• Dishwasher hose clamp WP3367052: secures dishwasher hoses to help prevent leaks at connections.
• Dishwasher heating element rubber washer WP717273: seals the heating element where it mounts through the tub.

Why it matters

A reset clears a temporary control glitch and helps you confirm whether the error was a one-time event or a repeatable fault that needs troubleshooting.

For code definitions and next steps, use our Whirlpool dishwasher error codes reference.

Last updated: January 2026

Your Whirlpool dishwasher’s model number is printed on the appliance’s rating label; on most Whirlpool dishwashers like the DU3000XR1, that label is found around the door opening (often on the tub rim or the door edge). Match the full model number exactly before ordering parts.

Where to look on a Whirlpool dishwasher

Check these common label locations (look for a sticker or metal tag with model and serial):

• Along the inner door edge (left or right side)
• On the tub frame just inside the door opening (top or side rim)
• On the side of the inner door panel (visible when the door is open)
• Near the lower kickplate area (less common, but worth checking)

What the model number should look like

For this parts page, the model number format you want is:

Item	Example
Model number	DU3000XR1
Brand	Whirlpool
Appliance type	Dishwasher

Why it matters

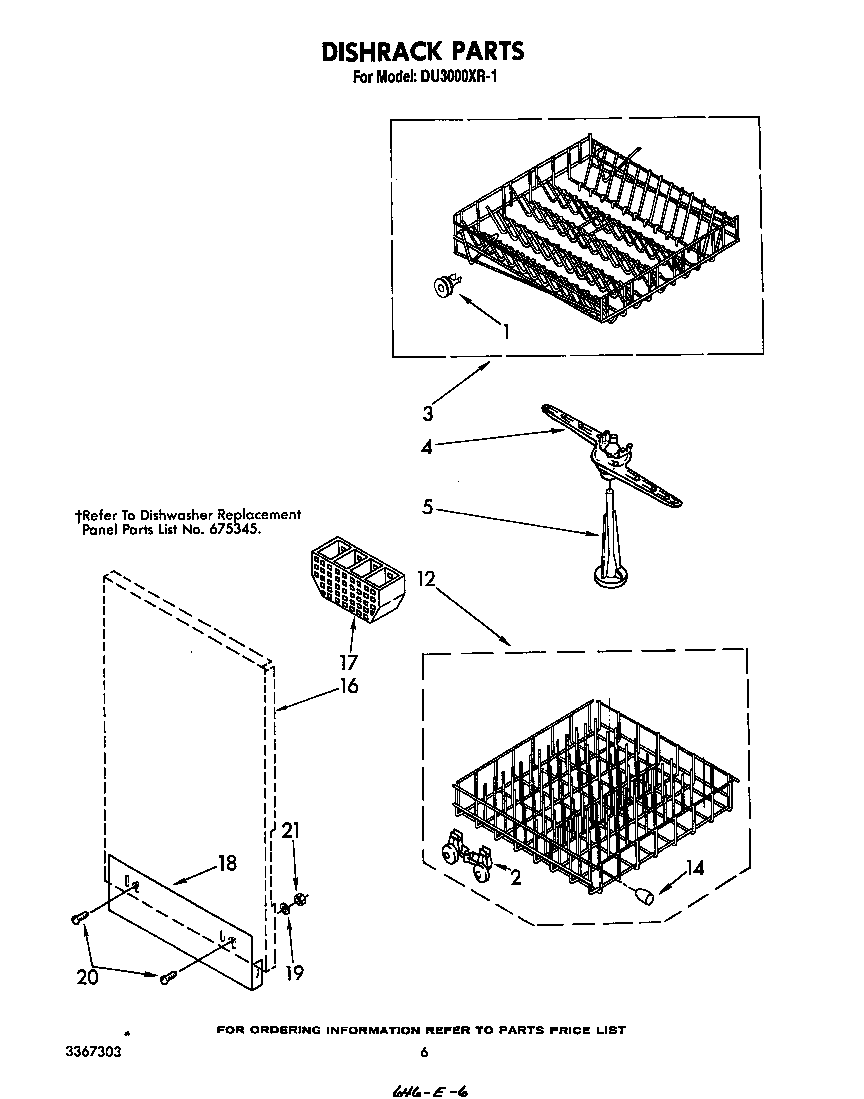

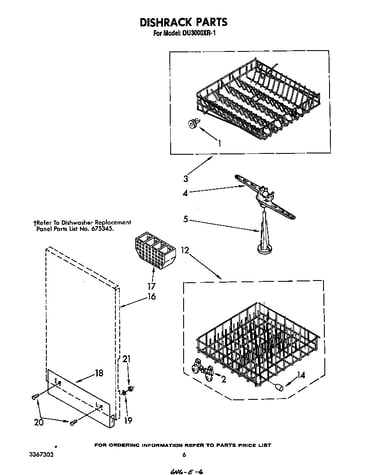

We use the exact model number to match the correct diagrams and compatible parts (for example, racks, spray components, and hardware). Even one character off can pull up the wrong Whirlpool dishwasher parts list.

Next step if the label is worn or missing

• Check for a faint imprint or outline where the label was
• Look for the model number on your purchase paperwork
• If you can still identify the issue, compare common replacement items like the dishwasher spray arm WP304204 to what’s installed
