Electric Range

Model #JCB865SJ1SS GE electric range

Here are the diagrams and repair parts for GE JCB865SJ1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 143 parts

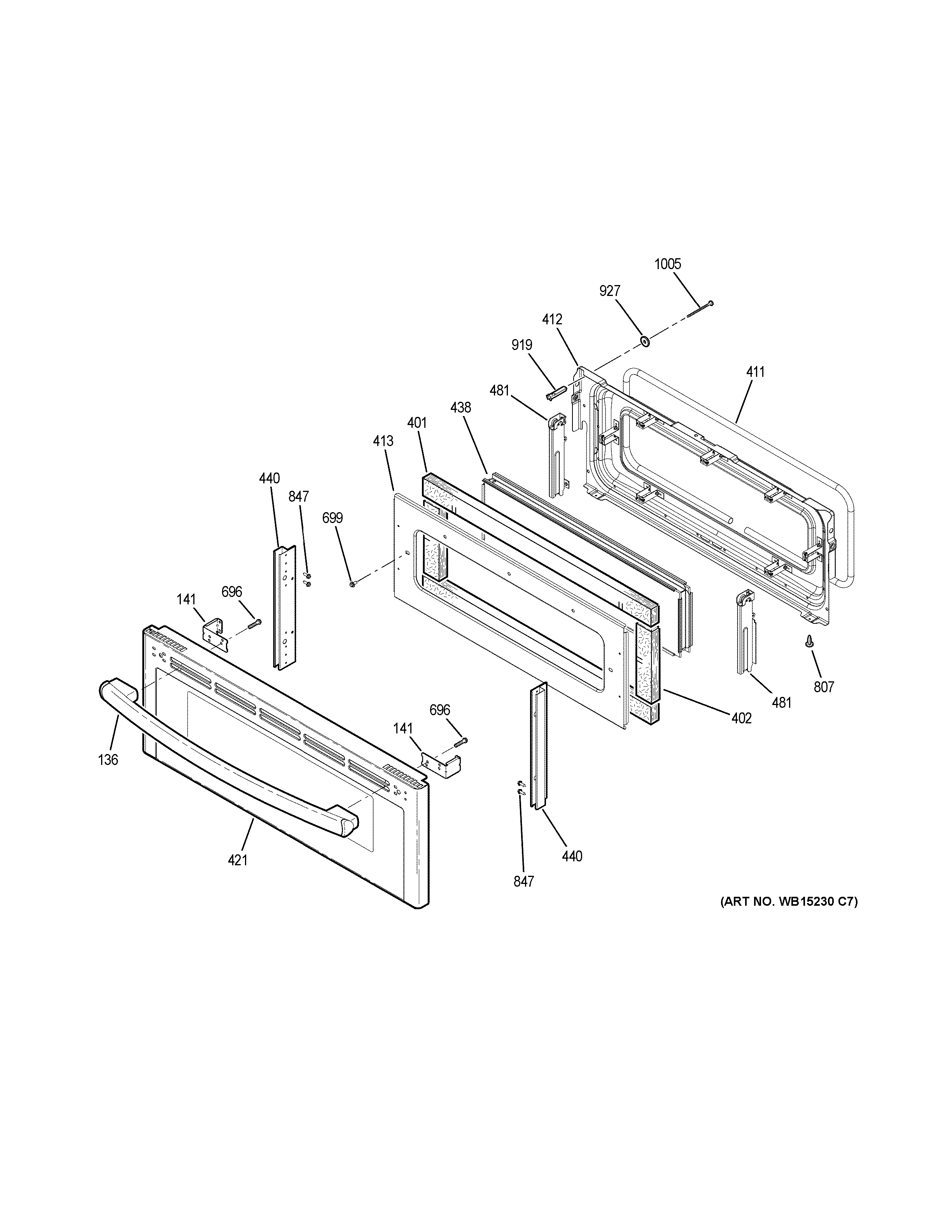

    Range Oven Door Inner Glass

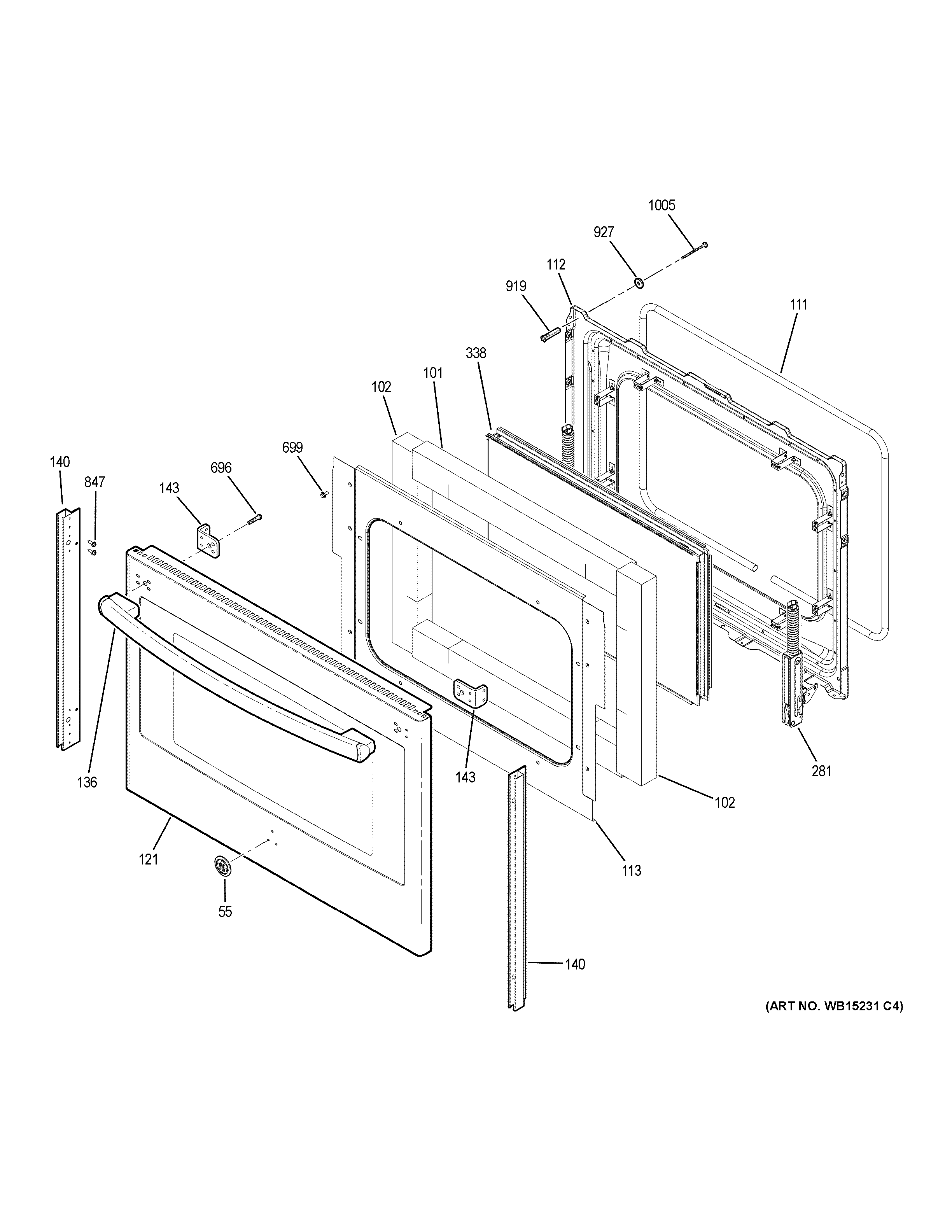

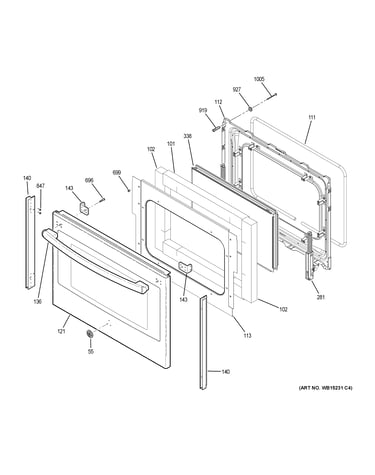

    Lower door Diagram


    In Stock

    Range Main Top Assembly

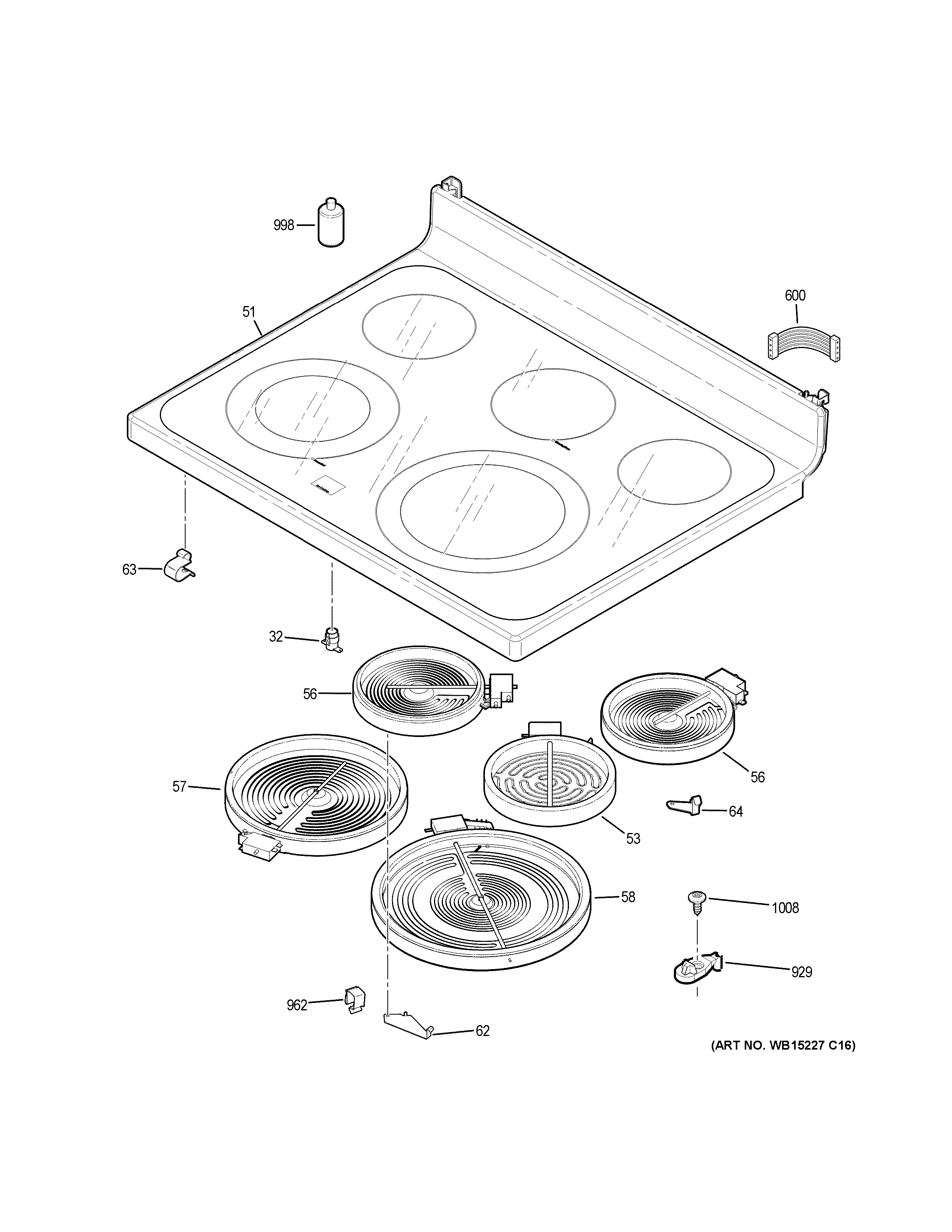

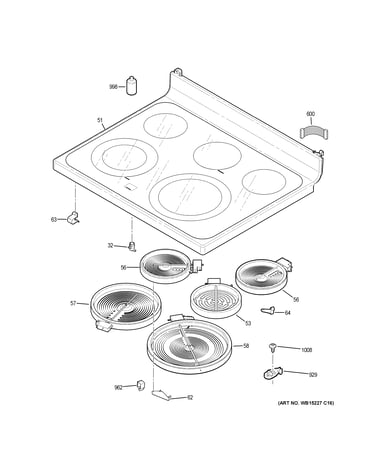

    Cooktop Diagram

    Range main top assembly

    Part #WB62X25972

    In Stock

    Range Halogen Surface Element


    Cooktop Diagram


    In Stock

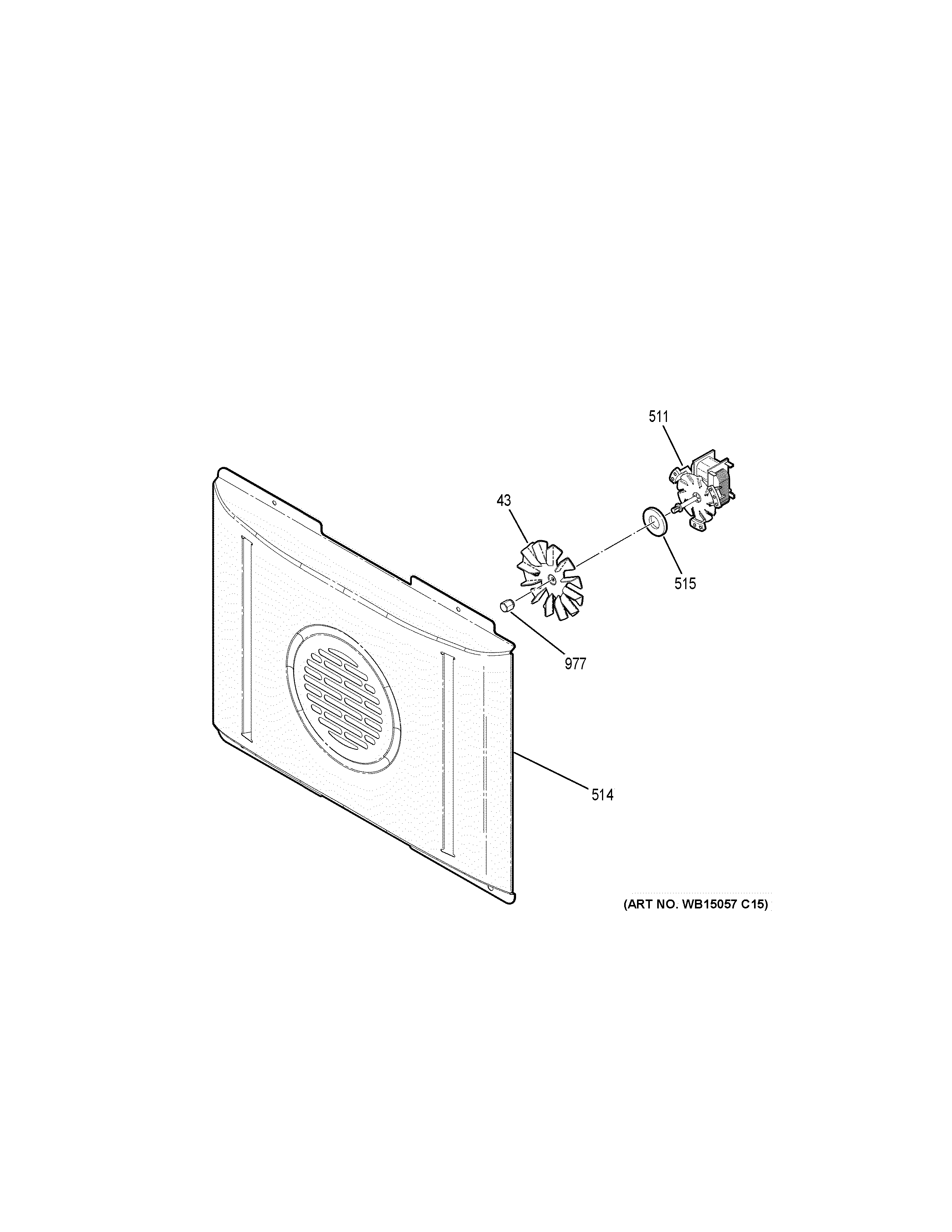

    Wall Oven Temperature Sensor

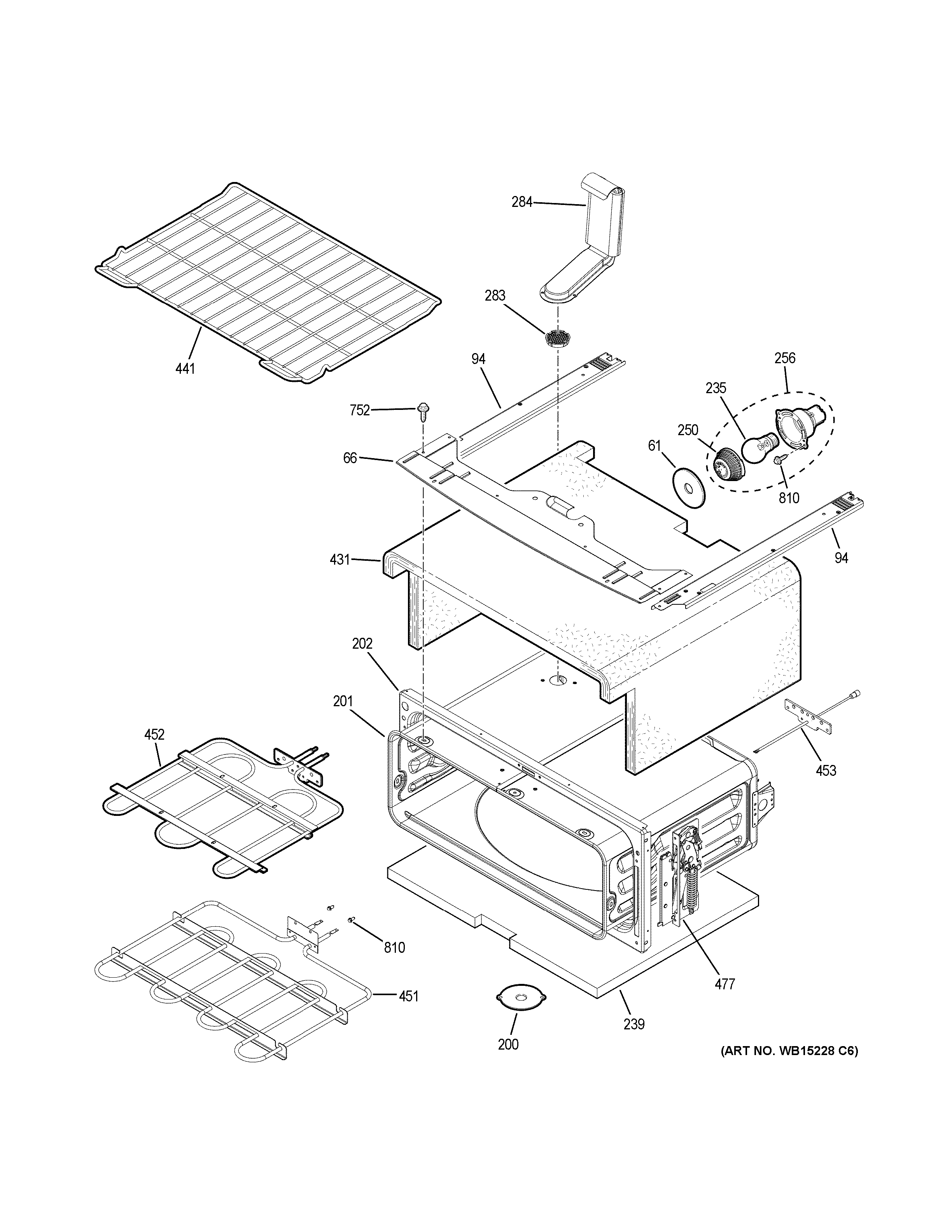

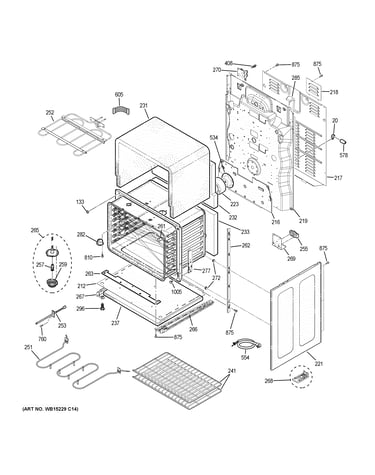

    Upper oven Diagram


    In Stock

    Range Terminal Block

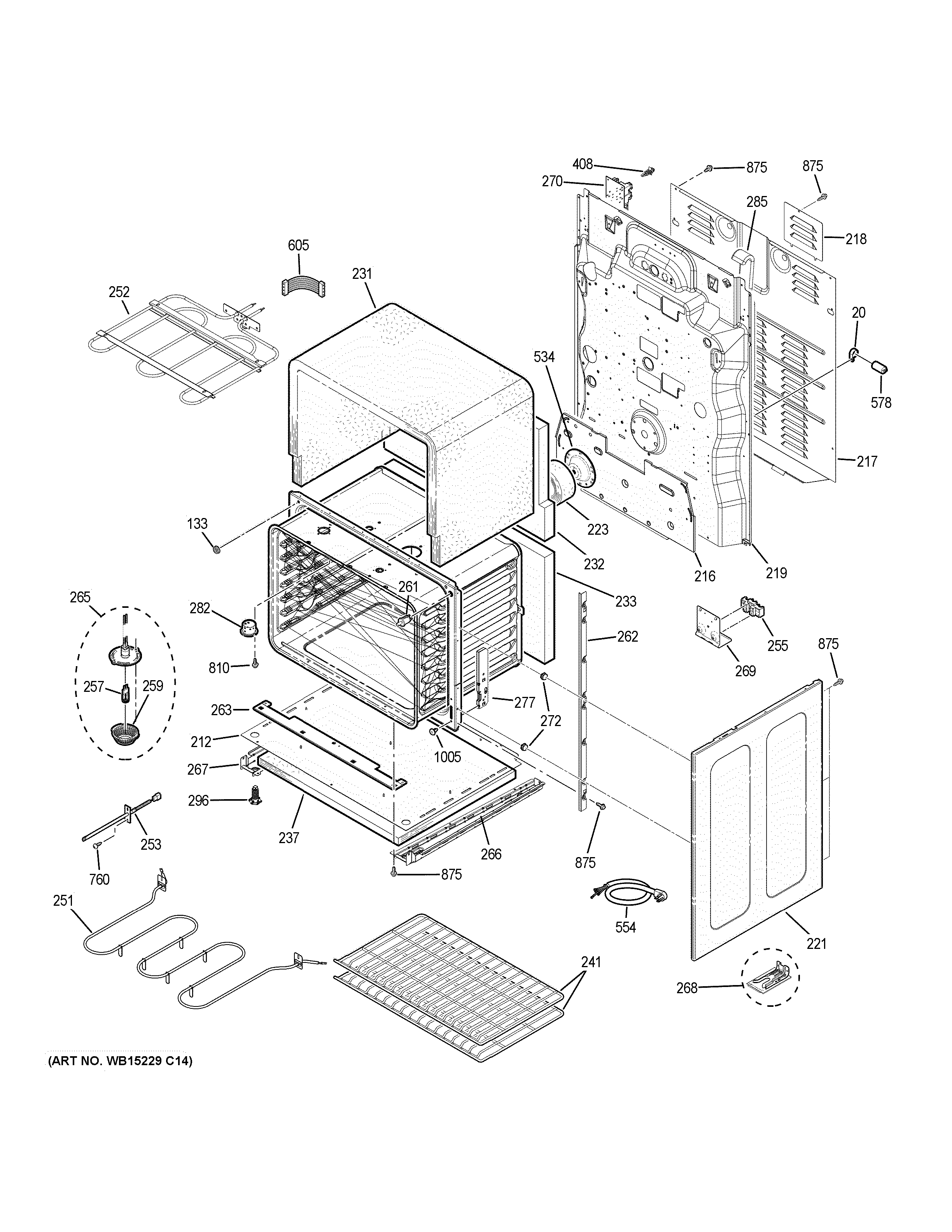

    Lower oven Diagram

    Range terminal block

    Part #WB17T10011

    In Stock

    Range Oven Temperature Sensor


    Lower oven Diagram


    In Stock

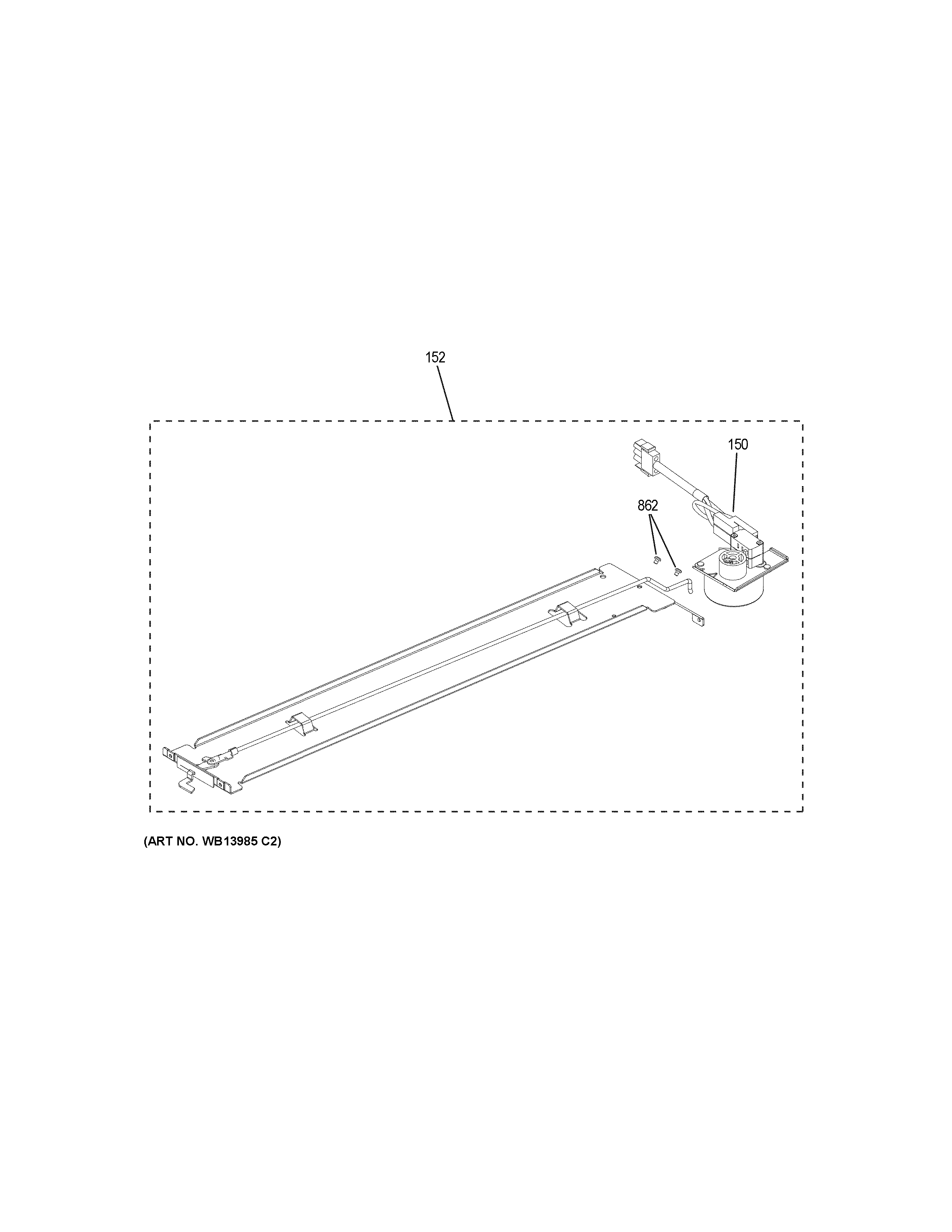

    Range Oven Door Switch


    Lower oven Diagram

    Range oven door switch

    Part #WB24T10147

    In Stock

    Range Leveling Leg


    Lower oven Diagram

    Range leveling leg

    Part #WB02X10521

    In Stock

    Cooktop Indicator Light

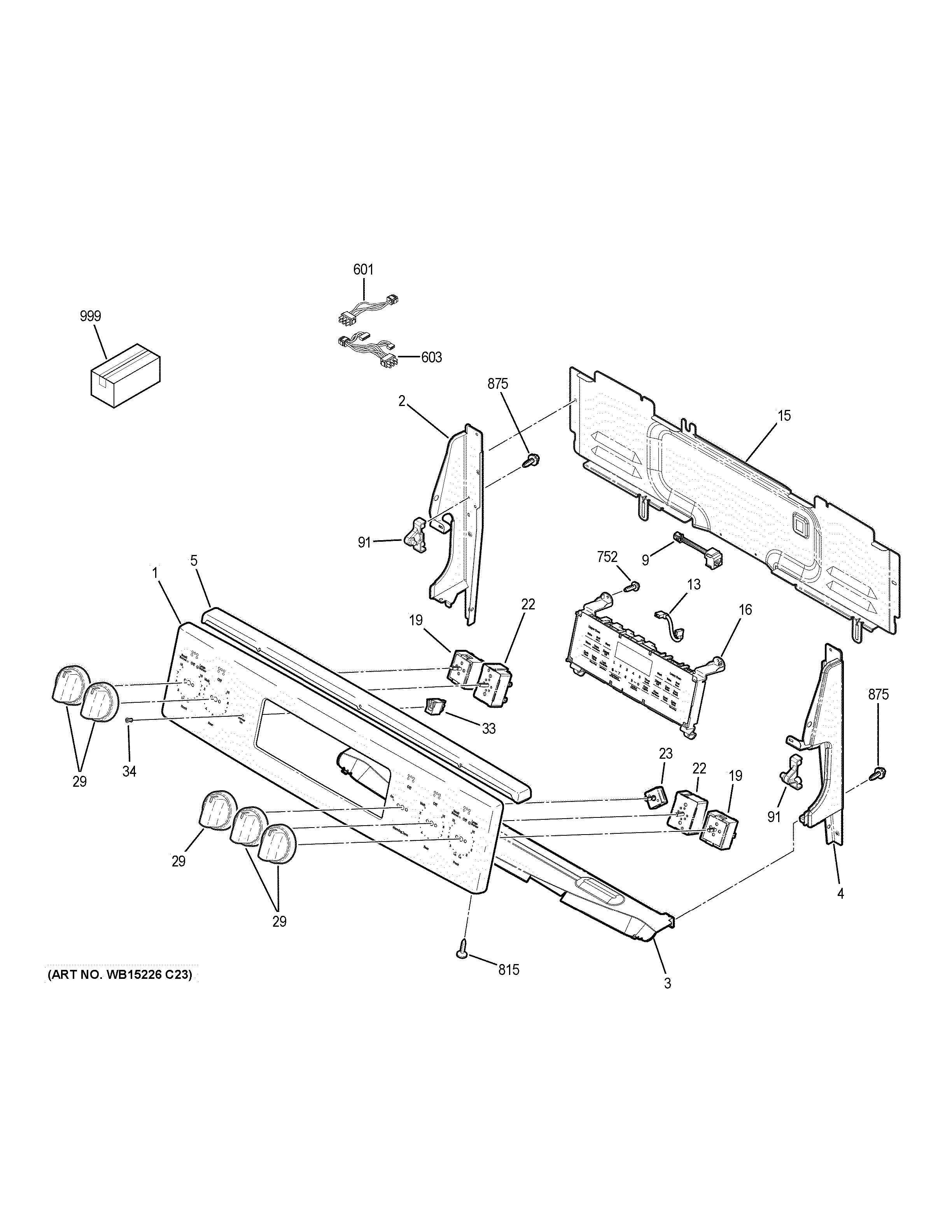

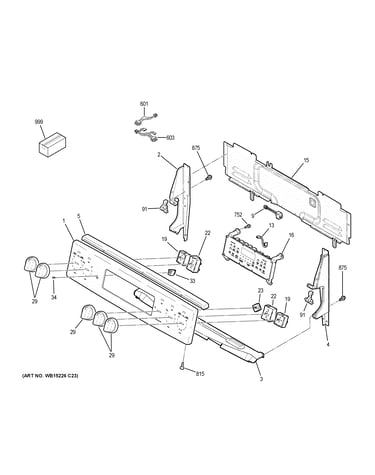

    Control panel Diagram

    Cooktop indicator light

    Part #WB27T10668
    This item is not returnable

    In Stock

    Oven Badge


    Lower door Diagram

    Oven badge

    Part #WB02T10589

    In Stock
