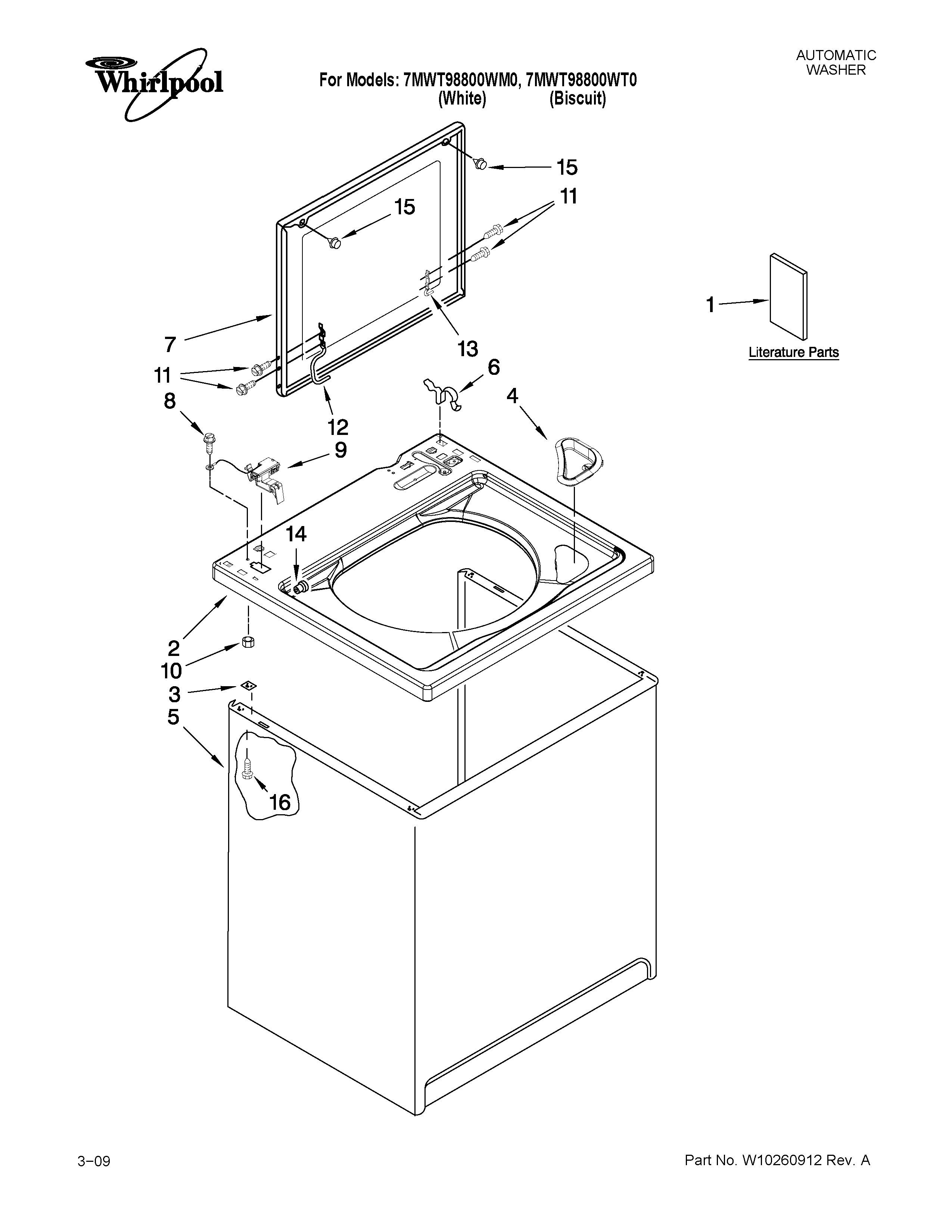

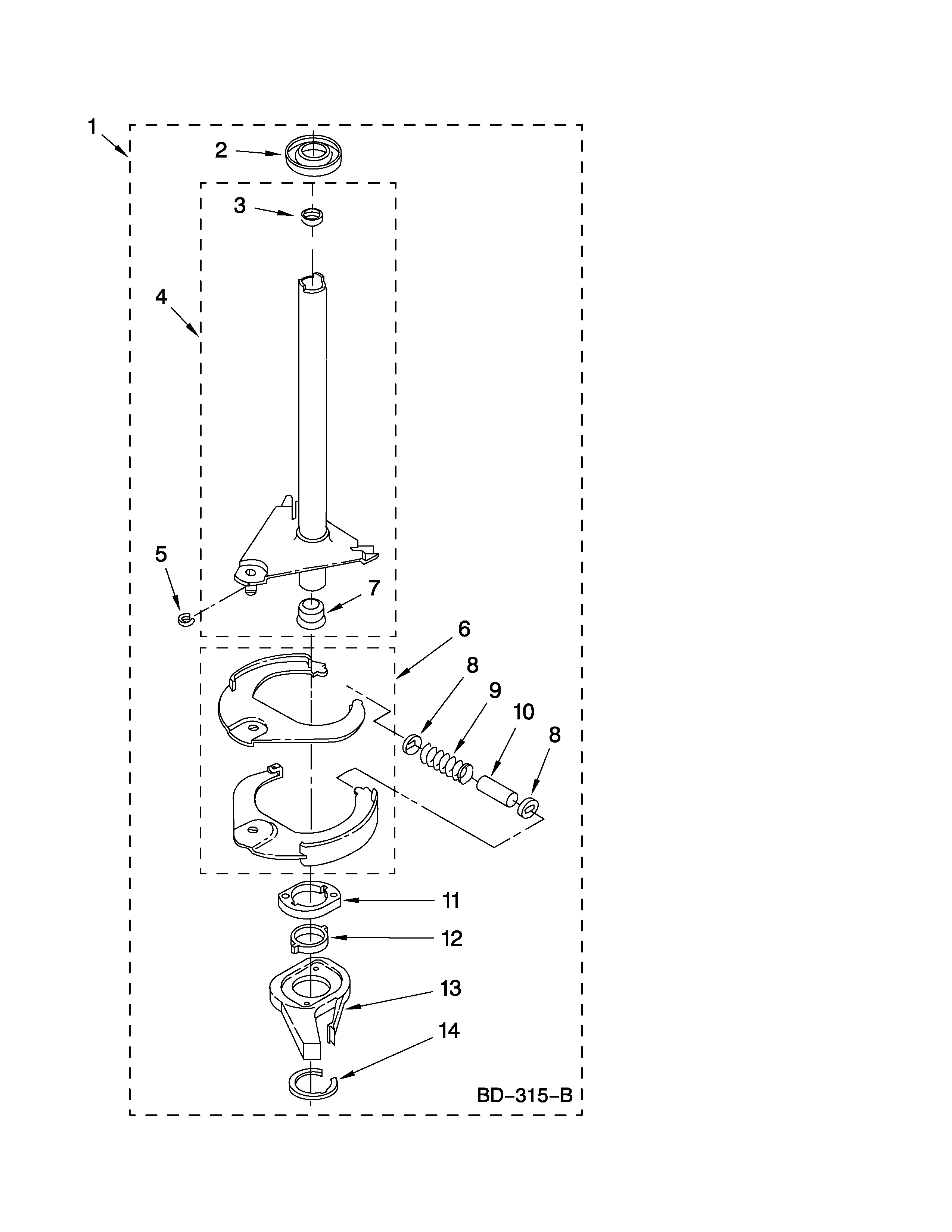

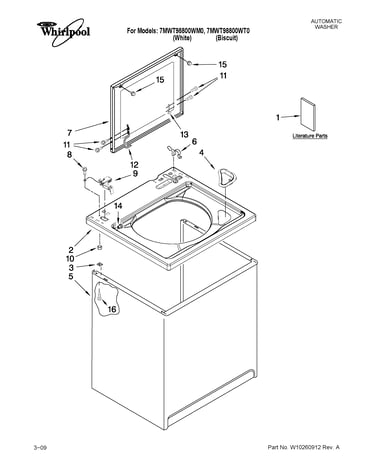

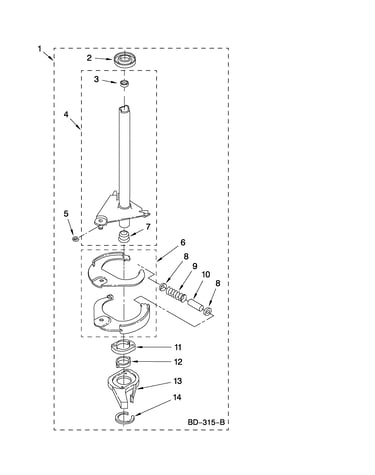

Model #7MWT98800WT0 Whirlpool washer

Here are the diagrams and repair parts for Whirlpool 7MWT98800WT0 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 214 parts

|

Appliance Touch-Up Paint, 0.6-oz (White)

#NI

Optional parts (not included) Diagram

Appliance touch-up paint, 0.6-oz (white)

Part #72017
This item is not returnable
$6.17 |
18% OFF MSRP:$7.50

In Stock

Appliance Spray Paint (White)

#NI

Optional parts (not included) Diagram

$11.77

In Stock

Appliance Spray Paint (Biscuit)

#NI

Optional parts (not included) Diagram

$18.01 |
18% OFF MSRP:$22.00

In Stock

Appliance Spray Paint (Gray Primer)

#NI

Optional parts (not included) Diagram

$24.13

In Stock

Washer Gear Case Oil

#NI

Optional parts (not included) Diagram

$25.49 |
23% OFF MSRP:$33.00

In Stock

Hose Clamp

#30

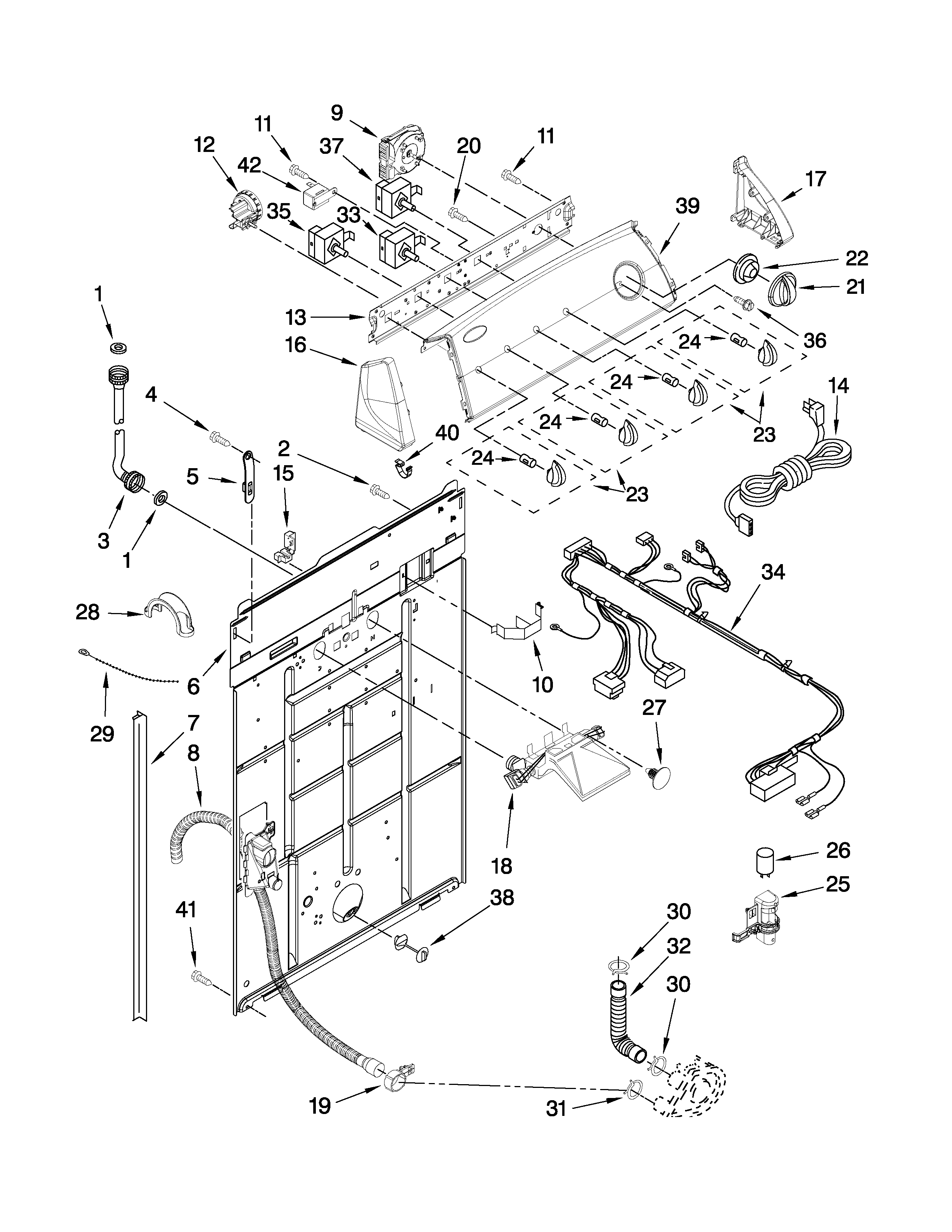

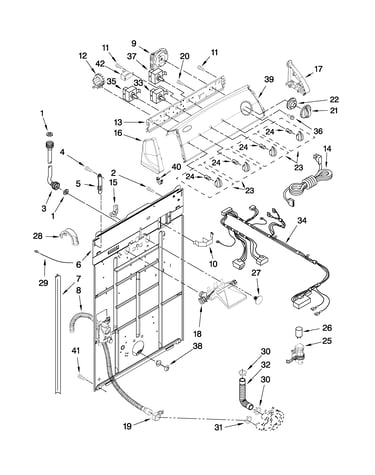

Controls and rear panel parts Diagram

Hose clamp

Part #3363366
This item is not returnable
$4.24

In Stock

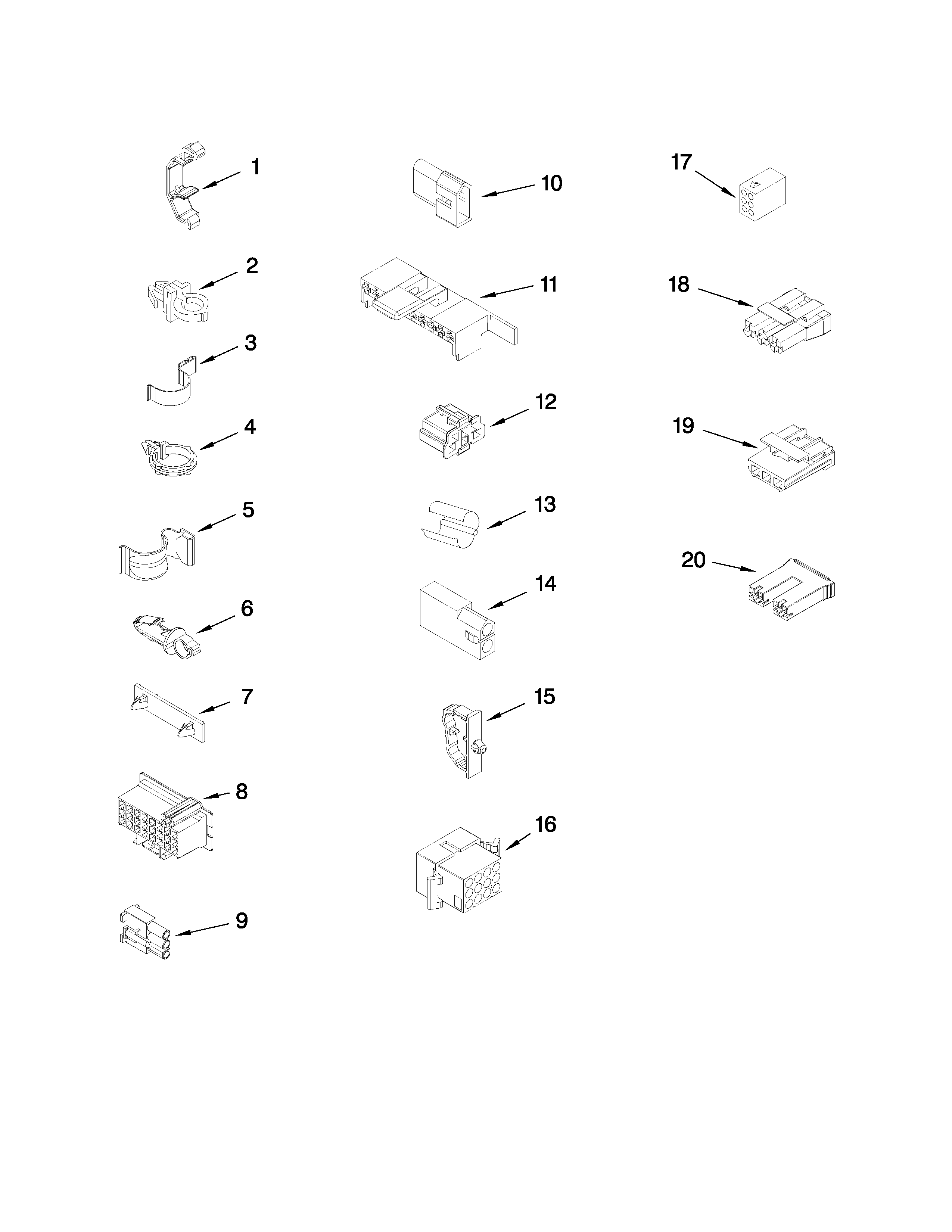

Washer Wire Harness Retainer

#19

Controls and rear panel parts Diagram

$14.06

In Stock

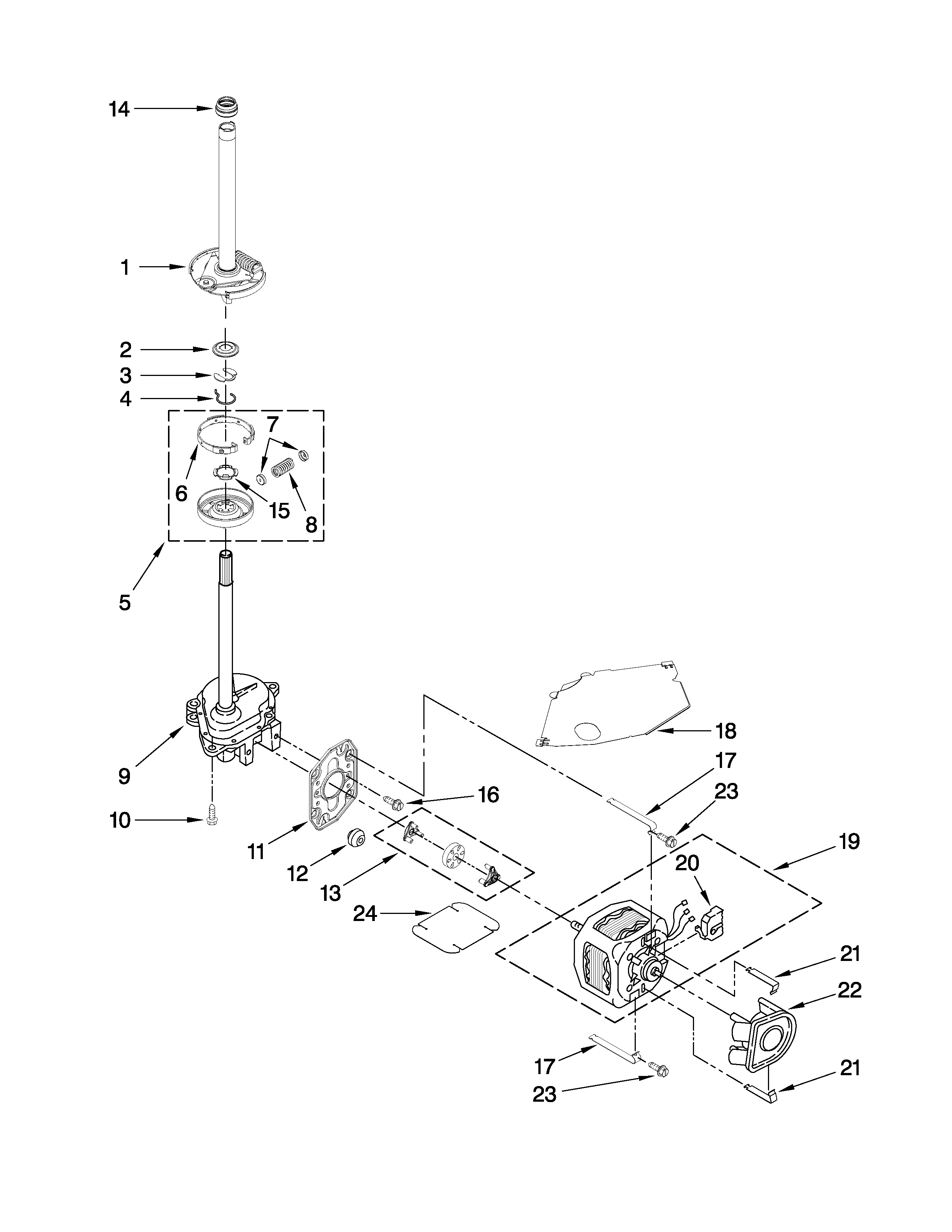

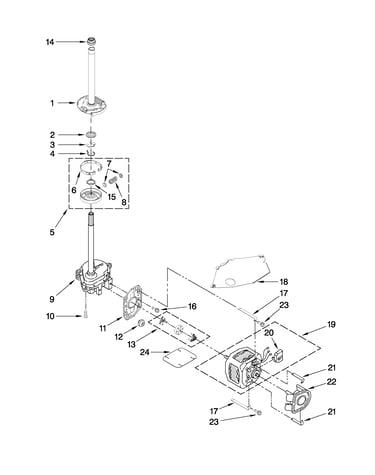

Washer Gear Case Oil Seal

#21

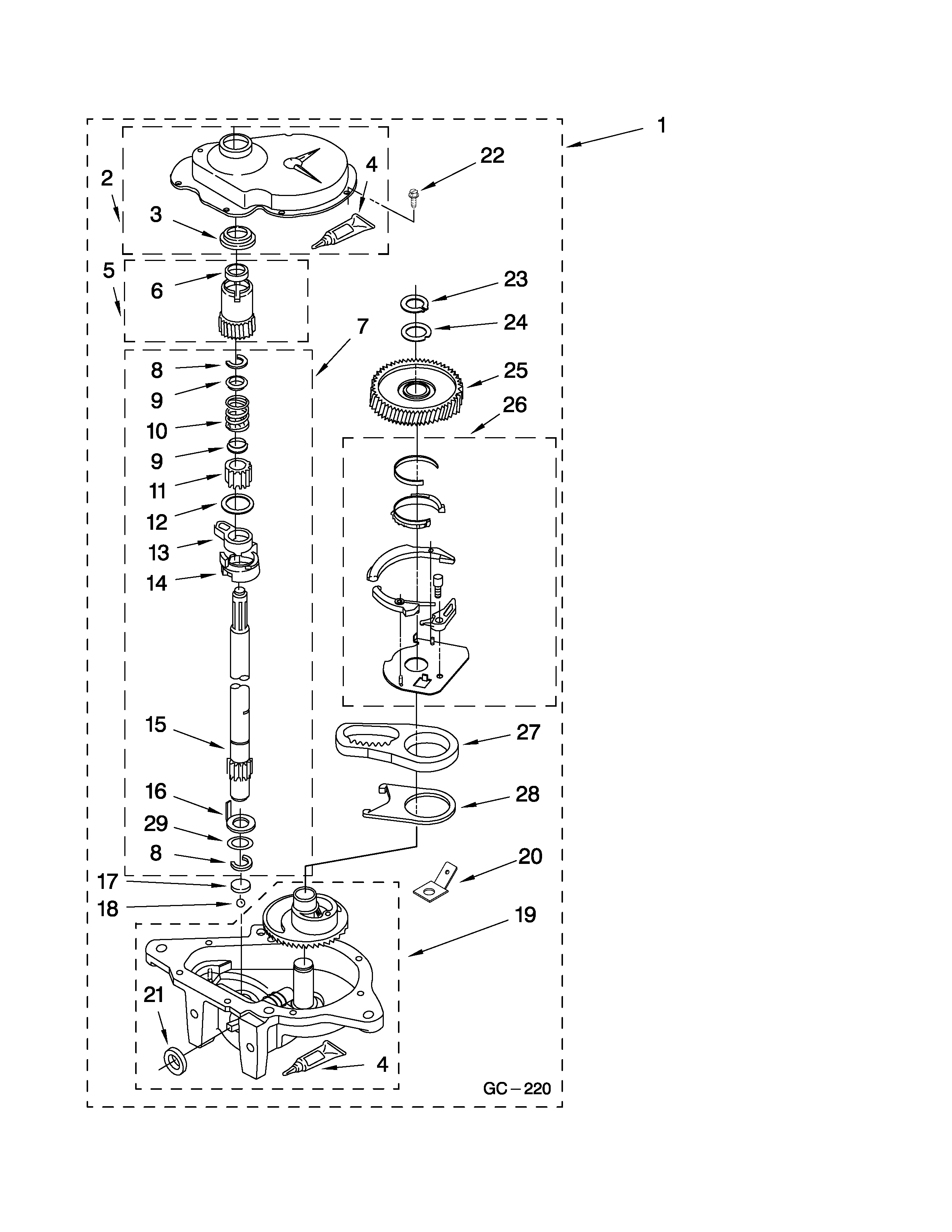

Gearcase parts Diagram

$26.13 |
10% OFF MSRP:$29.00

In Stock

Washer Bearing and Seal Kit

#20

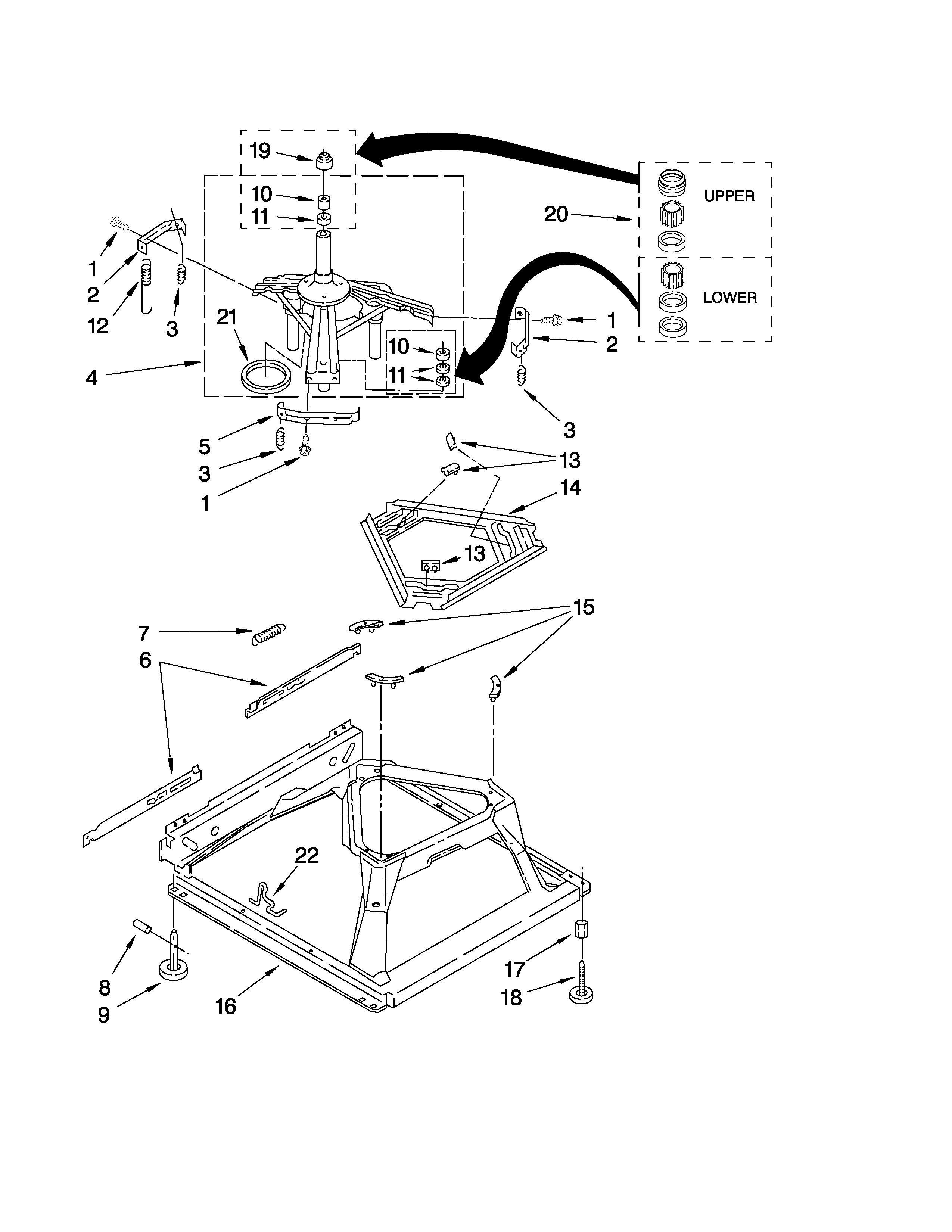

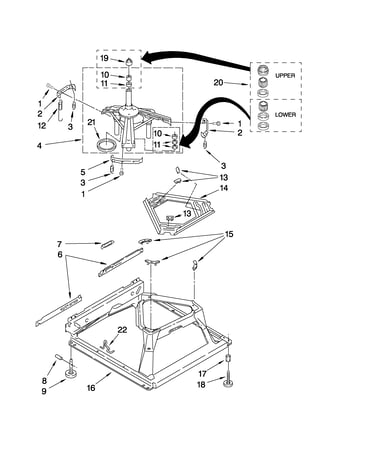

Machine base parts Diagram

$55.59 |
14% OFF MSRP:$65.00

In Stock

Washer Outer Tub

#16

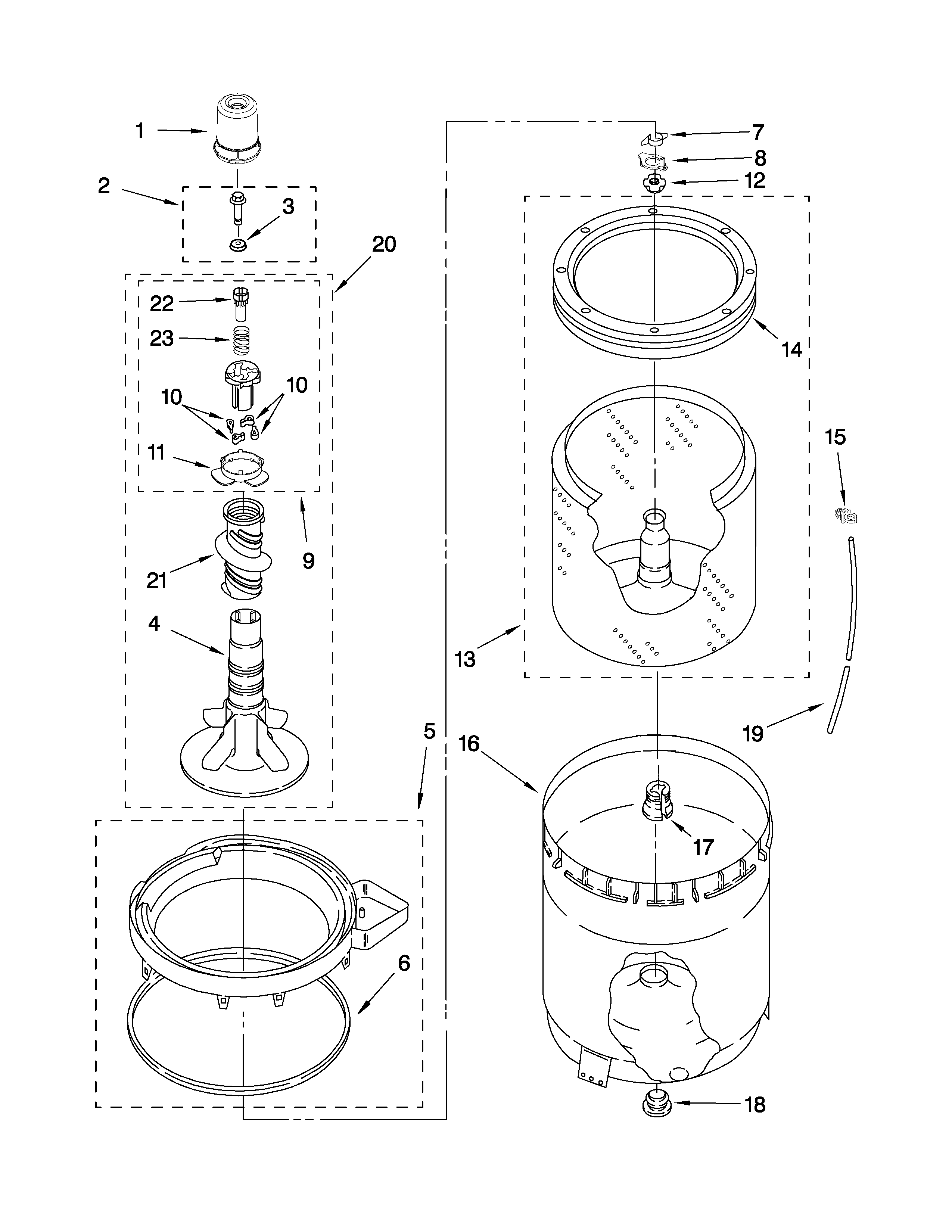

Agitator, basket and tub parts Diagram

Washer outer tub

Part #63849

The manufacturer no longer makes this part, and there's no substitute part

Showing 10 of 214 parts

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
