On a Whirlpool WFE540H0AW1 electric range, the F5 E1 error code points to a problem with the oven control sensing the door latch or door switch circuit. We fix it by power-resetting first, then checking the door latch mechanism and wiring; if those check out, the oven control board is the likely repair.

What to try first (fast checks)

• Turn the range off at the breaker for 1 minute, then restore power.
• Make sure the oven door closes fully and nothing is blocking the latch area.
• If the code appears during or after self-clean, let the oven cool completely and retry.
• If the display shows other codes, look them up in Whirlpool freestanding range error codes.

Step-by-step troubleshooting

Use the wiring and access steps in the installation guide as your reference for safe access and reassembly.

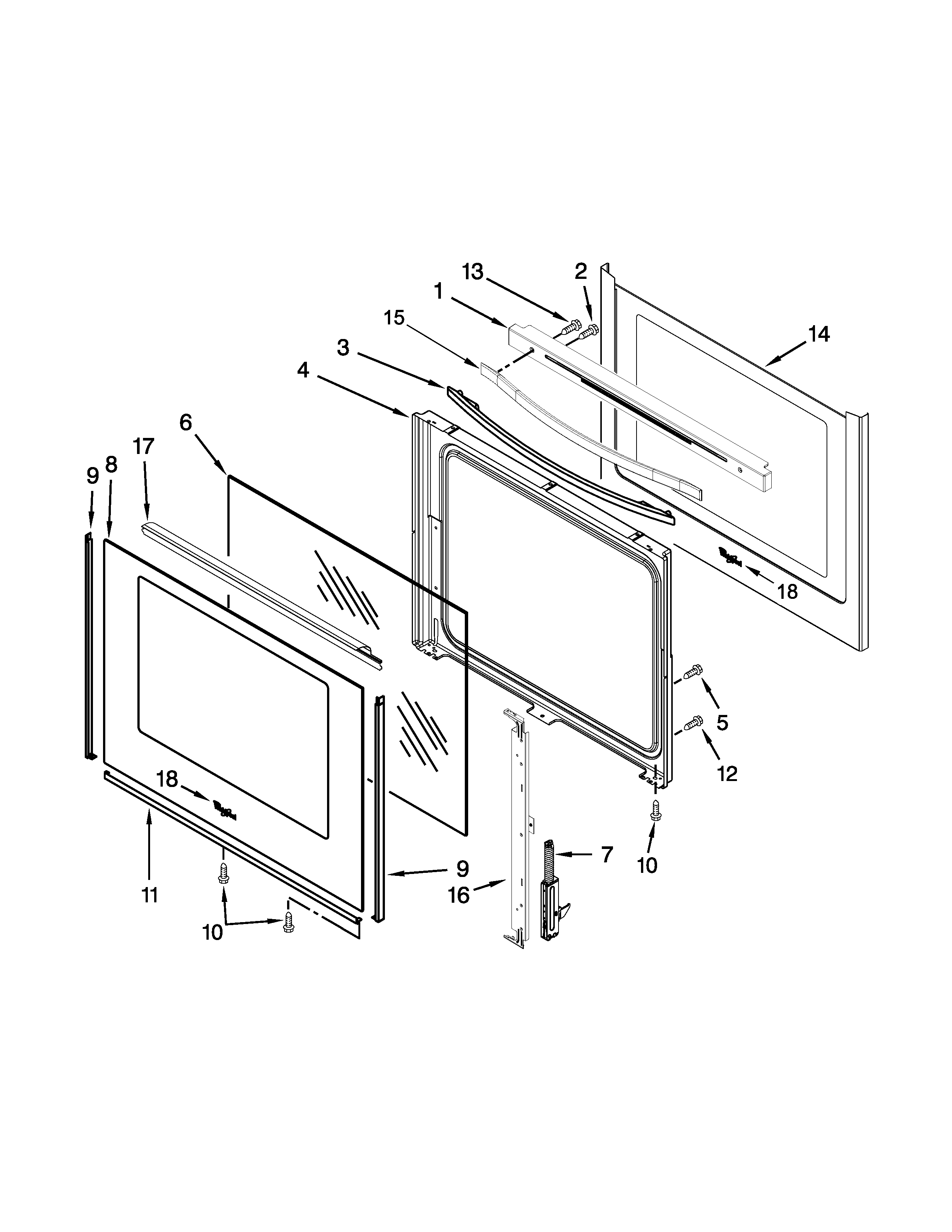

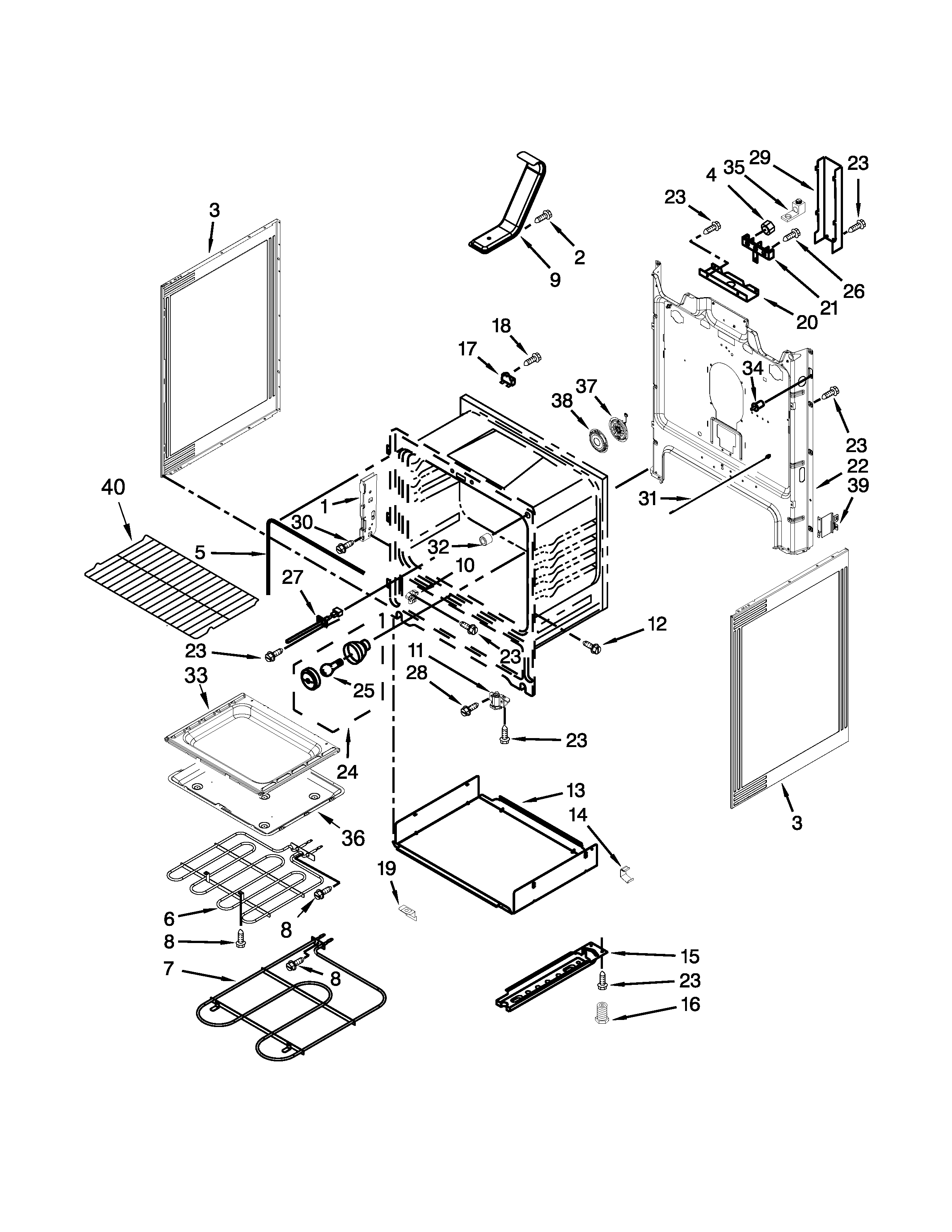

• Inspect the door latch area: Look for bent latch parts, debris, or a misaligned door.
• Check harness connections: With power off, reseat connectors between the latch/switch circuit and the control.
• Look for heat damage: Melted insulation or discolored terminals near the latch wiring can trigger false readings.
• Test components (if you have a meter): A stuck-open or stuck-closed switch in the latch circuit can set F5 E1.

When a part replacement is likely

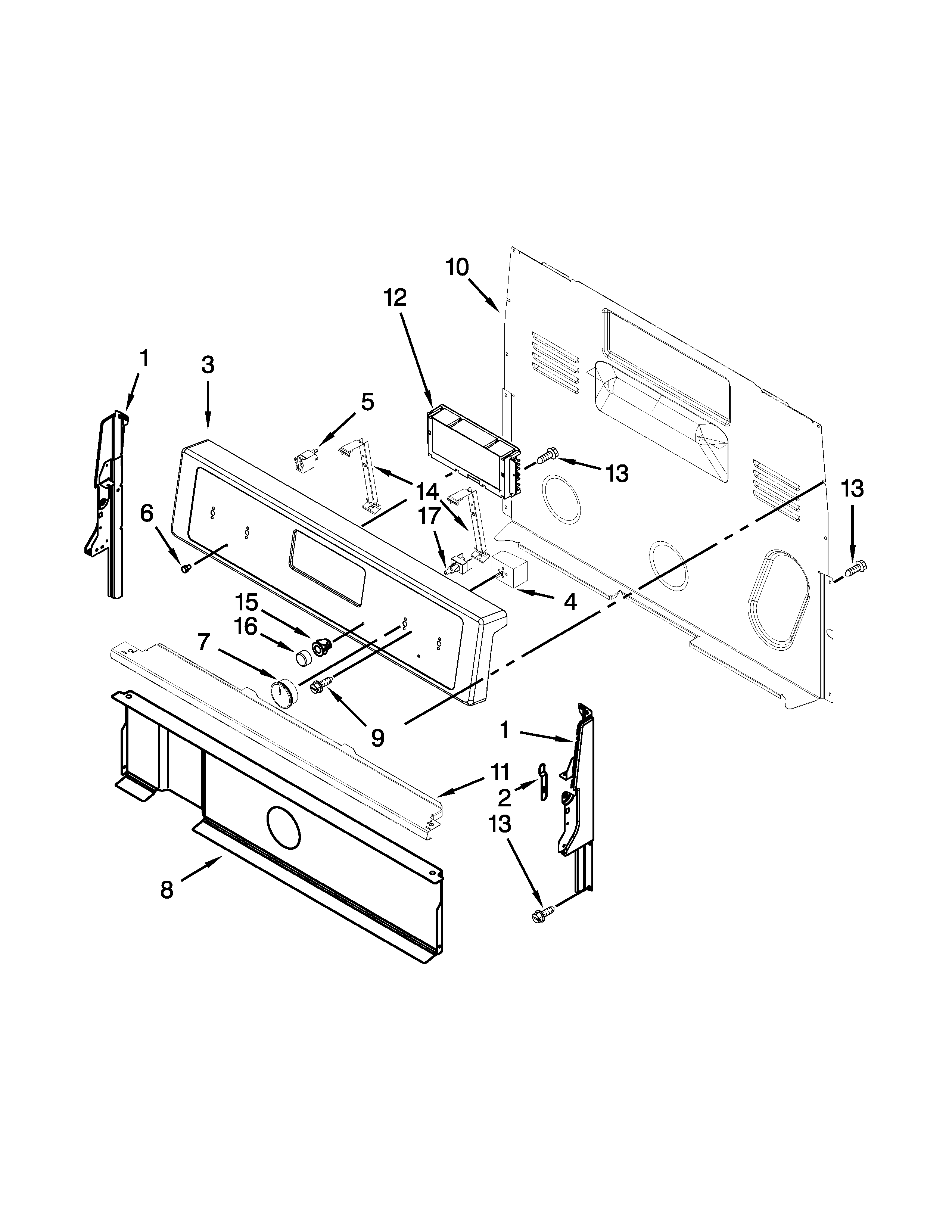

If the latch and wiring look good but F5 E1 returns quickly after a reset, the electronic control is commonly at fault.

Symptom	Most likely area	Typical next step
Code returns immediately at power-up	Control sensing circuit	Inspect connectors; consider control board replacement
Code appears during self-clean	Latch/switch not changing state	Inspect latch movement; check switch continuity
Intermittent code	Loose connection or heat-stressed wiring	Reseat connectors; inspect harness routing

Why it matters

F5 E1 can prevent the oven from heating or completing cycles because the control cannot confirm safe door or latch status. Fixing it restores normal bake and self-clean operation and helps prevent repeat shutdowns.

Last updated: January 2026

A Whirlpool electric range like model WFE540H0AW1 typically lasts 13 to 15 years with normal household use and basic care. Keeping the oven and cooktop clean, using the correct electrical connection, and fixing heating issues early helps you reach that lifespan.

What affects lifespan most

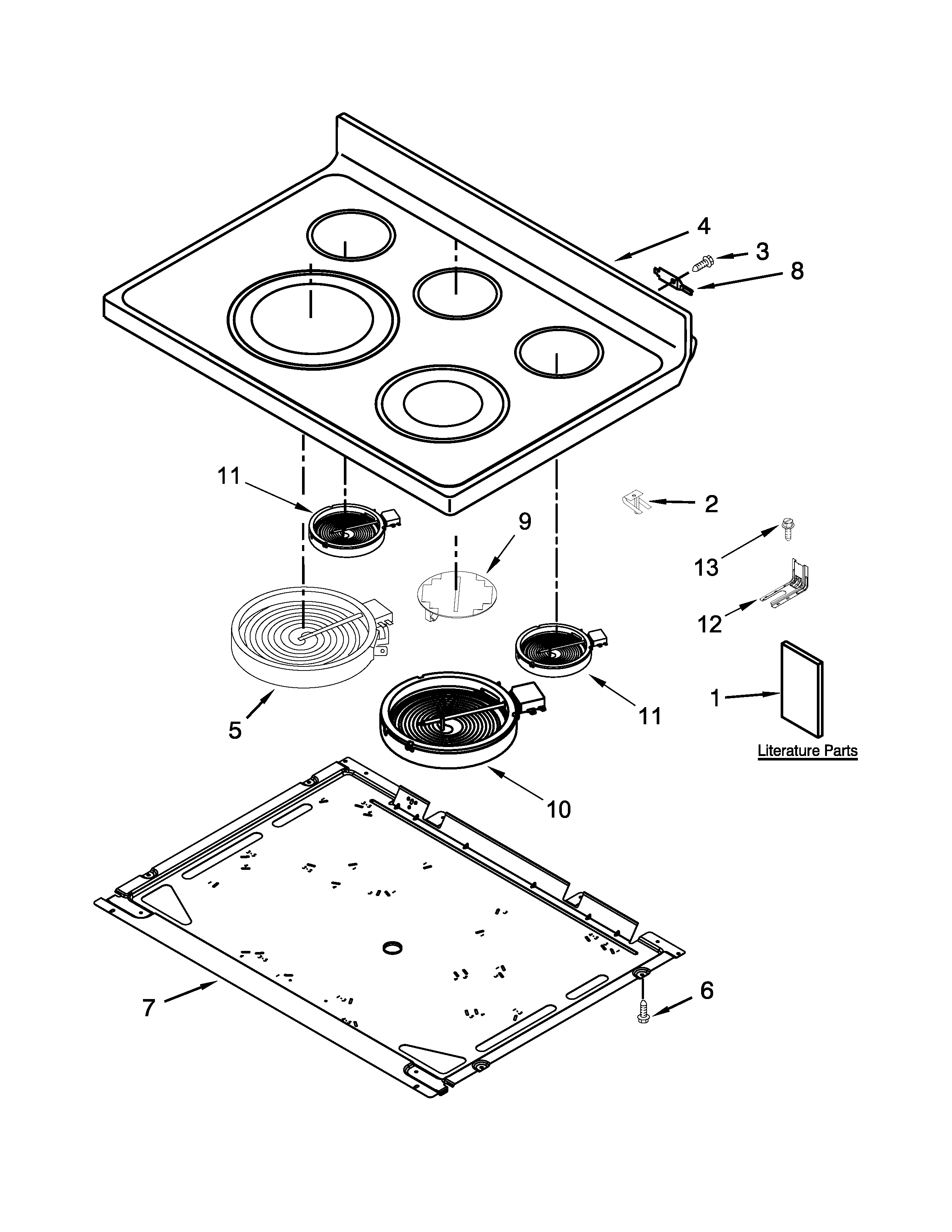

• Heating component wear: bake element and radiant surface elements cycle on and off and eventually fail.
• Electrical health: loose or overheated connections at the terminal block can shorten component life.
• Control stress: repeated overheating, spills, or power surges can damage the oven control.
• Cleaning habits: heavy buildup can cause hot spots and longer preheat times.
• Usage level: daily high-heat cooking wears parts faster than occasional use.

Common “end-of-life” symptoms (and what to check first)

If the range is under 15 years old, it is often worth checking these common repair items:

Symptom	Common cause	Typical fix
Oven will not heat or heats unevenly	Failed bake element	Replace the range bake element W10779716
Oven temperature is inaccurate	Weak temperature sensor	Test/replace sensor
Cooktop element will not regulate	Bad element switch	Replace the control switch
Range is completely dead or intermittent	Loose power connection	Inspect wiring and terminal block

Maintenance that helps you get the full 13 to 15 years

• Keep spills off the cooktop and avoid dragging cookware.
• Use cookware that matches the element size to reduce cycling stress.
• Periodically check that the range sits level and stable.
• Address slow preheat, error codes, or uneven baking promptly.
• Follow the electrical and anti-tip requirements in the installation guide.

Why it matters

Most “range failures” are actually one worn part (like a bake element, sensor, or switch). Replacing the right part early can restore safe, consistent heating and extend the useful life of your Whirlpool electric range.

Last updated: January 2026

On your Whirlpool WFE540H0AW1 electric range, the model number is printed on the model/serial rating plate. You can find that plate on the frame behind a top corner of the oven door, or on either side of the storage drawer opening.

Where to look on the range

Check these spots in this order:

• Open the oven door; look along the frame behind the top left or top right corner of the door opening

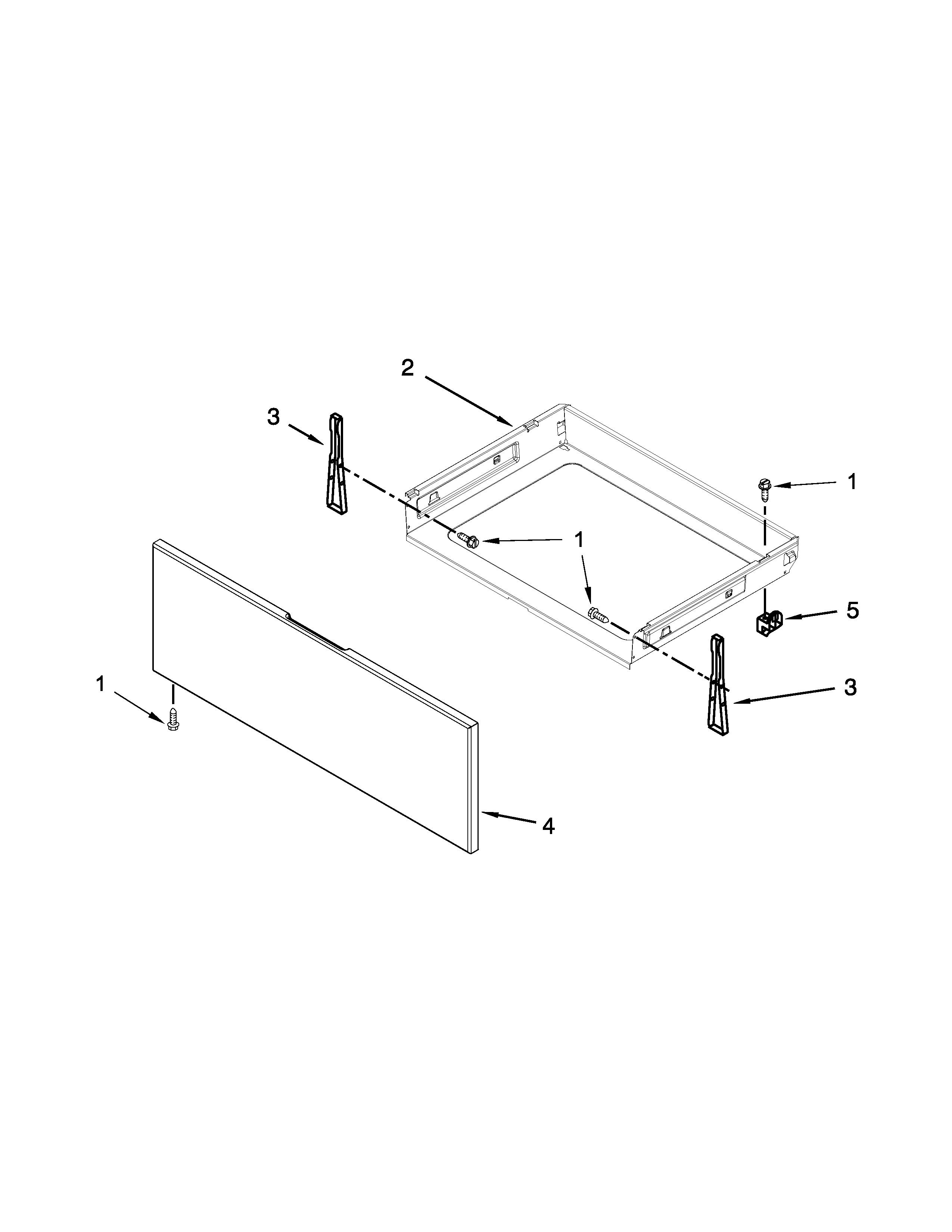

• Pull out the storage drawer (or warming drawer, if equipped); look on either side of the drawer opening
• Use a flashlight and look for a label that says “Model/Serial” or “Model/Serial Rating Plate”

What the label looks like and what to write down

The rating plate typically includes several identifiers. We recommend copying them exactly:

• Model number (example format: WFE540H0AW1)
• Serial number
• Electrical rating information (volts/amps), which is helpful for installation and power-cord questions

Item on label	Why it matters	When you need it
Model number	Ensures exact part fit	Ordering parts like a bake element or oven rack
Serial number	Identifies production details	Service history, part revisions
Electrical rating	Confirms correct power connection	Cord/terminal block and wiring checks

Why it matters

Whirlpool ranges often share similar designs across model families; using the exact model number prevents ordering the wrong surface element, control switch, or oven sensor for your specific WFE540H0AW1.

Helpful tip for installation and electrical questions

The installation instructions also reference the rating plate location and electrical requirements. Use the installation guide when you are verifying power supply cord type, grounding method, or clearances.
