How do I fix the F5 E1 error code on a Whirlpool oven?
On a Whirlpool WFE540H0AW1 electric range, the F5 E1 error code points to a problem with the oven control sensing the door latch or door switch circuit. We fix it by power-resetting first, then checking the door latch mechanism and wiring; if those check out, the oven control board is the likely repair.
- Turn the range off at the breaker for 1 minute, then restore power.
- Make sure the oven door closes fully and nothing is blocking the latch area.
- If the code appears during or after self-clean, let the oven cool completely and retry.
- If the display shows other codes, look them up in Whirlpool freestanding range error codes.
Use the wiring and access steps in the installation guide as your reference for safe access and reassembly.

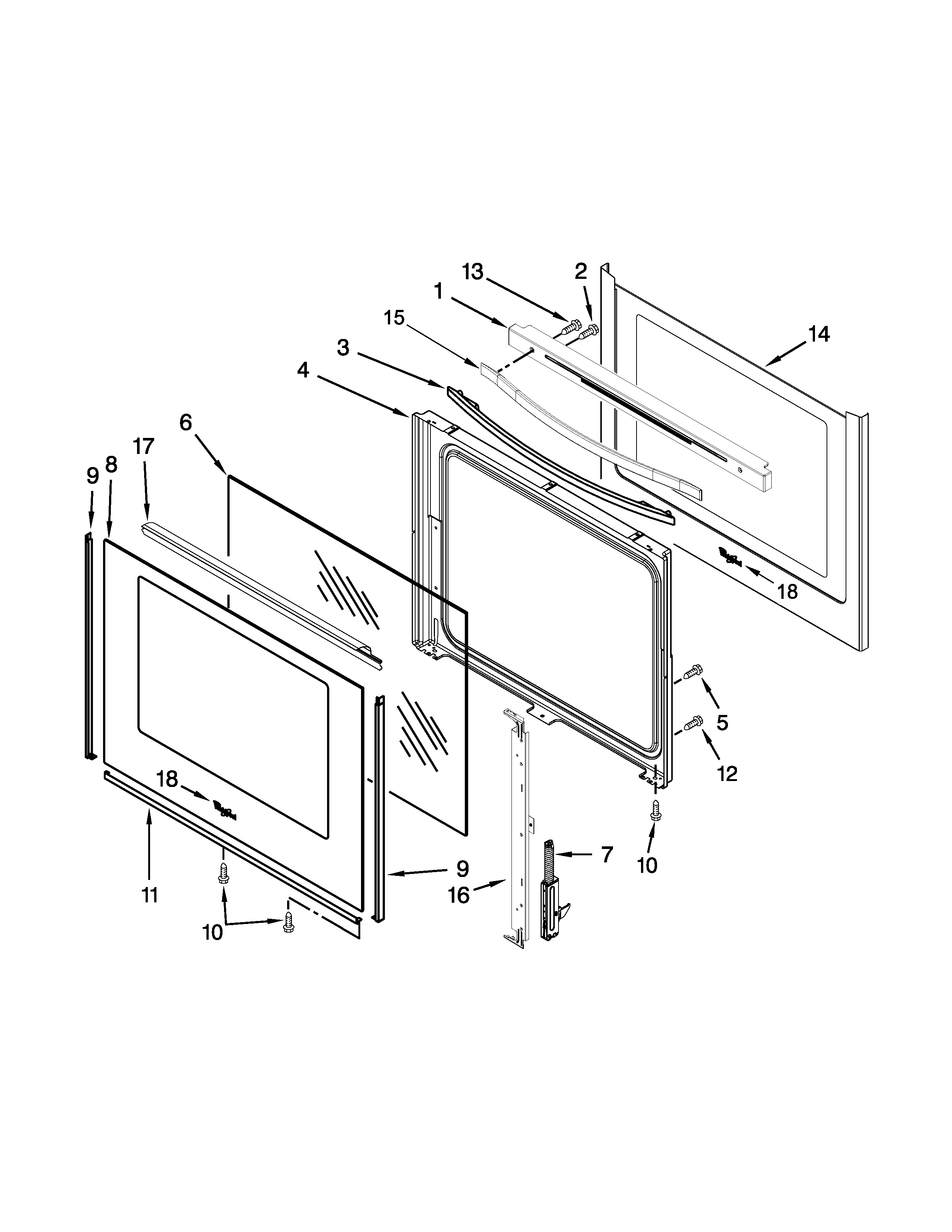

- Inspect the door latch area: Look for bent latch parts, debris, or a misaligned door.
- Check harness connections: With power off, reseat connectors between the latch/switch circuit and the control.
- Look for heat damage: Melted insulation or discolored terminals near the latch wiring can trigger false readings.
- Test components (if you have a meter): A stuck-open or stuck-closed switch in the latch circuit can set F5 E1.

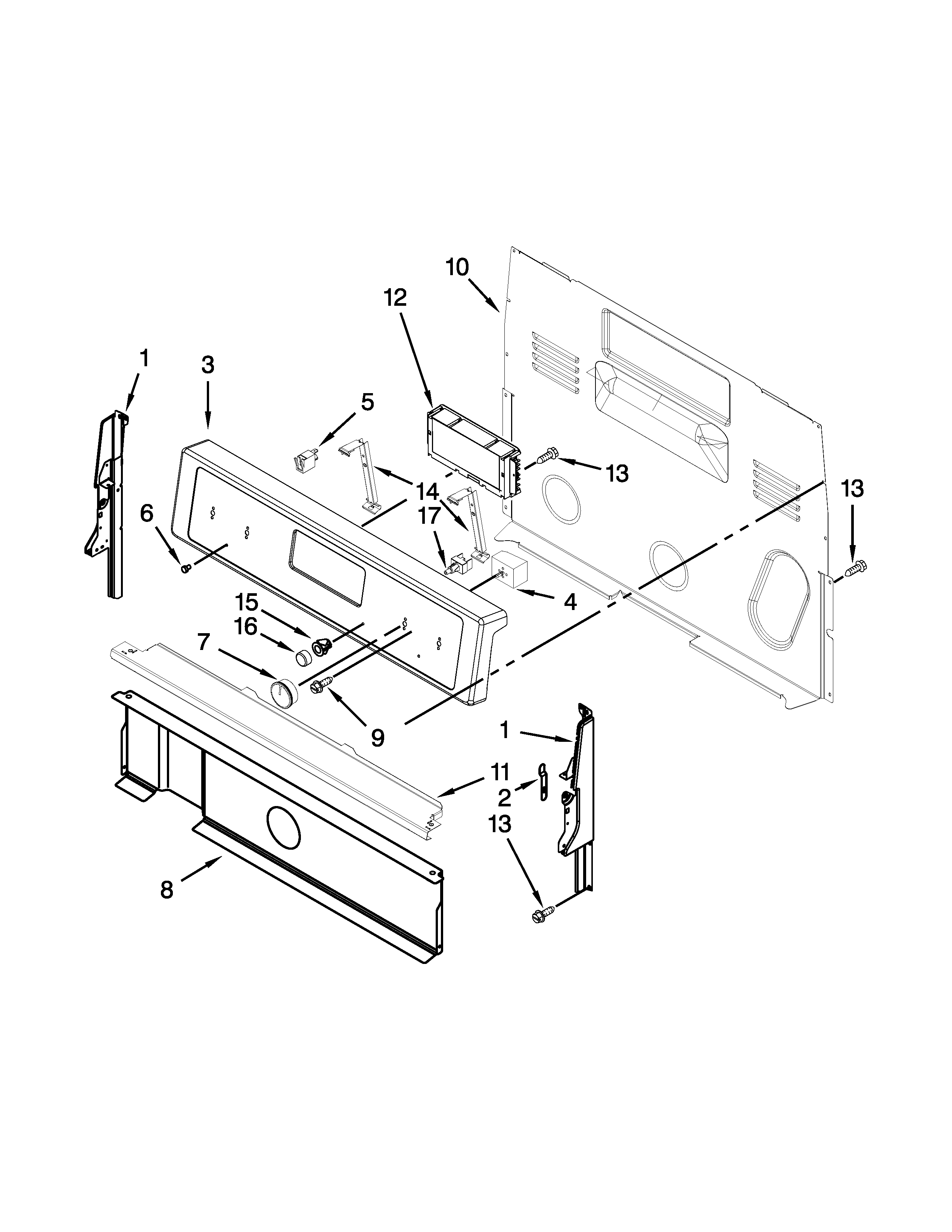

If the latch and wiring look good but F5 E1 returns quickly after a reset, the electronic control is commonly at fault.
| Symptom | Most likely area | Typical next step |
|---|---|---|
| Code returns immediately at power-up | Control sensing circuit | Inspect connectors; consider control board replacement |
| Code appears during self-clean | Latch/switch not changing state | Inspect latch movement; check switch continuity |
| Intermittent code | Loose connection or heat-stressed wiring | Reseat connectors; inspect harness routing |
F5 E1 can prevent the oven from heating or completing cycles because the control cannot confirm safe door or latch status. Fixing it restores normal bake and self-clean operation and helps prevent repeat shutdowns.
Last updated: January 2026
What is the life expectancy of a Whirlpool electric stove?
A Whirlpool electric range like model WFE540H0AW1 typically lasts 13 to 15 years with normal household use and basic care. Keeping the oven and cooktop clean, using the correct electrical connection, and fixing heating issues early helps you reach that lifespan.
- Heating component wear: bake element and radiant surface elements cycle on and off and eventually fail.
- Electrical health: loose or overheated connections at the terminal block can shorten component life.
- Control stress: repeated overheating, spills, or power surges can damage the oven control.
- Cleaning habits: heavy buildup can cause hot spots and longer preheat times.
- Usage level: daily high-heat cooking wears parts faster than occasional use.
If the range is under 15 years old, it is often worth checking these common repair items:
| Symptom | Common cause | Typical fix |
|---|---|---|

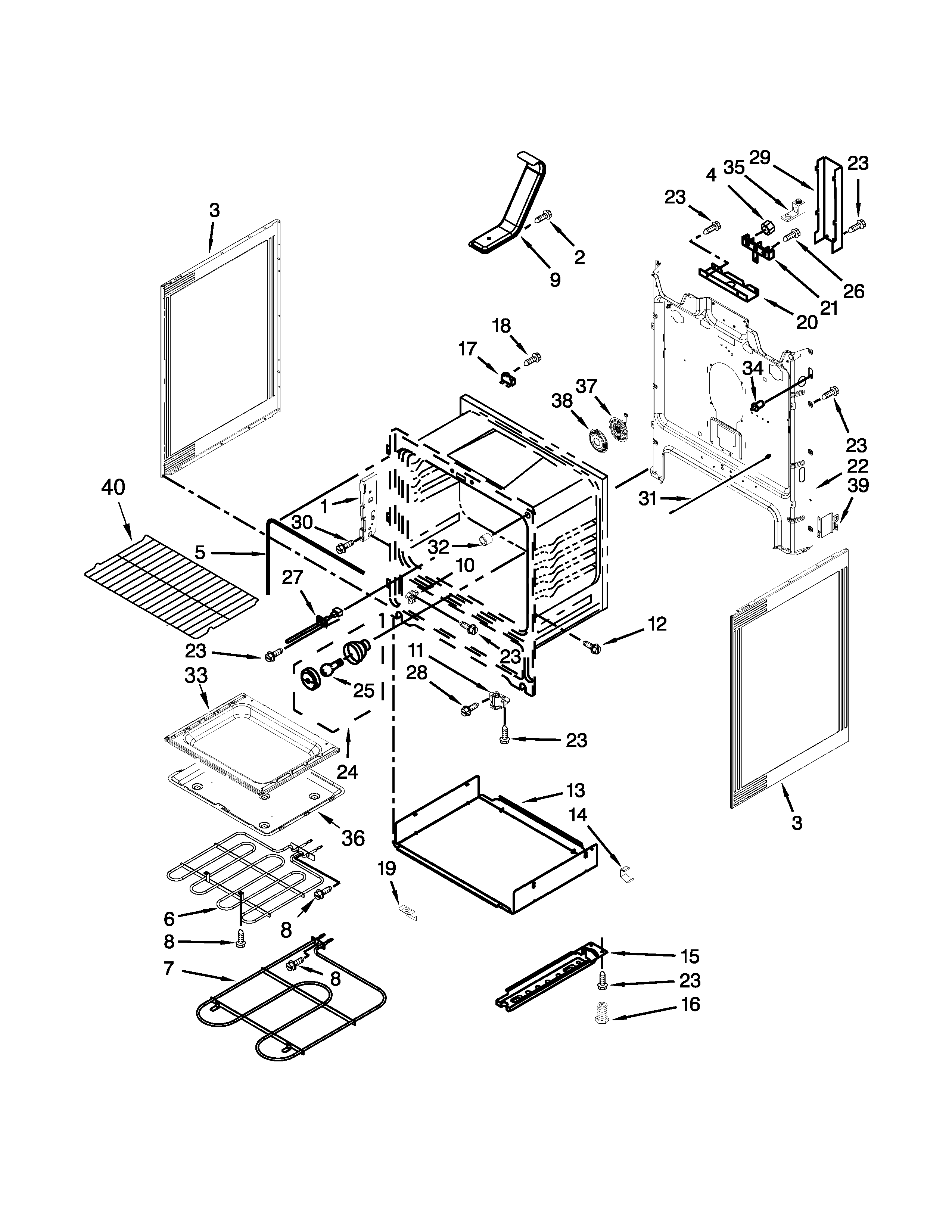

| Oven will not heat or heats unevenly | Failed bake element | Replace the range bake element W10779716 |
| Oven temperature is inaccurate | Weak temperature sensor | Test/replace sensor |

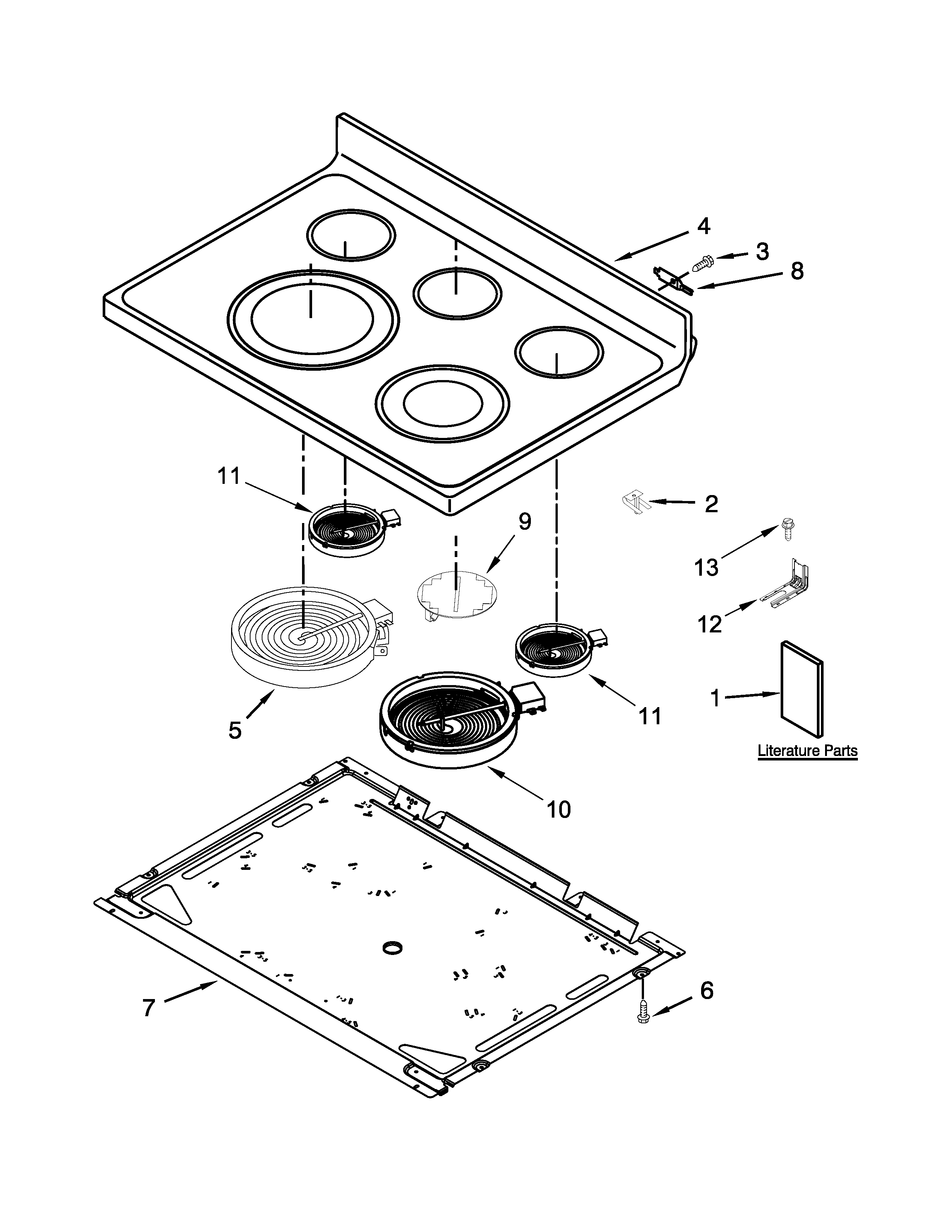

| Cooktop element will not regulate | Bad element switch | Replace the control switch |
| Range is completely dead or intermittent | Loose power connection | Inspect wiring and terminal block |
- Keep spills off the cooktop and avoid dragging cookware.
- Use cookware that matches the element size to reduce cycling stress.
- Periodically check that the range sits level and stable.
- Address slow preheat, error codes, or uneven baking promptly.
- Follow the electrical and anti-tip requirements in the installation guide.
Most “range failures” are actually one worn part (like a bake element, sensor, or switch). Replacing the right part early can restore safe, consistent heating and extend the useful life of your Whirlpool electric range.
Last updated: January 2026
How do I find the model number on my WFE540H0AW1?
On your Whirlpool WFE540H0AW1 electric range, the model number is printed on the model/serial rating plate. You can find that plate on the frame behind a top corner of the oven door, or on either side of the storage drawer opening.
Check these spots in this order:
- Open the oven door; look along the frame behind the top left or top right corner of the door opening

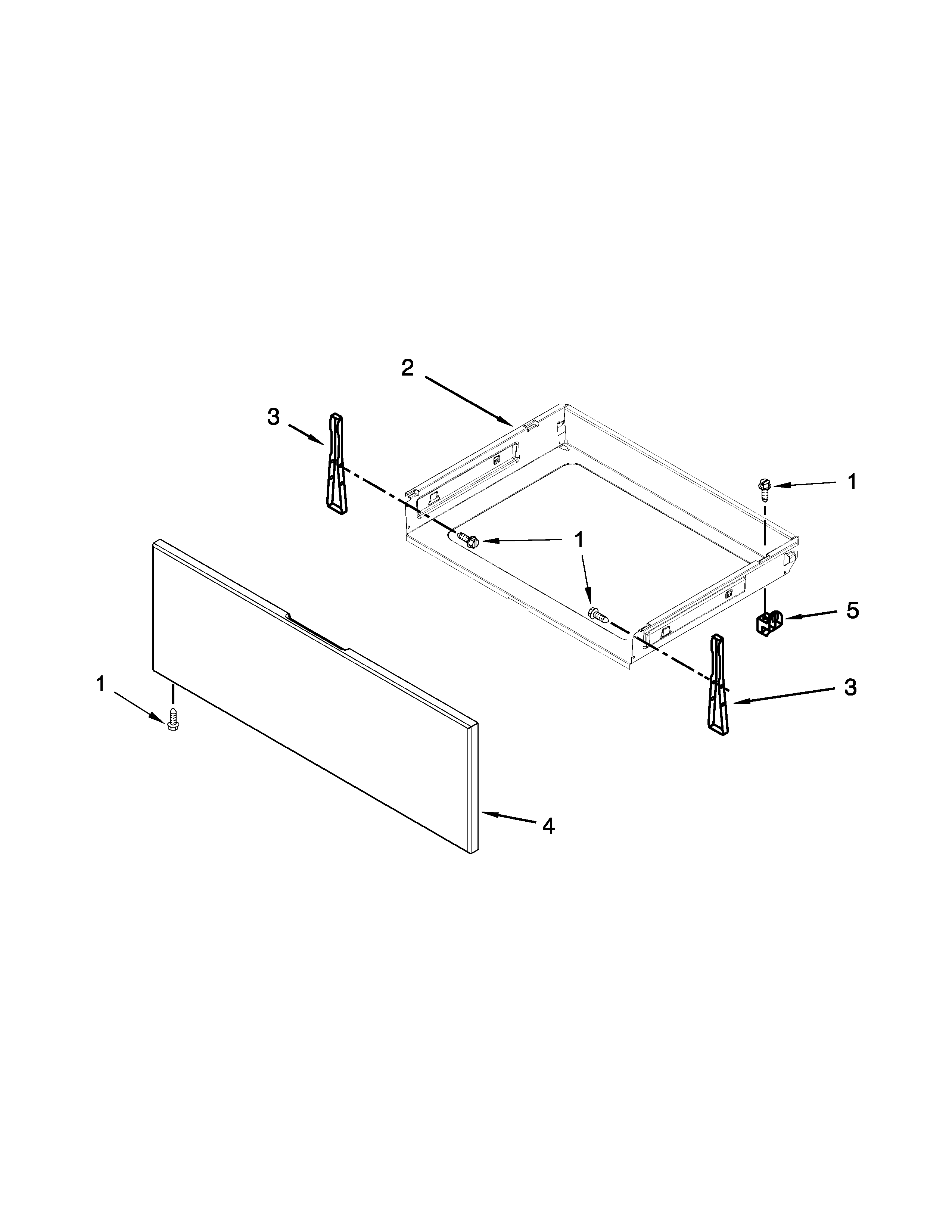

- Pull out the storage drawer (or warming drawer, if equipped); look on either side of the drawer opening
- Use a flashlight and look for a label that says “Model/Serial” or “Model/Serial Rating Plate”
The rating plate typically includes several identifiers. We recommend copying them exactly:
- Model number (example format: WFE540H0AW1)
- Serial number
- Electrical rating information (volts/amps), which is helpful for installation and power-cord questions
| Item on label | Why it matters | When you need it |
|---|---|---|
| Model number | Ensures exact part fit | Ordering parts like a bake element or oven rack |
| Serial number | Identifies production details | Service history, part revisions |
| Electrical rating | Confirms correct power connection | Cord/terminal block and wiring checks |
Whirlpool ranges often share similar designs across model families; using the exact model number prevents ordering the wrong surface element, control switch, or oven sensor for your specific WFE540H0AW1.
The installation instructions also reference the rating plate location and electrical requirements. Use the installation guide when you are verifying power supply cord type, grounding method, or clearances.
