Maytag
Electric Wall Oven

Model #MEW7630DS01 Maytag electric oven

Here are the diagrams and repair parts for Maytag MEW7630DS01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

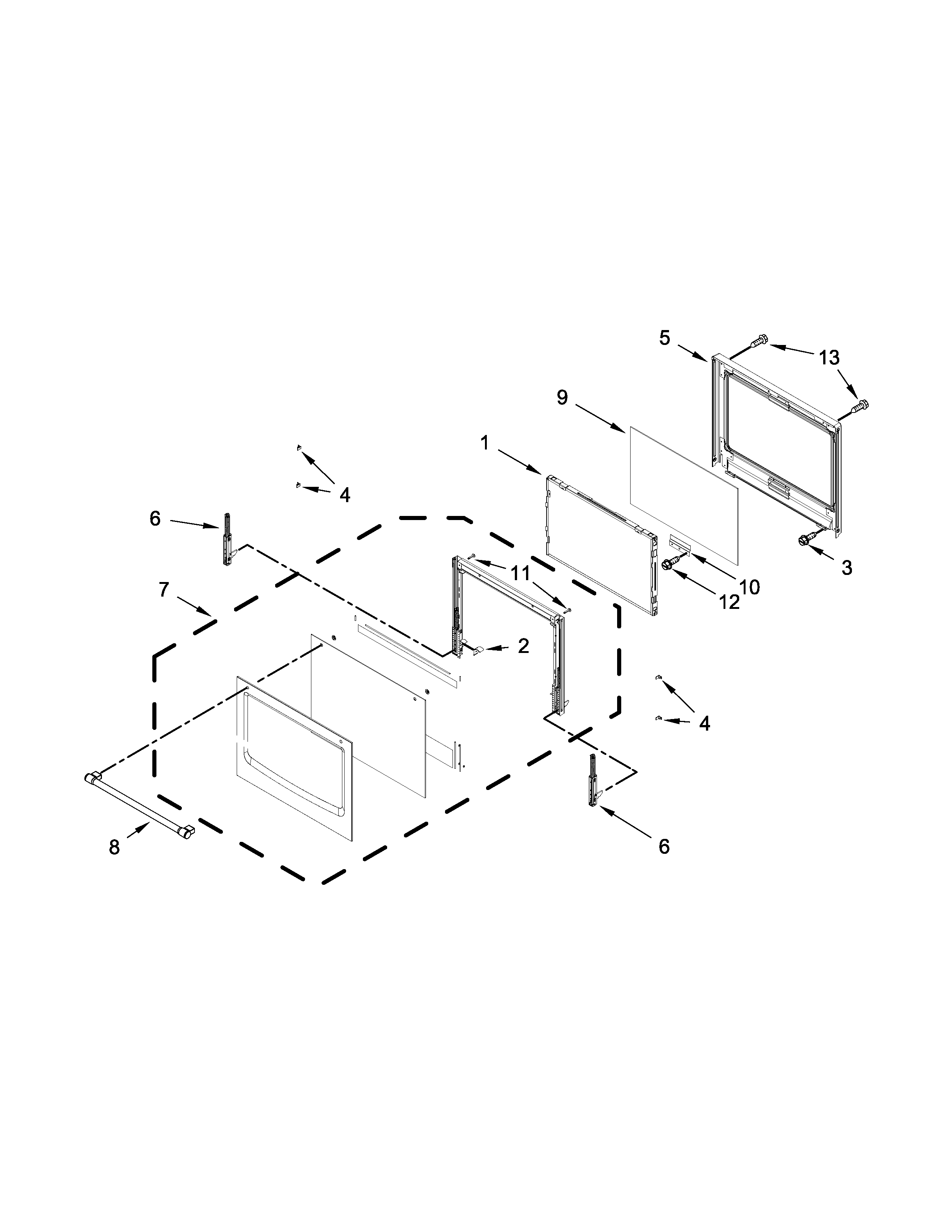

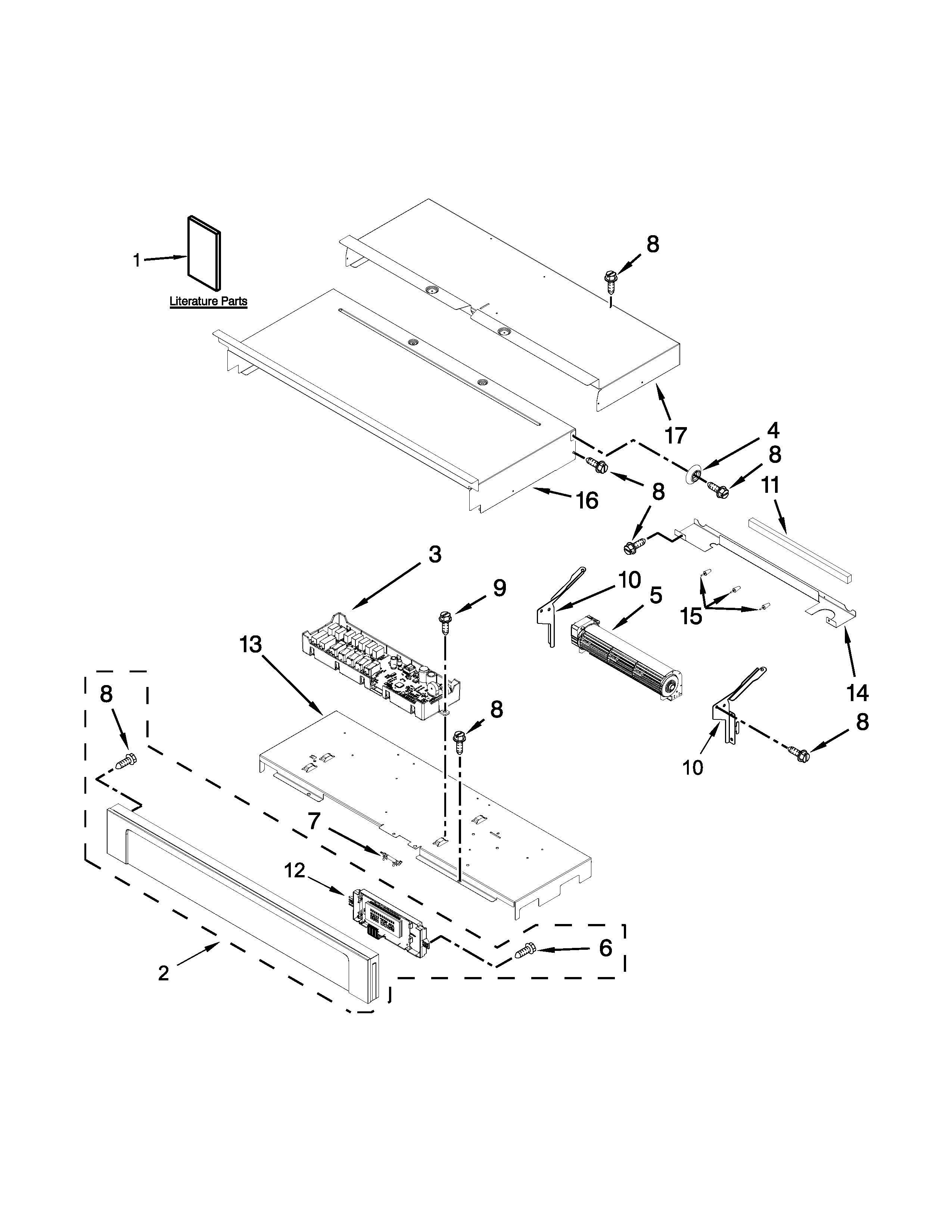

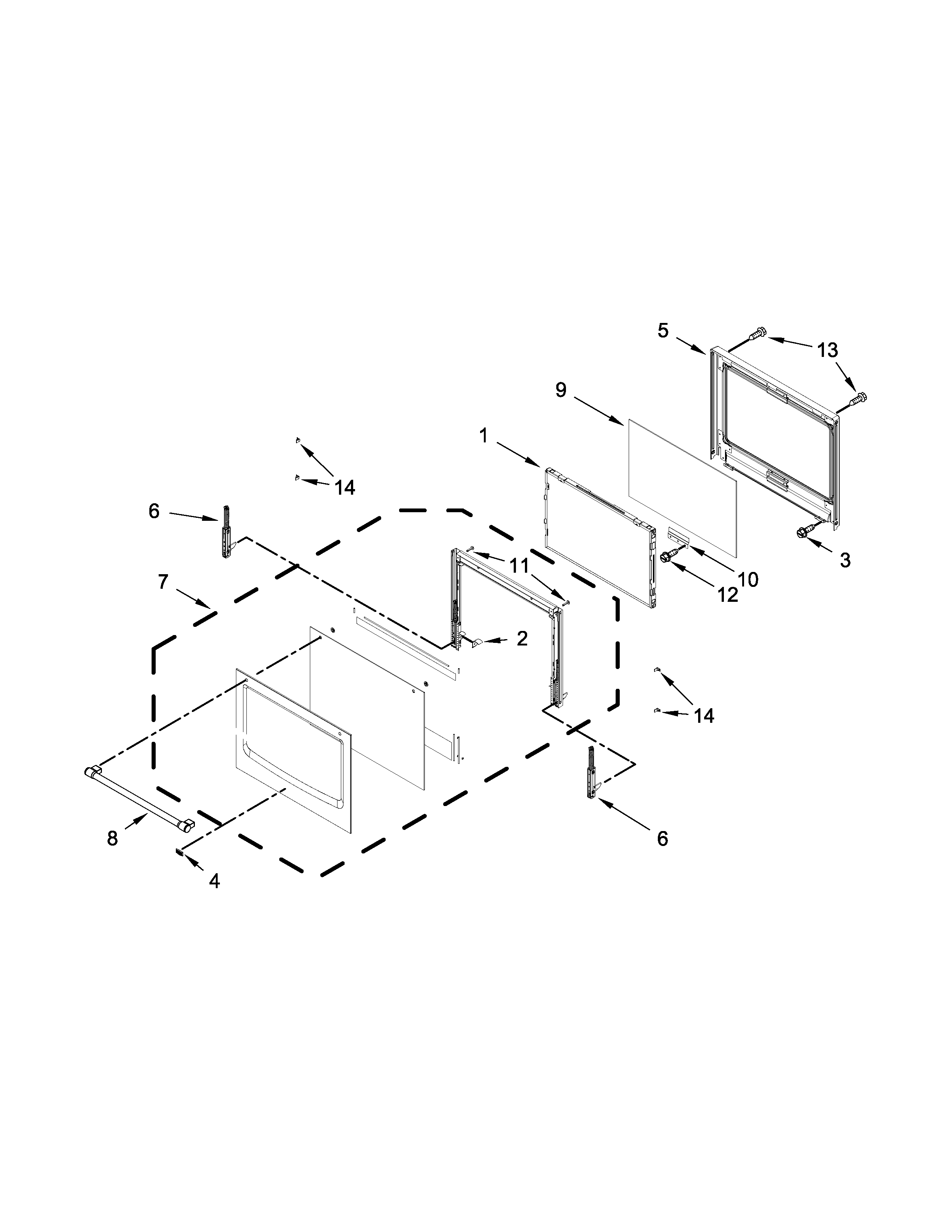

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 105 parts

    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Optional parts Diagram

    Appliance touch-up paint

    Part #72017
    Replaced by #72017
    ?
    Manufacturer substitution
    This part replaces 72017. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Appliance Touch-Up Paint, 0.6-oz (Black)#NI

    Optional parts Diagram

    Touch-up paint (black)

    Part #72032
    Replaced by #72032
    ?
    Manufacturer substitution
    This part replaces 72032. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.89 |
    30% OFF
    MSRP: $7.00
    Range Oven Rack#8

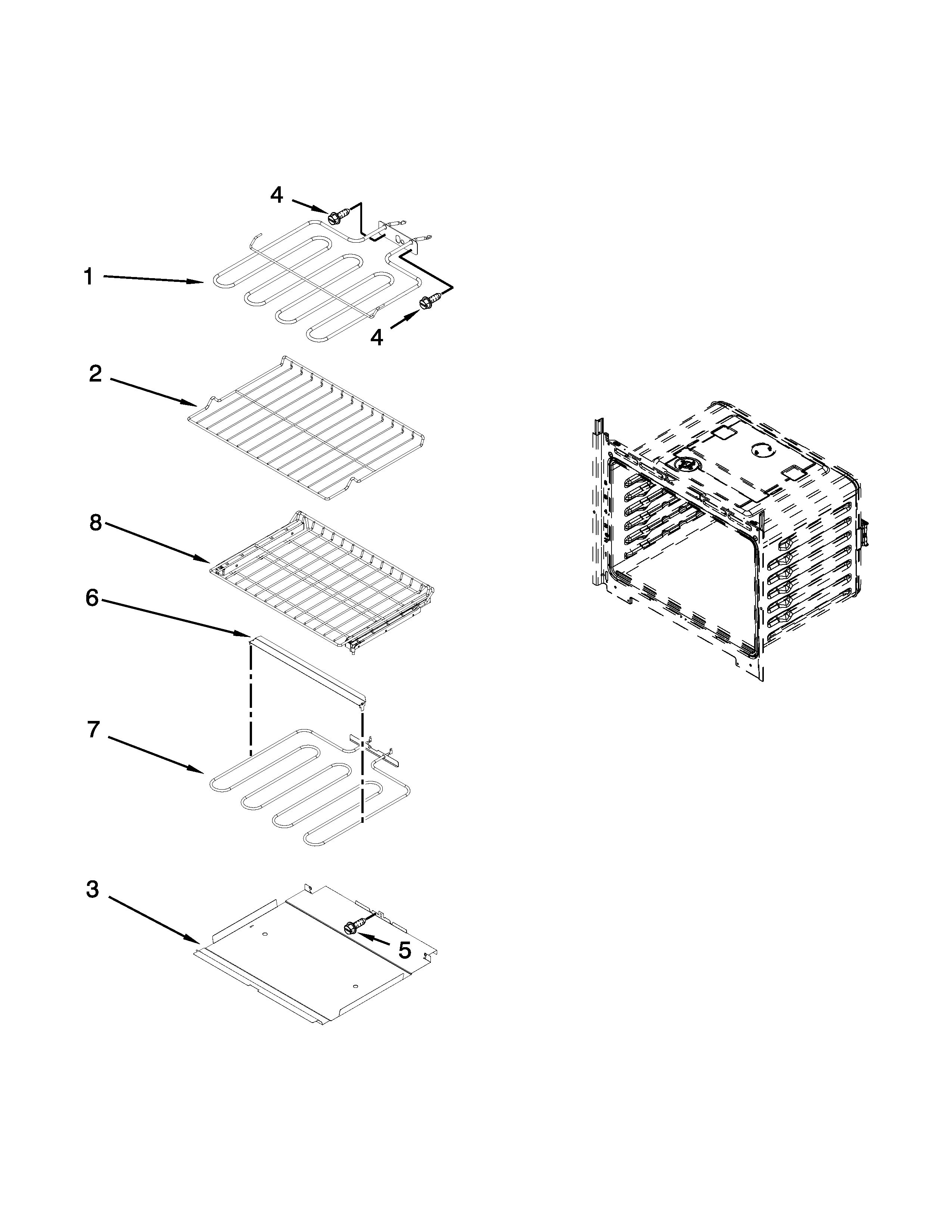

    Internal oven parts Diagram

    Range oven rack

    Part #W10282973
    Replaced by #W10554531
    ?
    Manufacturer substitution
    This part replaces W10282973. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $110.19
    Wall Oven Vent Trim, Lower (Stainless)#22B

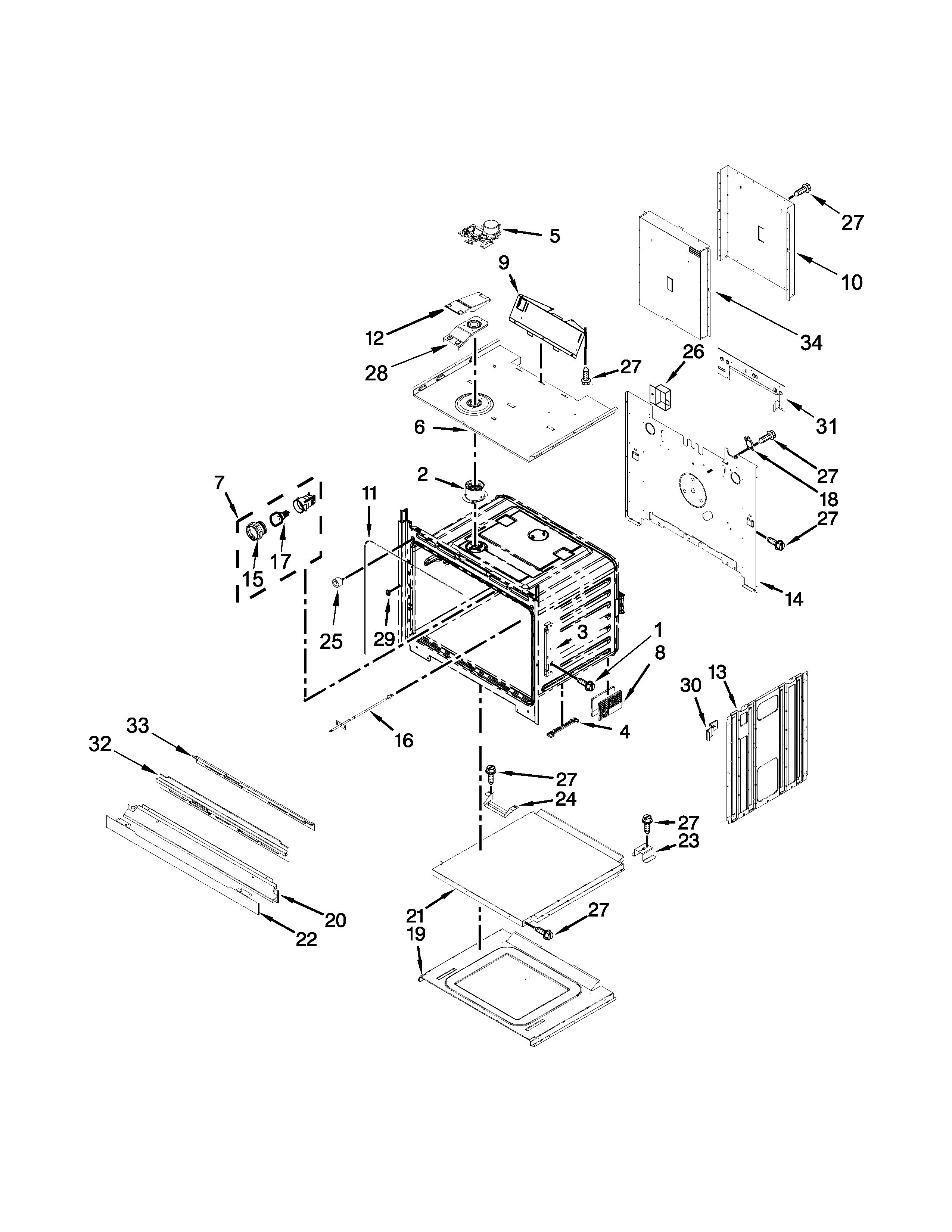

    Oven parts Diagram

    Wall oven bottom vent trim (stainless)

    Part #W10327377
    Replaced by #WPW10327377
    ?
    Manufacturer substitution
    This part replaces W10327377. Substitute parts can look different from the original.
    In Stock
    $48.59
    Wall Oven Light Lens#15

    Oven parts Diagram

    Light lens

    Part #W10412722
    Replaced by #WPW10412722
    ?
    Manufacturer substitution
    This part replaces W10412722. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $14.69
    Range Broil Element#1

    Internal oven parts Diagram

    Range broil element

    Part #W10260252
    Replaced by #WPW10260252
    ?
    Manufacturer substitution
    This part replaces W10260252. Substitute parts can look different from the original.
    In Stock
    $81.29
    Wall Oven Door Gasket#11

    Oven parts Diagram

    Gasket-ovn

    Part #W10282960
    Replaced by #WPW10282960
    ?
    Manufacturer substitution
    This part replaces W10282960. Substitute parts can look different from the original.
    In Stock
    $69.79
    Range Screw

    See All Related Diagrams

    Range screw

    Part #WP98008545
    This item is not returnable
    In Stock
    $4.59 |
    58% OFF
    MSRP: $11.00
    Range Bake Element#7

    Internal oven parts Diagram

    Range bake element

    Part #W10546517
    Replaced by #W11545804
    ?
    Manufacturer substitution
    This part replaces W10546517. Substitute parts can look different from the original.
    Back Order
    $59.09
    Appliance Spray Paint (Black)#NI

    Optional parts Diagram

    Spray bl

    Part #830864
    Replaced by #285006
    ?
    Manufacturer substitution
    This part replaces 830864. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $28.89

    Symptoms common to all wall oven

    Choose a symptom to see related wall oven repairs.

    Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
    Main causes: broken broil element, faulty broil burner igniter, control system failure
    Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
    Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
    Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
    Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
