Model #CRG8600AAL Maytag gas freestanding range

Here are the diagrams and repair parts for Maytag CRG8600AAL gas freestanding range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 197 parts

Range Surface Burner Knob (Black)

#9A

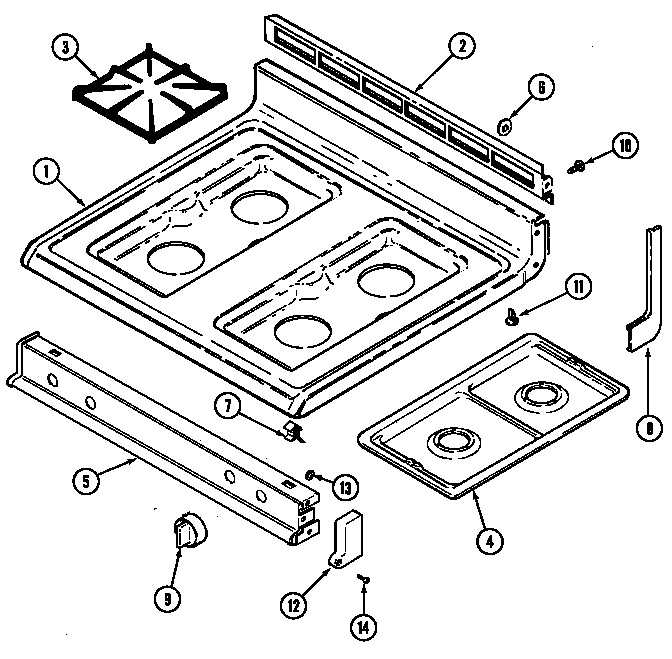

Top assembly Diagram

$19.49

In Stock

Washer

#15B

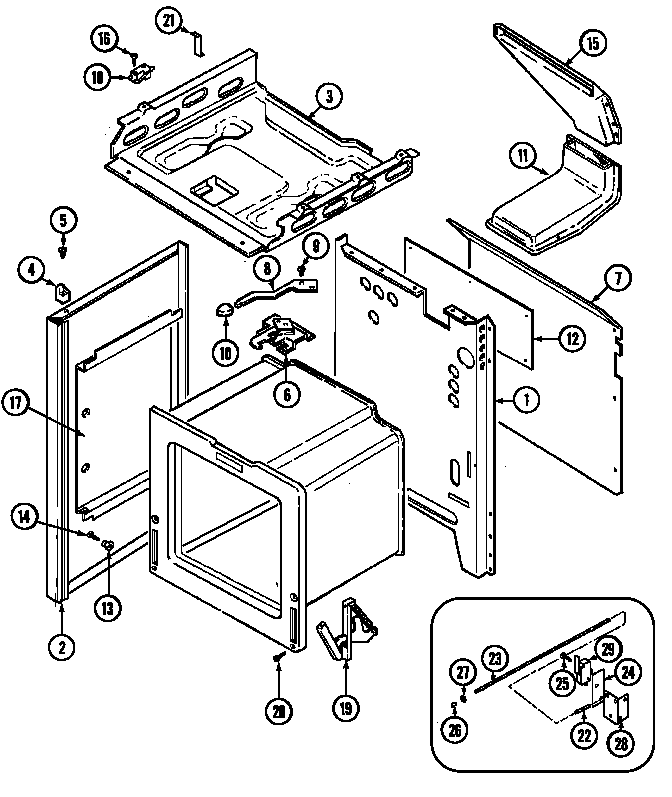

Body Diagram

Washer

Part #7109P028-60
$10.79

In Stock

Range Wing Nut

#24

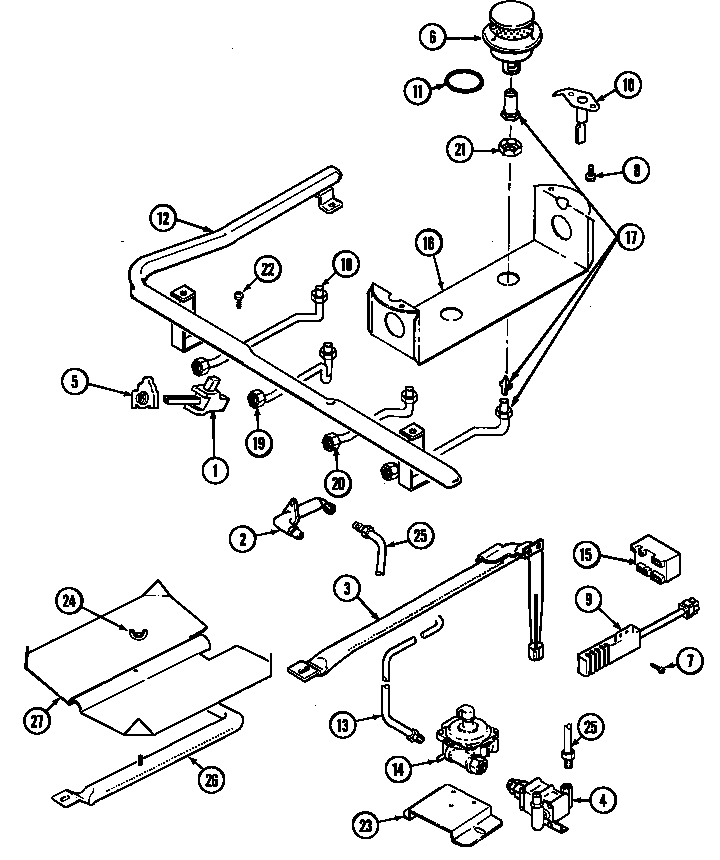

Gas controls Diagram

Range wing nut

Part #7103P030-60
This item is not returnable
$4.99

In Stock

Range Screw

#31

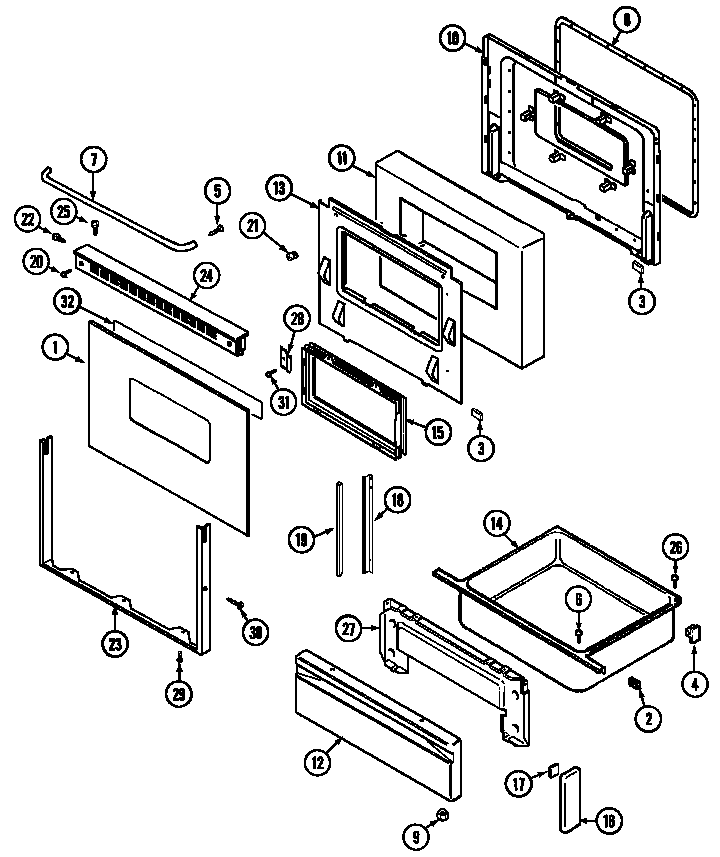

Door/drawer Diagram

Range screw

Part #7101P345-60
$12.49

In Stock

Range Surface Burner Assembly

#6A

Gas controls Diagram

Range surface burner assembly

Part #WP3412D024-09
?
Manufacturer substitution
This part replaces 3412D018-09. Substitute parts can look different from the original.
This part replaces 3412D018-09
$48.97
15% OFFMSRP:$57.89

In Stock

Dryer Screw

#20

Door/drawer Diagram

Dryer screw

Part #WP3387230
?
Manufacturer substitution
This part replaces 7101P274-60. Substitute parts can look different from the original.
This part replaces 7101P274-60
This item is not returnable
$3.21

In Stock

Range Oven Burner Igniter

#9

Gas controls Diagram

Range oven burner igniter

Part #12400035
?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
This part replaces 7432P076-60
$32.55
24% OFFMSRP:$42.95

In Stock

Retainer

#16

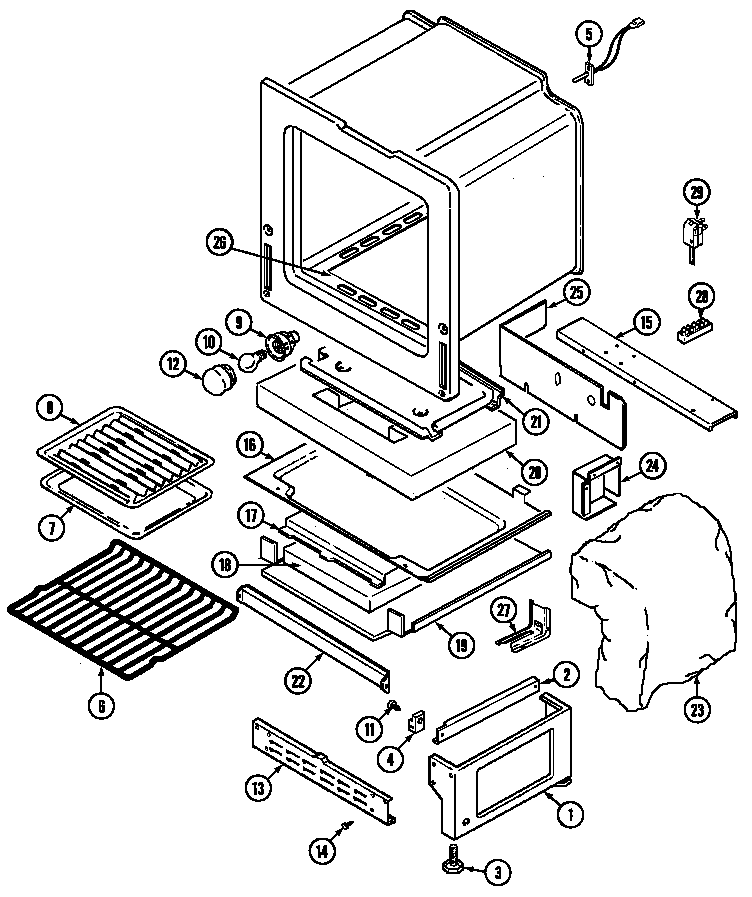

Oven/base Diagram

Retainer

Part #3804F245-51
?
Manufacturer substitution
This part replaces 3804F109-51. Substitute parts can look different from the original.
This part replaces 3804F109-51
$48.96
22% OFFMSRP:$63.00

In Stock

Range Spark Module

#15

Gas controls Diagram

Range spark module

Part #12001596
?
Manufacturer substitution
This part replaces 7431P023-60. Substitute parts can look different from the original.
This part replaces 7431P023-60
$43.53

In Stock

Main Cover

#7

Body Diagram

Main cover

Part #74003816
?
Manufacturer substitution
This part replaces 4005F331-51. Substitute parts can look different from the original.
This part replaces 4005F331-51
$28.49

In Stock
