Craftsman
Hedge Trimmer

Model # 358795690 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 358795690 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

Lawn & Garden Equipment Engine Fuel Filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649) 530095646
#60

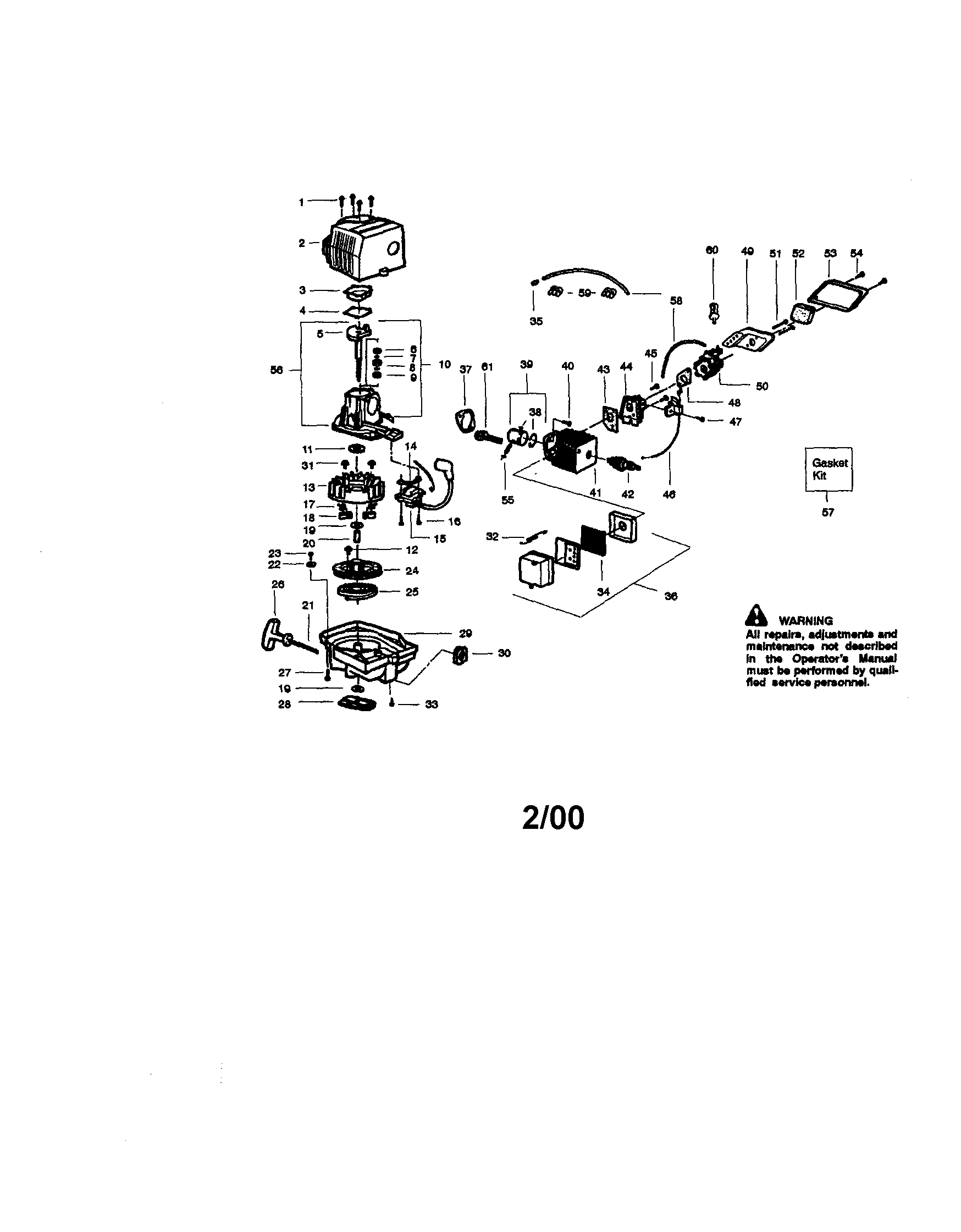

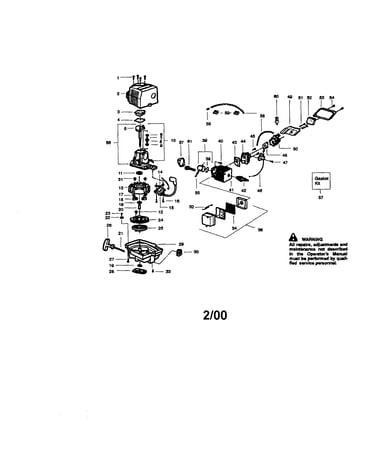

Gas hedge trimmer diagram

Lawn & garden equipment engine fuel filter (replaces 530010811, 530014199, 530-014199, 530014362, 530-014362, 530014815, 530023364, 530047004, 5300956-46, 530095649)

Part #530095646

BEST SELLER
This item is not returnable
$5.07
16% OFF Phone Price : $6.07
In Stock
Chainsaw Fuel Line Fitting (replaces 530-023877) 530023877
#35

Gas hedge trimmer diagram

Chainsaw fuel line fitting (replaces 530-023877)

Part #530023877

BEST SELLER
This item is not returnable
$3.19
24% OFF Phone Price : $4.19
In Stock
Flywheel 530039149
#13

Gas hedge trimmer diagram

Flywheel

Part #530039149

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530039149. Substitute parts can look different from the original.
This item is not returnable
$15.99
11% OFF Phone Price : $17.99
In Stock
Lawn Mower Fuel Cap 530047877
#25

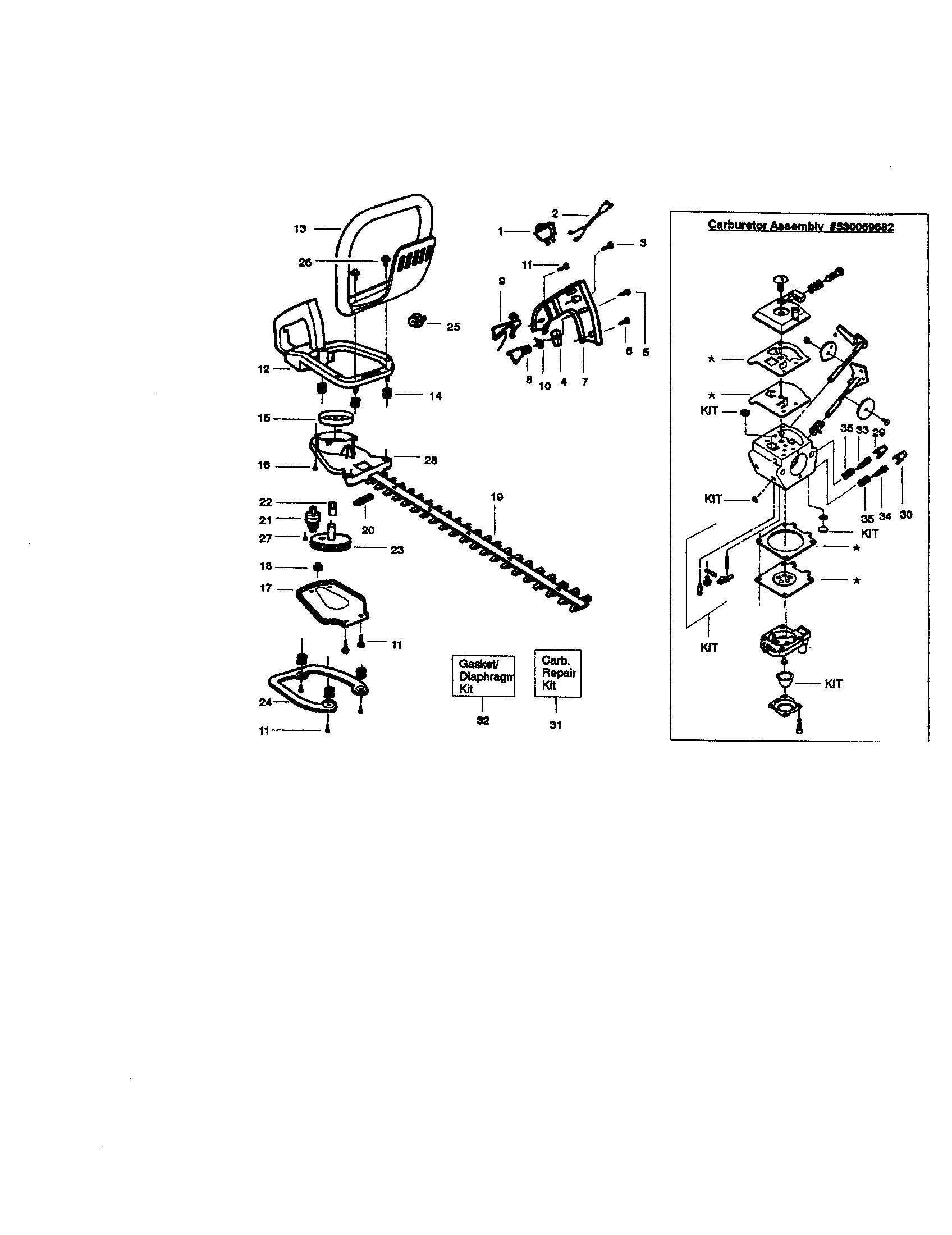

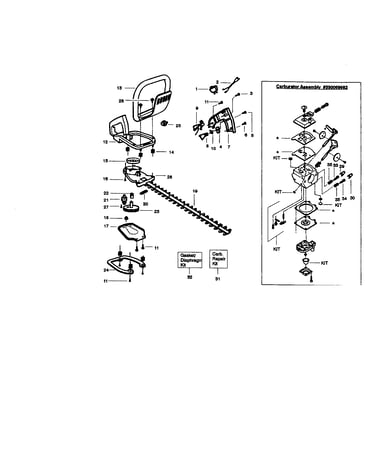

Blade assembly diagram

Lawn mower fuel cap

Part #530047877

Replaced by #577858601

?
Manufacturer substitution
This part replaces 530047877. Substitute parts can look different from the original.
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Lawn & Garden Equipment Screw 530015849
#51

Gas hedge trimmer diagram

Lawn & garden equipment screw

Part #530015849

This item is not returnable
In Stock
Lawn & Garden Equipment Screw 530015805
#27

Blade assembly diagram

Lawn & garden equipment screw

Part #530015805

This item is not returnable
In Stock
Lawn & Garden Equipment Screw 530015934
Lawn & garden equipment screw

Part #530015934

This item is not returnable
In Stock
Lawn & Garden Equipment Washer 530015828
#19

Gas hedge trimmer diagram

Lawn & garden equipment washer

Part #530015828

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Ignition Coil 530039163
#15

Gas hedge trimmer diagram

Lawn & garden equipment engine ignition coil

Part #530039163

$36.79
12% OFF Phone Price : $41.79
In Stock
Lawn & Garden Equipment Screw 530015775
Lawn & garden equipment screw

Part #530015775

This item is not returnable
In Stock
