Model # ADU6000C-P1188313W Official Amana dishwasher

Here are the diagrams and repair parts for Official Amana ADU6000C-P1188313W dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

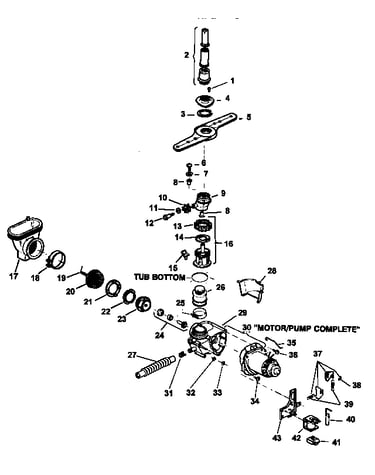

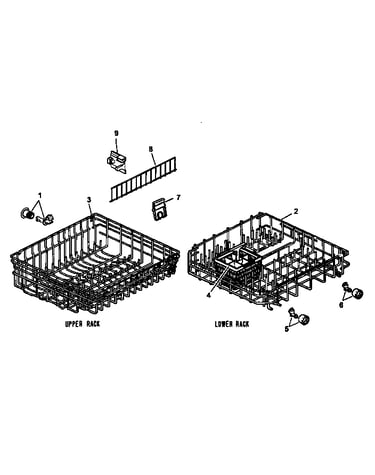

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Rack Slide R0905567
#2

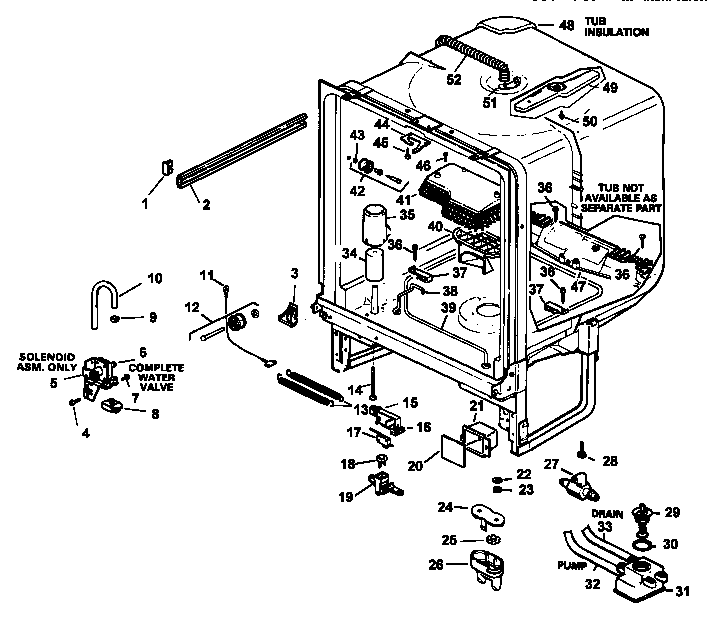

Tub assy diagram

Rack slide

Part #R0905567

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon R0905743
#4

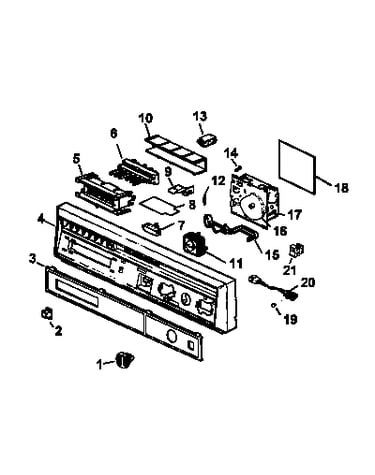

Control panel diagram

Escutcheon

Part #R0905743

The manufacturer no longer makes this part, and there's no substitute part

Keeper Latch R0905505
#44

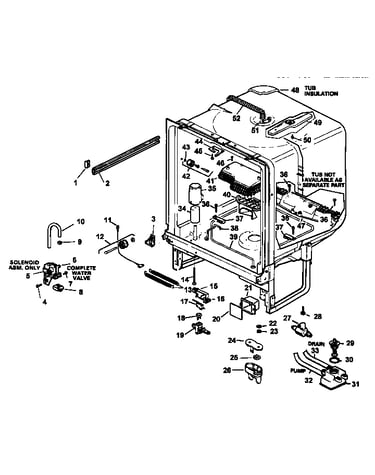

Tub assy diagram

Keeper latch

Part #R0905505

The manufacturer no longer makes this part, and there's no substitute part

Retainer R0905592
#5

Control panel diagram

Retainer

Part #R0905592

The manufacturer no longer makes this part, and there's no substitute part

Detergent Cup Cover R0910010
#35

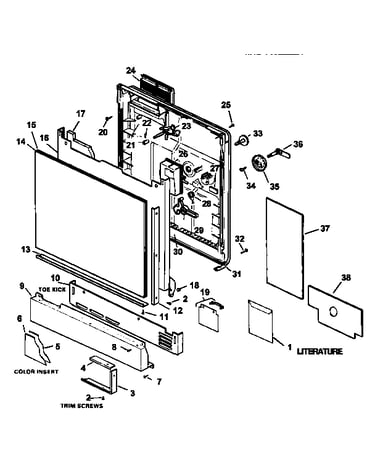

Door and door trim diagram

Detergent cup cover

Part #R0910010

The manufacturer no longer makes this part, and there's no substitute part

Timer Knob R0903597
#1

Control panel diagram

Timer knob

Part #R0903597

The manufacturer no longer makes this part, and there's no substitute part

Cable R0910012
#11

Tub assy diagram

Cable

Part #R0910012

The manufacturer no longer makes this part, and there's no substitute part

Instr, Operating R0913064
#1A

Door and door trim diagram

Instr, operating

Part #R0913064

The manufacturer no longer makes this part, and there's no substitute part

Toe Kick Assembly R0903022
#10

Door and door trim diagram

Toe kick assembly

Part #R0903022

The manufacturer no longer makes this part, and there's no substitute part

Timer R0904022
#17

Control panel diagram

Timer

Part #R0904022

The manufacturer no longer makes this part, and there's no substitute part
