GE MSX20GAZAWW refrigerator - z series Parts
Here are the diagrams and repair parts for GE MSX20GAZAWW refrigerator - z series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

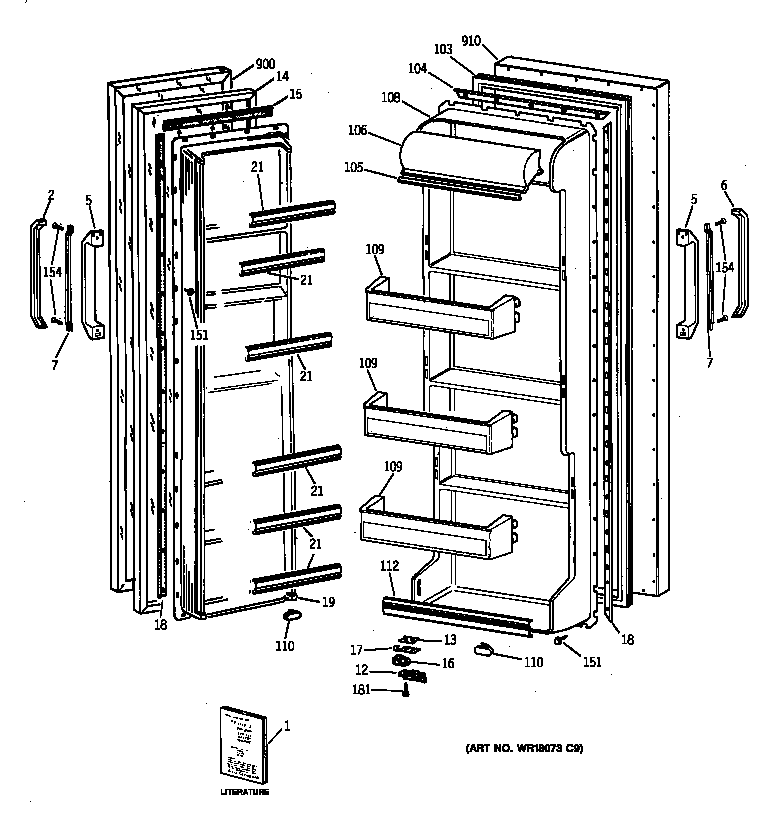

Browse Parts for MSX20GAZAWW Refrigerators

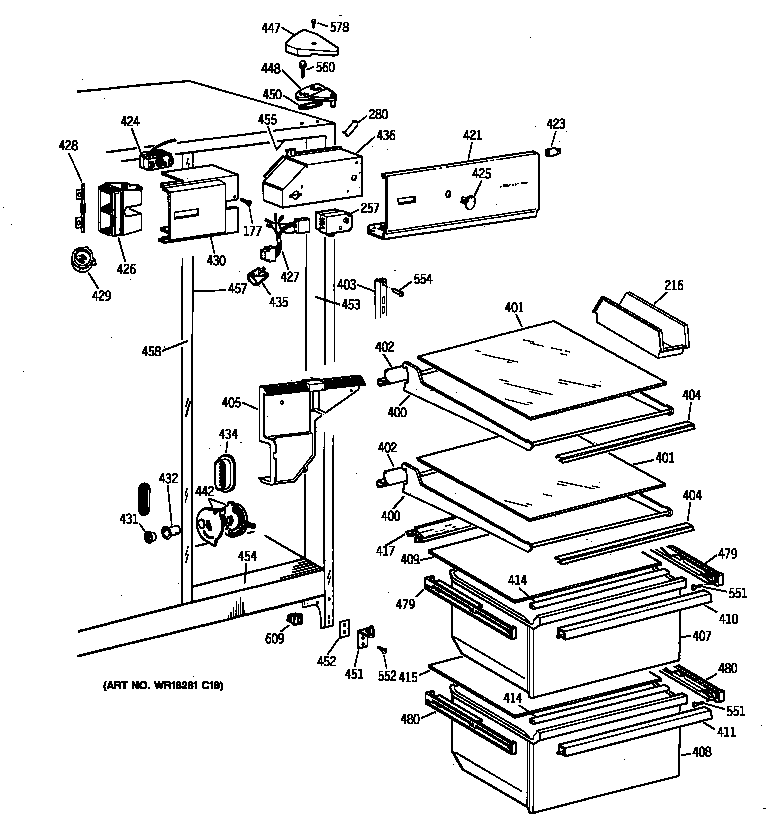

Fresh food section diagram
Refrigerator Glass Shelf Trim
In Stock$33.21
Qty

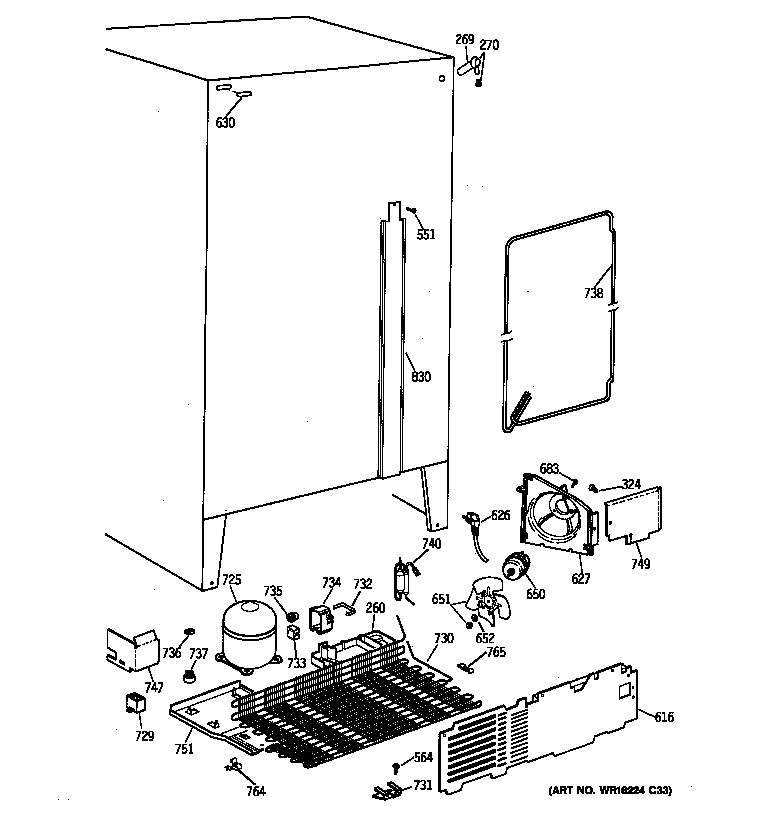

Unit parts diagram
Refrigerator Compressor Mounting Clip
In Stock$9.0110% OFF Phone Price : $10.01
QtyRefrigerator Filter
Part #WZ2X503Replaced by #WZ2X464D
Manufacturer substitutionThis part replaces WZ2X503. Substitute parts can look different from the original.In Stock$35.1515% OFF Phone Price : $41.15QtyFresh food section diagram
Door Hinge Pin, Lower
Part #WR13X614Replaced by #WR13X10020
Manufacturer substitutionThis part replaces WR13X614. Substitute parts can look different from the original.In Stock$45.7412% OFF Phone Price : $51.74QtyFresh food section diagram
Refrigerator Bracket Mullion
Part #WR2X9376Replaced by #WR2X8721
Manufacturer substitutionThis part replaces WR2X9376. Substitute parts can look different from the original.In Stock$29.26QtyFreezer section diagram

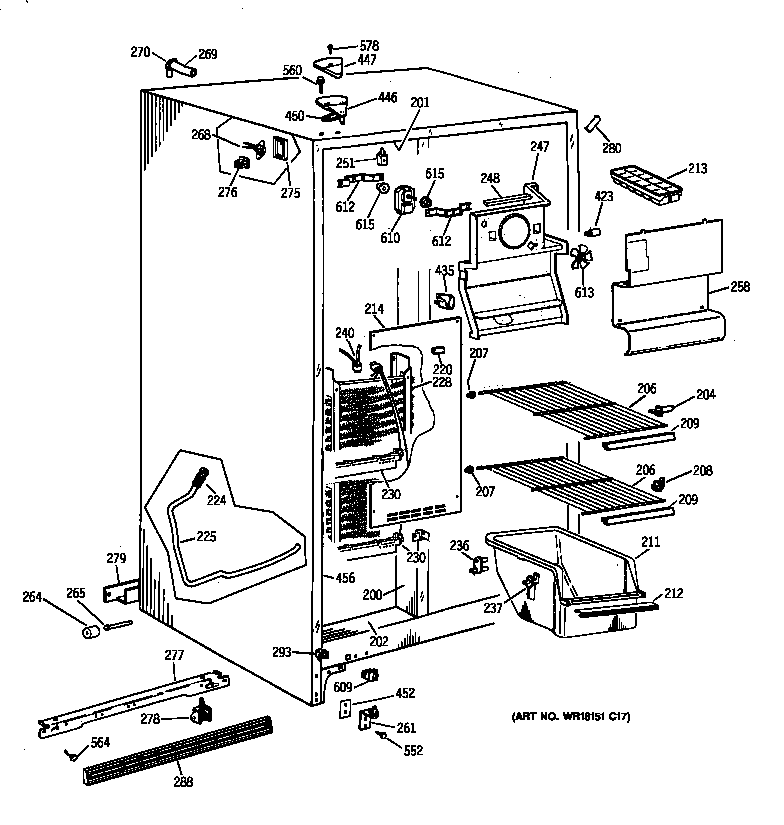

Lo-side Kit
Part #WR85X282Replaced by #WR87X28949
Manufacturer substitutionThis part replaces WR85X282. Substitute parts can look different from the original.In Stock$466.04QtyFreezer section diagram
Door Hinge Pin, Lower
Part #WR13X615Replaced by #WR13X10020
Manufacturer substitutionThis part replaces WR13X615. Substitute parts can look different from the original.In Stock$45.7412% OFF Phone Price : $51.74QtyUnit parts diagram
Comp Rpl Kit
Part #WR87X471Replaced by #WR87X20798
Manufacturer substitutionThis part replaces WR87X471. Substitute parts can look different from the original.In Stock$508.48$12.00 OFF Phone Price : $520.48Qty#NI
All parts diagram
Recess Sc
Part #WR1X1505Replaced by #WR1X1505D
Manufacturer substitutionThis part replaces WR1X1505. Substitute parts can look different from the original.In Stock$29.0817% OFF Phone Price : $35.08QtyUnit parts diagram
Clip Condenser
Part #WR1X1985Replaced by #WR1X1972
Manufacturer substitutionThis part replaces WR1X1985. Substitute parts can look different from the original.In Stock$27.95Qty
