Model # GNLD681N10BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GNLD681N10BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Rinse Module WD12X10205
#811

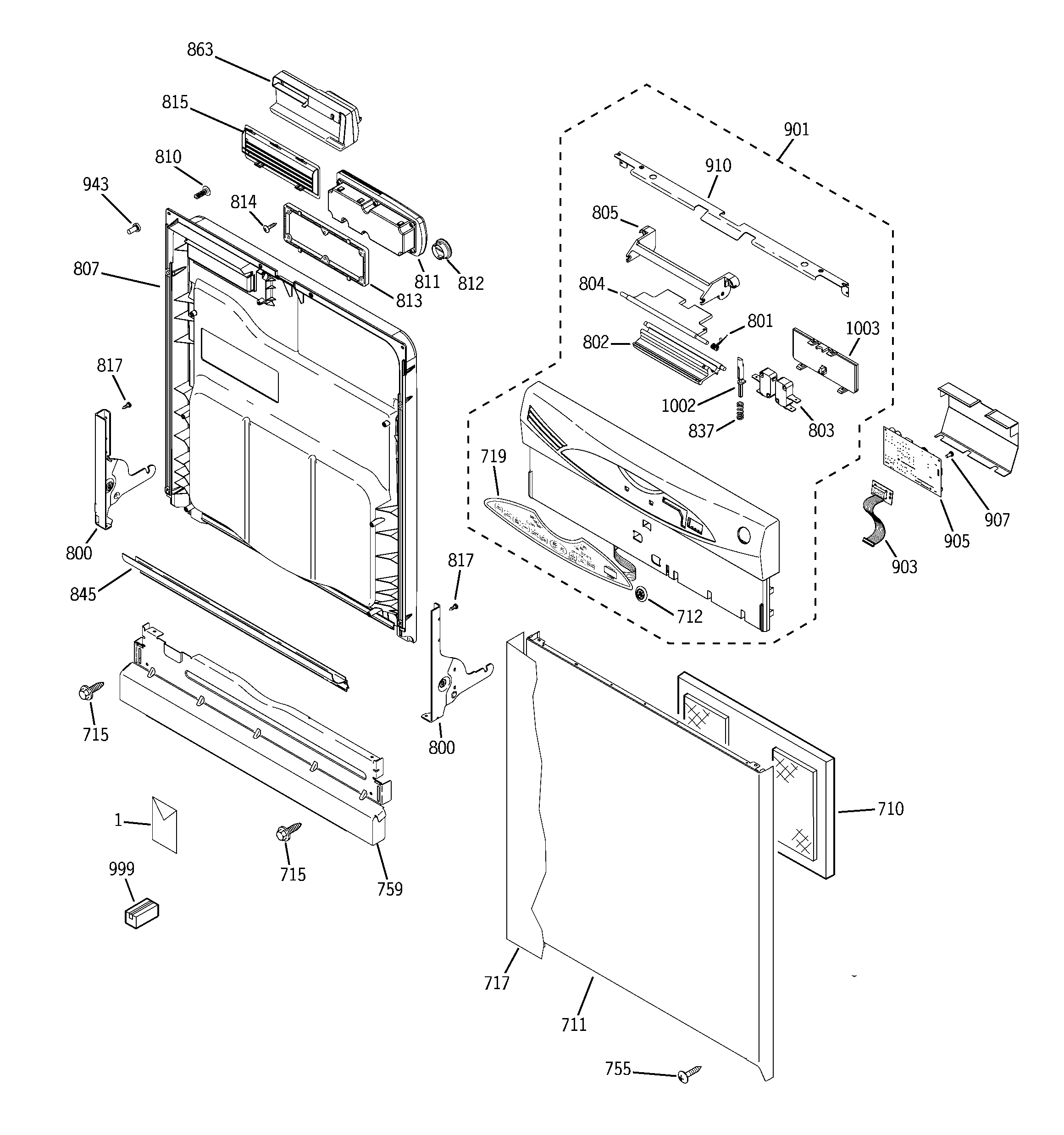

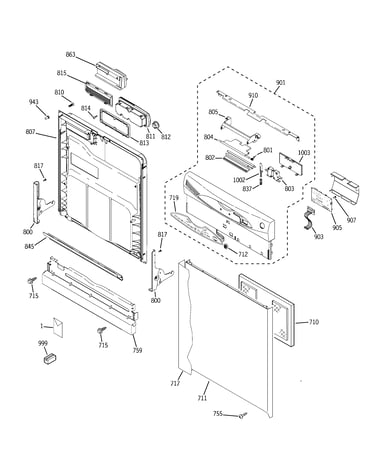

Escutcheon & door assembly diagram

Rinse module

Part #WD12X10205

The manufacturer no longer makes this part, and there's no substitute part

Recess Sprng WR02X10585
#801

Escutcheon & door assembly diagram

Recess sprng

Part #WR02X10585

Replaced by #WR02X10585

?
Manufacturer substitution
This part replaces WR02X10585. Substitute parts can look different from the original.
BEST SELLER
$7.91
11% OFF Phone Price : $8.91
In Stock
Cap WD12X0344
#652

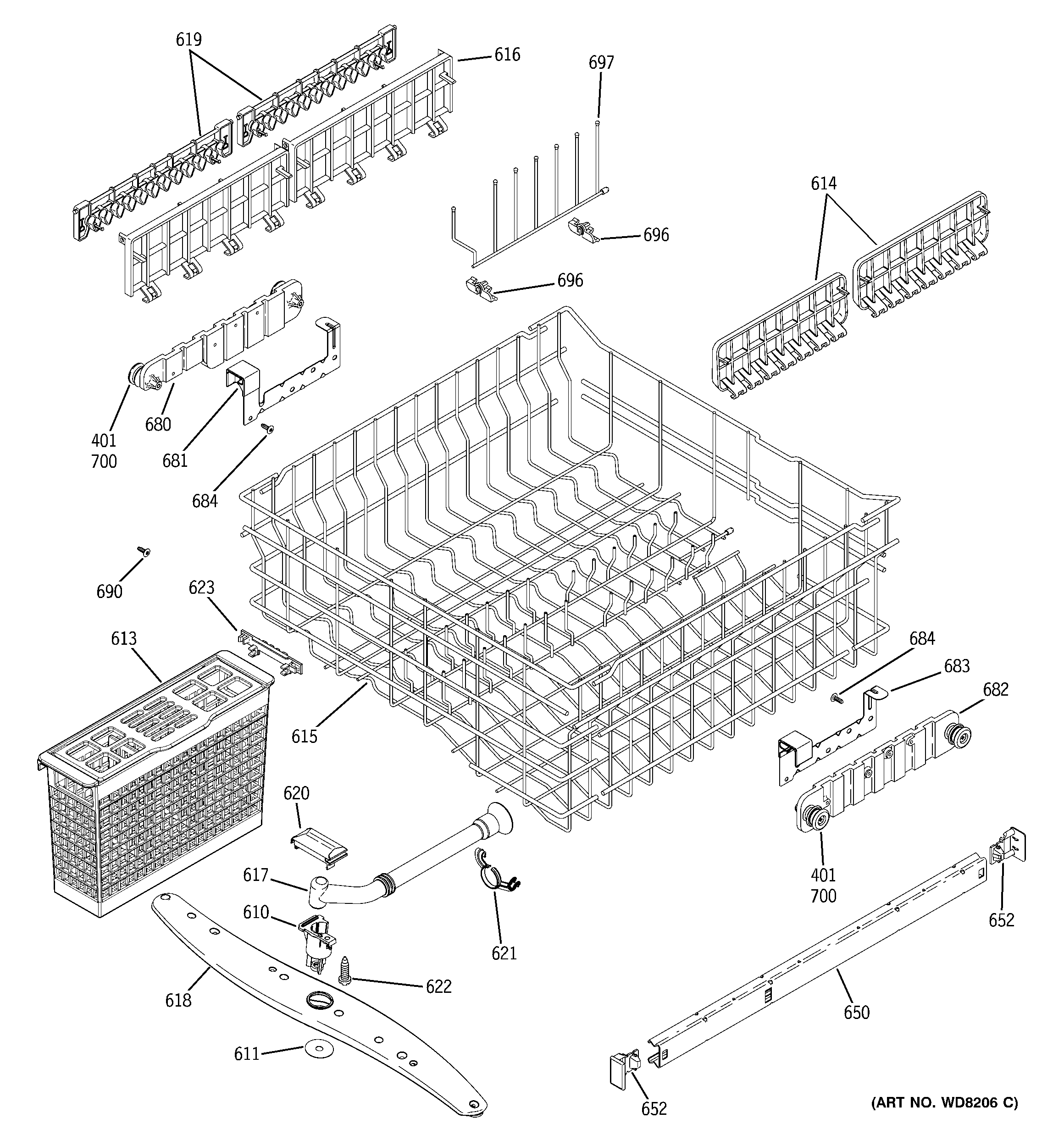

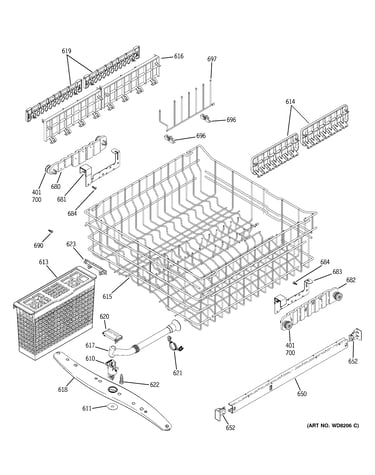

Upper rack assembly diagram

Cap

Part #WD12X0344

Replaced by #WD12X10304

?
Manufacturer substitution
This part replaces WD12X0344. Substitute parts can look different from the original.
BEST SELLER
$17.72
10% OFF Phone Price : $19.72
In Stock
Dishwasher Silverware Basket WD28X10037
#763

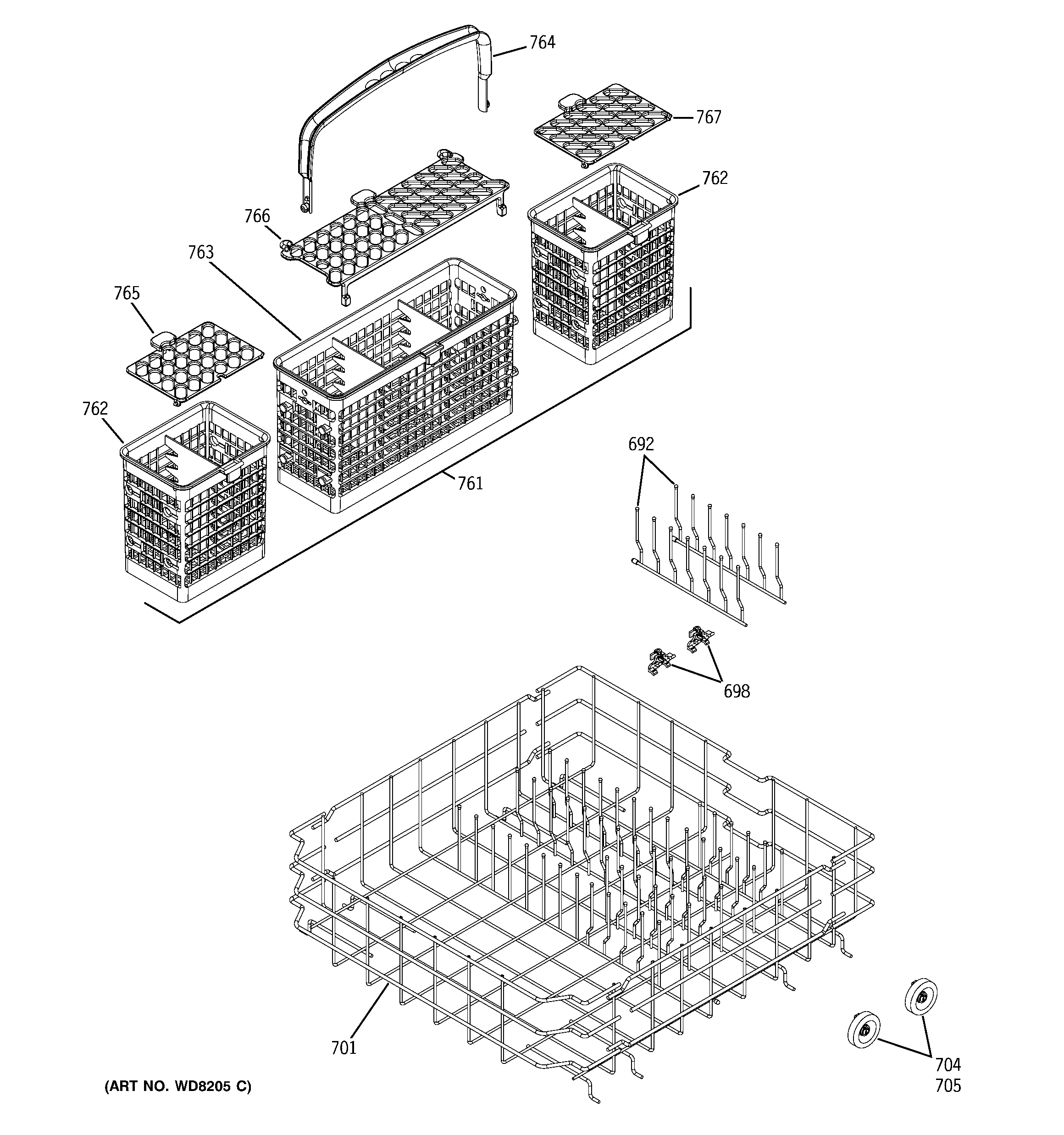

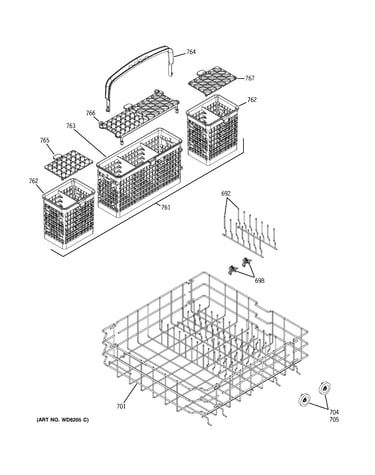

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10037

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.06
14% OFF Phone Price : $35.06
In Stock
Dishwasher Silverware Basket WD28X10182
#761

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10182

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10182. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.06
14% OFF Phone Price : $35.06
In Stock
Dishwasher Silverware Basket WD28X10153
#762

Lower rack assembly diagram

Dishwasher silverware basket

Part #WD28X10153

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10153. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.06
14% OFF Phone Price : $35.06
In Stock
Basket Lid WD28X10184
#766

Lower rack assembly diagram

Basket lid

Part #WD28X10184

Replaced by #WD28X24469

?
Manufacturer substitution
This part replaces WD28X10184. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$30.06
14% OFF Phone Price : $35.06
In Stock
Dishwasher Water Inlet Valve WD15X10003
#744

Body parts diagram

Dishwasher water inlet valve

Part #WD15X10003

BEST SELLER
$74.24
10% OFF Was : $82.49
In Stock
Dishwasher Tub Gasket WD08X10018
#843

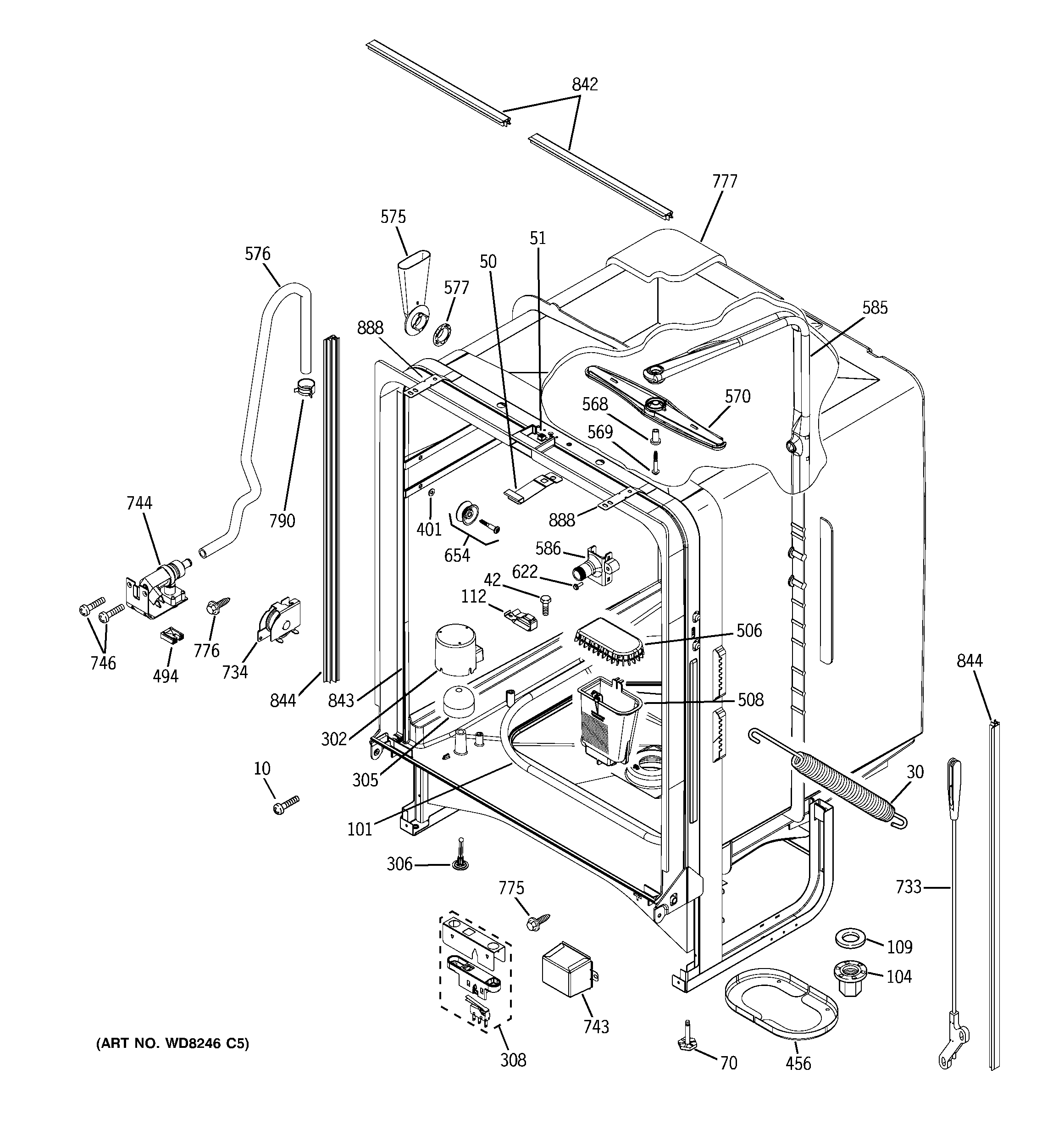

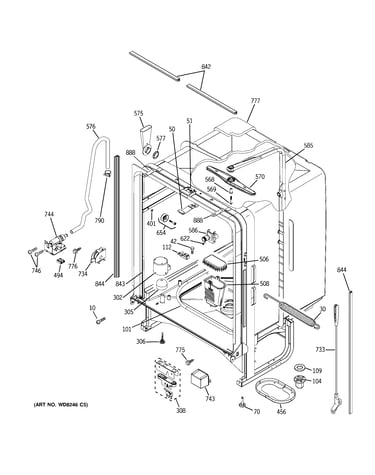

Body parts diagram

Dishwasher tub gasket

Part #WD08X10018

BEST SELLER
$33.32
13% OFF Phone Price : $38.32
In Stock
Dishwasher Pump Impeller Kit WD19X10038
#430

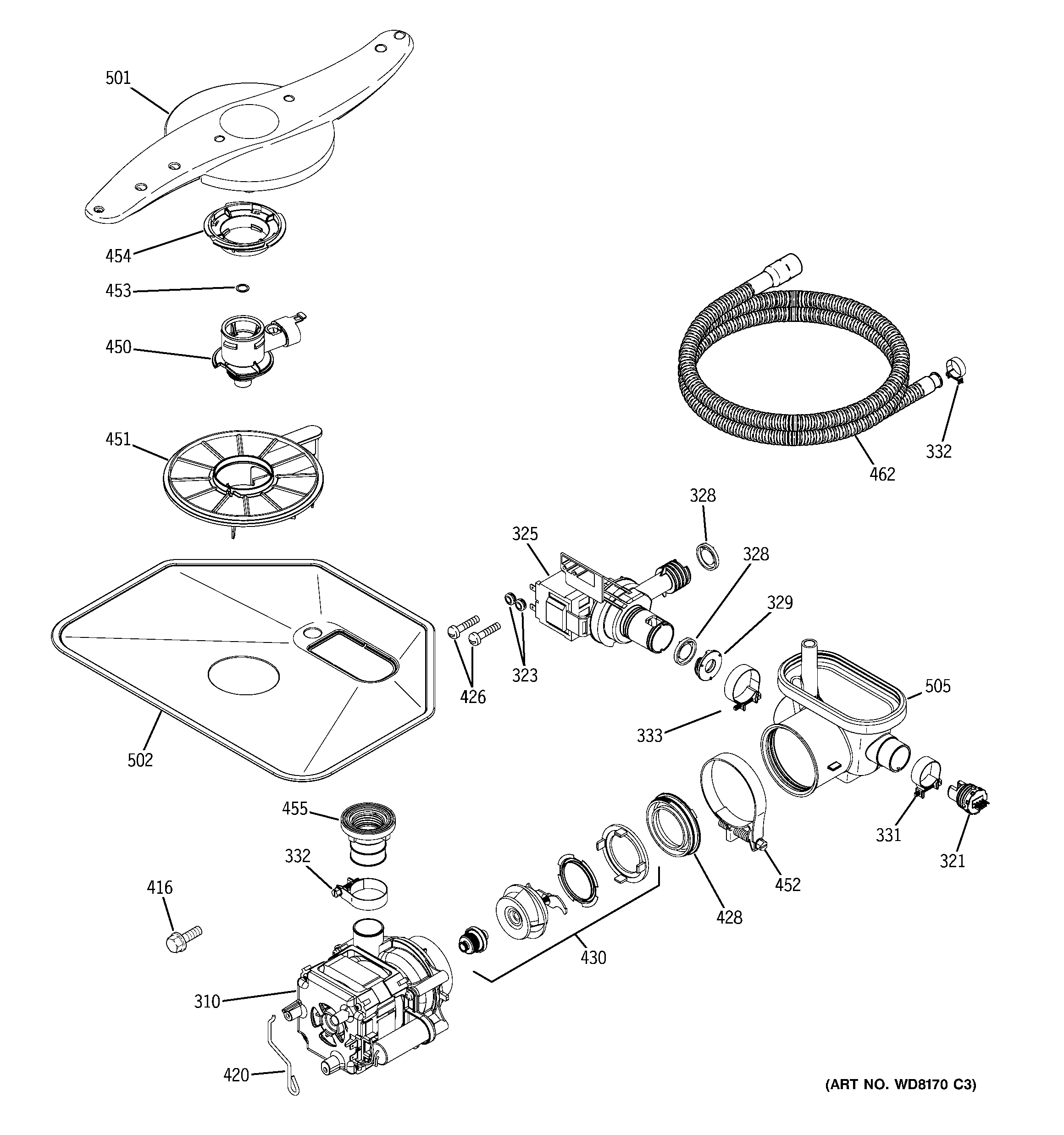

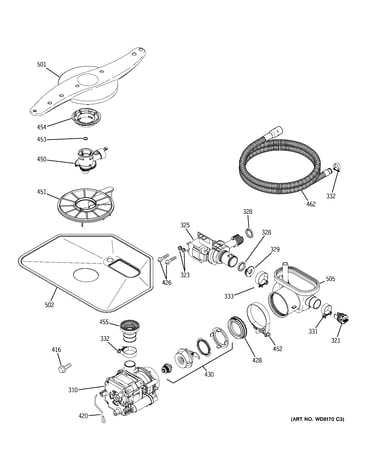

Motor-pump mechanism diagram

Dishwasher pump impeller kit

Part #WD19X10038

BEST SELLER
$52.07
9% OFF Phone Price : $57.07
In Stock
