Kenmore
Washer

Model #41748112700 Kenmore washer

Here are the repair parts and diagrams for your Kenmore 41748112700 washer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 125 parts

Washer Door Strike

#14

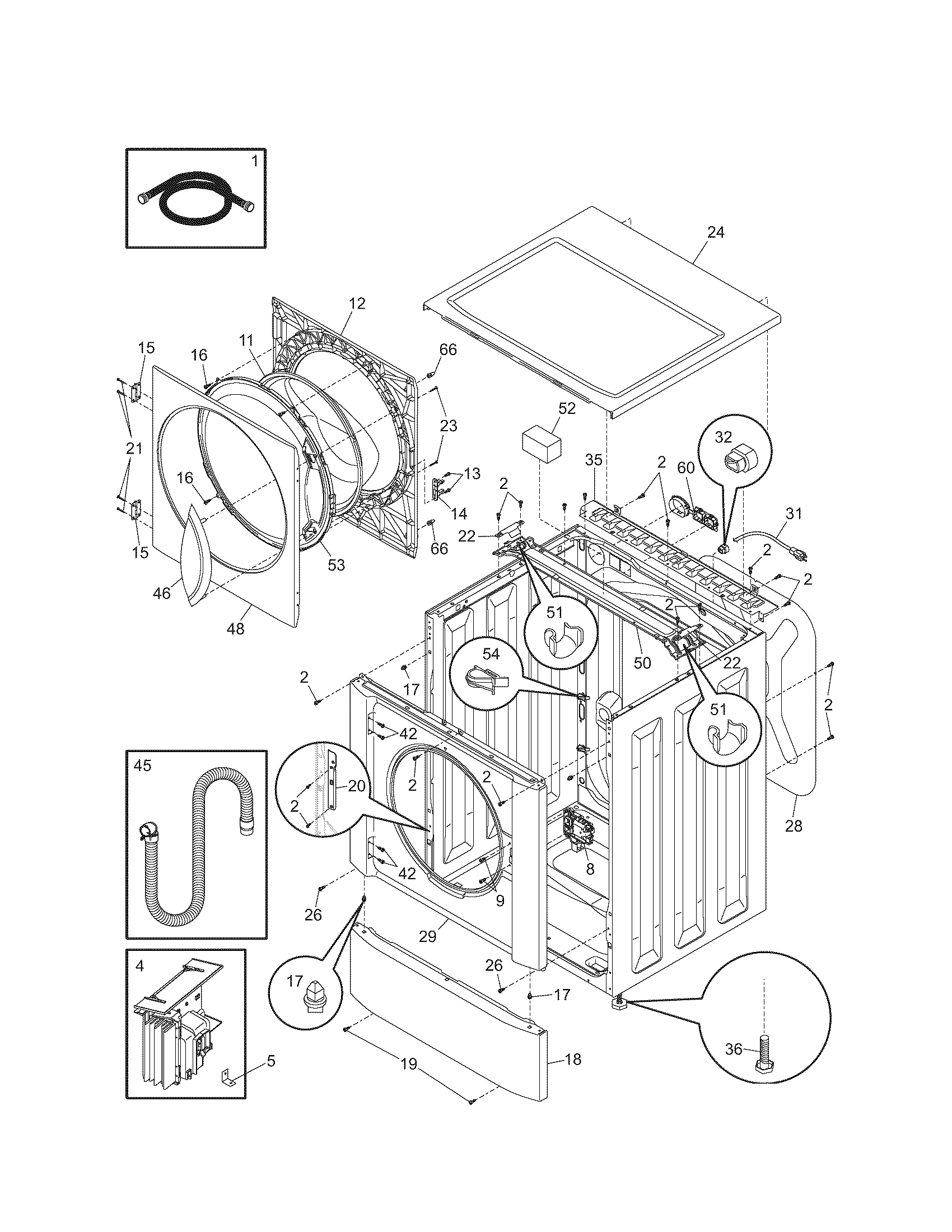

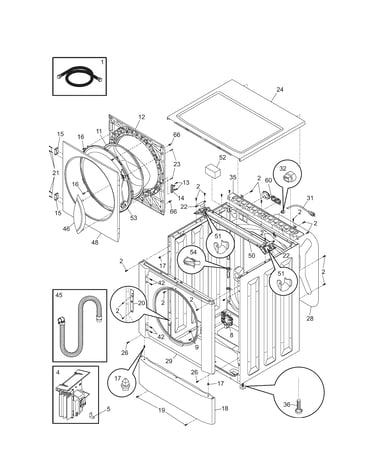

Cabinet/top Diagram

Washer door strike

Part #131763310
$10.35

In Stock

Washer Door Boot Spring Clamp

#49

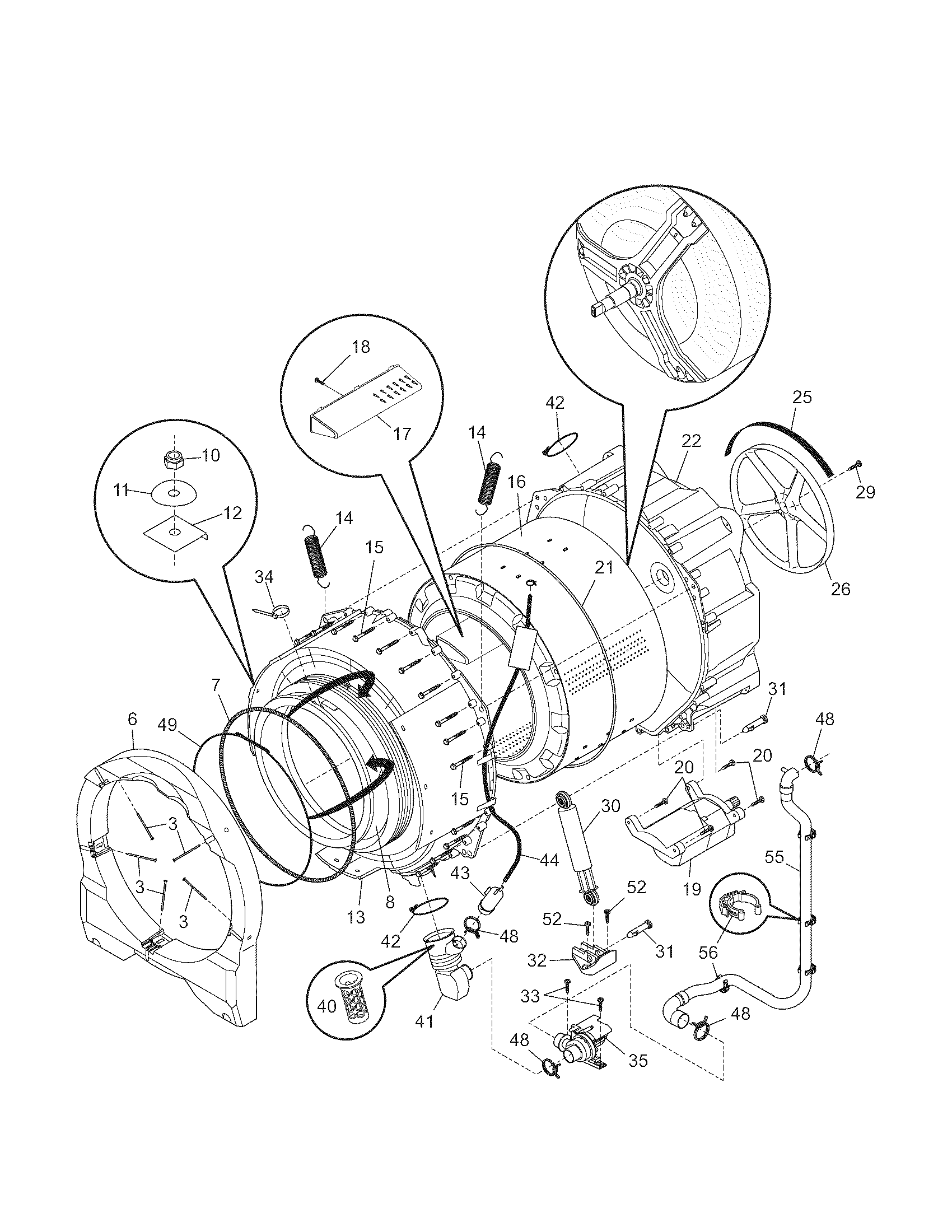

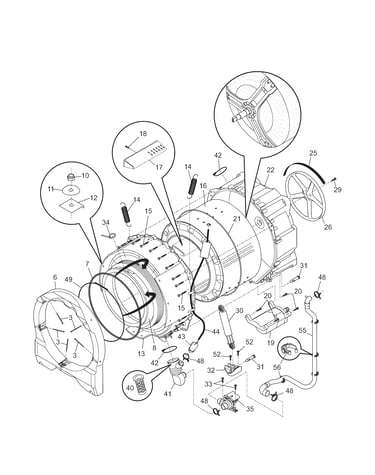

Motor/tub Diagram

$26.68

In Stock

Washer Dispenser Drawer

#45

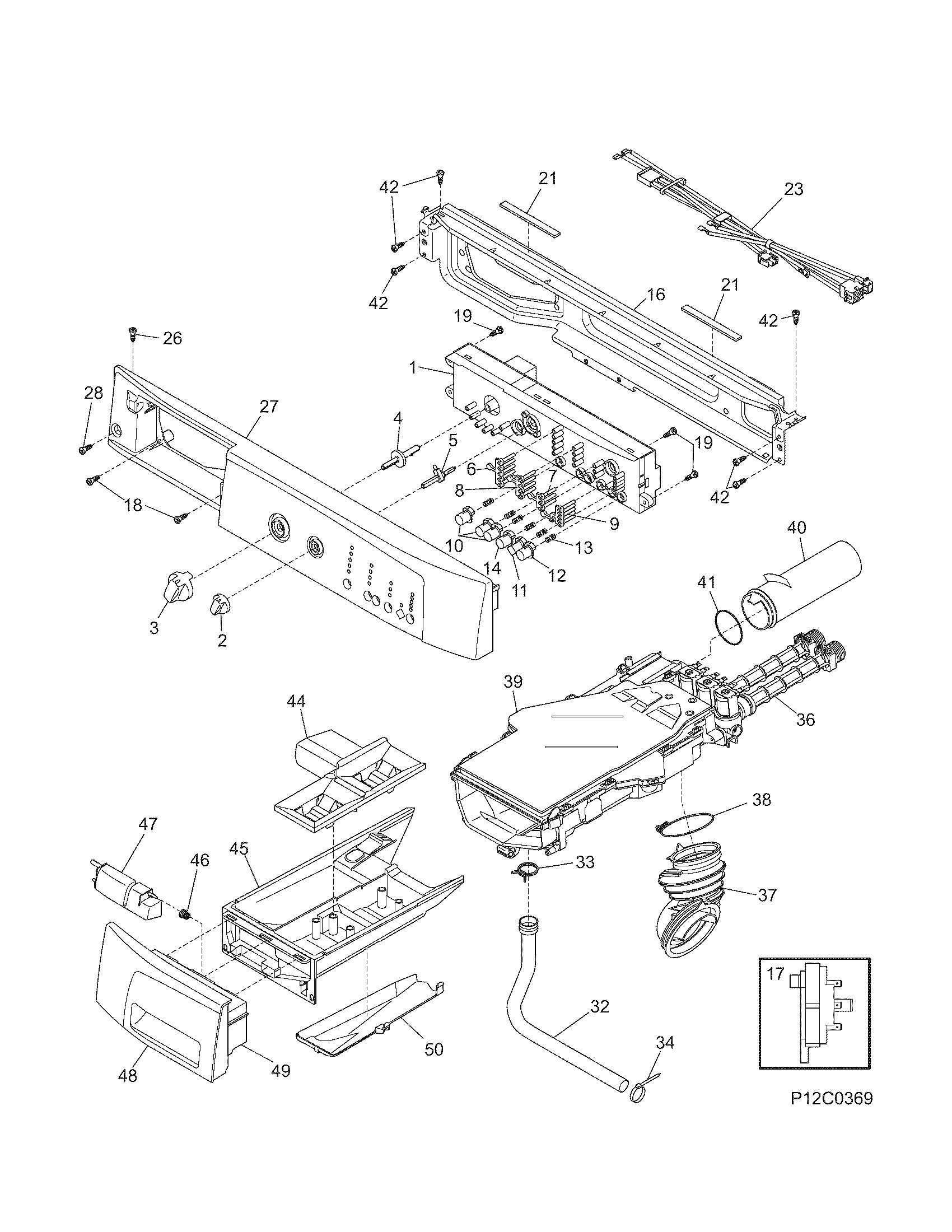

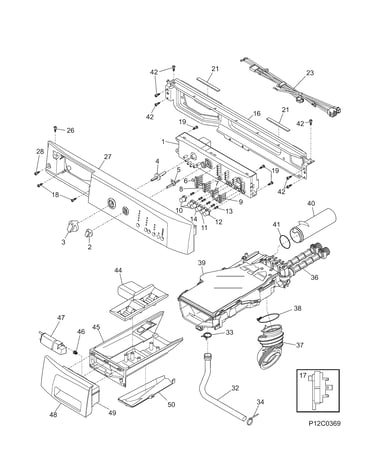

Control panel Diagram

Washer dispenser drawer

Part #134370000
$32.40
28% OFFMSRP:$45.00

In Stock

Dryer Door Handle

#46

Cabinet/top Diagram

Dryer door handle

Part #134412600
$49.32

In Stock

Washer Shock Absorber Mounting Pin

#31

Motor/tub Diagram

$10.58

In Stock

Washer Toe Panel

#18

Cabinet/top Diagram

Washer toe panel

Part #134321702
$68.14
31% OFFMSRP:$99.00

In Stock

Washer Suspension Spring

#14

Motor/tub Diagram

Washer suspension spring

Part #134362800
$42.89
36% OFFMSRP:$67.00

In Stock

Washer Hose Clamp

#42

Motor/tub Diagram

Washer hose clamp

Part #134737300
$11.53

In Stock

Washer Electronic Control Board Assembly

#1

Control panel Diagram

$85.14
38% OFFMSRP:$137.49

In Stock

Fastener

#56

Motor/tub Diagram

Fastener

Part #134369800
This item is not returnable
$7.15

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
