Ryobi
Wet/Dry Vacuum

Model # IDV-28 Official Ryobi 28-gallon industrial dry vacuum

Here are the diagrams and repair parts for Official Ryobi IDV-28 28-gallon industrial dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |

Caster Assembly (3) 662116002
#23

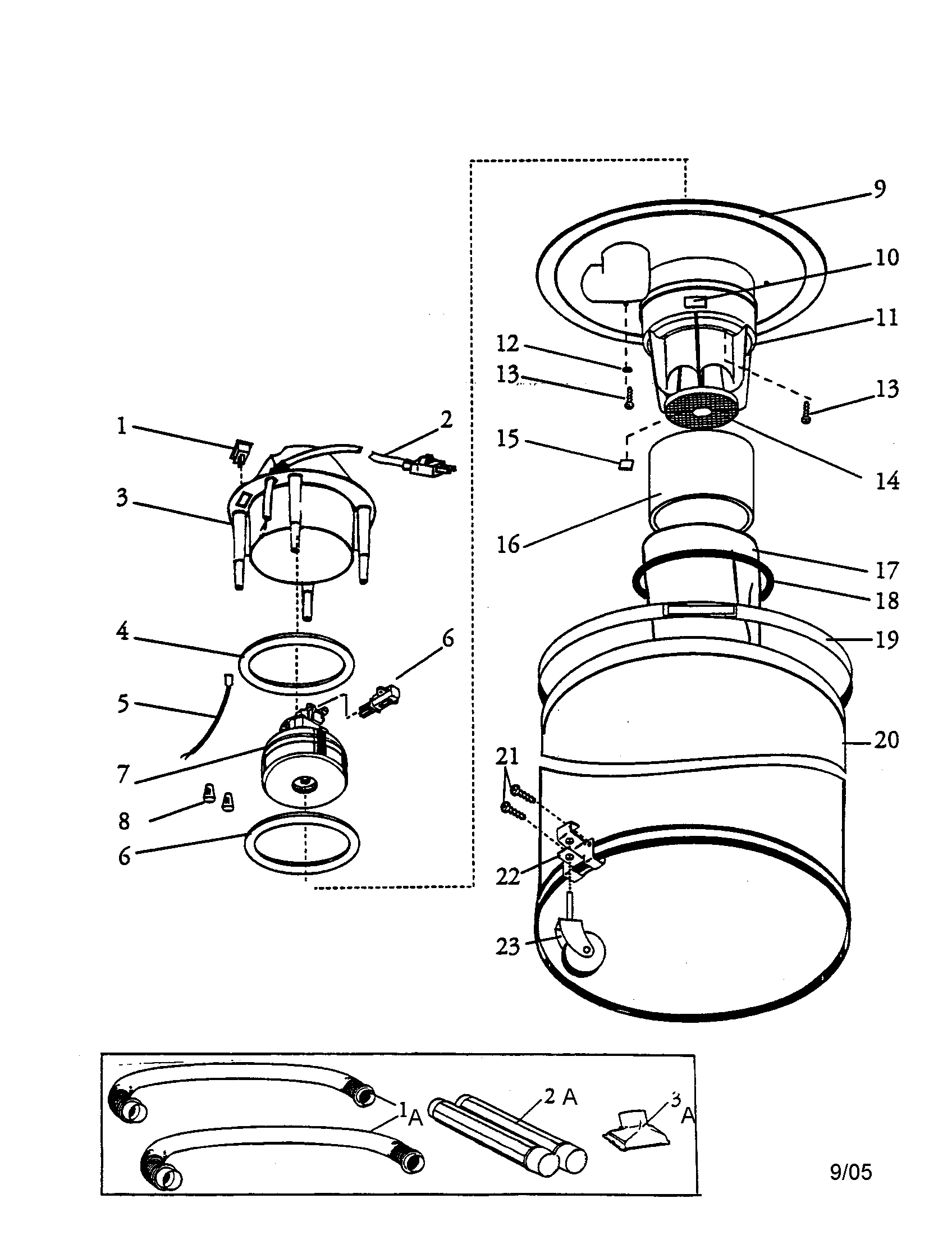

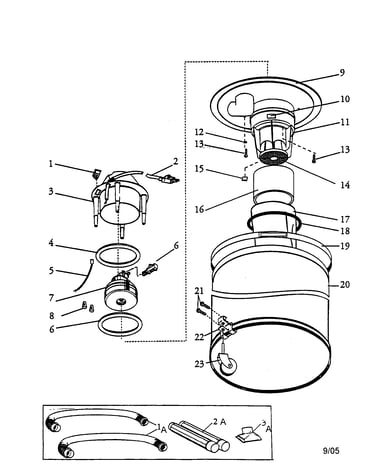

Dry vac assembly diagram

Caster assembly (3)

Part #662116002

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly (2) 641871007
#1A

Dry vac assembly diagram

Hose assembly (2)

Part #641871007

The manufacturer no longer makes this part, and there's no substitute part

Caster Bracket(3) 662085001
#22

Dry vac assembly diagram

Caster bracket(3)

Part #662085001

The manufacturer no longer makes this part, and there's no substitute part

Filter 662953001
#17

Dry vac assembly diagram

Filter

Part #662953001

The manufacturer no longer makes this part, and there's no substitute part

Lid With Mounting Holes 662145001
#9

Dry vac assembly diagram

Lid with mounting holes

Part #662145001

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 662143001
#19

Dry vac assembly diagram

Lock ring

Part #662143001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord W/strain Relief 661784102
#2

Dry vac assembly diagram

Power cord w/strain relief

Part #661784102

The manufacturer no longer makes this part, and there's no substitute part

Carbon Brush Set 643909902
#6

Dry vac assembly diagram

Carbon brush set

Part #643909902

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw (8) 662774001
#21

Dry vac assembly diagram

Hex screw (8)

Part #662774001

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 660812001
#7

Dry vac assembly diagram

Motor assembly

Part #660812001

The manufacturer no longer makes this part, and there's no substitute part
