Model # 536884432 Official Craftsman snow blower

Here are the diagrams and repair parts for Official Craftsman 536884432 snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

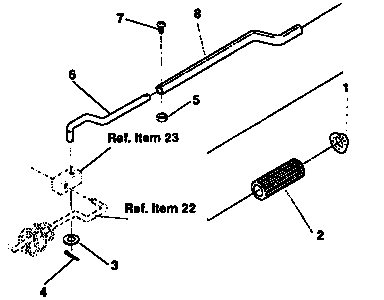

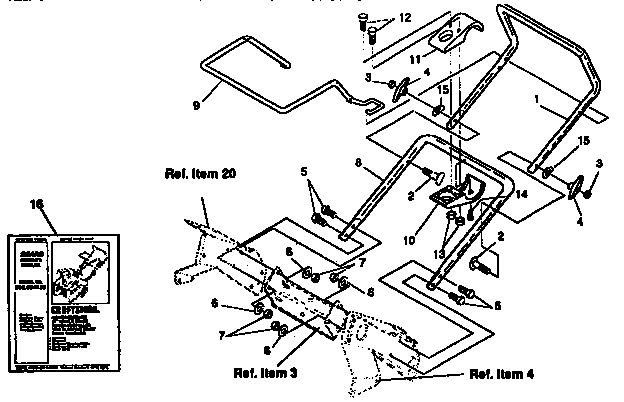

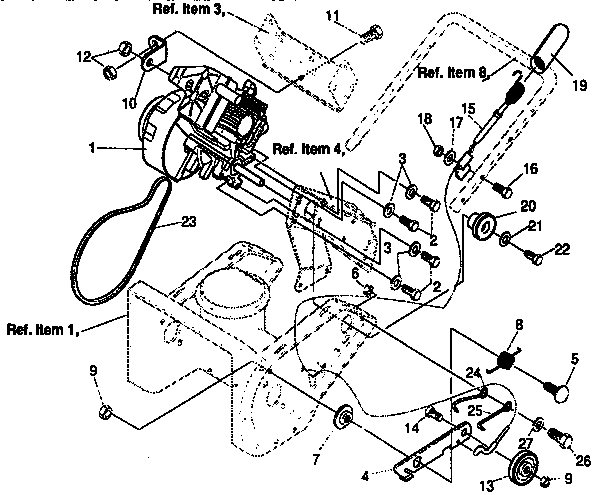

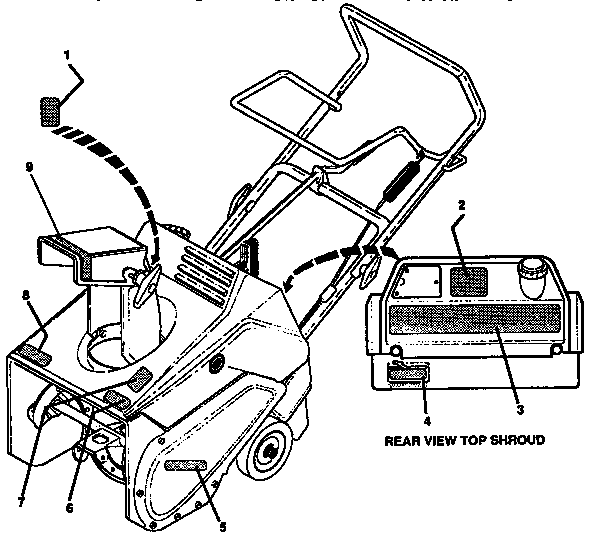

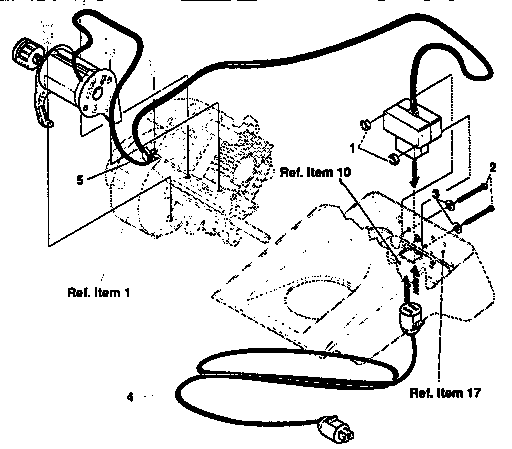

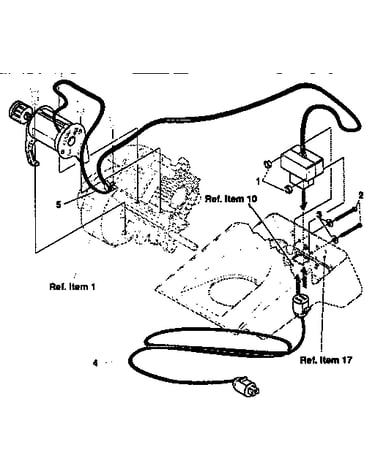

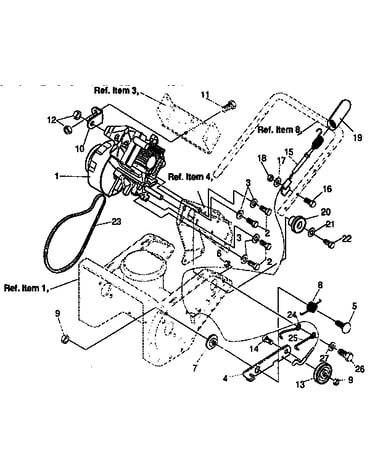

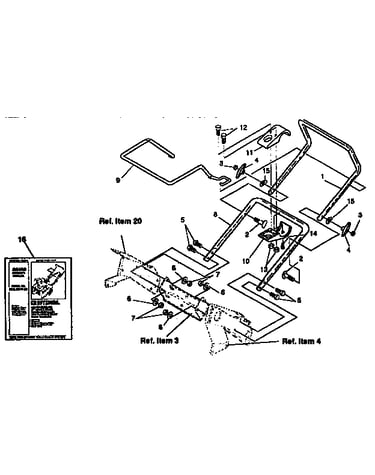

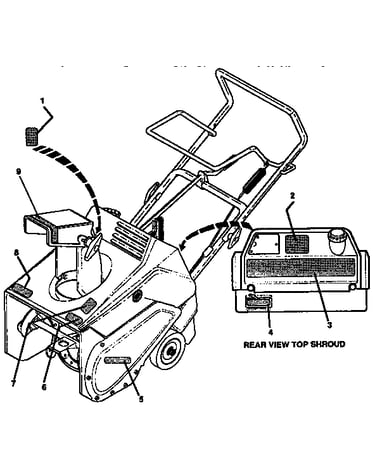

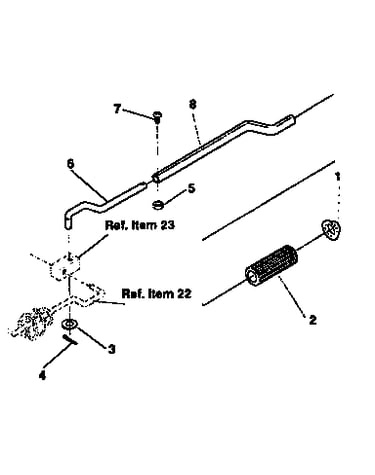

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |

Filter 56679
#17

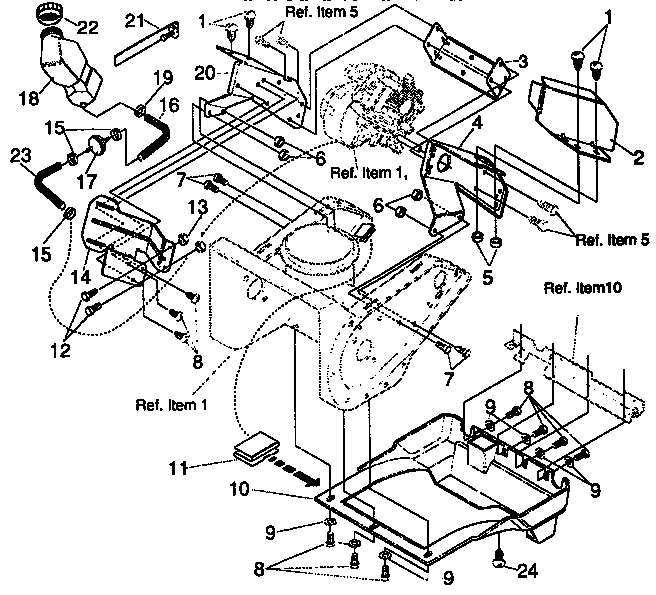

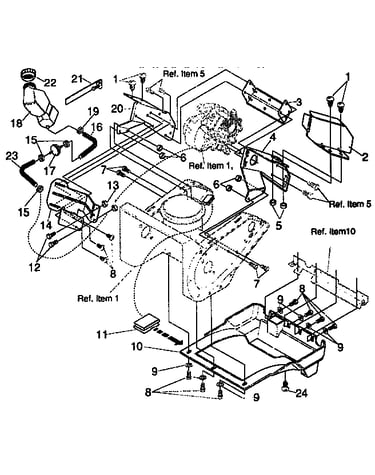

Frame components repair parts diagram

Filter

Part #56679

The manufacturer no longer makes this part, and there's no substitute part

Chute 307693
#2

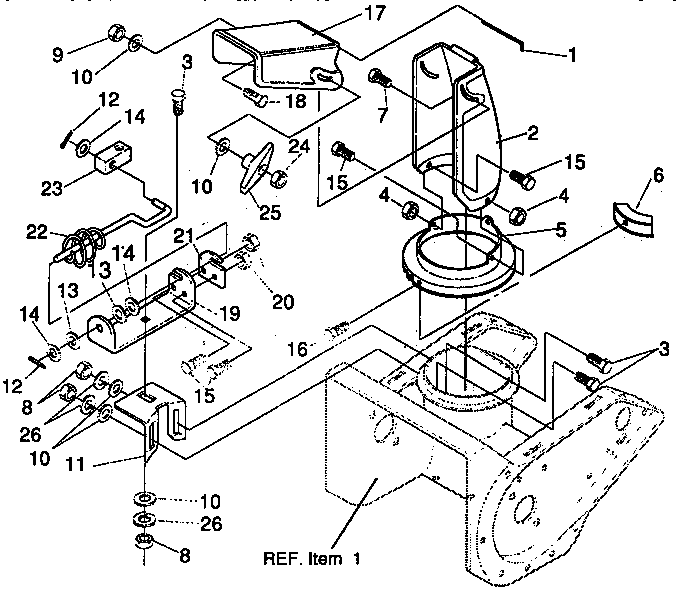

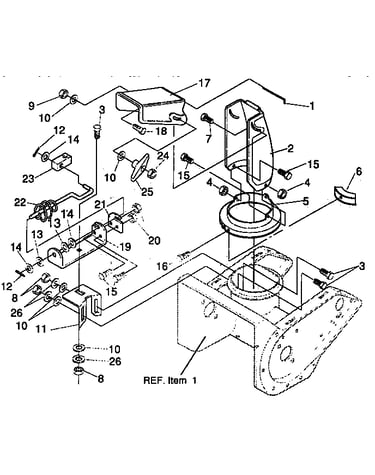

Discharge chute repair parts diagram

Chute

Part #307693

Replaced by #762222MA

?
Manufacturer substitution
This part replaces 307693. Substitute parts can look different from the original.
BEST SELLER
$59.98
8% OFF Phone Price : $64.98
In Stock
Chute Deflector 307665
#17

Discharge chute repair parts diagram

Chute deflector

Part #307665

Replaced by #762222MA

?
Manufacturer substitution
This part replaces 307665. Substitute parts can look different from the original.
BEST SELLER
$59.98
8% OFF Phone Price : $64.98
In Stock
Lock Nut 73826
Lock nut

Part #73826

Replaced by #703251

?
Manufacturer substitution
This part replaces 73826. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Bolt 302843
#7

Discharge chute repair parts diagram

Bolt

Part #302843

Replaced by #704210

?
Manufacturer substitution
This part replaces 302843. Substitute parts can look different from the original.
$7.69
12% OFF Phone Price : $8.69
In Stock
Nut 71391
Nut

Part #71391

The manufacturer no longer makes this part, and there's no substitute part

Switch 56992
#18

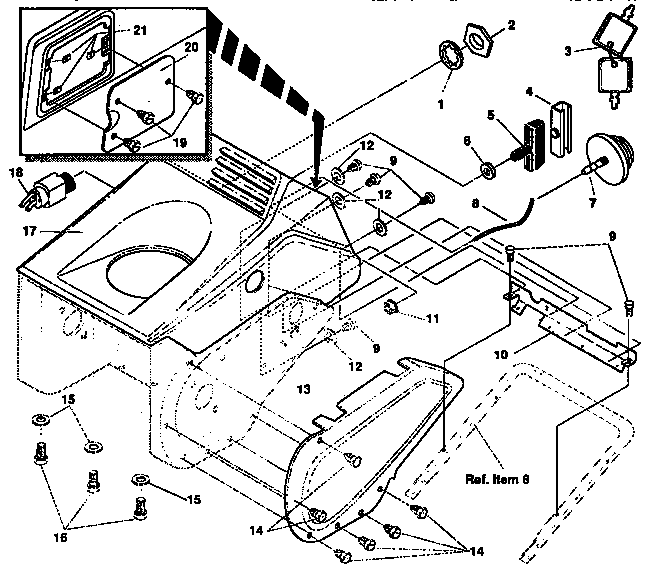

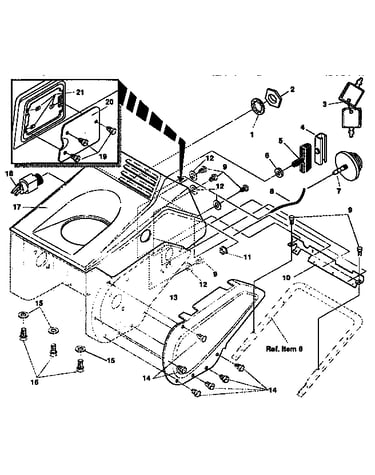

Belt cover repair parts diagram

Switch

Part #56992

Replaced by #56992MA

?
Manufacturer substitution
This part replaces 56992. Substitute parts can look different from the original.
This item is not returnable
$24.39
17% OFF Phone Price : $29.39
In Stock
Blade 302565
#15

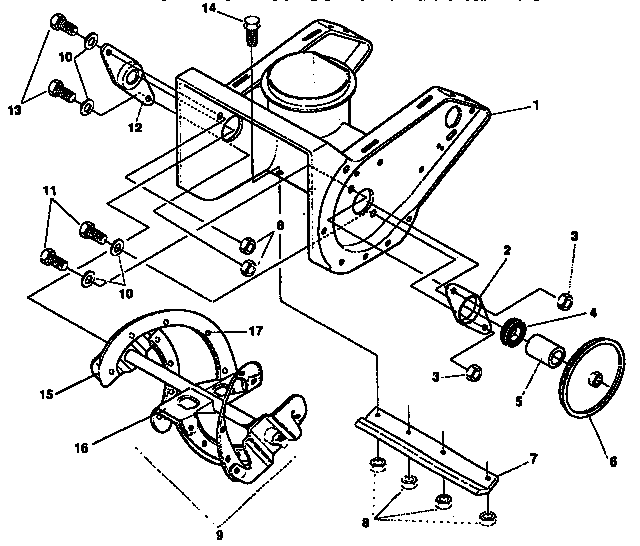

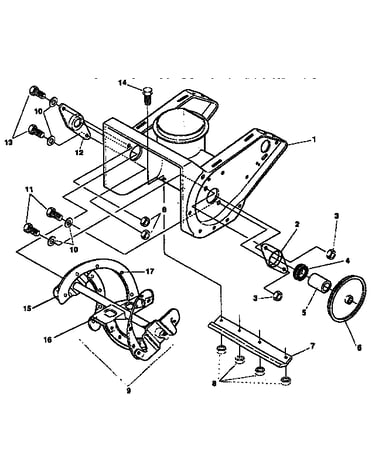

Auger housing repair parts diagram

Blade

Part #302565

Replaced by #302565MA

?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.58
14% OFF Phone Price : $35.58
In Stock
E-ring 26178
#2

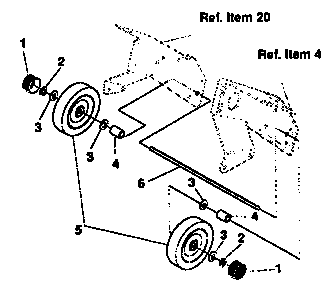

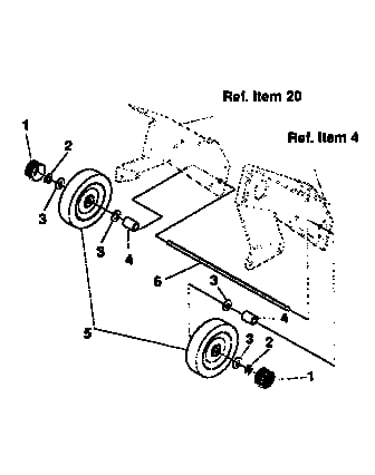

Wheel repair parts diagram

E-ring

Part #26178

Replaced by #577598MA

?
Manufacturer substitution
This part replaces 26178. Substitute parts can look different from the original.
This item is not returnable
In Stock
Hose Clamp 47345
#19

Frame components repair parts diagram

Hose clamp

Part #47345

The manufacturer no longer makes this part, and there's no substitute part
