Model #HTH17BBZZRWW Hotpoint refrigerator - z series
Here are the diagrams and repair parts for Hotpoint HTH17BBZZRWW refrigerator - z series, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 144 parts
#435

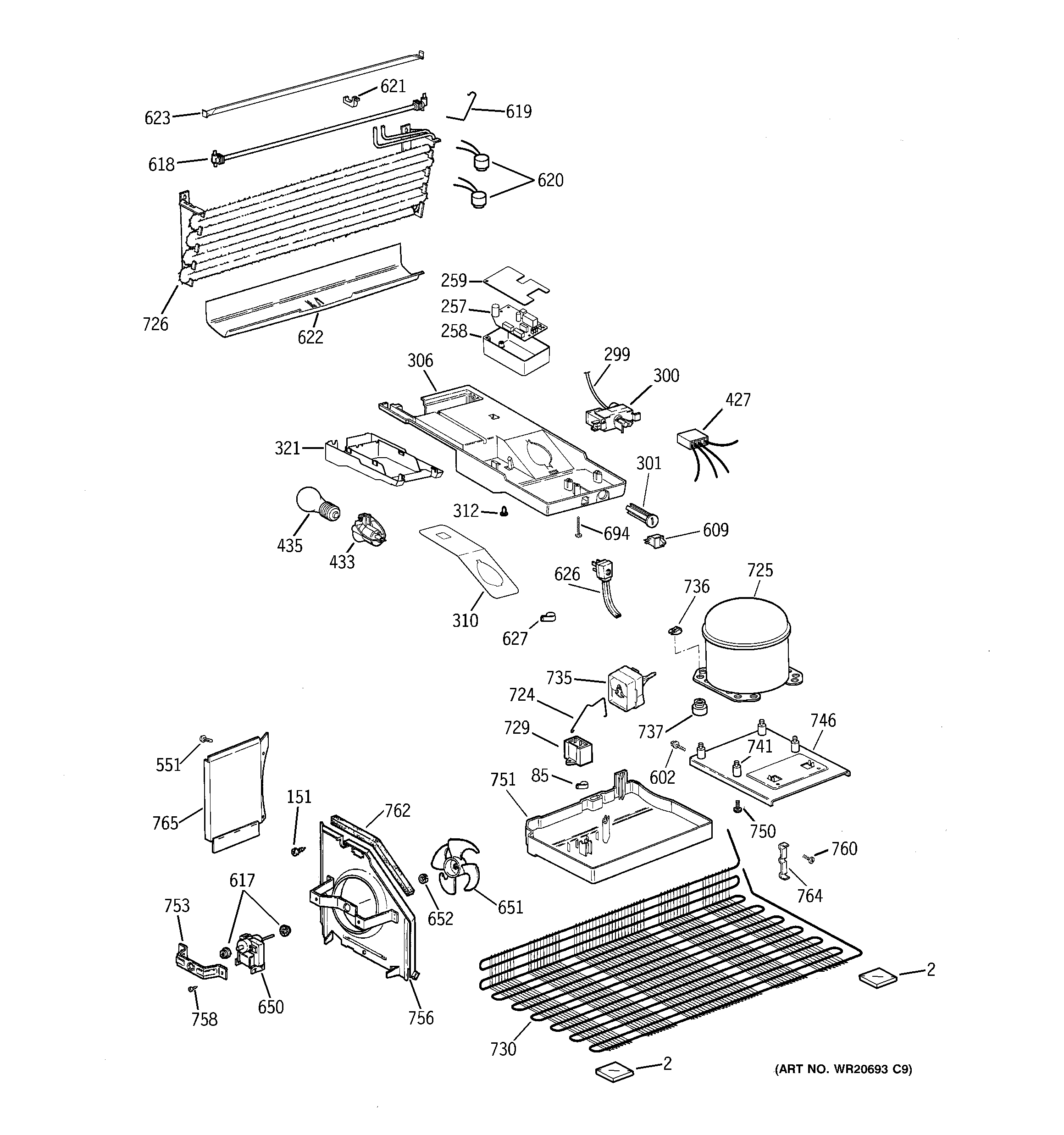

Unit parts Diagram
In Stock
#242

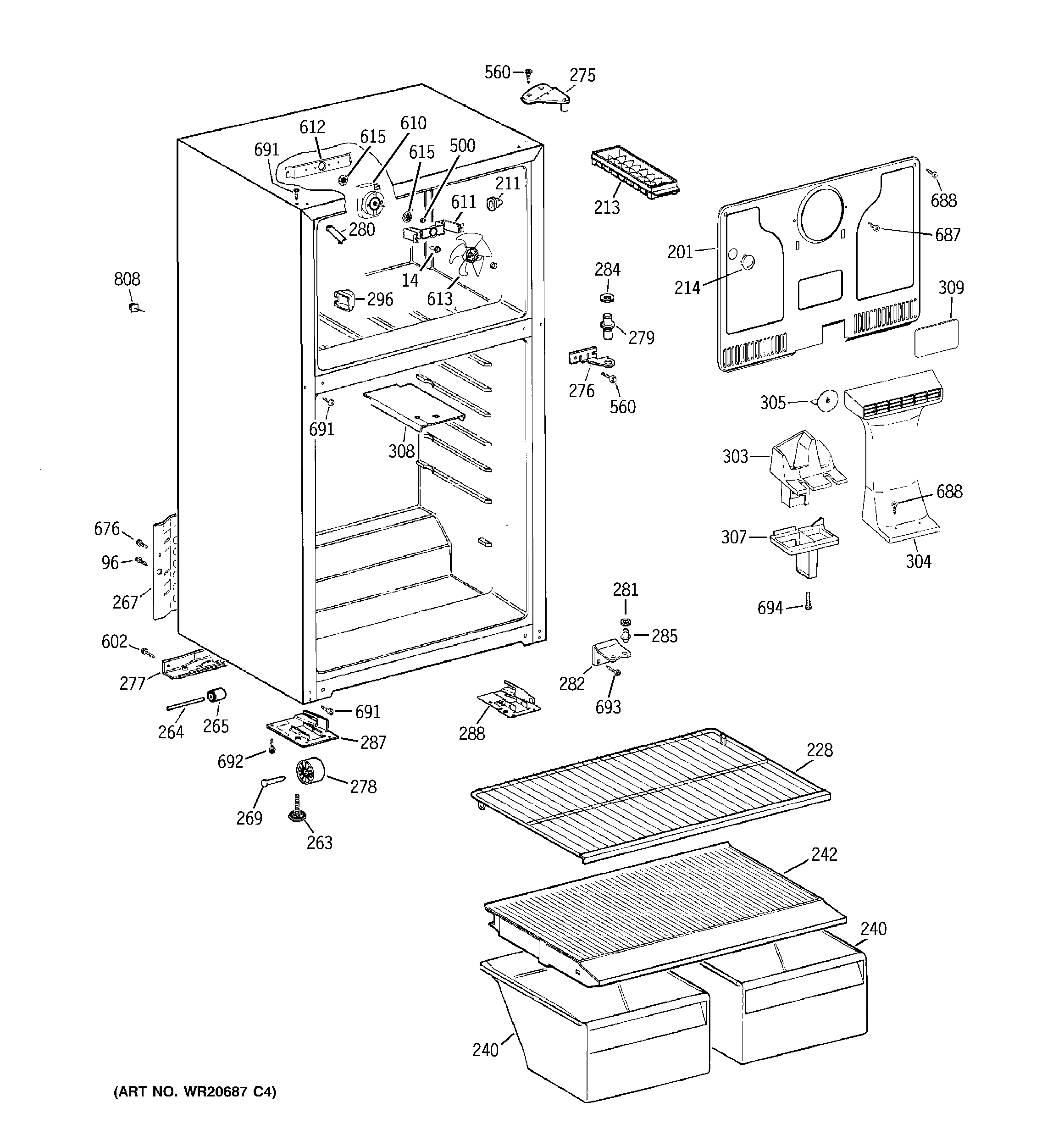

Cabinet Diagram
Refrigerator drawer cover
In Stock
#108

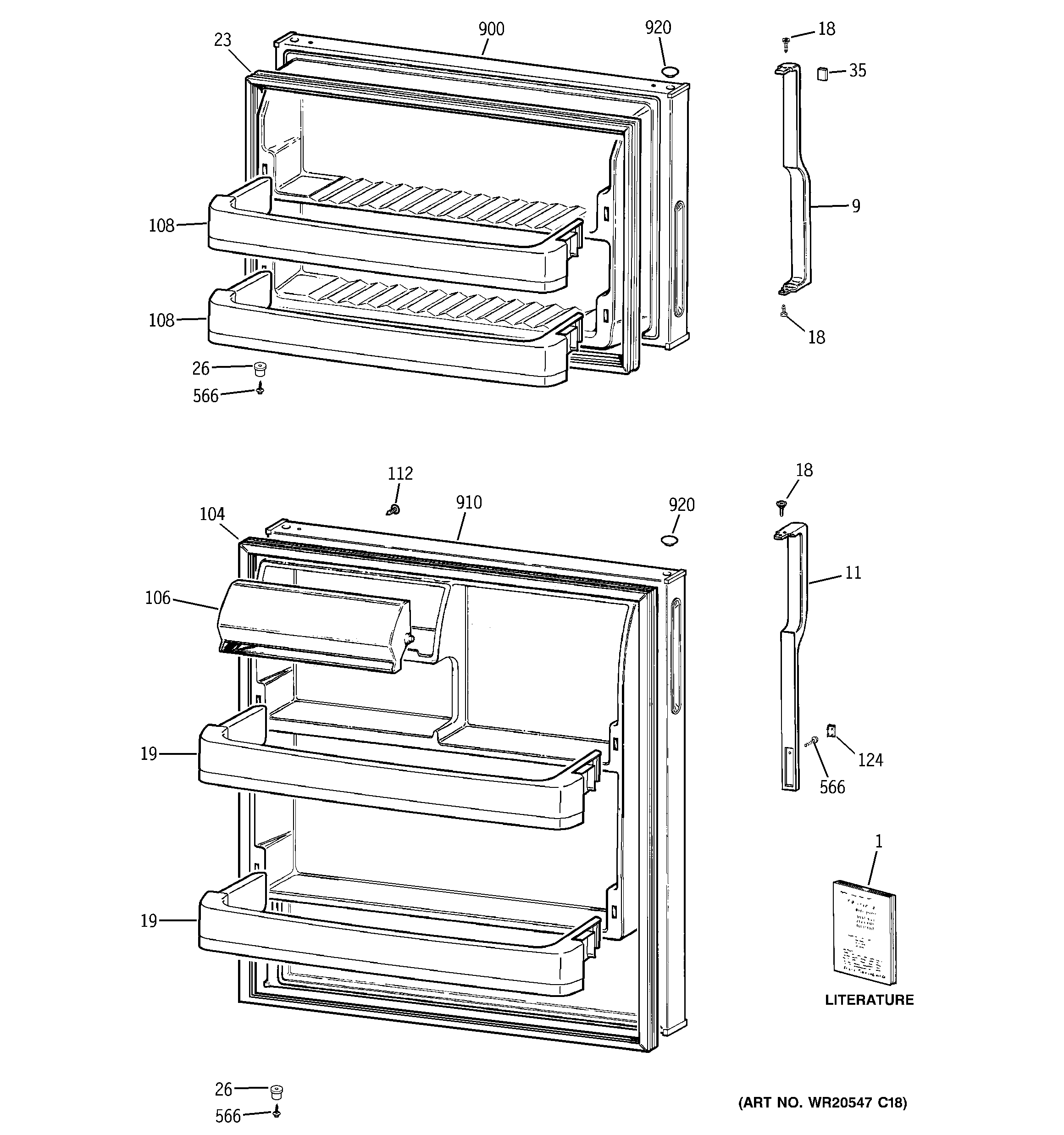

Doors Diagram
Refrigerator freezer door shelf rail
In Stock
#618
Unit parts Diagram
Refrigerator defrost heater
In Stock
#617
Unit parts Diagram
In Stock
#652
Unit parts Diagram
In Stock
#500
Cabinet Diagram
In Stock
#104
Doors Diagram
Refrigerator door gasket (black)
In Stock
#104
Doors Diagram
Refrigerator door gasket (white)
In Stock
#240
Cabinet Diagram
Refrigerator crisper drawer
In Stock
