Craftsman
Gas Walk-Behind Mower

Model # 917375502 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917375502 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |

Lock Nut 83923
Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Skirt 189008
#20

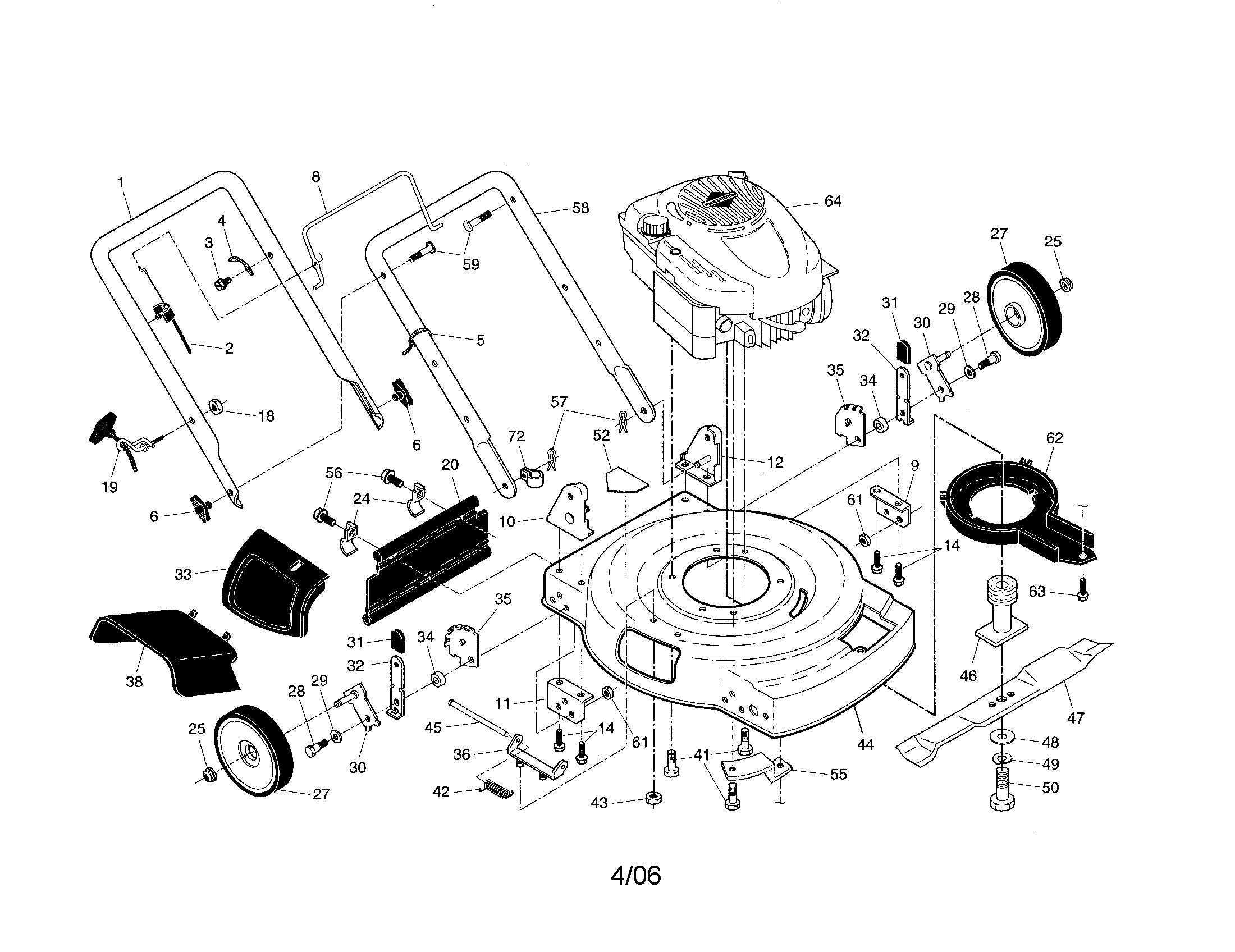

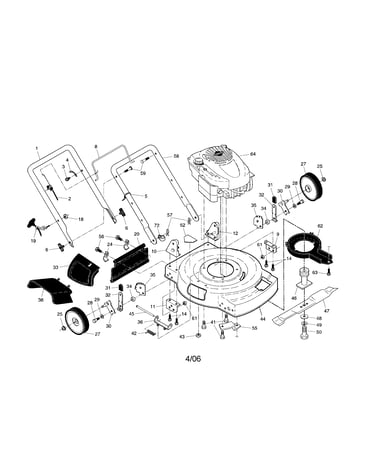

Engine/housing/wheels diagram

Skirt

Part #189008

Replaced by #413160

?
Manufacturer substitution
This part replaces 189008. Substitute parts can look different from the original.
BEST SELLER
$10.17
16% OFF Phone Price : $12.17
In Stock
Blade.22.mul 192682
#47

Engine/housing/wheels diagram

Blade.22.mul

Part #192682

Replaced by #532406713

?
Manufacturer substitution
This part replaces 192682. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$12.71
36% OFF MSRP : $20.00
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/wheels diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.00
25% OFF Phone Price : $4.00
In Stock
Lawn Mower Wheel, 8 X 1-3/4-in 400246X460
#27

Engine/housing/wheels diagram

Lawn mower wheel, 8 x 1-3/4-in

Part #400246X460

BEST SELLER
$18.01
10% OFF Phone Price : $20.01
In Stock
Lawn & Garden Equipment Screw 851084
#50

Engine/housing/wheels diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Bearing 191039
#2

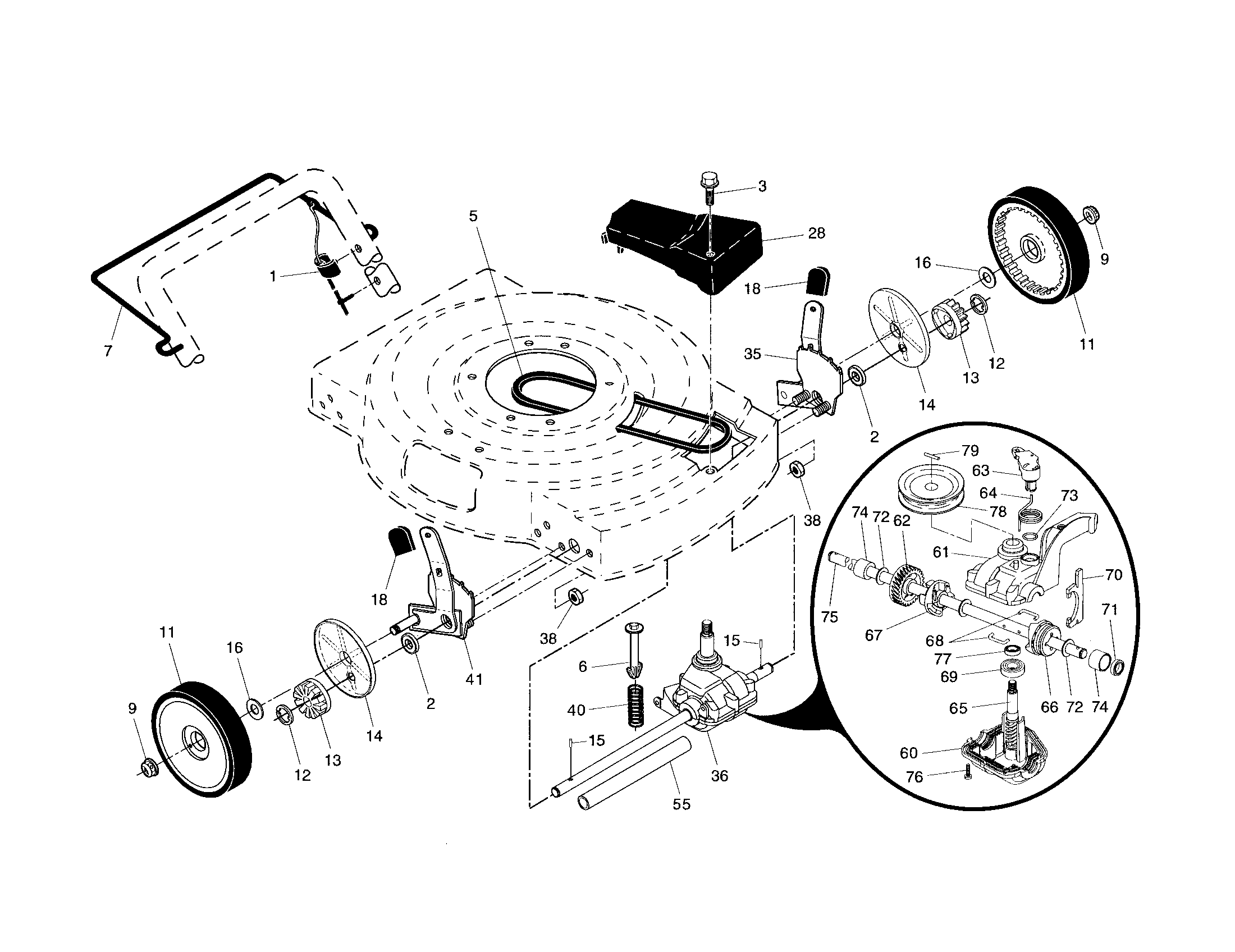

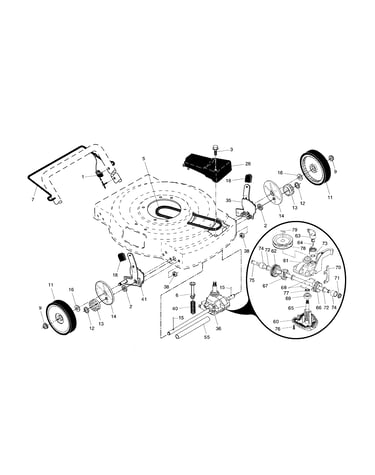

Drive control/gear case/wheels diagram

Bearing

Part #191039

Replaced by #421836

?
Manufacturer substitution
This part replaces 191039. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.17
14% OFF Phone Price : $7.17
Back Order
Lock Nut 751592
#61

Engine/housing/wheels diagram

Lock nut

Part #751592

Replaced by #73930600

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Drive control/gear case/wheels diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

BEST SELLER
This item is not returnable
$2.79
26% OFF Phone Price : $3.79
In Stock
Drive Pawl 191017
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #191017

Replaced by #532404845

?
Manufacturer substitution
This part replaces 191017. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79
21% OFF Phone Price : $4.79
In Stock
