Craftsman
Front-Engine Lawn Tractor

Model #917253792 Craftsman tractor

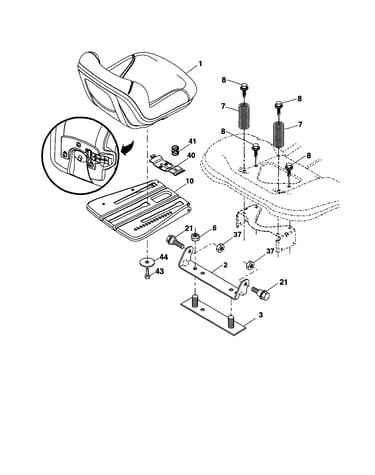

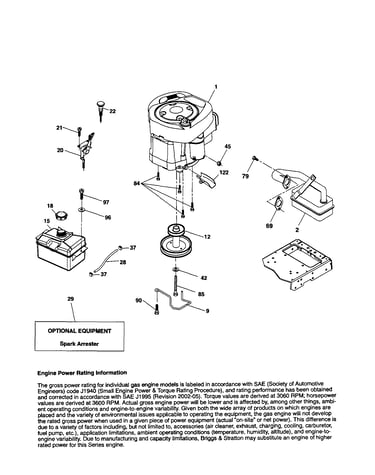

Here are the diagrams and repair parts for Craftsman 917253792 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

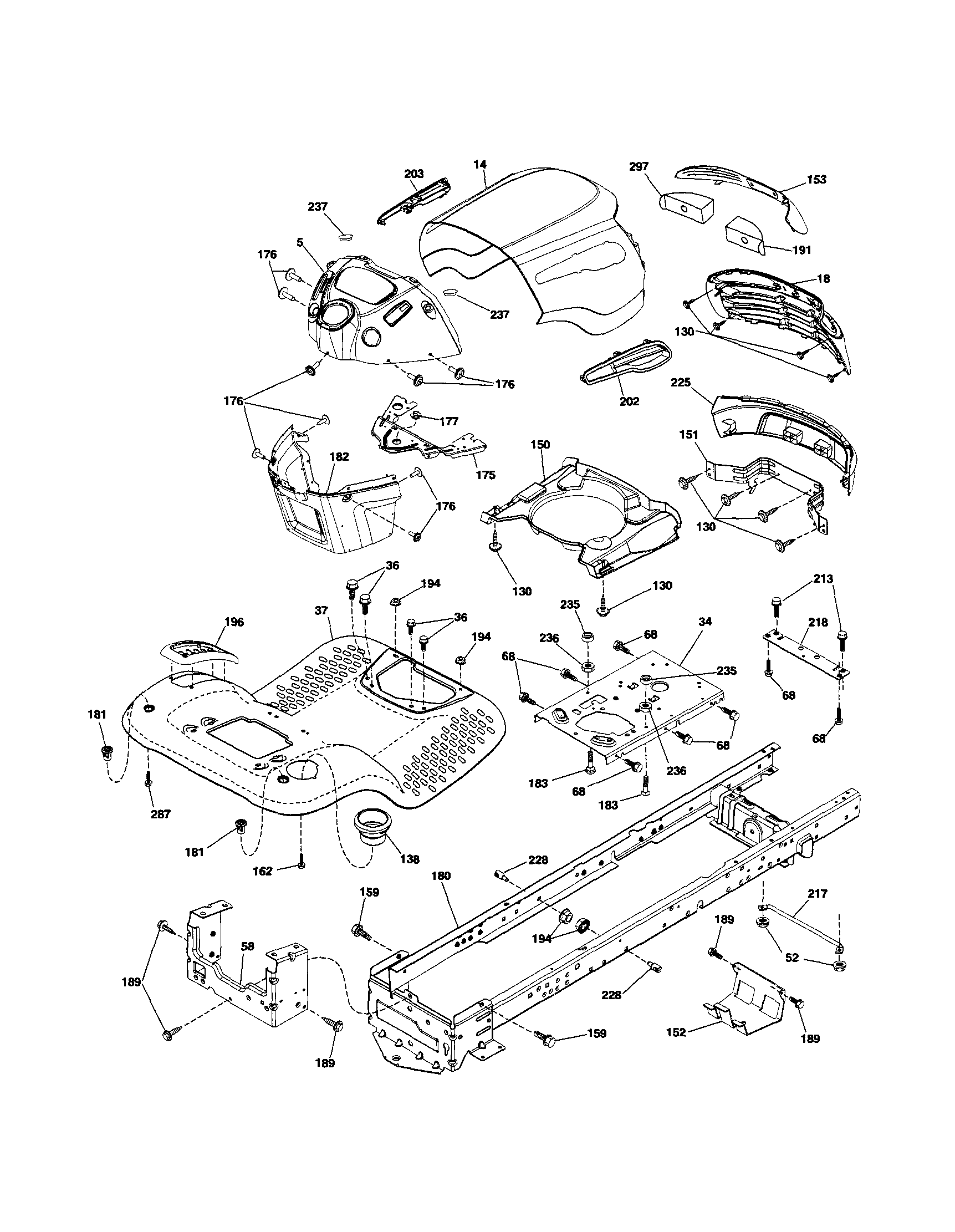

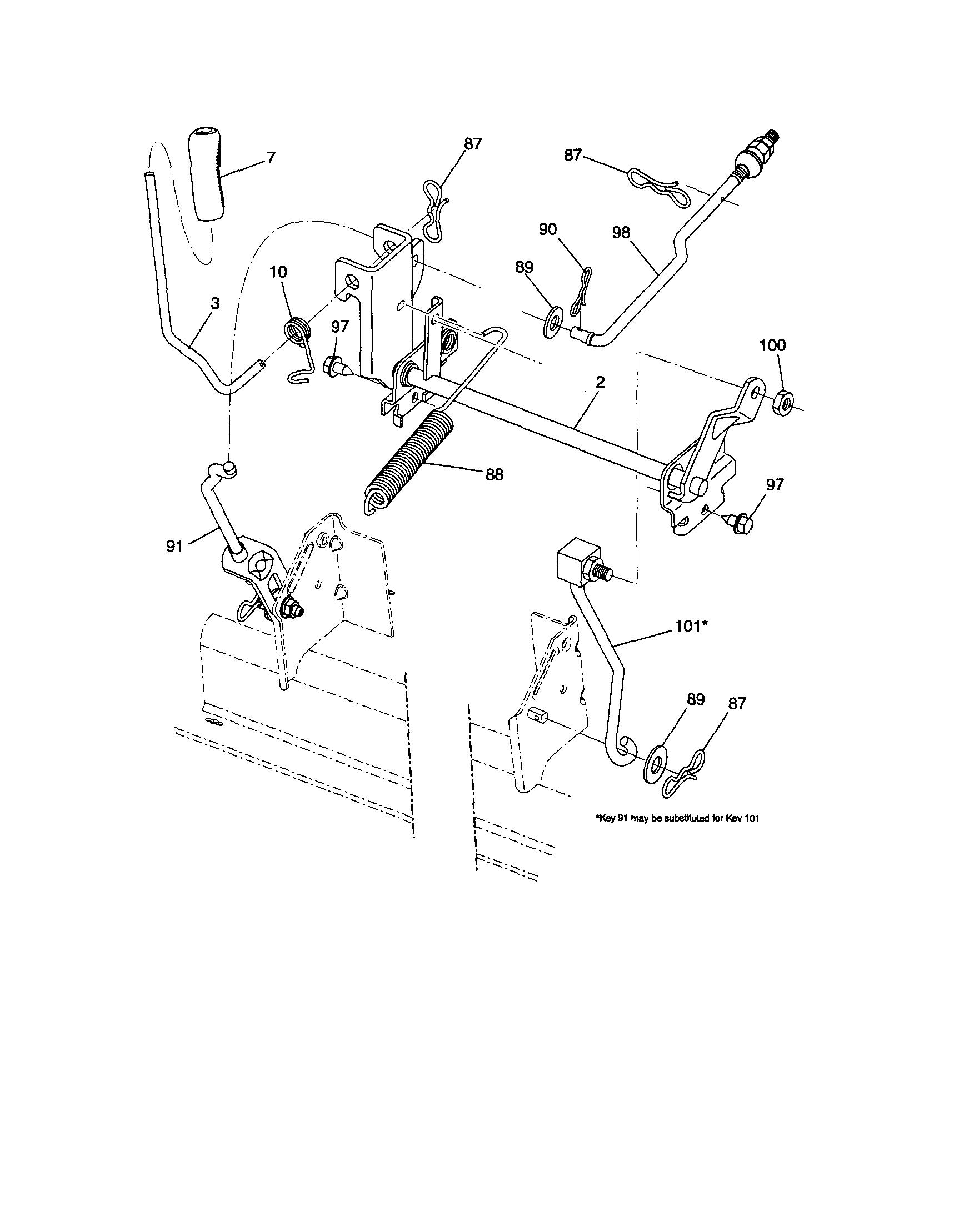

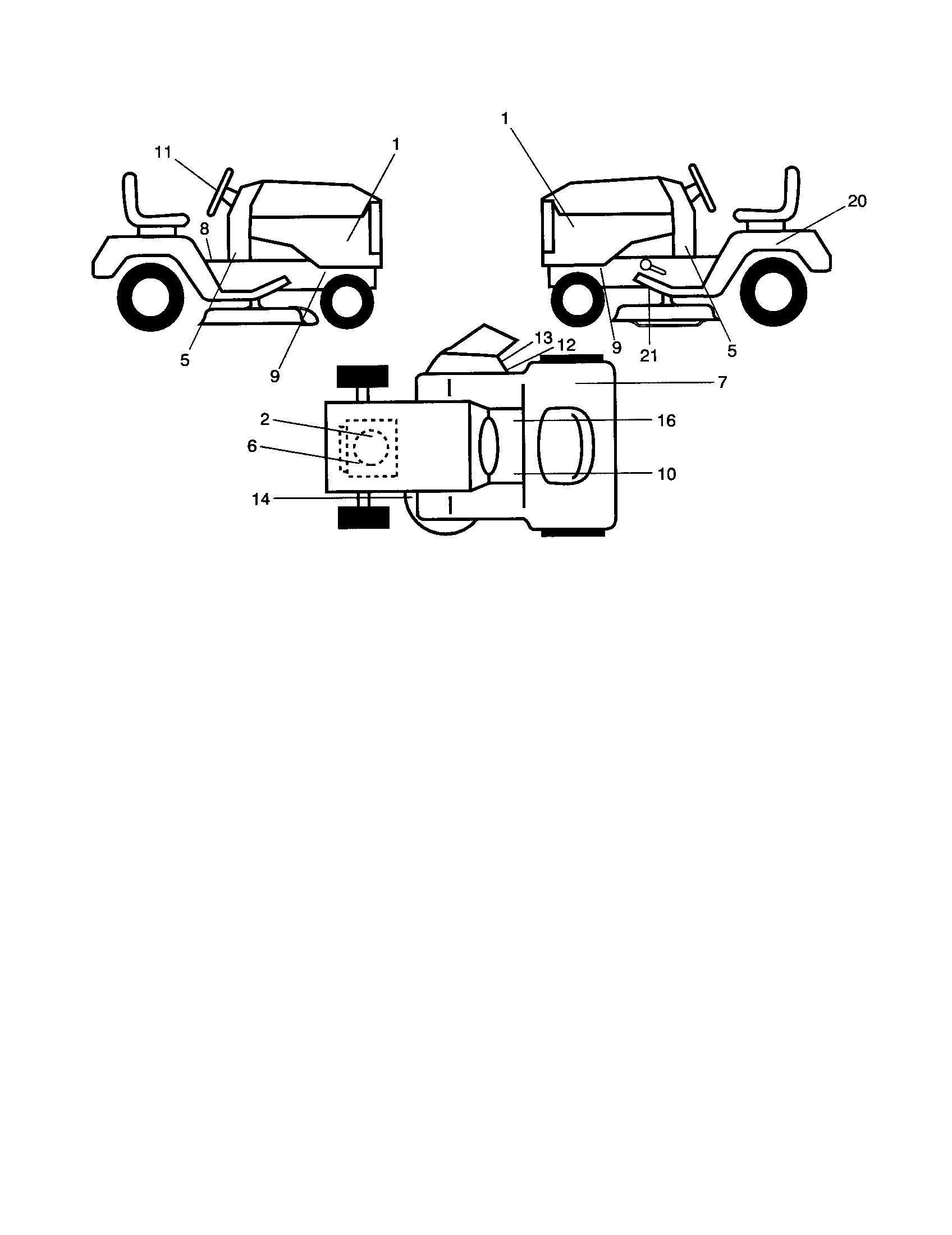

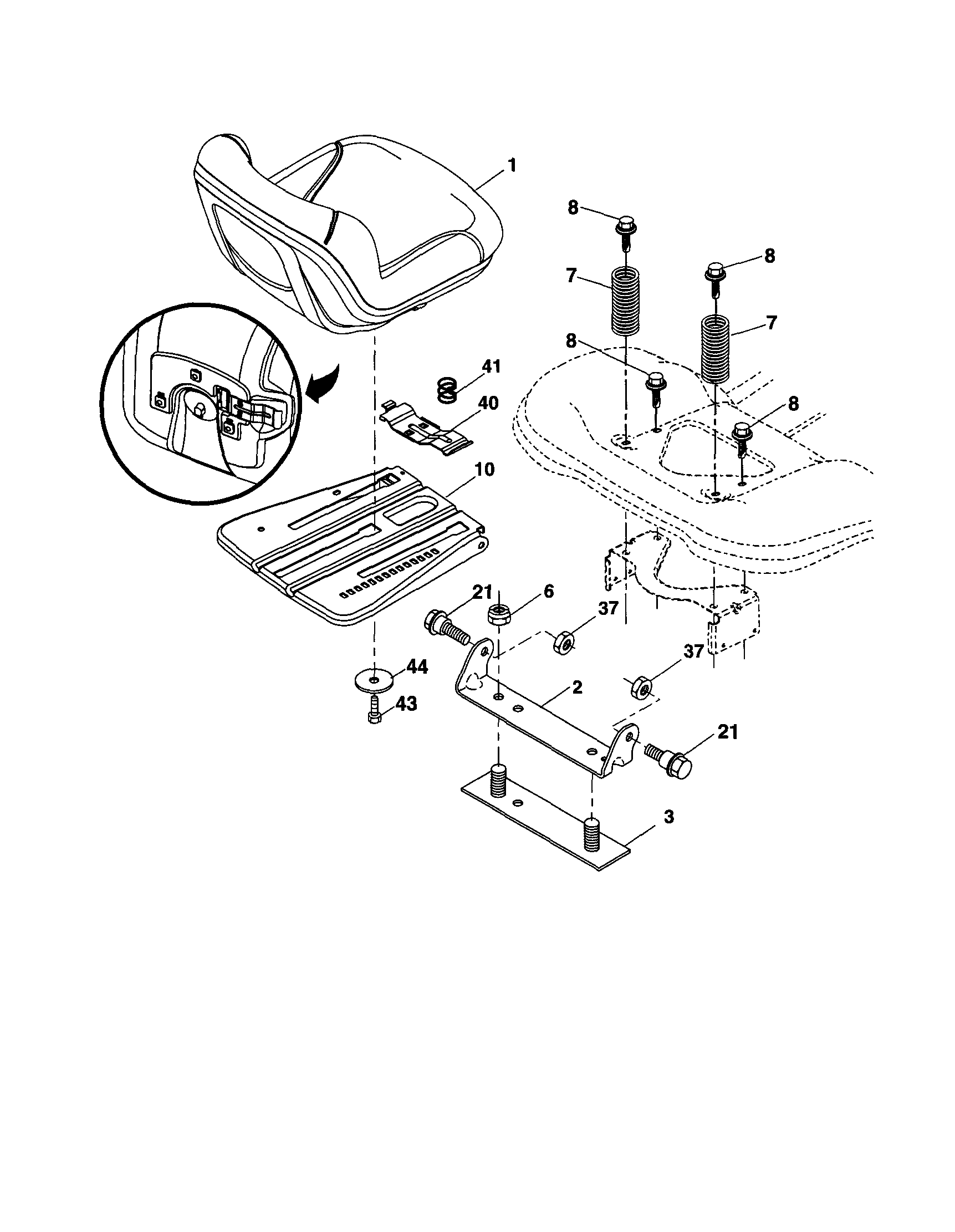

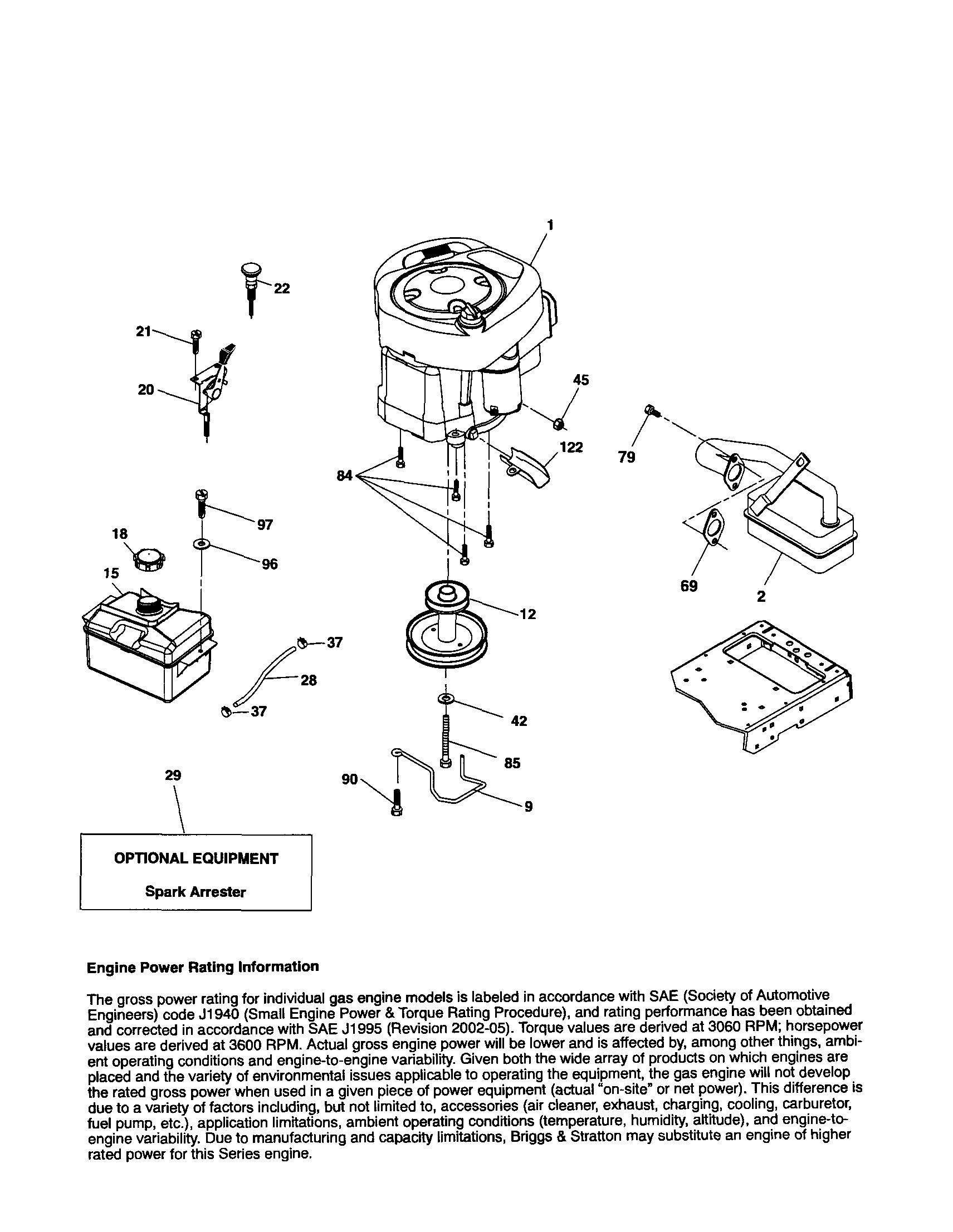

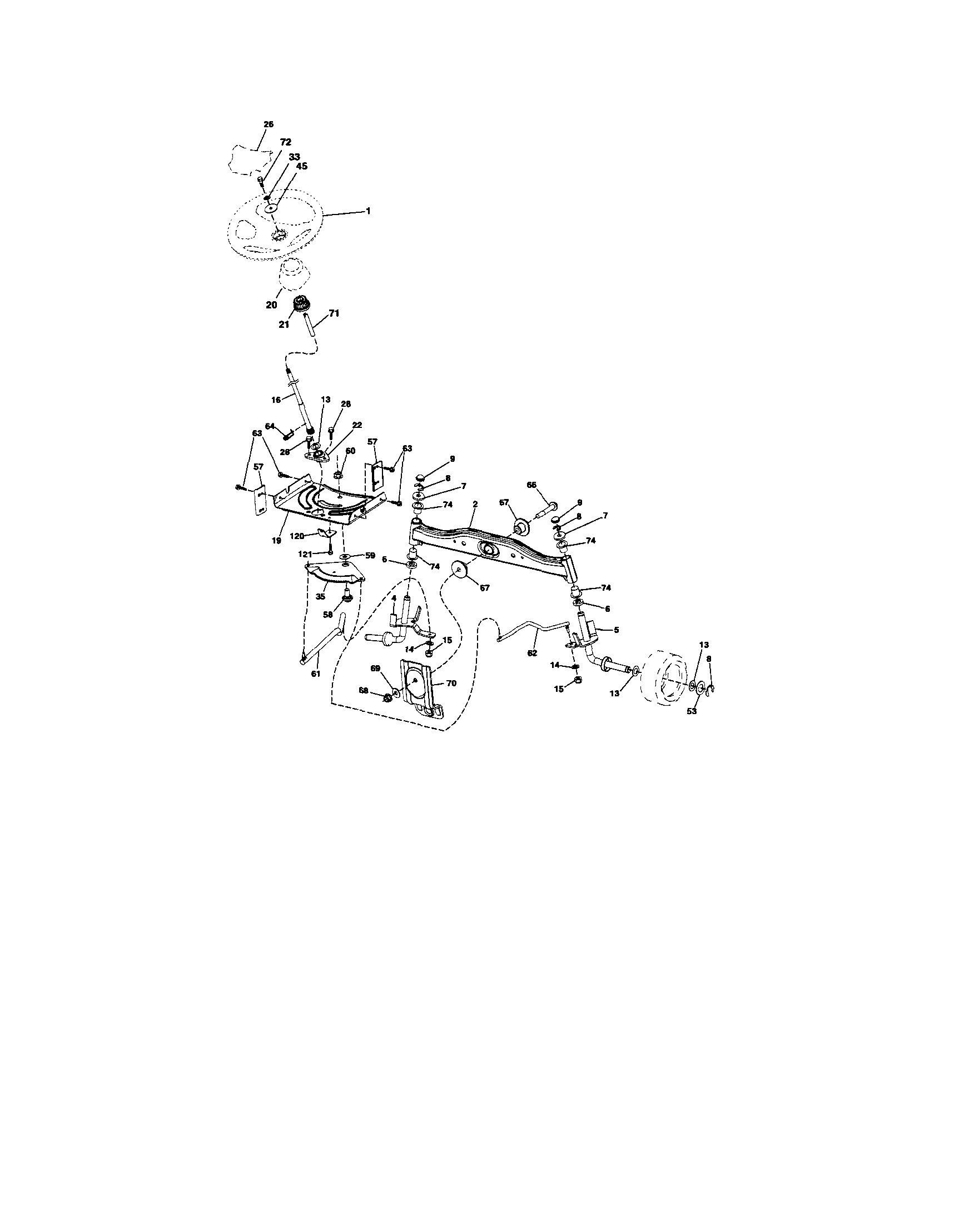

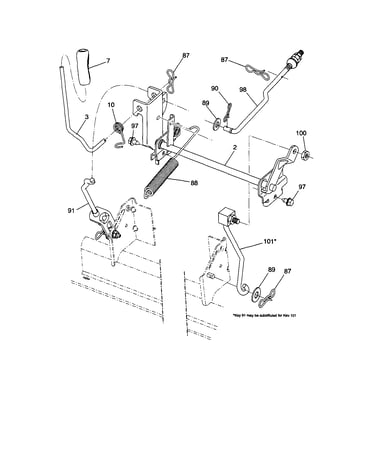

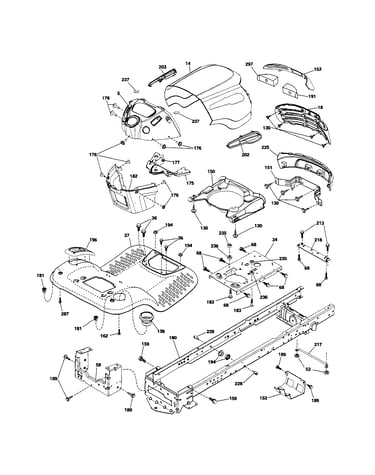

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 552 parts

    Lawn Tractor 42-in Deck 3-in-1 Blade

    #11A

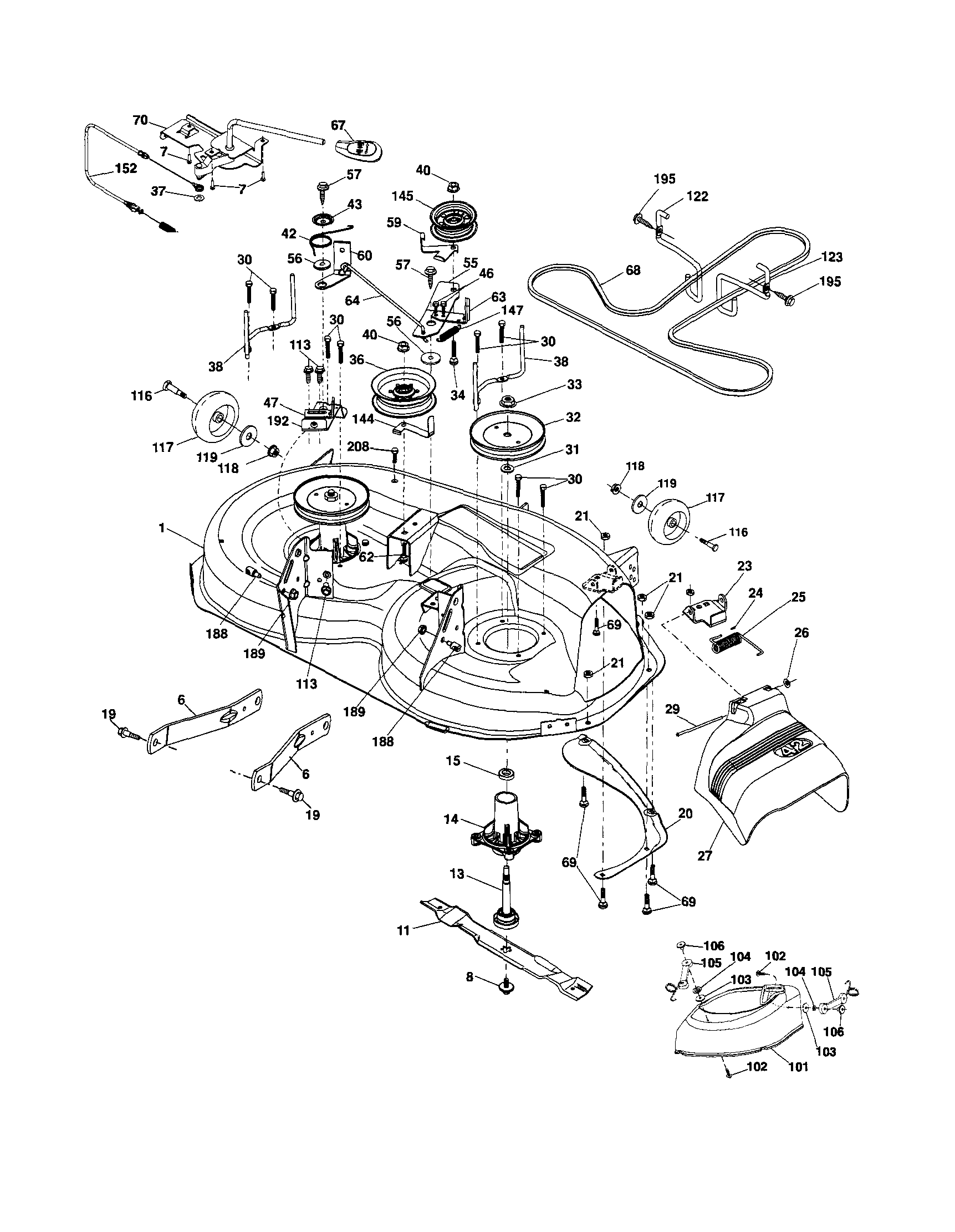

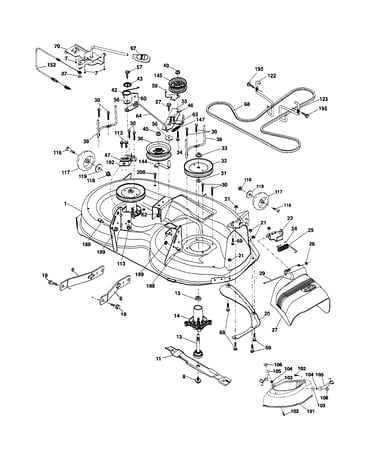

    Mower deck Diagram

    Lawn tractor 42-in deck 3-in-1 blade

    Part #422719

    Get free shipping with Automatic Reorder

    $17.99

    In Stock

    Lawn Tractor Axle Flange Bearing

    #7

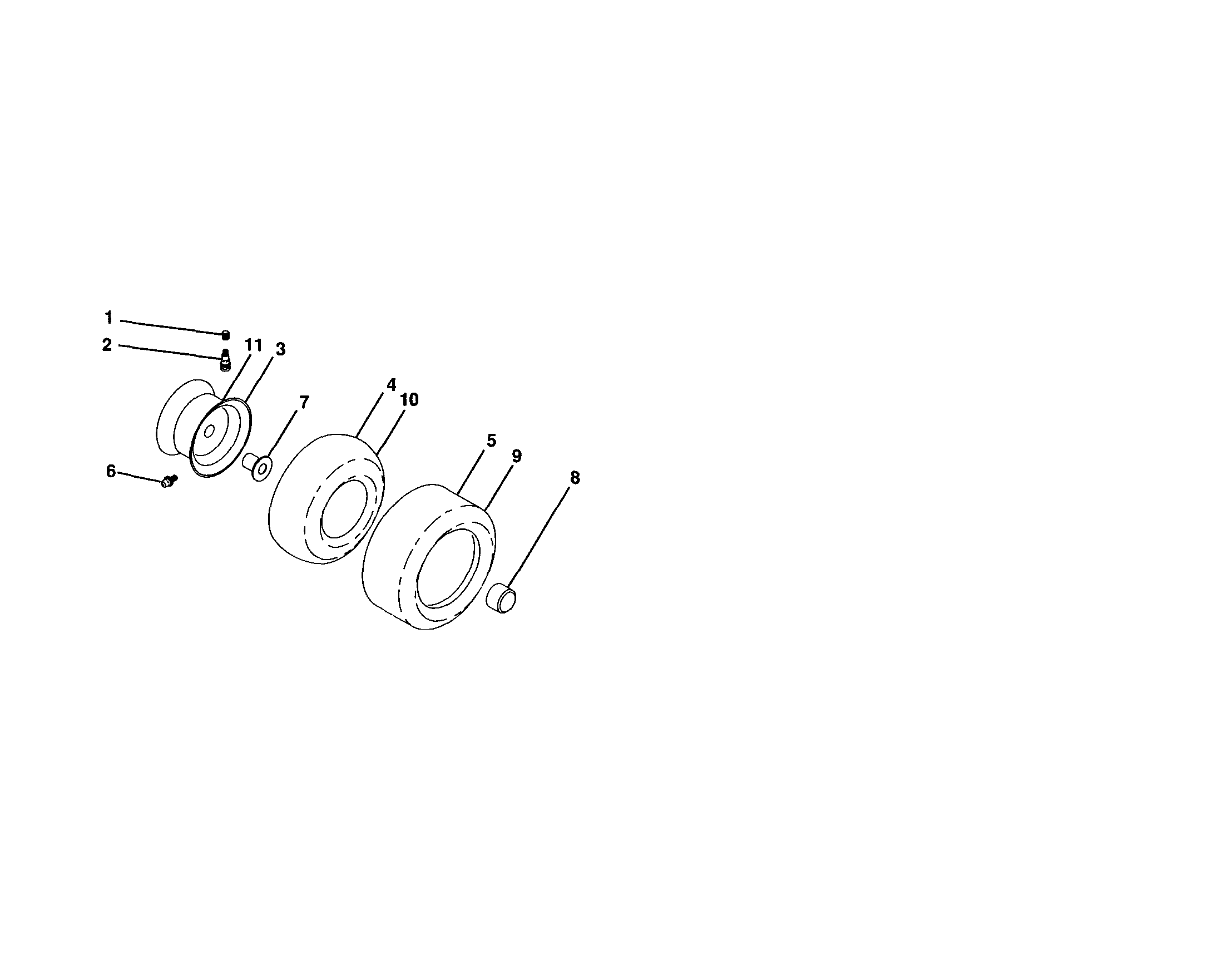

    Wheels and tires Diagram

    $5.39 |
    41% OFF
    MSRP: $9.10

    In Stock

    Lawn Tractor Mandrel Bearing

    #15

    Mower deck Diagram

    $13.99 |
    5% OFF
    MSRP: $14.75

    In Stock

    Lawn Tractor Ground Drive Idler Pulley

    #50

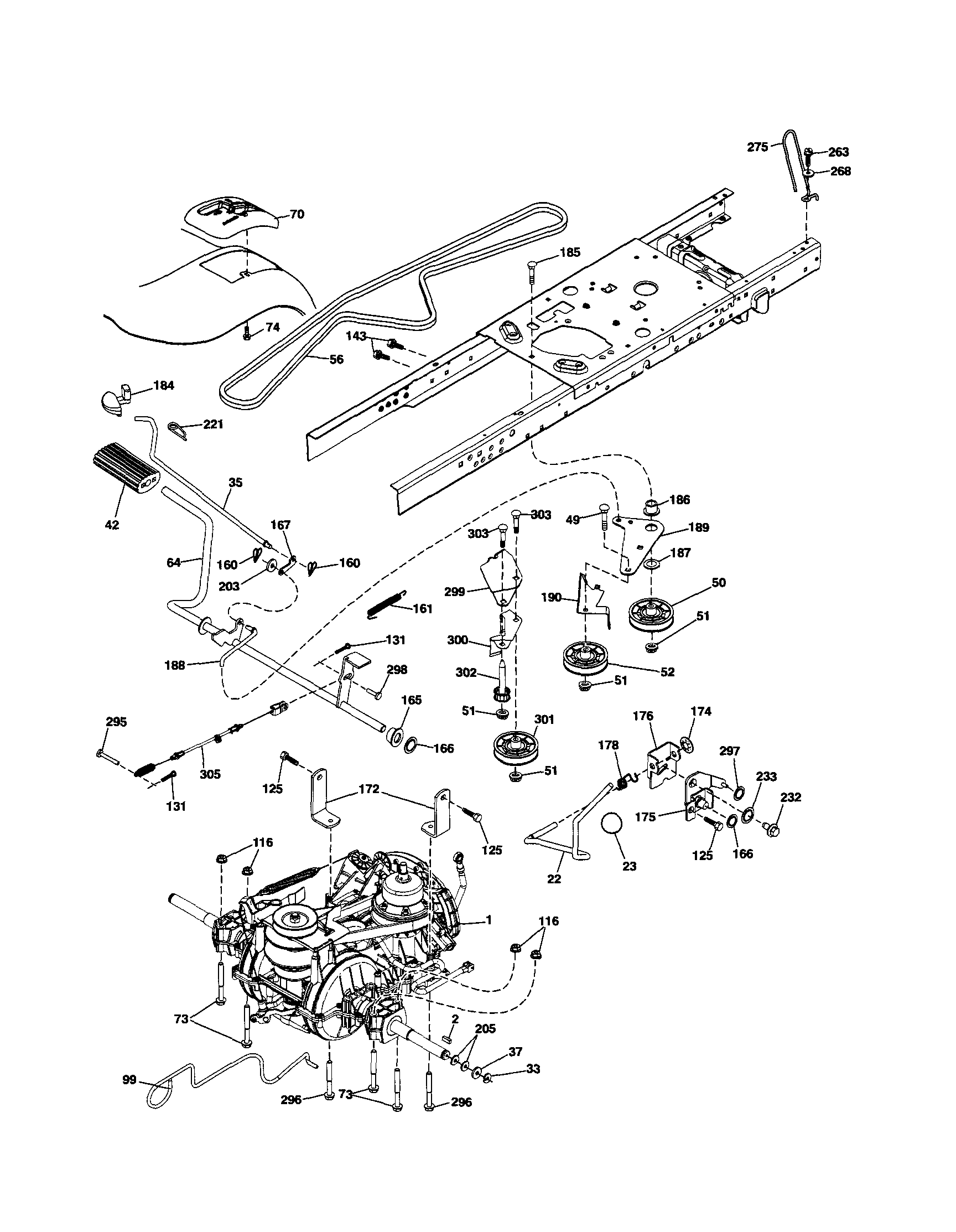

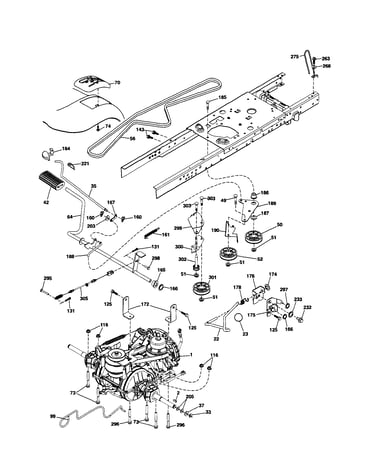

    Ground drive Diagram

    $13.99

    In Stock

    Lawn Tractor Push Nut

    #26

    Mower deck Diagram

    Lawn tractor push nut

    Part #110452X
    This item is not returnable
    $5.99

    In Stock

    Lawn Tractor Washer

    #37

    Ground drive Diagram

    Lawn tractor washer

    Part #121749X
    This item is not returnable
    $2.79 |
    6% OFF
    MSRP: $2.96

    In Stock

    Lawn Tractor Ground Drive Fixed Idler Pulley

    #52

    Ground drive Diagram

    $22.99

    In Stock

    Lawn Tractor Belt Keeper, Left

    #122

    Mower deck Diagram

    $30.99

    In Stock

    Lawn Tractor Interlock Switch

    #16

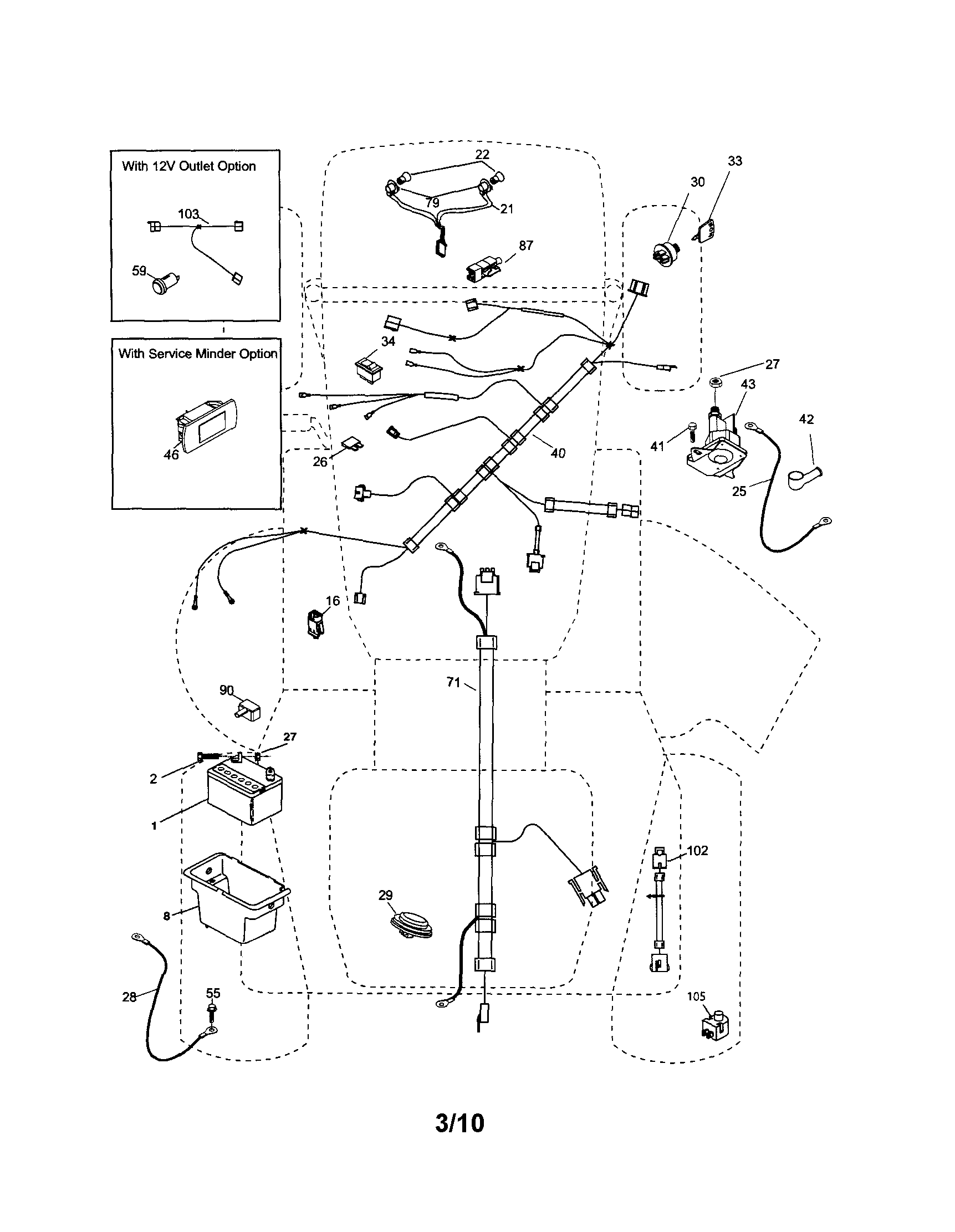

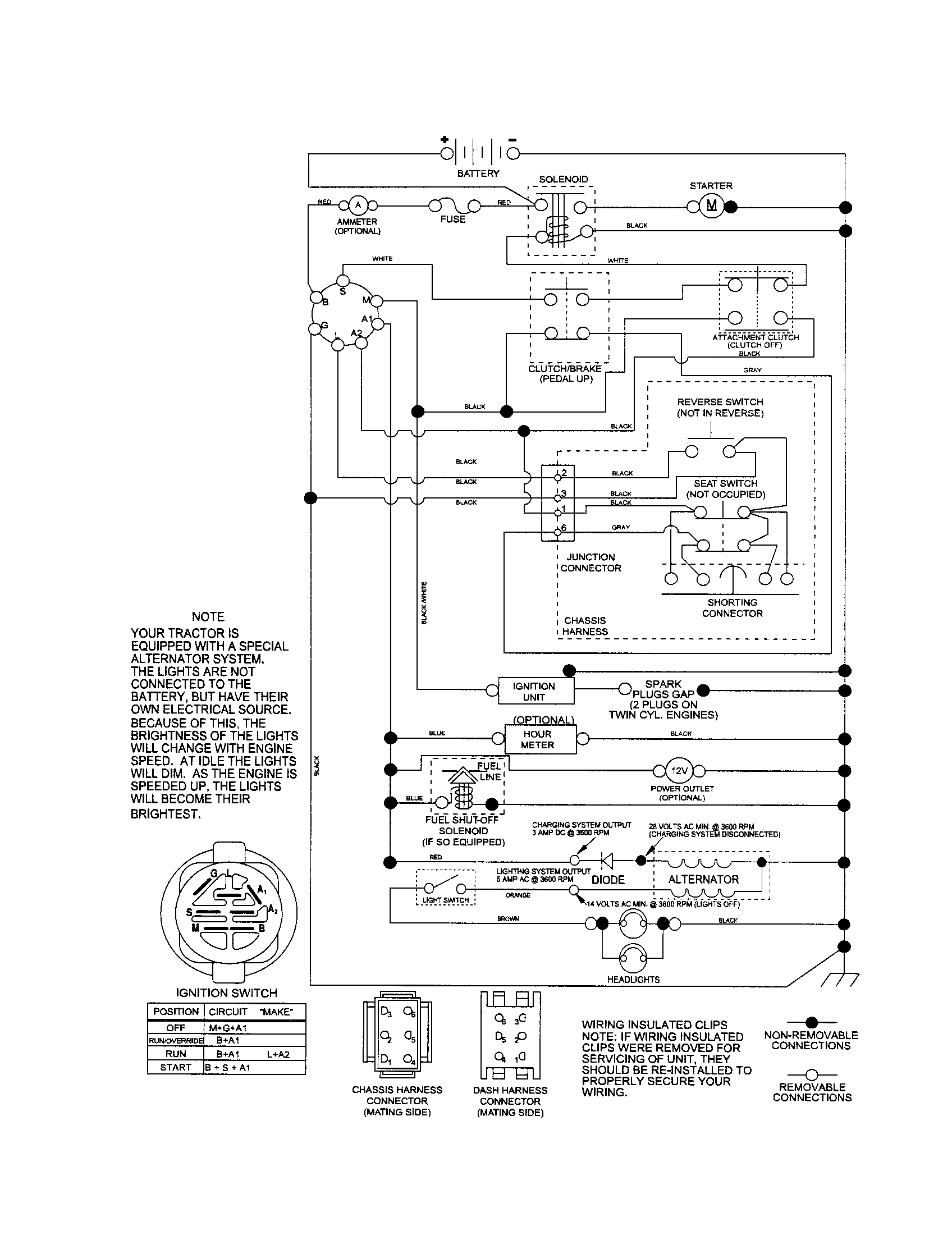

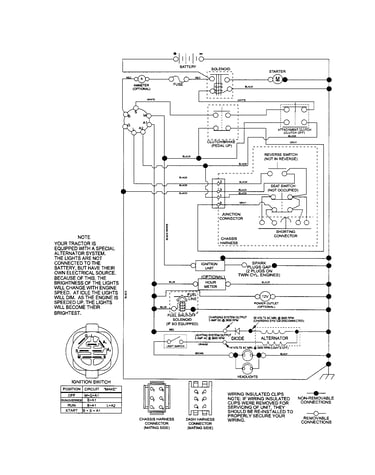

    Electrical Diagram

    $15.99

    In Stock

    Lawn Tractor Sleeve Cap

    #24

    Mower deck Diagram

    Lawn tractor sleeve cap

    Part #105304X
    This item is not returnable
    $4.09 |
    7% OFF
    MSRP: $4.40

    In Stock
