GE JCP67Y3WW electric range Parts
Here are the diagrams and repair parts for GE JCP67Y3WW electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JCP67Y3WW Ranges

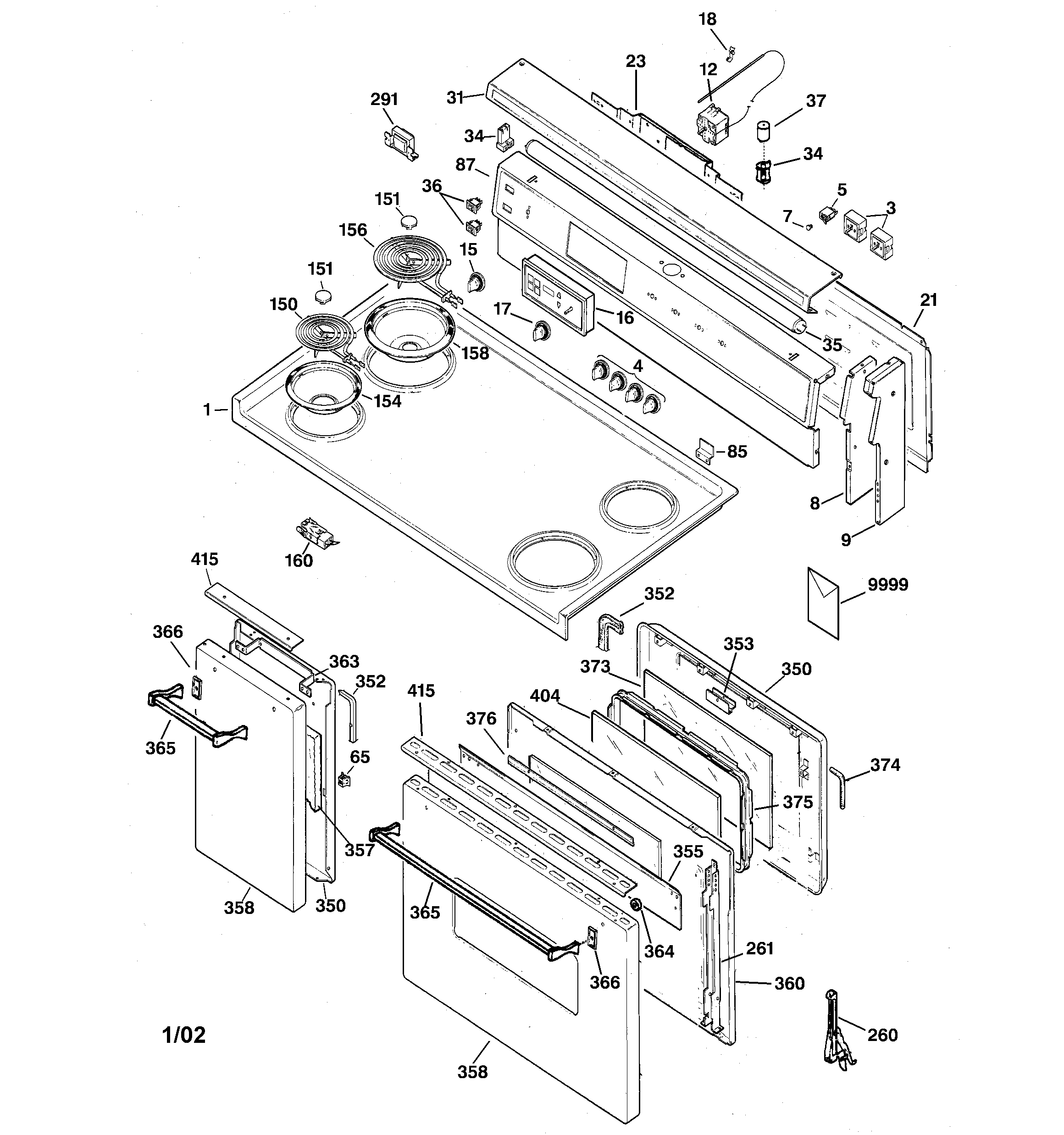

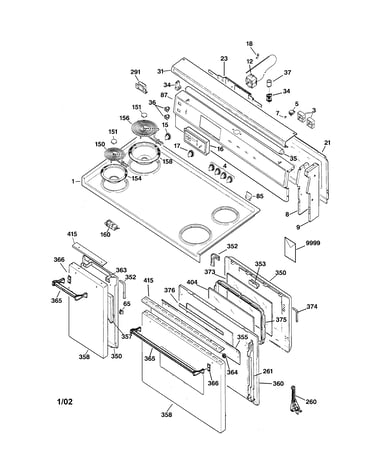

Control panel, cooktop & doors diagram
Large Burner
Part #WB30X10014Replaced by #WB30X255
Manufacturer substitutionThis part replaces WB30X10014. Substitute parts can look different from the original.In Stock$78.937% OFF Phone Price : $84.93
Qty

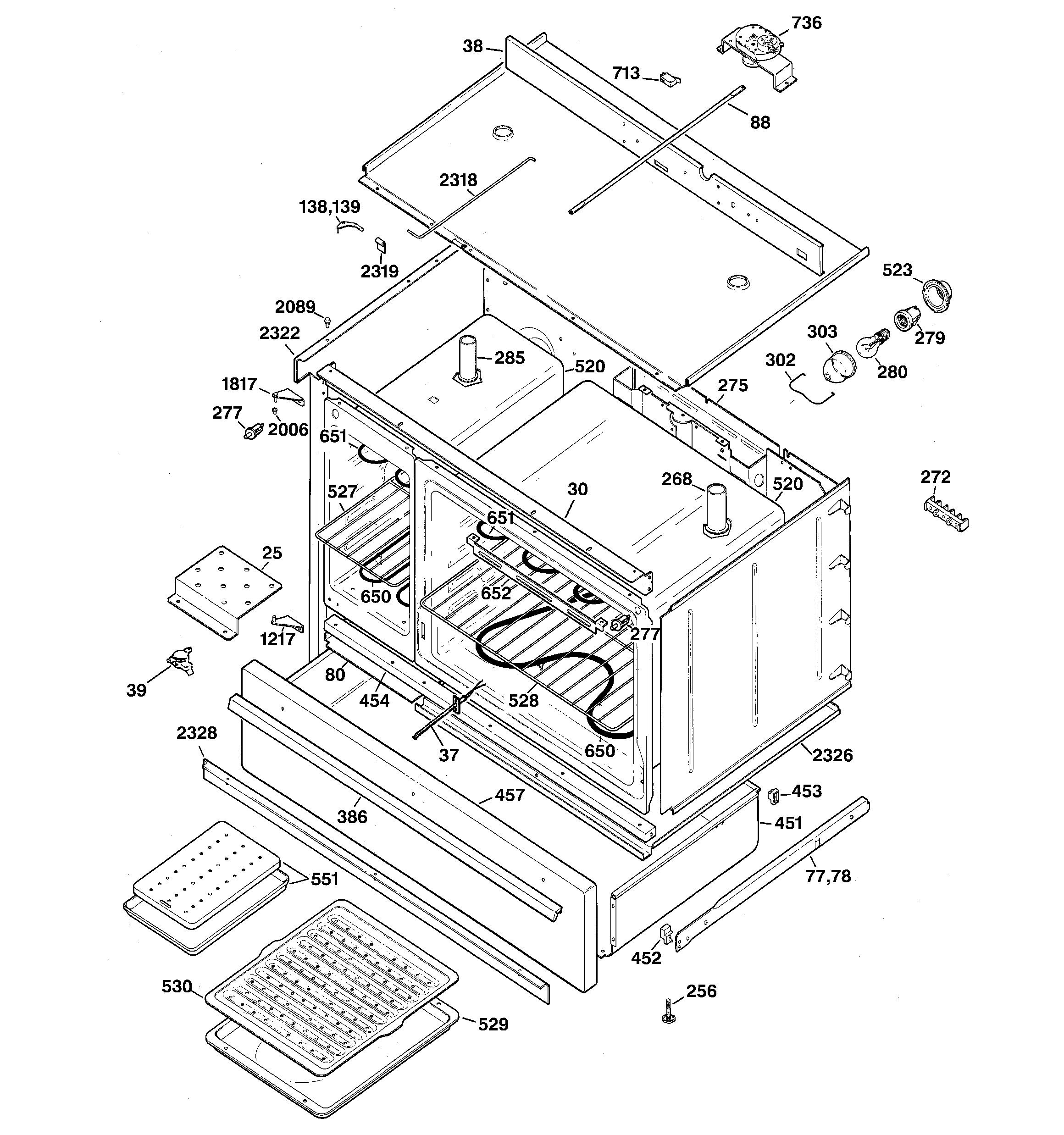

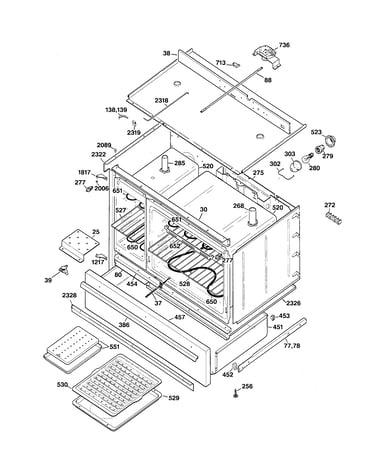

Body parts & drawer diagram
Broiler Rack
Part #WB48X5590Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB48X5590. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11QtyBody parts & drawer diagram
Broiler Pan
Part #WB49X5589Replaced by #WB48X10056
Manufacturer substitutionThis part replaces WB49X5589. Substitute parts can look different from the original.In Stock$36.1114% OFF Phone Price : $42.11QtyBody parts & drawer diagram
Drawer Rail
In Stock$58.16QtyControl panel, cooktop & doors diagram
Liner Oven S
In Stock$96.13QtyBody parts & drawer diagram
Wiring Cover
In Stock$466.36QtyControl panel, cooktop & doors diagram
Door Panel
In Stock$400.26QtyBody parts & drawer diagram
Wiring Shield
In Stock$119.50QtyBody parts & drawer diagram
Switch Lat
In Stock$134.66QtyBody parts & drawer diagram
Panel
In Stock$146.48Qty
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
