GE
Wine & Beverage Cooler

Model # ZDWC240NBBS Official GE refrigerator - n series

Here are the diagrams and repair parts for Official GE ZDWC240NBBS refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Dryer Filter WR86X0096
#740

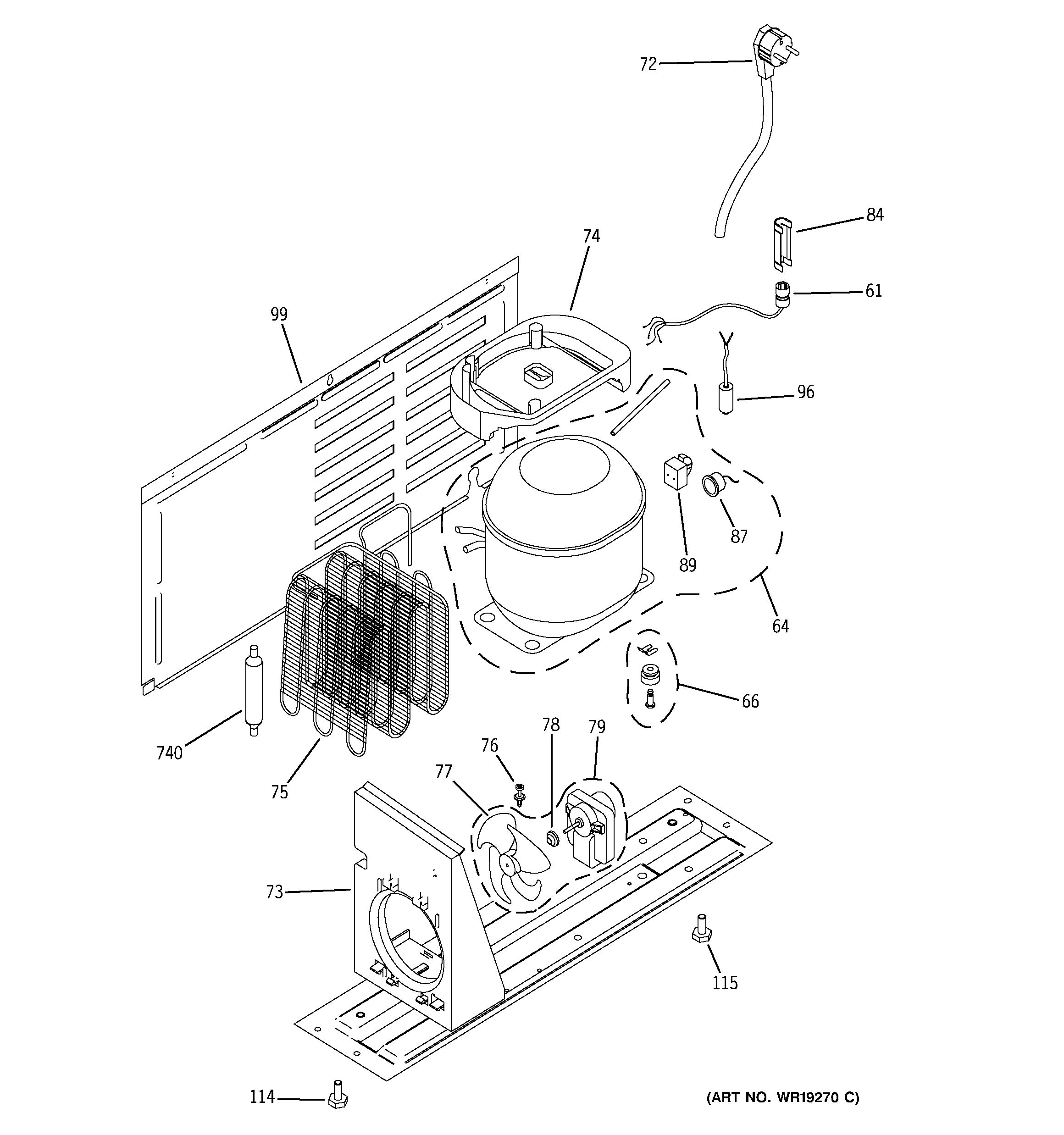

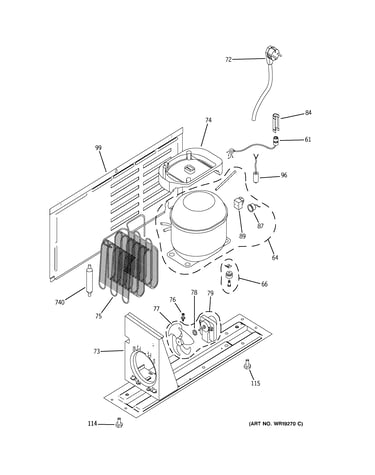

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
6% OFF Phone Price : $84.18
In Stock
Magnetic Gas WR24X10123
#46

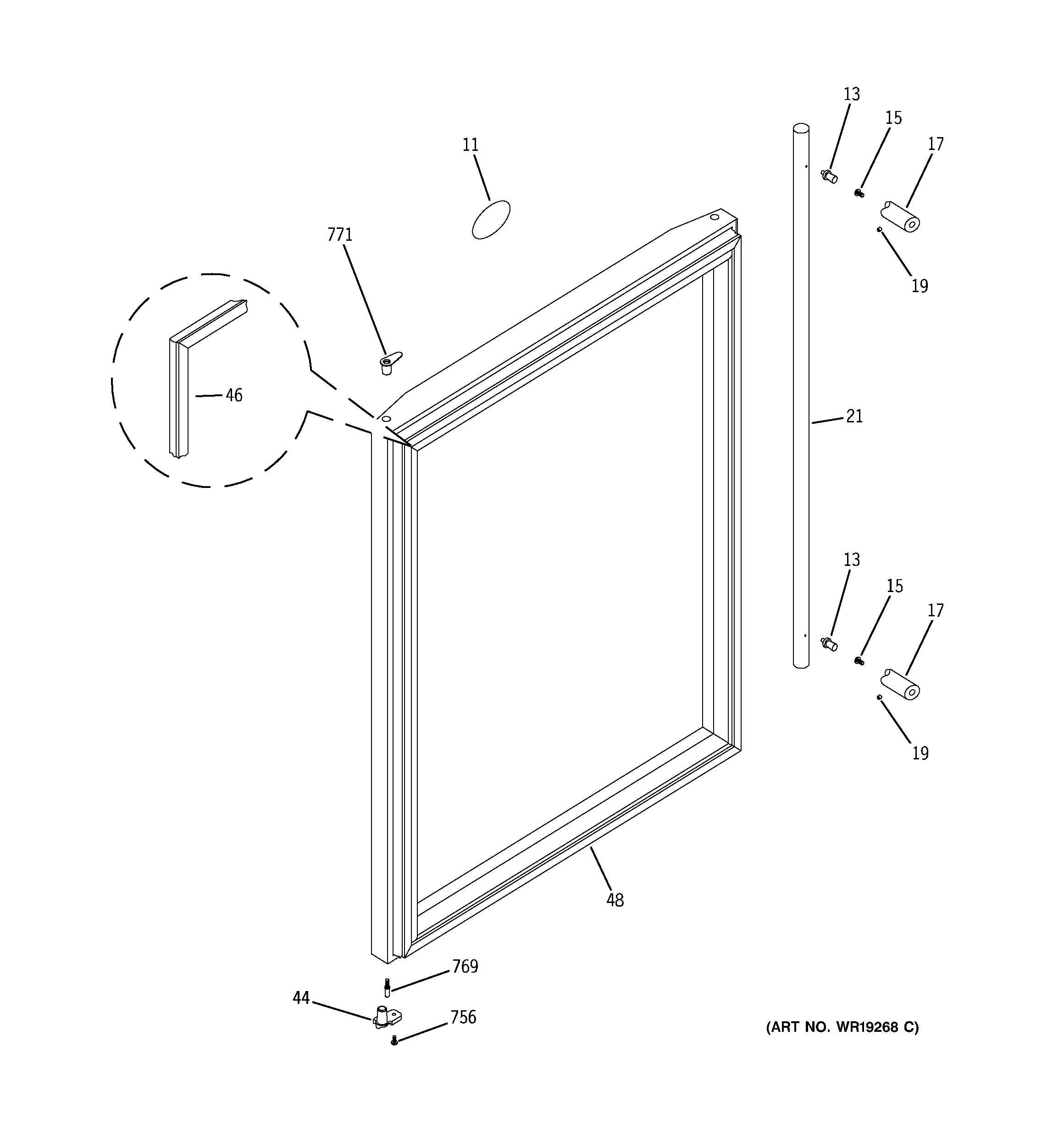

Door diagram

Magnetic gas

Part #WR24X10123

Replaced by #WR24X10161

?
Manufacturer substitution
This part replaces WR24X10123. Substitute parts can look different from the original.
$117.45 |
8% OFF Phone Price : $127.45
In Stock
Beverage Cooler Temperature Control Thermostat WR09X10093
#112

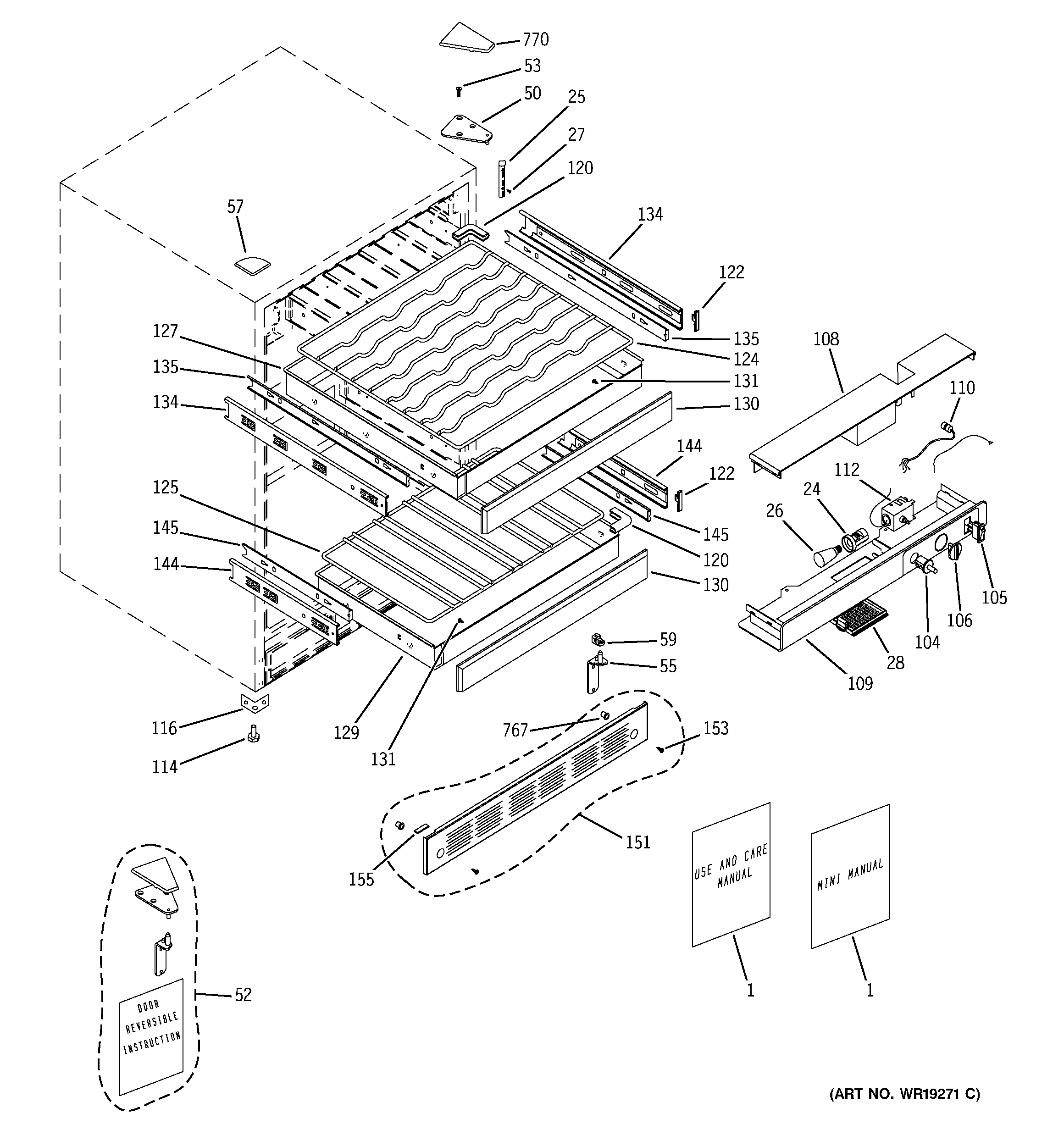

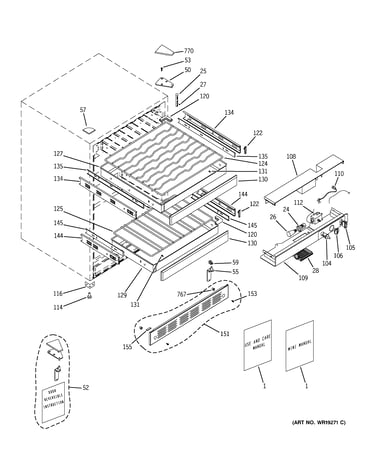

Cabinet & shelves diagram

Beverage cooler temperature control thermostat

Part #WR09X10093

$78.09 |
6% OFF Phone Price : $83.09
In Stock
Wine Cooler Compressor Start Relay WR07X10072
#89

Unit parts diagram

Wine cooler compressor start relay

Part #WR07X10072

$96.54 |
9% OFF Phone Price : $106.54
In Stock
Beverage Cooler Condenser Fan Motor Kit WR60X10118
#79

Unit parts diagram

Beverage cooler condenser fan motor kit

Part #WR60X10118

$130.45 |
7% OFF Phone Price : $140.45
In Stock
Wine Cooler Door Hinge, Upper WR13X10276
#50

Cabinet & shelves diagram

Wine cooler door hinge, upper

Part #WR13X10276

$38.53 |
11% OFF Phone Price : $43.53
In Stock
Kick Plate K WR79X10032
#151

Cabinet & shelves diagram

Kick plate k

Part #WR79X10032

Replaced by #WR79X10030

?
Manufacturer substitution
This part replaces WR79X10032. Substitute parts can look different from the original.
$125.86 |
7% OFF Phone Price : $135.86
In Stock
Frame WR17X11390
#130

Cabinet & shelves diagram

Frame

Part #WR17X11390

$74.91
In Stock
Hinge WR01X10349
#53

Cabinet & shelves diagram

Hinge

Part #WR01X10349

$11.11
In Stock
Guide Frame WR72X10122
#135

Cabinet & shelves diagram

Guide frame

Part #WR72X10122

$64.64
In Stock
