Side-By-Side Refrigerator

Model # ZISS360NXASS Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE ZISS360NXASS refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

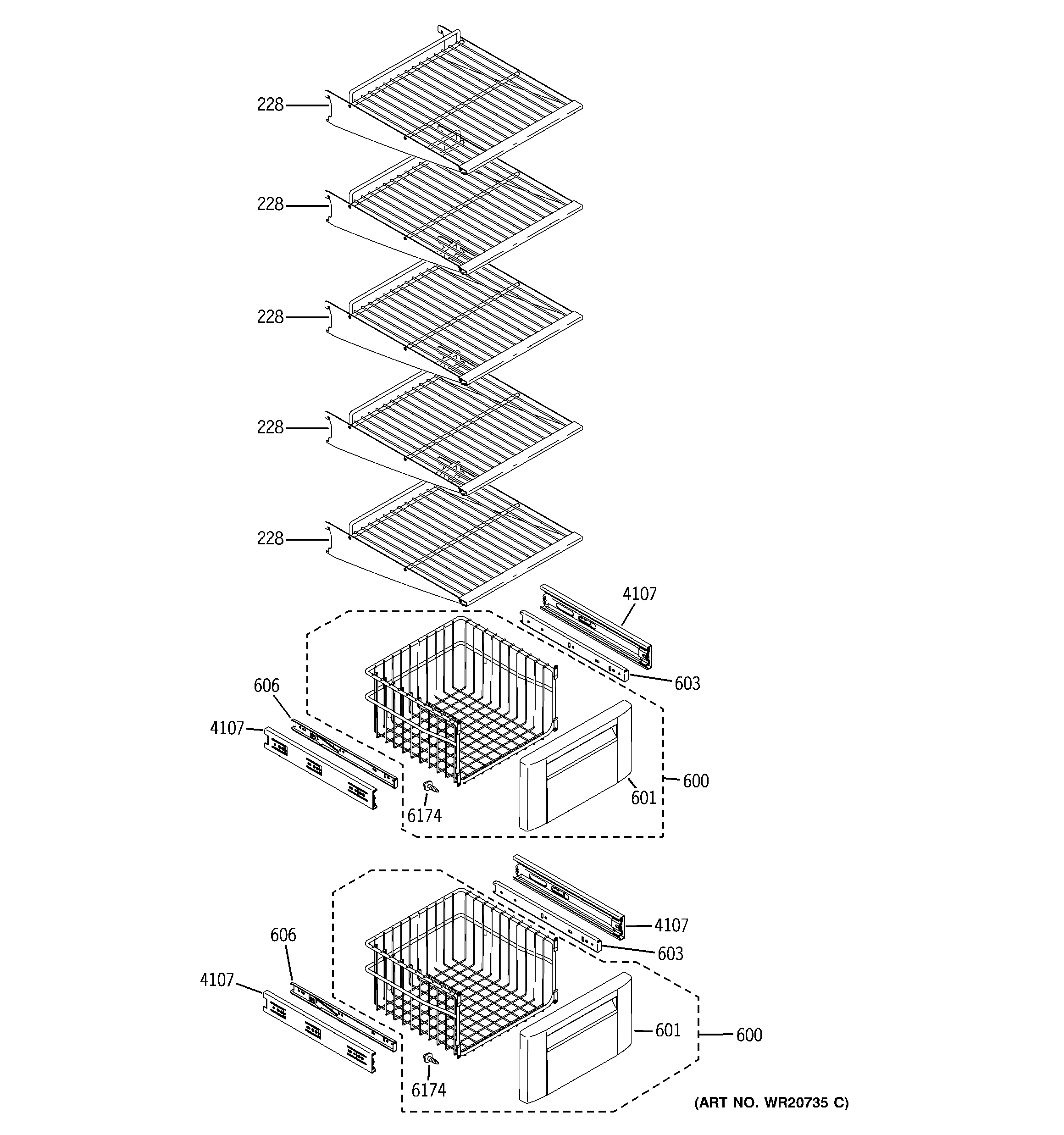

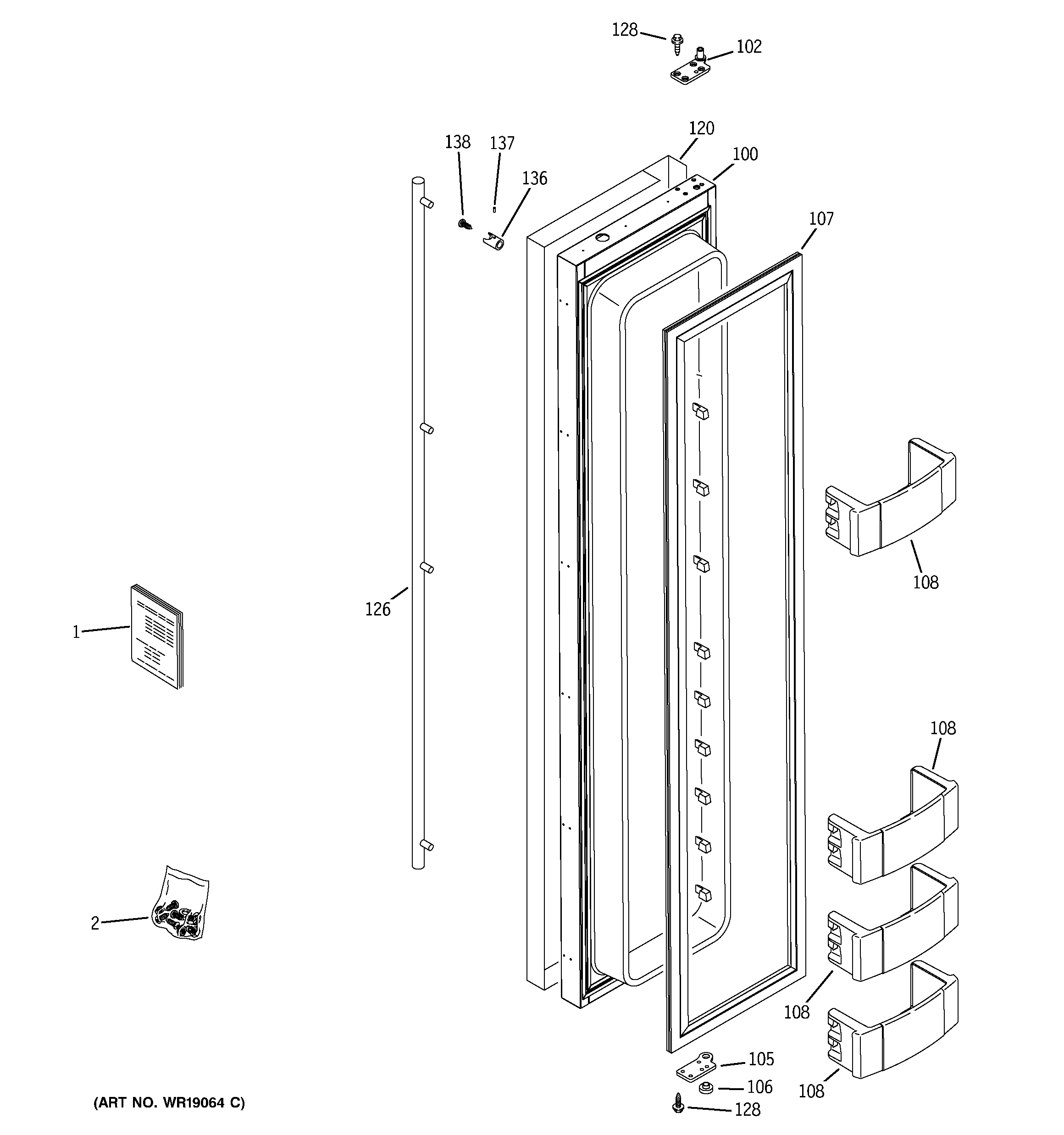

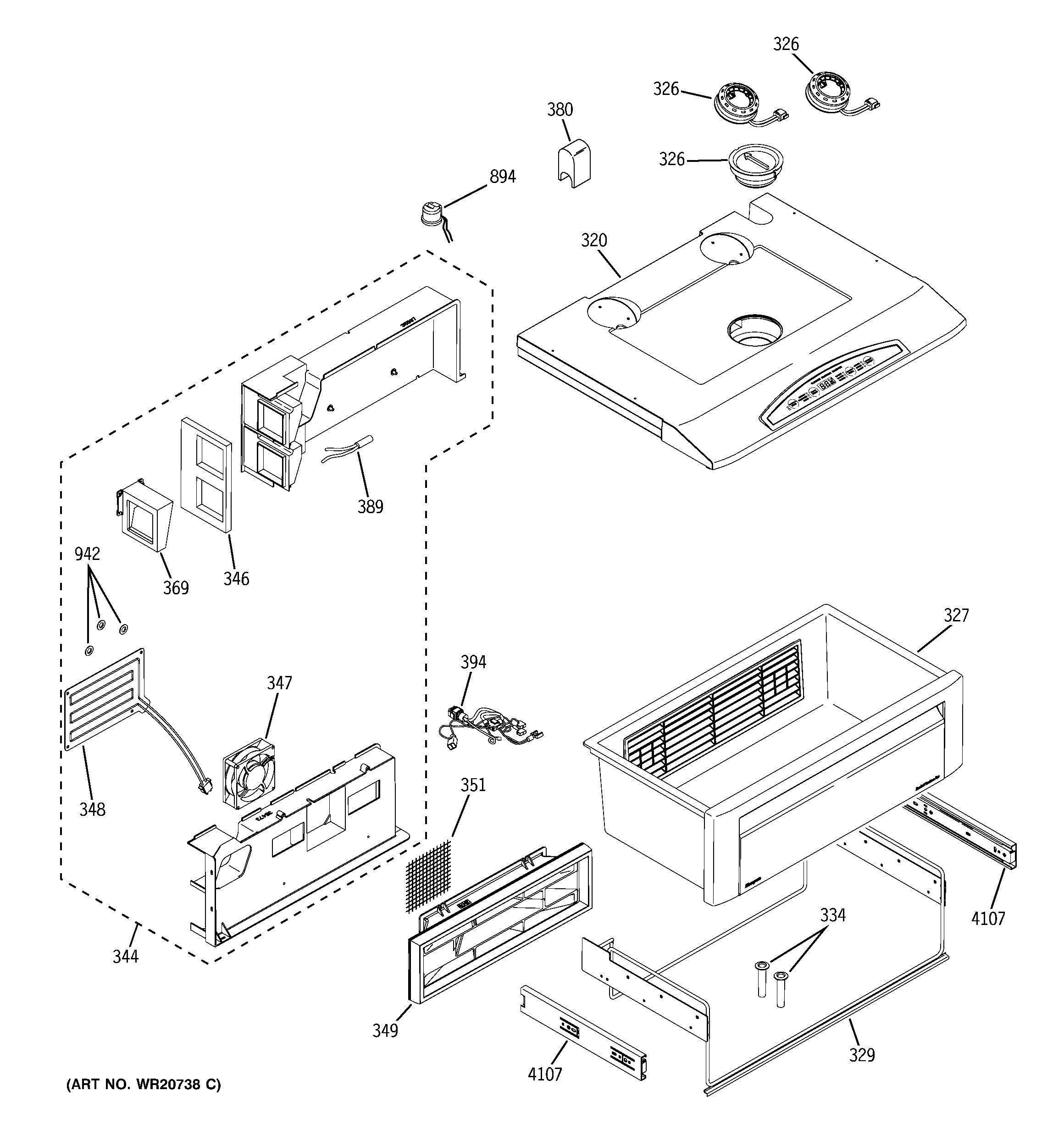

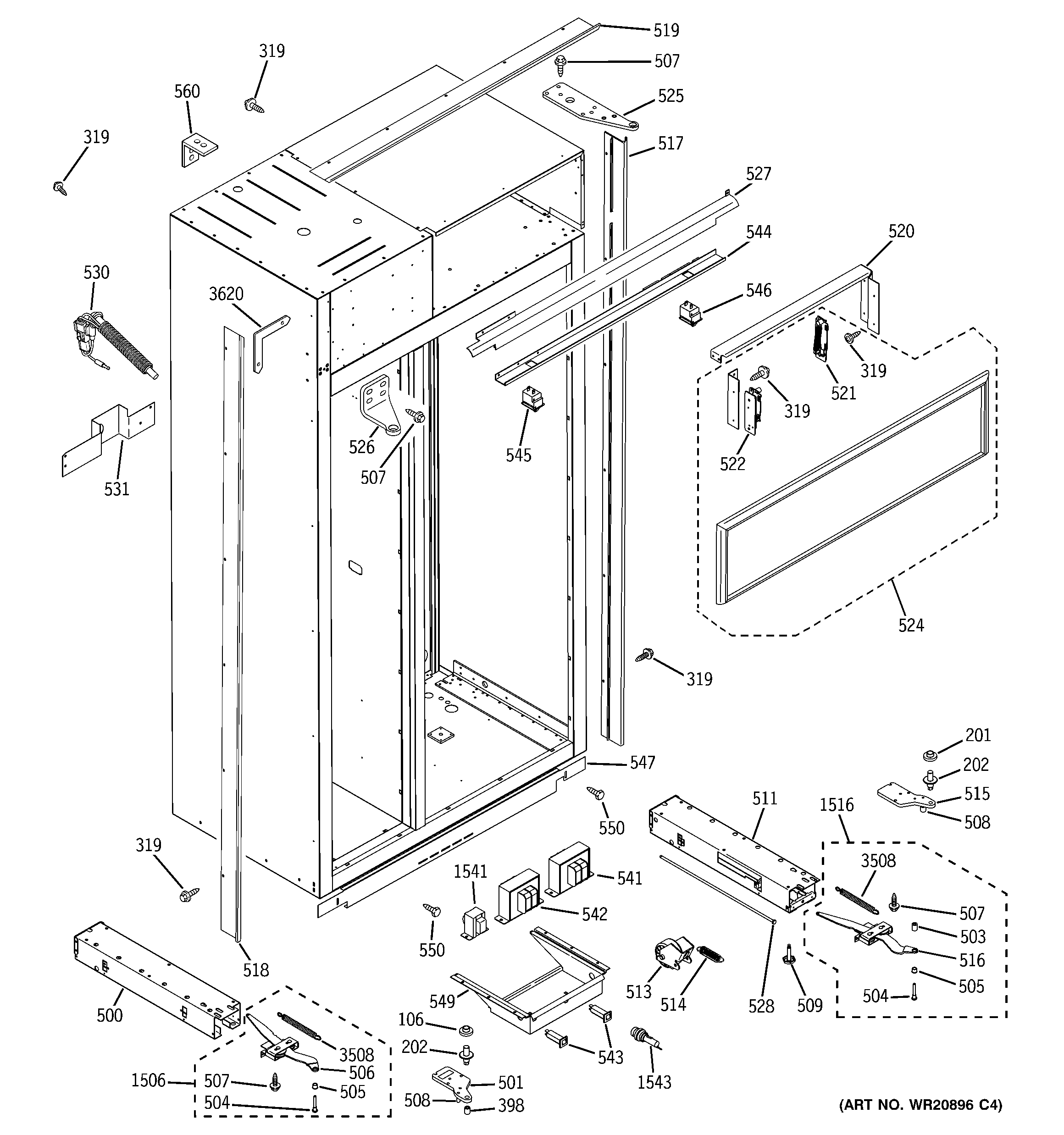

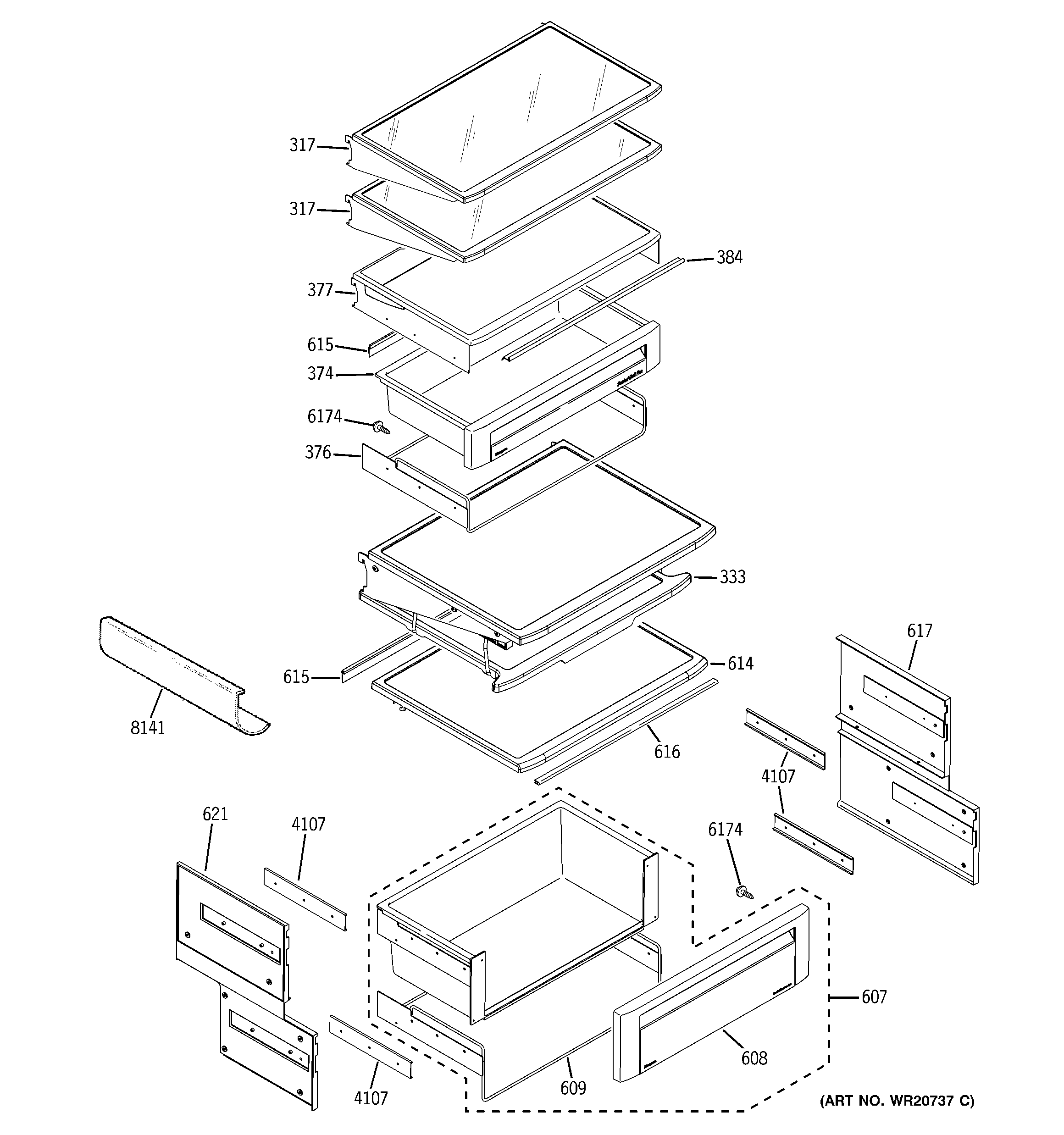

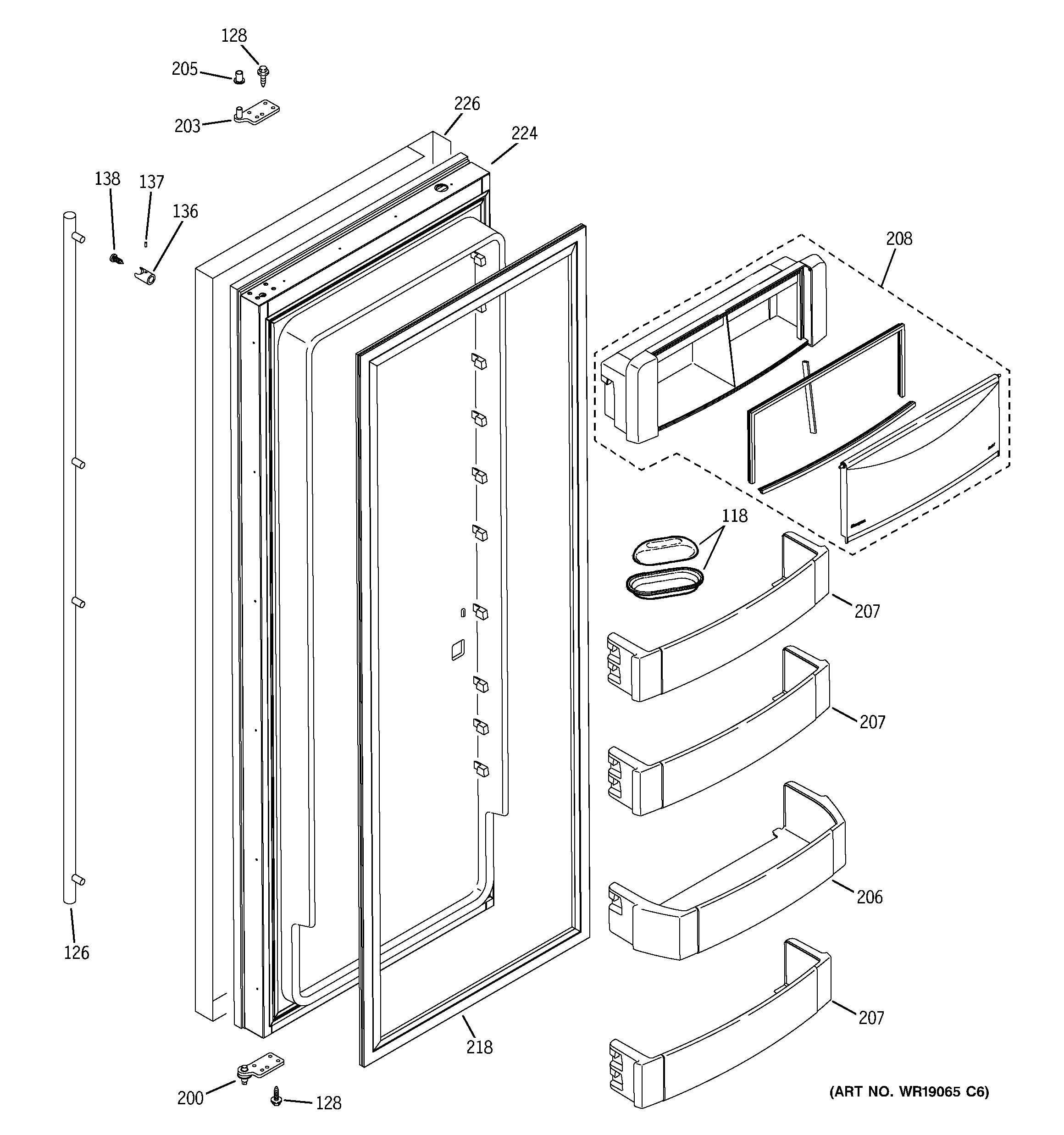

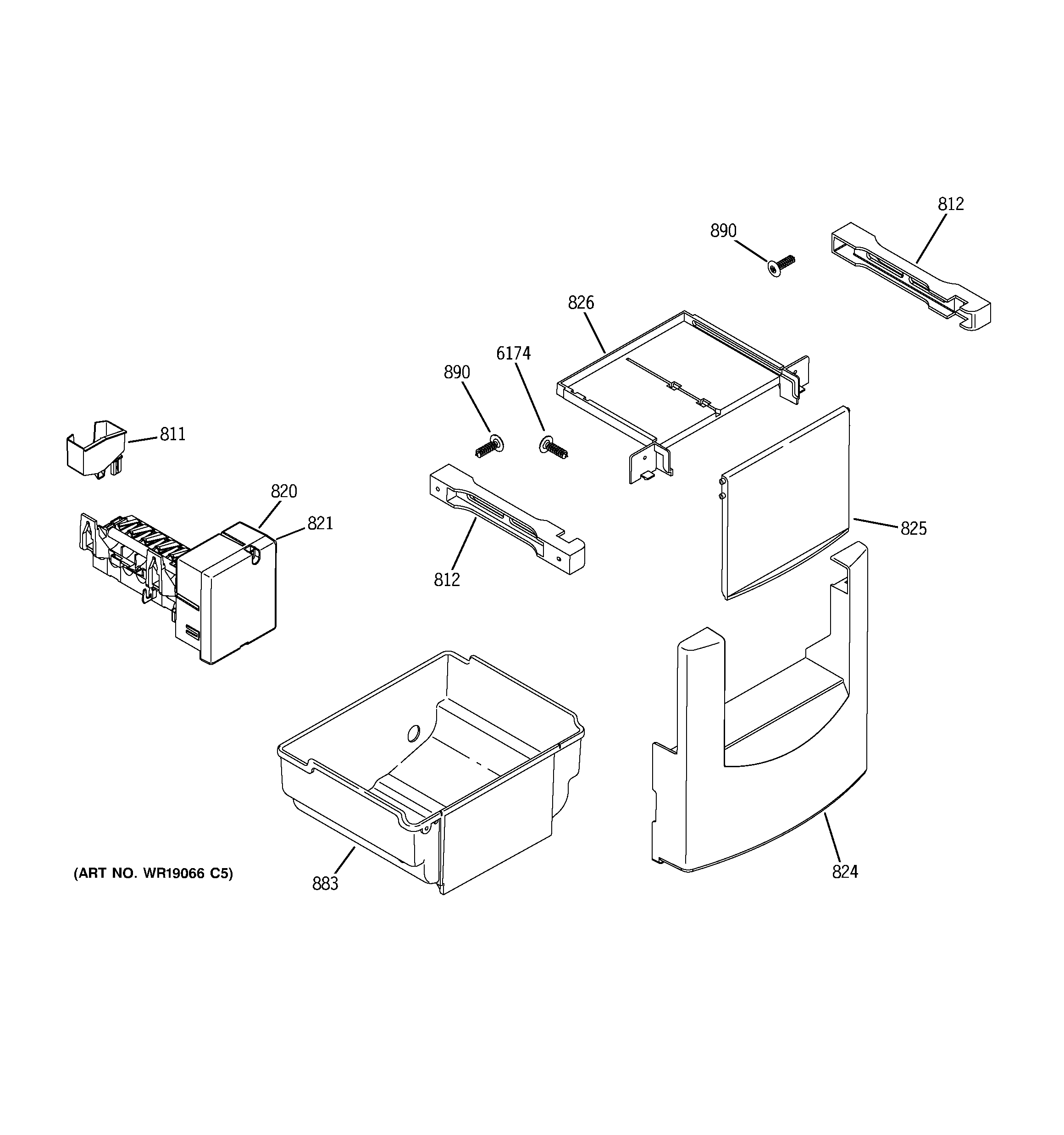

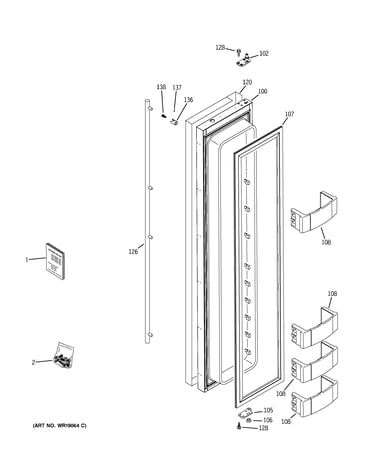

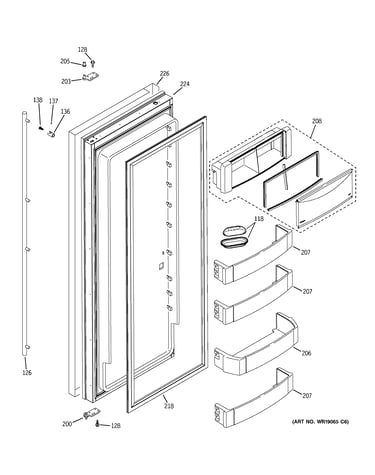

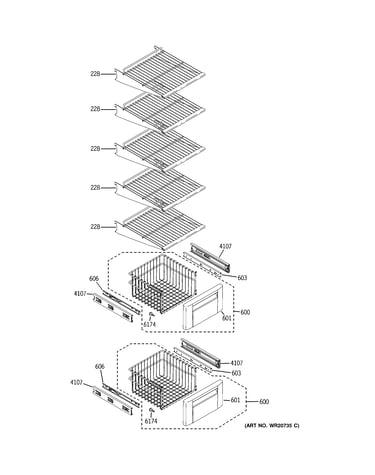

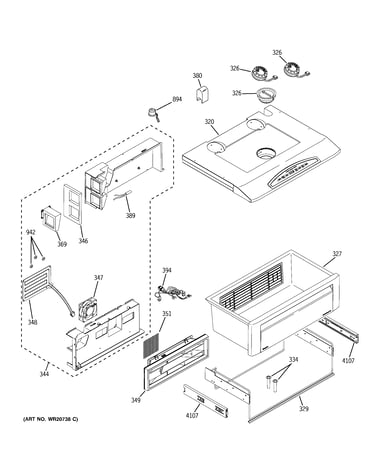

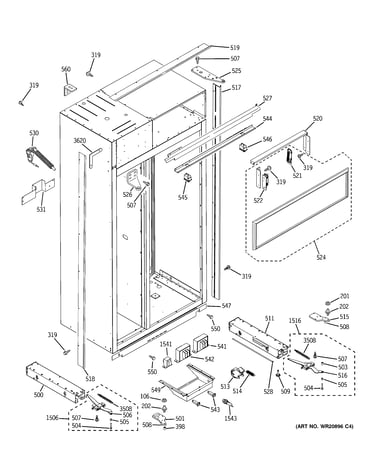

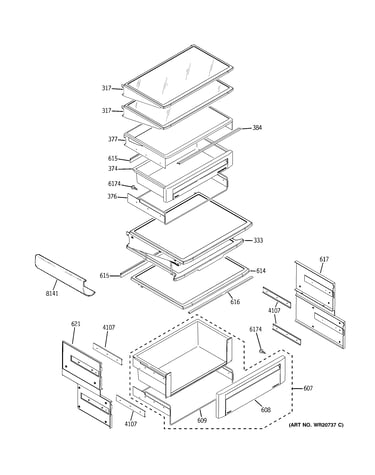

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#303

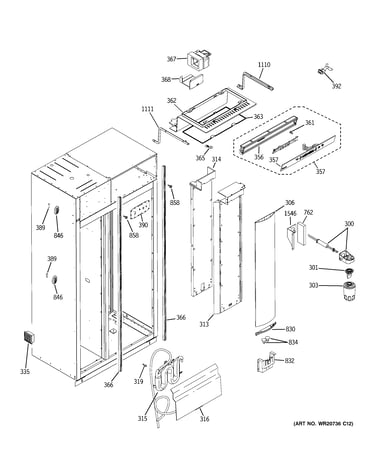

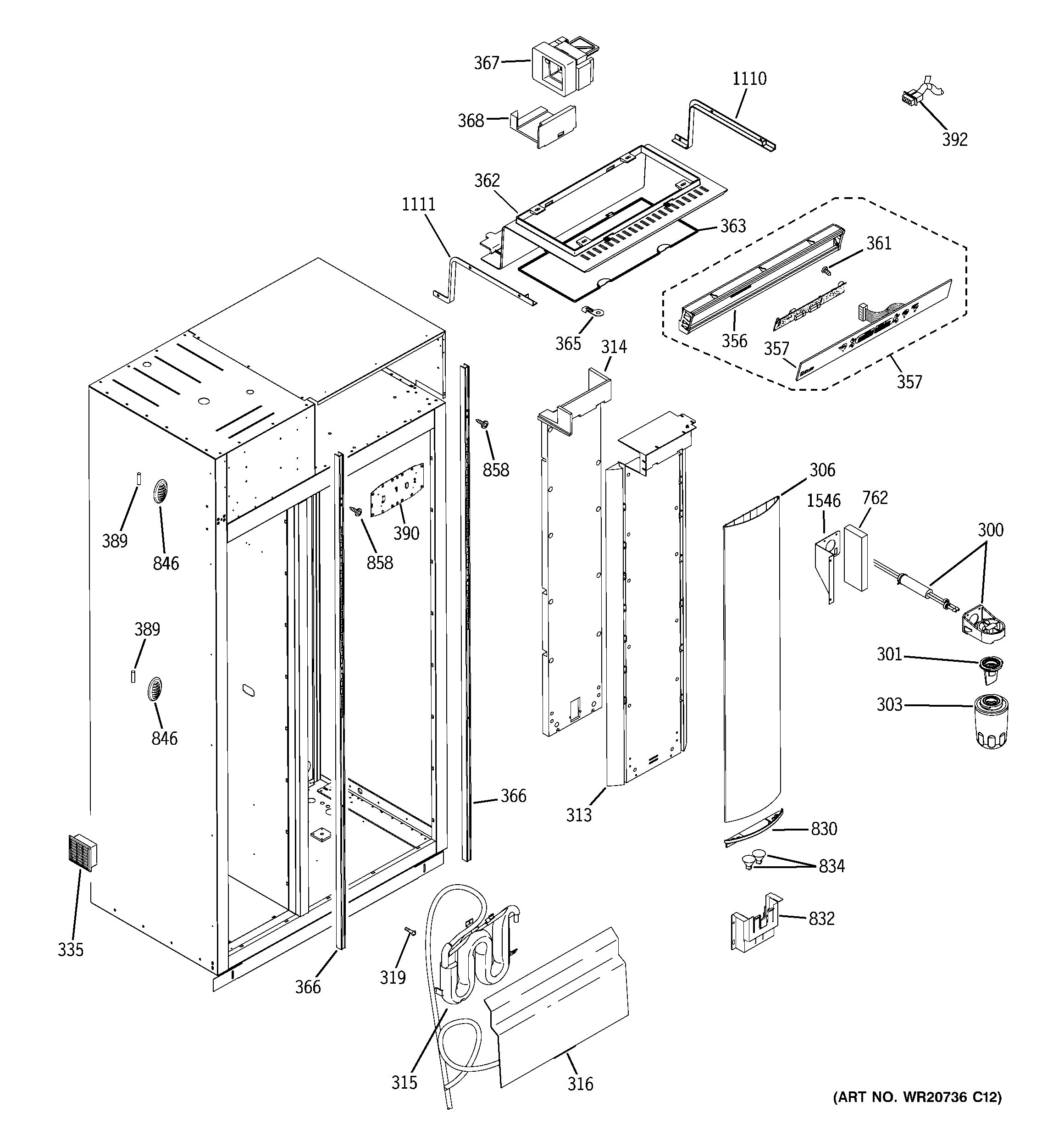

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Temperature Sensor WR55X10030
Temperature sensor

Part #WR55X10030

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10030. Substitute parts can look different from the original.
BEST SELLER
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Dryer Filter WR86X0096
#706

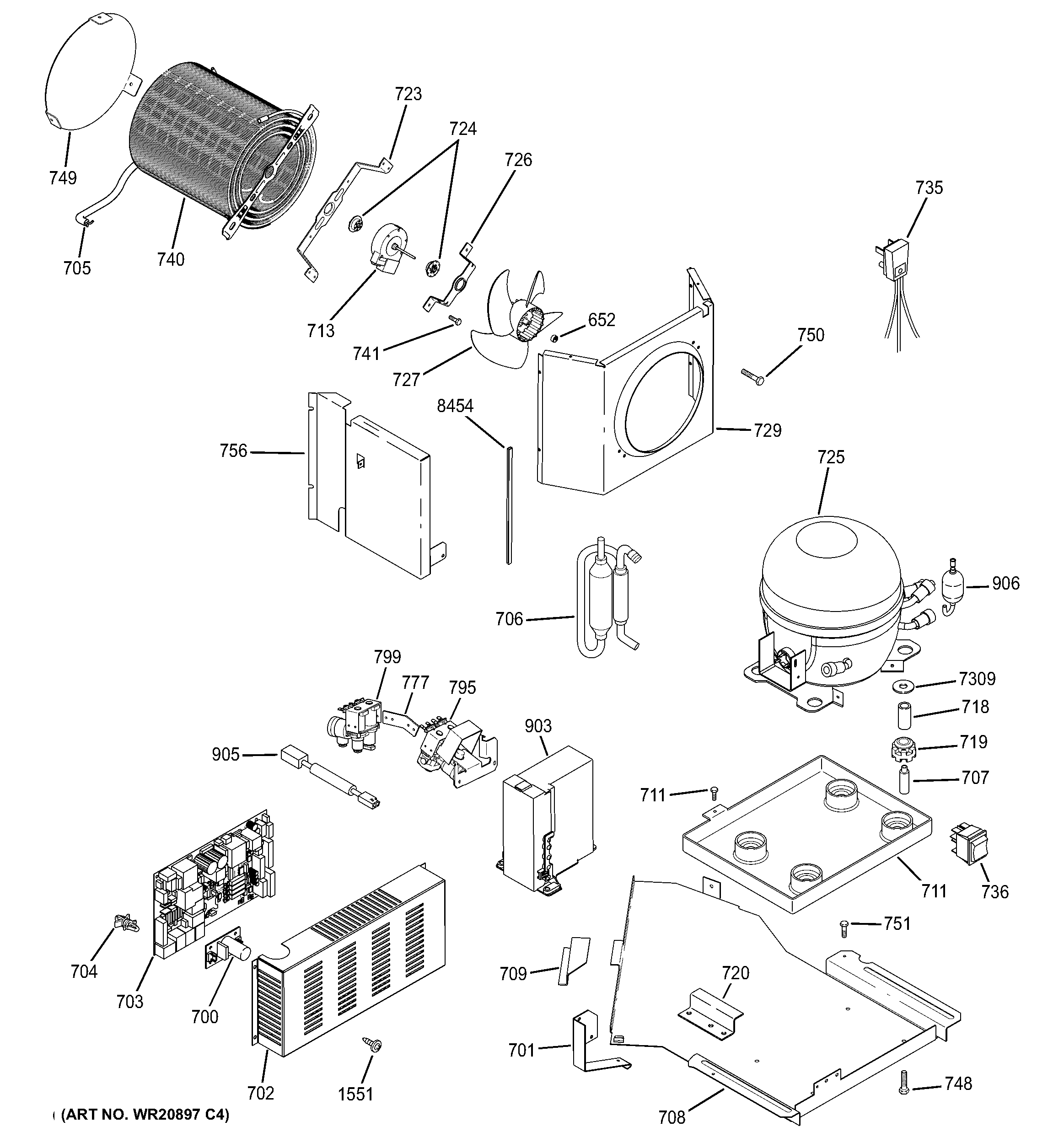

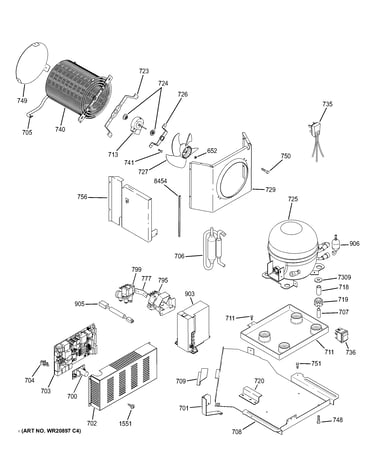

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Compressor V WR87X10123
#725

Sealed system & mother board diagram

Compressor v

Part #WR87X10123

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10123. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Condenser Motor WR60X10216
#713

Sealed system & mother board diagram

Condenser motor

Part #WR60X10216

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
BEST SELLER
$58.76 |
9% OFF Phone Price : $64.76
In Stock
Refrigerator Water Inlet Valve Assembly (replaces Wr57x10092) WR57X10084
#795

Sealed system & mother board diagram

Refrigerator water inlet valve assembly (replaces wr57x10092)

Part #WR57X10084

BEST SELLER
$100.45 |
11% OFF Phone Price : $112.45
In Stock
Refrigerator Water Filter Bypass WR02X11705
#301

Fresh food section diagram

Refrigerator water filter bypass

Part #WR02X11705

Replaced by #WR17X22070

?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Condenser Fan Blade WR60X10206
#727

Sealed system & mother board diagram

Refrigerator condenser fan blade

Part #WR60X10206

Replaced by #WR60X24484

?
Manufacturer substitution
This part replaces WR60X10206. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
Refrigerator Air Damper Control Kit (replaces Wr02x11205, Wr02x11241, Wr02x11246, Wr09x10084, Wr60x10085, Wr60x10111, Wr60x10112) WR49X10107
#368

Fresh food section diagram

Refrigerator air damper control kit (replaces wr02x11205, wr02x11241, wr02x11246, wr09x10084, wr60x10085, wr60x10111, wr60x10112)

Part #WR49X10107

BEST SELLER
$241.97 |
10% OFF Was : $268.85
In Stock
Refrigerator Evaporator Fan Blade WR60X10050
#859

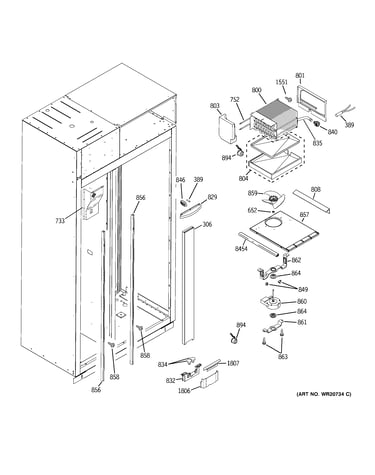

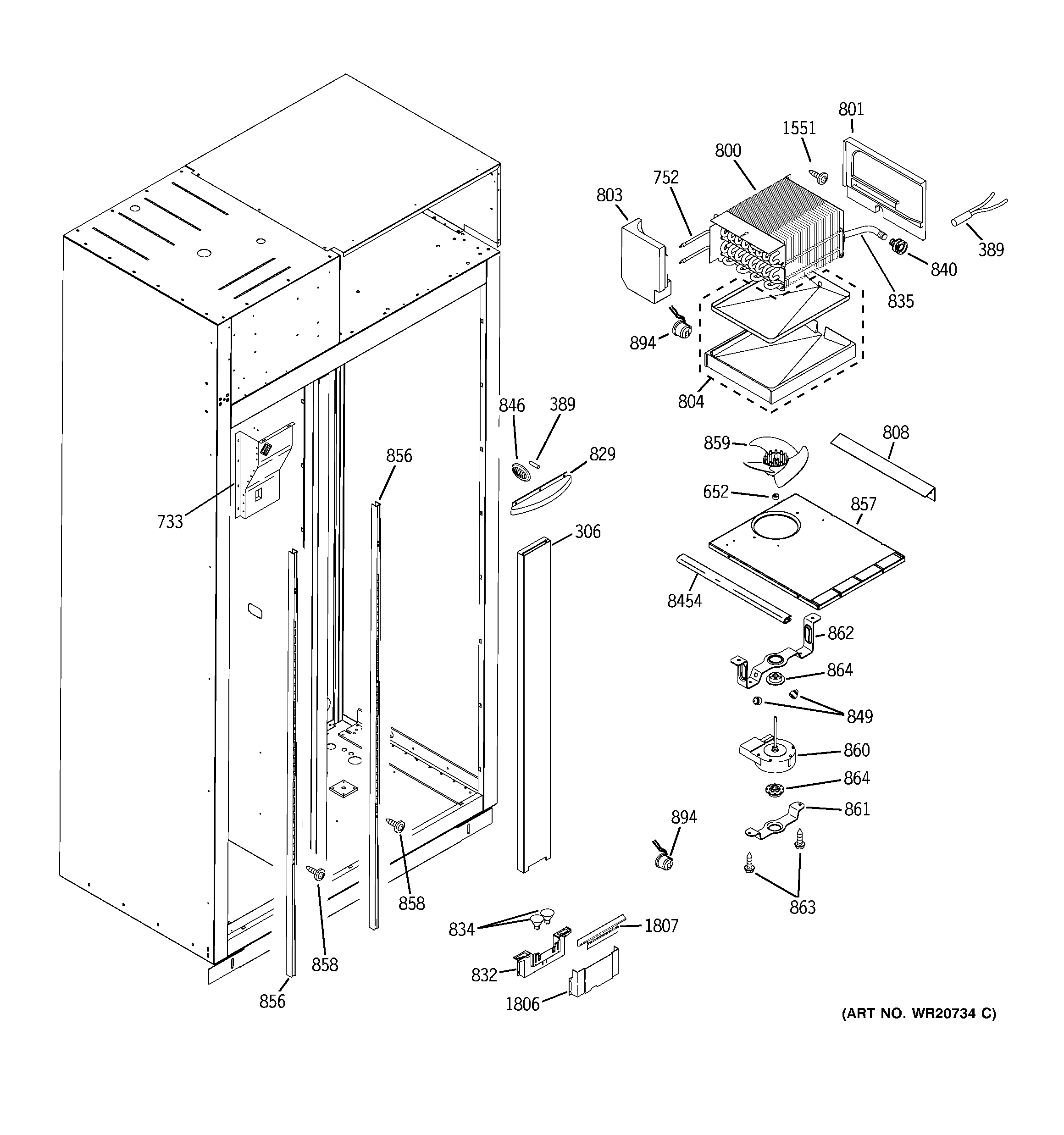

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10050

Replaced by #WR60X41627

?
Manufacturer substitution
This part replaces WR60X10050. Substitute parts can look different from the original.
BEST SELLER
$120.00
In Stock
