Troybilt
Rear-Tine Tiller

Model # 29919 Official Troybilt pto tiller

Here are the diagrams and repair parts for Official Troybilt 29919 pto tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

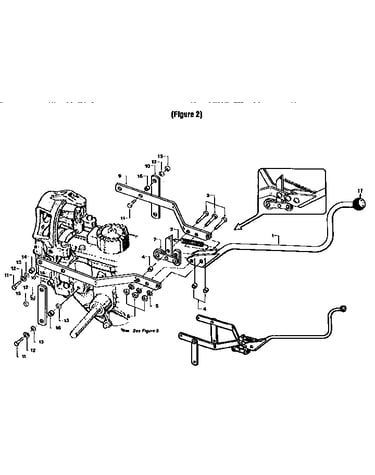

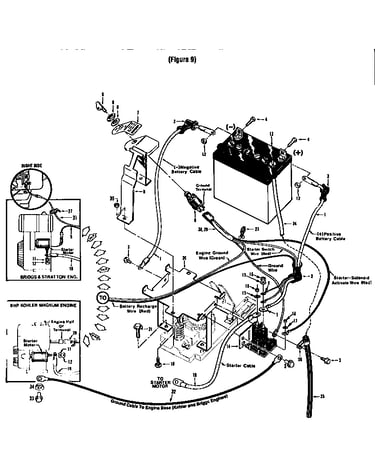

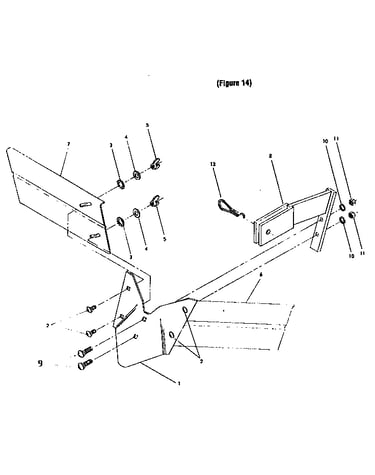

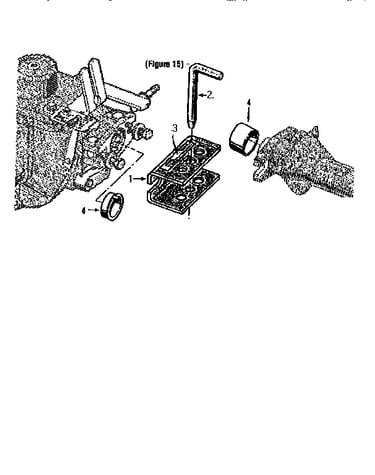

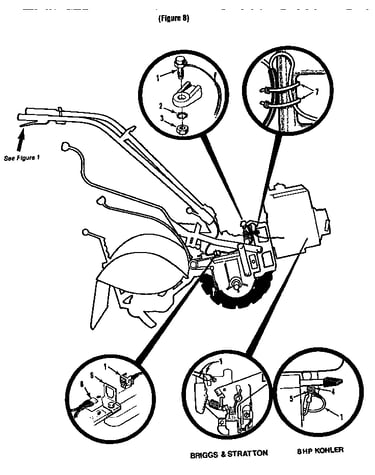

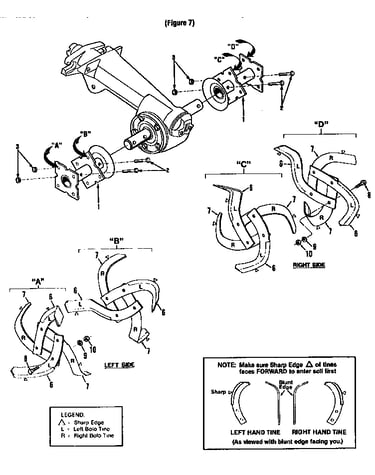

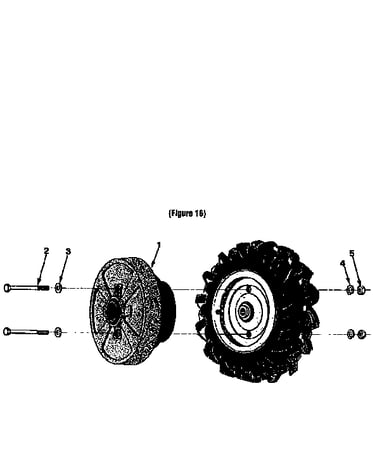

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 322 parts  |
Hex Head Bolt 90008
Hex head bolt

Part #90008

Replaced by #710-0376

?
Manufacturer substitution
This part replaces 90008. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Lock Washer 9912
Lock washer

Part #9912

The manufacturer no longer makes this part, and there's no substitute part

Bolt Hx Here 9758
#5

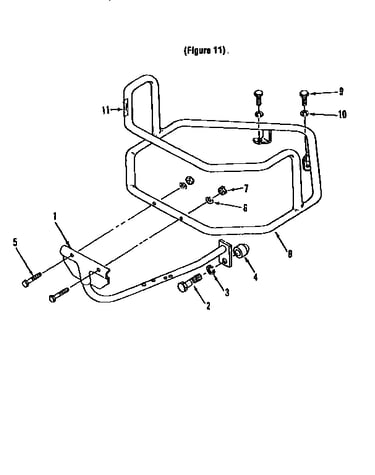

Bumper attachment diagram

Bolt hx here

Part #9758

Replaced by #710-0805A

?
Manufacturer substitution
This part replaces 9758. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
Adjustment Stud 1881
#4

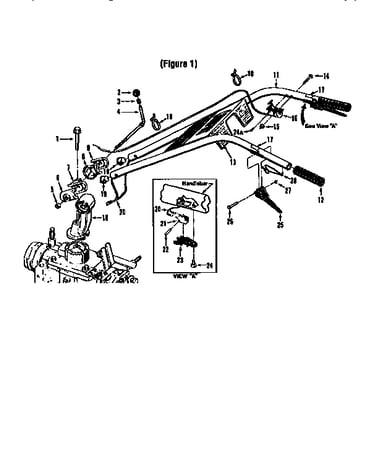

Handlebar assembly diagram

Adjustment stud

Part #1881

Replaced by #GW-1881

?
Manufacturer substitution
This part replaces 1881. Substitute parts can look different from the original.
$78.09
In Stock
Plug 9147
#31

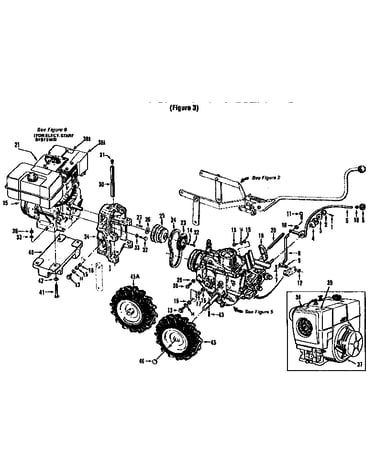

Belt system,engine,wheels diagram

Plug

Part #9147

Replaced by #GW-9147

?
Manufacturer substitution
This part replaces 9147. Substitute parts can look different from the original.
$12.97
In Stock
Bearing Race 1714
Bearing race

Part #1714

Replaced by #941-0107

?
Manufacturer substitution
This part replaces 1714. Substitute parts can look different from the original.
$59.80
In Stock
Knob 9463
#2

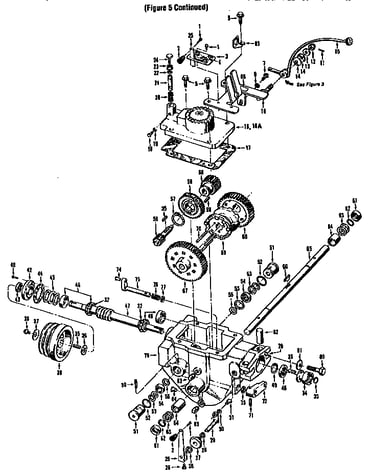

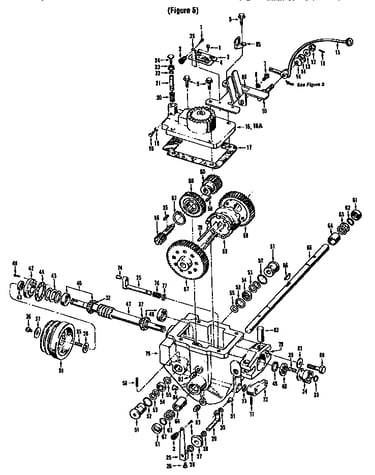

Power unit transmission asm diagram

Knob

Part #9463

Replaced by #GW-9463

?
Manufacturer substitution
This part replaces 9463. Substitute parts can look different from the original.
$18.97
In Stock
Hex Lock Nut 9804
#3

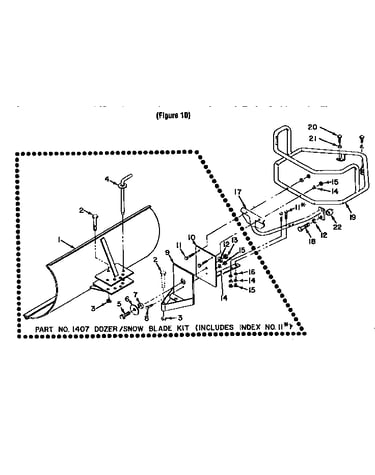

Dozer/show blade attachment diagram

Hex lock nut

Part #9804

Replaced by #912-0384

?
Manufacturer substitution
This part replaces 9804. Substitute parts can look different from the original.
$10.66 |
16% OFF Phone Price : $12.66
In Stock
Tiller Housing 1902000
#23

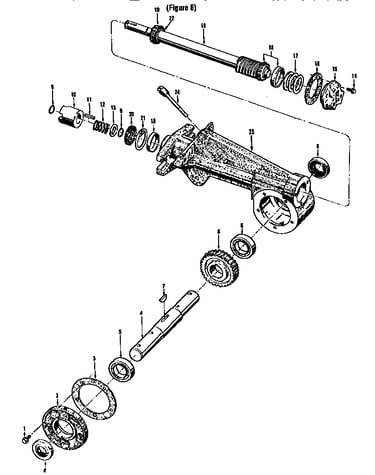

Tiller attachment transmission diagram

Tiller housing

Part #1902000

Replaced by #1902000

?
Manufacturer substitution
This part replaces 1902000. Substitute parts can look different from the original.
$333.77
In Stock
Depth Bar 1117A
#5

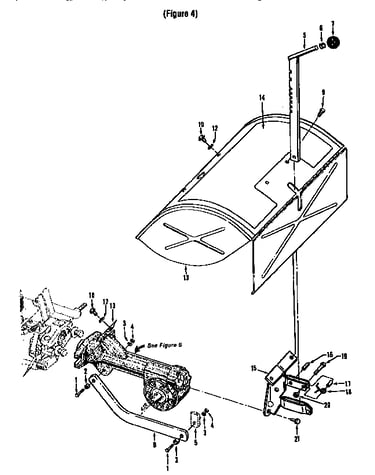

Depth regulator & tine hood asm diagram

Depth bar

Part #1117A

Replaced by #1900864

?
Manufacturer substitution
This part replaces 1117A. Substitute parts can look different from the original.
$108.40
In Stock
