Model # 987799931 Official Craftsman chipper/shredder

Here are the diagrams and repair parts for Official Craftsman 987799931 chipper/shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
V-belt 1762636
#55

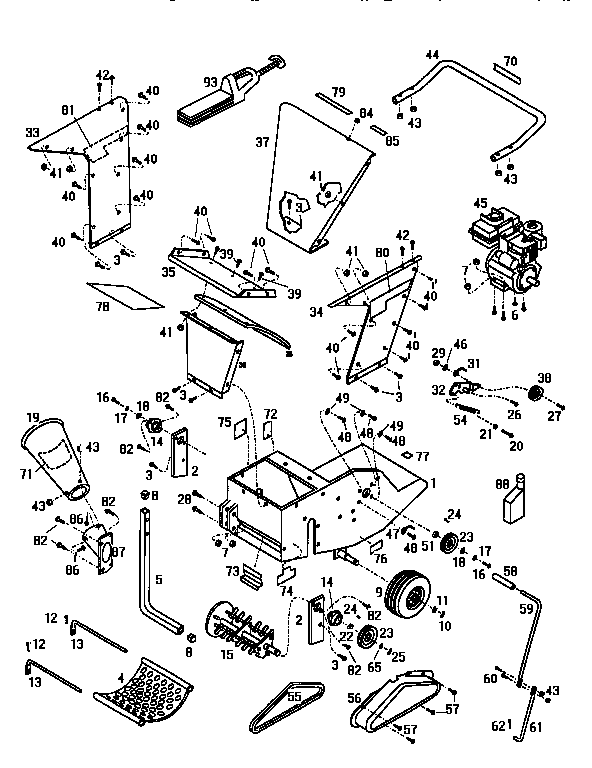

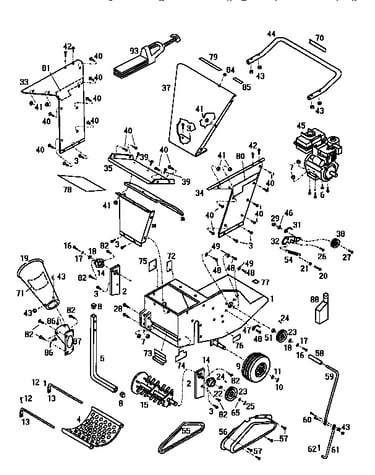

Replacement parts diagram

V-belt

Part #1762636

Replaced by #1762636MA

?
Manufacturer substitution
This part replaces 1762636. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$32.89 |
13% OFF Phone Price : $37.89
In Stock
Lock Washer 1100242
#49

Replacement parts diagram

Lock washer

Part #1100242

The manufacturer no longer makes this part, and there's no substitute part

Pulley 1710567
#30

Replacement parts diagram

Pulley

Part #1710567

Replaced by #756-04241

?
Manufacturer substitution
This part replaces 1710567. Substitute parts can look different from the original.
$44.13
In Stock
Blade 1756904
#15

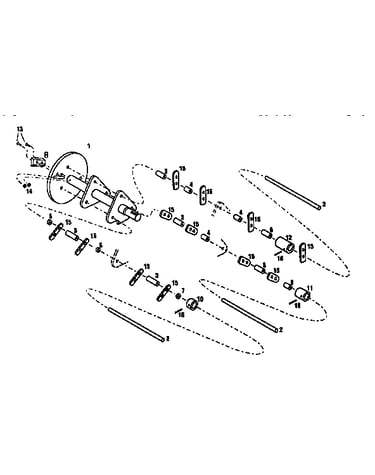

Cylinder assembly diagram

Blade

Part #1756904

Replaced by #1915700ZMA

?
Manufacturer substitution
This part replaces 1756904. Substitute parts can look different from the original.
This item is not returnable
$13.13 |
13% OFF Phone Price : $15.13
In Stock
Spacer 1762613
#4

Cylinder assembly diagram

Spacer

Part #1762613

Replaced by #1762613MA

?
Manufacturer substitution
This part replaces 1762613. Substitute parts can look different from the original.
This item is not returnable
$17.31
In Stock
Goggles 5003
Goggles

Part #5003

Replaced by #723-0400

?
Manufacturer substitution
This part replaces 5003. Substitute parts can look different from the original.
$33.16
In Stock
Grip 1715685
#58

Replacement parts diagram

Grip

Part #1715685

Replaced by #720-0269

?
Manufacturer substitution
This part replaces 1715685. Substitute parts can look different from the original.
This item is not returnable
$7.83
In Stock
Screw 1100004
#50

Replacement parts diagram

Screw

Part #1100004

Replaced by #710-0157

?
Manufacturer substitution
This part replaces 1100004. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
Weld Cylinder 1762607
#1

Cylinder assembly diagram

Weld cylinder

Part #1762607

Replaced by #1762607MA

?
Manufacturer substitution
This part replaces 1762607. Substitute parts can look different from the original.
$491.91 |
$10.00 OFF Phone Price : $501.91
In Stock
Washer 1107383
#46

Replacement parts diagram

Washer

Part #1107383

The manufacturer no longer makes this part, and there's no substitute part
