Model #RJGR4872A Jade gas freestanding range

Here are the repair parts and diagrams for your Jade RJGR4872A gas freestanding range.

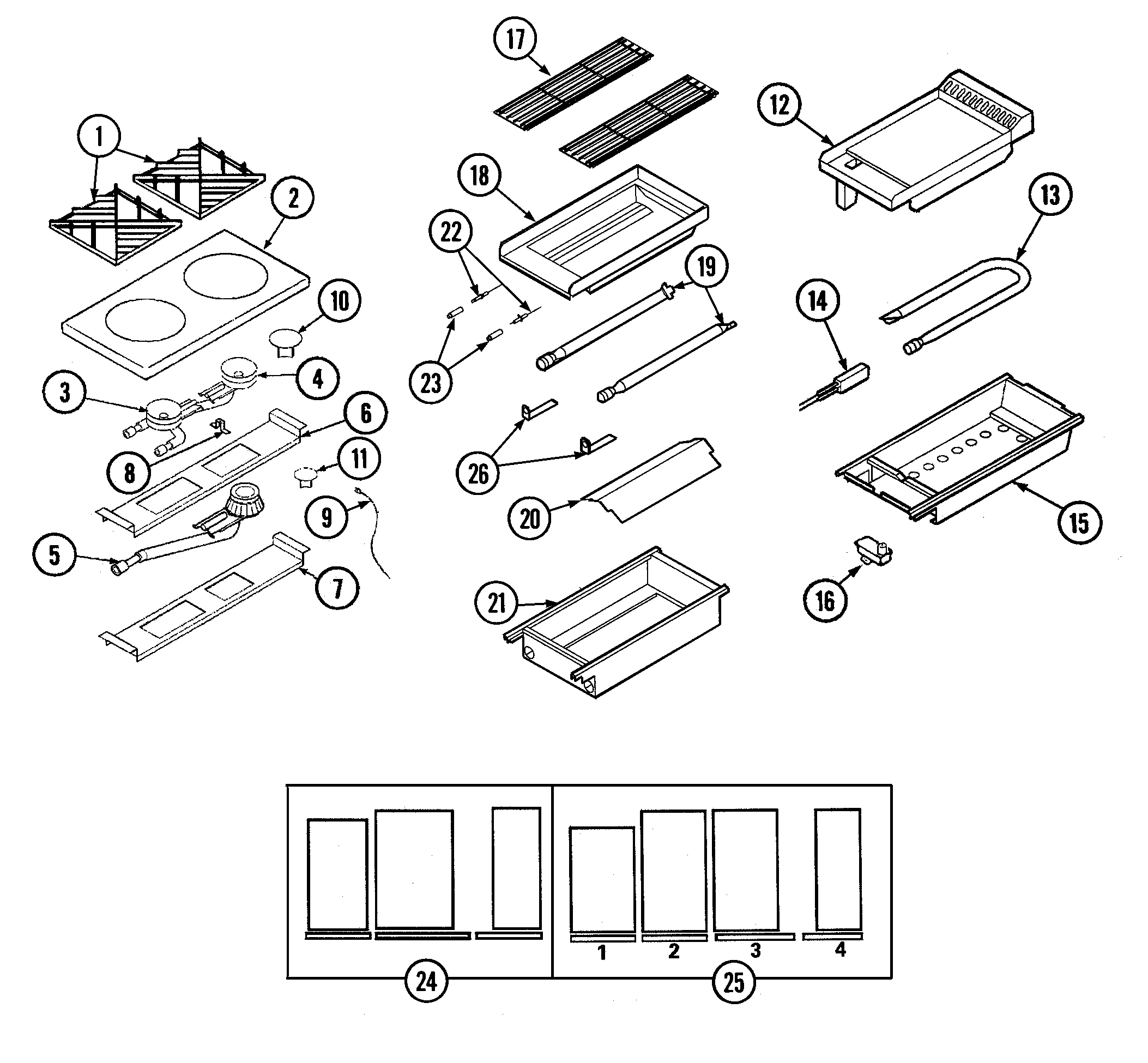

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 165 parts

Tubing Kit

#14

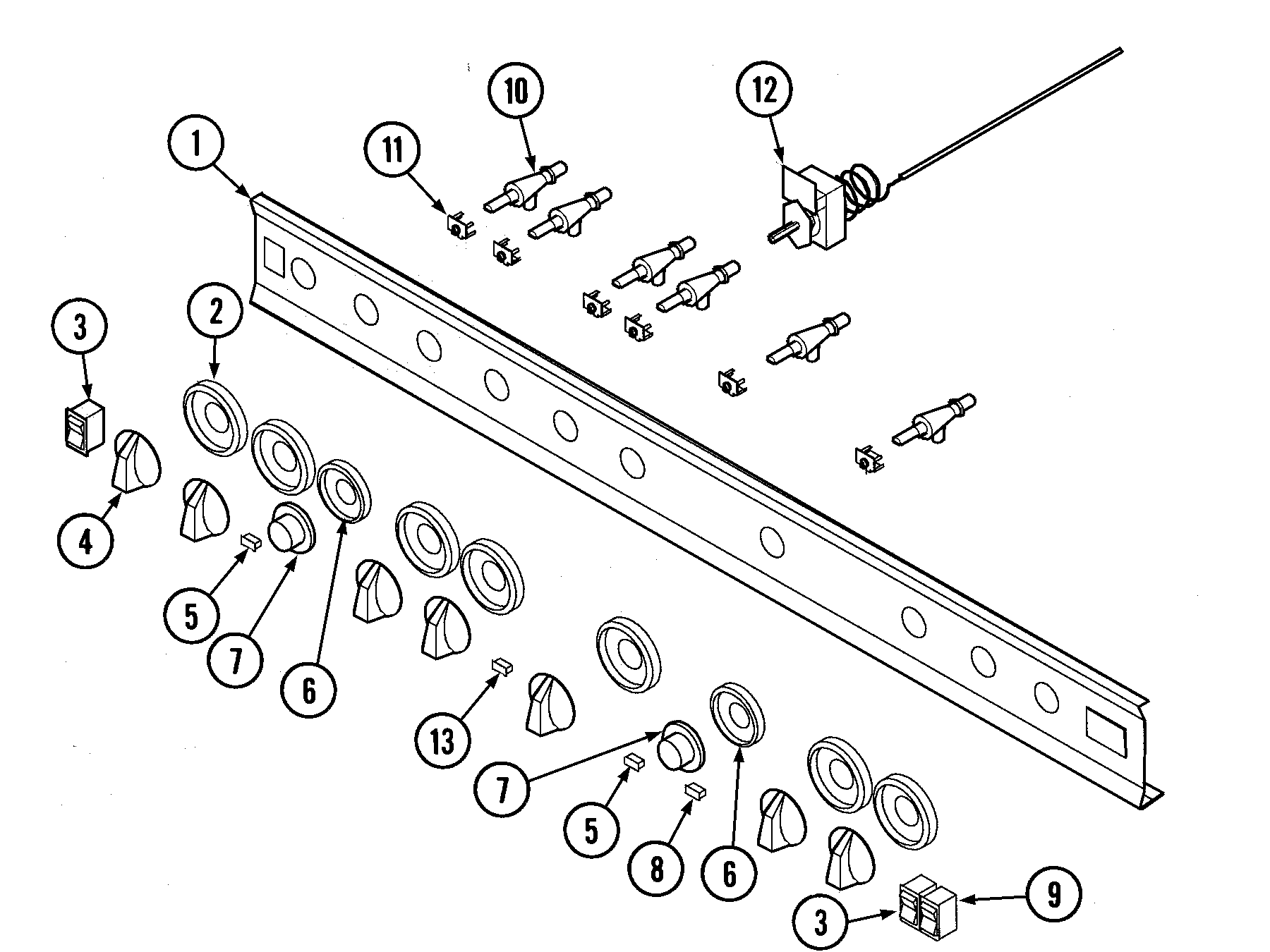

Manifold panel/gas controls Diagram

Tubing kit

Part #70001881

$134.05

In Stock

Screw, Hex H

#23B

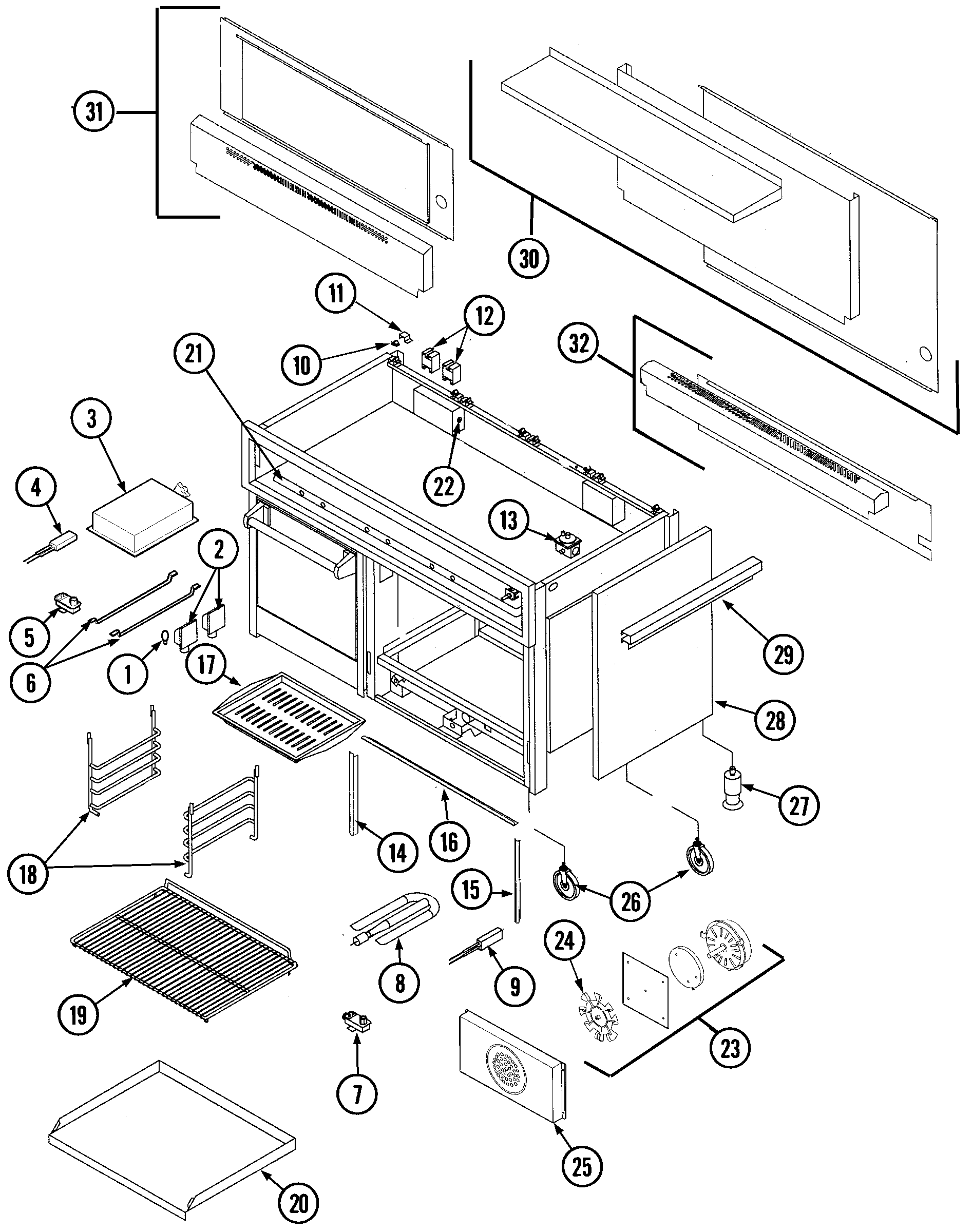

Oven body/gas controls Diagram

Screw, hex h

Part #70001834
This item is not returnable

$4.62

In Stock

Range Broil Pan

#17

Oven body/gas controls Diagram

Range broil pan

Part #4396923
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  70001090
This part replaces 70001090

$25.74

In Stock

Manifold Pipe

#21A

Oven body/gas controls Diagram

Manifold pipe

Part #70001874

The manufacturer no longer makes this part, and there's no substitute part

Infinite Orifice

#3D

Oven body/gas controls Diagram

Infinite orifice

Part #70001903

The manufacturer no longer makes this part, and there's no substitute part

Oven Lamp

#2

Oven body/gas controls Diagram

Oven lamp

Part #70001906

The manufacturer no longer makes this part, and there's no substitute part

Screw (1/4 -

#23A

Oven body/gas controls Diagram

Screw (1/4 -

Part #70001800

The manufacturer no longer makes this part, and there's no substitute part

Rocker Arm

#12

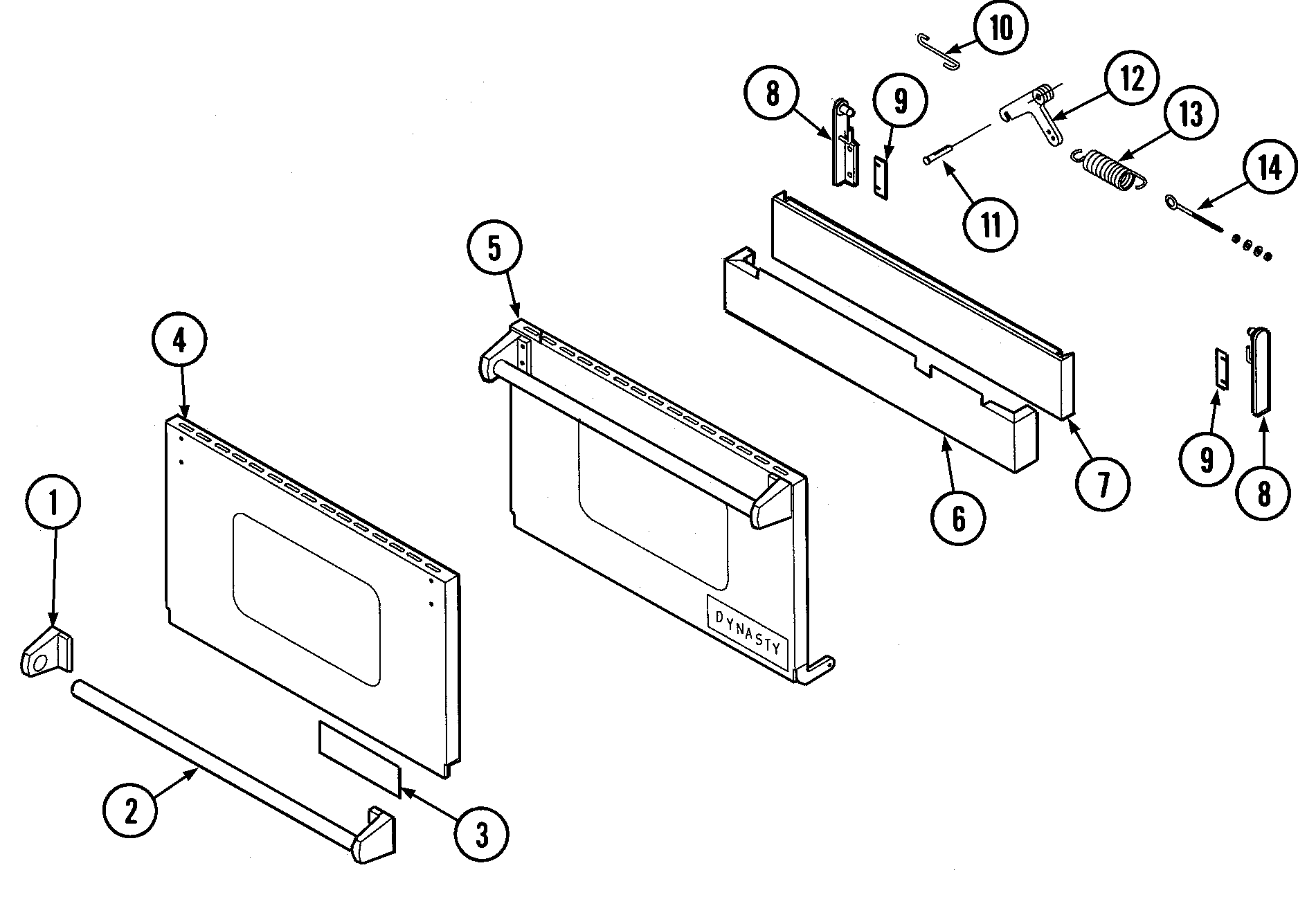

Door Diagram

Rocker arm

Part #70001001

The manufacturer no longer makes this part, and there's no substitute part

Eye Bolt

#14

Door Diagram

Eye bolt

Part #70001029

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve

#10B

Manifold panel/gas controls Diagram

Burner valve

Part #70001051

The manufacturer no longer makes this part, and there's no substitute part
