Whirlpool RC8700EDB0 30" electric downdraft cooktop

Whirlpool RC8700EDB0 30" electric downdraft cooktop Parts

Here are the diagrams and repair parts for Whirlpool RC8700EDB0 30" electric downdraft cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RC8700EDB0 Cooktops

  • Whirlpool Range Radiant Surface Element, 6-in for Whirlpool RC8700EDB0 - Part W10823711

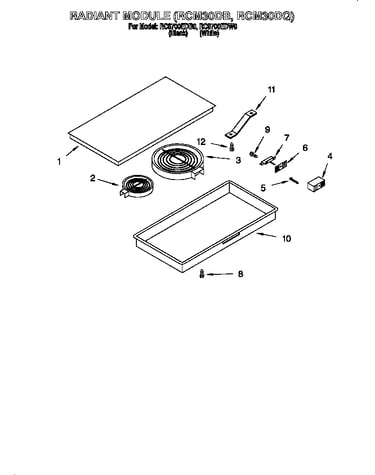

    Radiant module diagram

    Surface Element

    Part #4381790

    Replaced by #W10823711

    Info Icon
    Manufacturer substitution
    This part replaces 4381790. Substitute parts can look different from the original.
    In Stock
    $137.92
    8% OFF Phone Price : $149.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle Kit for Whirlpool RC8700EDB0 - Part 12001676

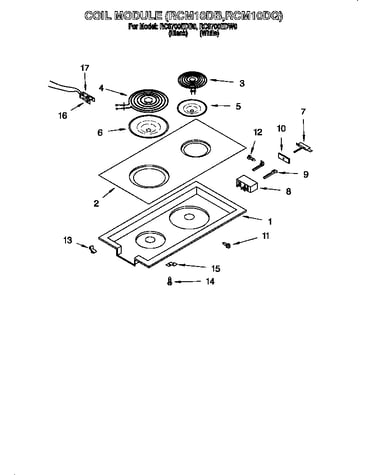

    Coil module diagram

    Clip

    Part #4381814

    Replaced by #12001676

    Info Icon
    Manufacturer substitution
    This part replaces 4381814. Substitute parts can look different from the original.
    In Stock
    $12.52
    14% OFF Phone Price : $14.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw for Whirlpool RC8700EDB0 - Part WP59002061

    Radiant module diagram

    Screw

    Part #4381710

    Replaced by #WP59002061

    Info Icon
    Manufacturer substitution
    This part replaces 4381710. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 8-in for Whirlpool RC8700EDB0 - Part WPY04100166

    Coil module diagram

    Surface Element

    Part #4381750

    Replaced by #WPY04100166

    Info Icon
    Manufacturer substitution
    This part replaces 4381750. Substitute parts can look different from the original.
    In Stock
    $37.64
    14% OFF Phone Price : $43.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Drip Pan for Whirlpool RC8700EDB0 - Part 715877

    Coil module diagram

    Drip Bowl

    Part #4381749

    Replaced by #715877

    Info Icon
    Manufacturer substitution
    This part replaces 4381749. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.86
    10% OFF Phone Price : $9.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Downdraft Vent Grease Filter for Whirlpool RC8700EDB0 - Part WPY706012

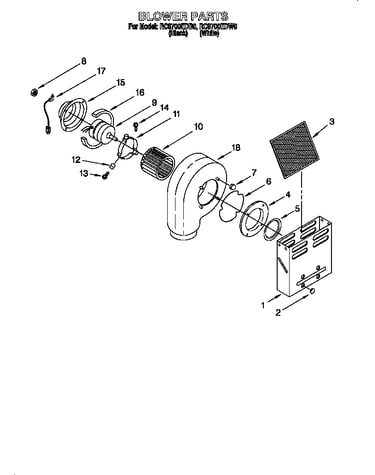

    Blower diagram

    Grease Filter

    Part #4381777

    Replaced by #WPY706012

    Info Icon
    Manufacturer substitution
    This part replaces 4381777. Substitute parts can look different from the original.
    In Stock
    $40.77
    13% OFF Phone Price : $46.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RC8700EDB0 - Part WP74004005

    Coil module diagram

    Screw

    Part #4381754

    Replaced by #WP74004005

    Info Icon
    Manufacturer substitution
    This part replaces 4381754. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item

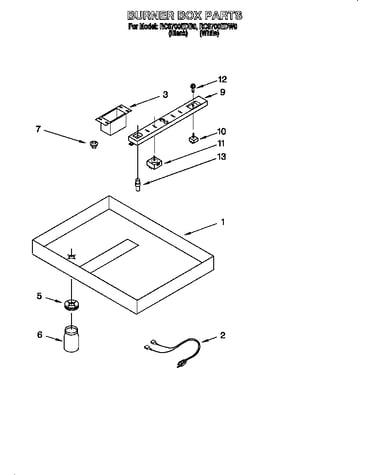

  • Range Terminal Block for Whirlpool RC8700EDB0 - Part WPY708730

    Terminal Block

    Part #4381793

    Replaced by #WPY708730

    Info Icon
    Manufacturer substitution
    This part replaces 4381793. Substitute parts can look different from the original.
    In Stock
    $37.26
    39% OFF Was : $61.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Drip Pan for Whirlpool RC8700EDB0 - Part 715878

    Coil module diagram

    Drip Bowl

    Part #4381751

    Replaced by #715878

    Info Icon
    Manufacturer substitution
    This part replaces 4381751. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.31
    10% OFF Phone Price : $10.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Knob for Whirlpool RC8700EDB0 - Part WP71002187

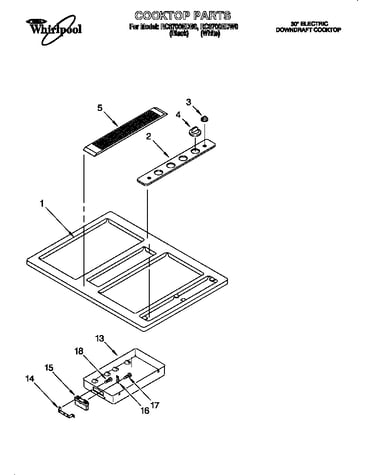

    Cooktop diagram

    Surface Knob

    Part #4381744

    Replaced by #WP71002187

    Info Icon
    Manufacturer substitution
    This part replaces 4381744. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $28.13
    18% OFF Phone Price : $34.13Info Icon
    Minus Item
    Qty
    Plus Item
