Kenmore Elite 25344503603 refrigerator Parts
Here are the diagrams and repair parts for Kenmore Elite 25344503603 refrigerator, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes

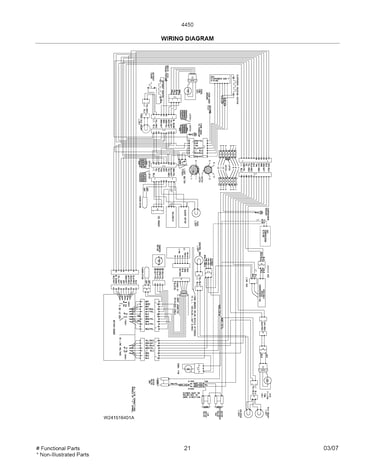

By Schematic
By Part

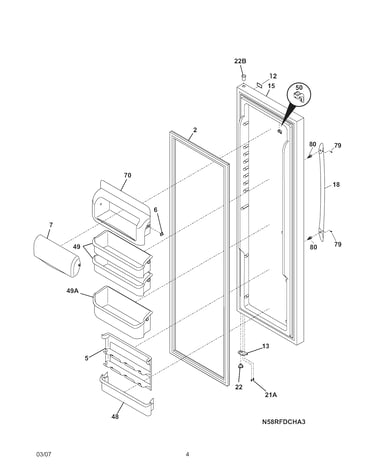

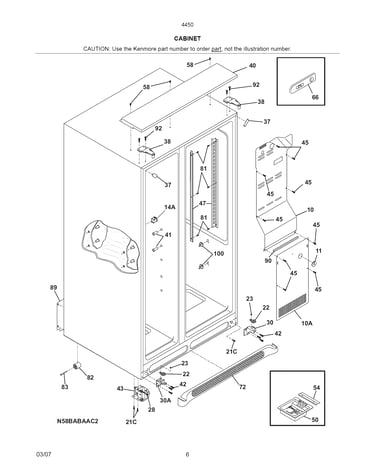

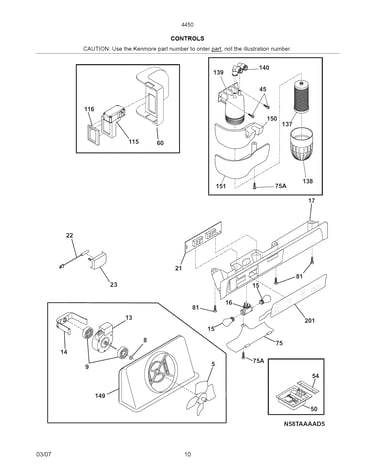

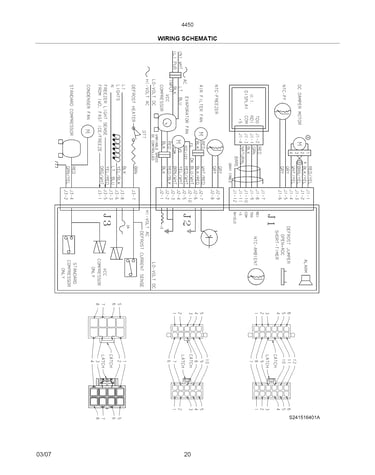

SELECT DIAGRAM
Browse Parts for 25344503603 Refrigerators

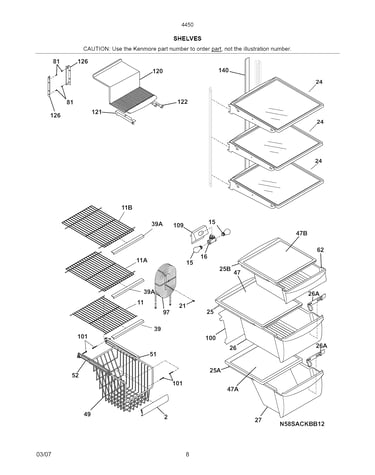

Shelves diagram
Refrigerator Crisper Pan
Part #240351047Replaced by #5304493879
Manufacturer substitutionThis part replaces 240351047. Substitute parts can look different from the original.In Stock$405.41
Qty
Clip Seal
Part #241532501Replaced by #241531701
Manufacturer substitutionThis part replaces 241532501. Substitute parts can look different from the original.In Stock$53.75QtySystem diagram

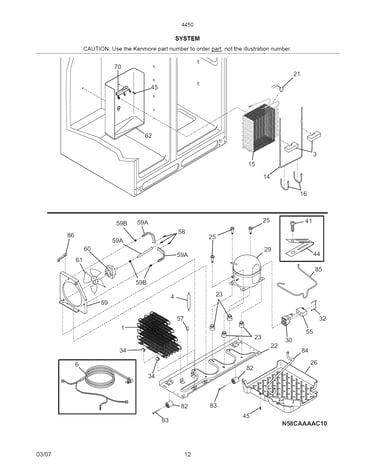

Refrigerator Condenser
Part #240333603Replaced by #5304526057
Manufacturer substitutionThis part replaces 240333603. Substitute parts can look different from the original.In Stock$184.30QtyIce & water dispenser diagram

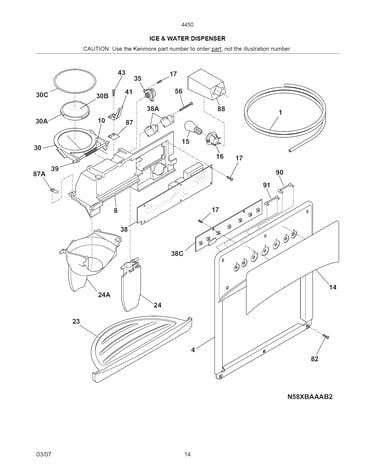

Refrigerator Dispenser Ice Chute Funnel And Lever
Part #241682105Replaced by #5304493025
Manufacturer substitutionThis part replaces 241682105. Substitute parts can look different from the original.In Stock$191.006% OFF Phone Price : $203.00
QtyIce maker diagram
Refrigerator Switch
Part #5304436612Replaced by #5304465210
Manufacturer substitutionThis part replaces 5304436612. Substitute parts can look different from the original.In Stock$182.976% OFF Phone Price : $194.97QtyIce container diagram
Refrigerator Ice Crusher Fixed Blade
Part #241684201Replaced by #241684203
Manufacturer substitutionThis part replaces 241684201. Substitute parts can look different from the original.In Stock$46.79QtySystem diagram
Motor
Part #241584301Replaced by #297279500
Manufacturer substitutionThis part replaces 241584301. Substitute parts can look different from the original.In Stock$88.6615% OFF Was : $104.74QtyIce container diagram

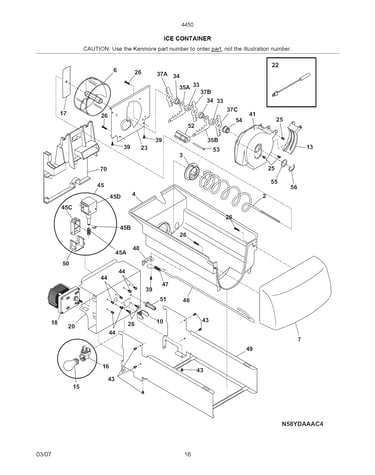

Refrigerator Ice Crusher Spacer
Part #241684801Replaced by #241684802

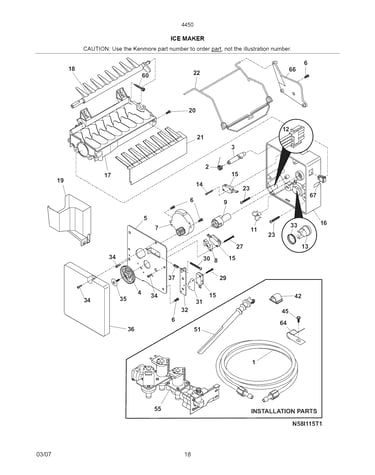

Manufacturer substitutionThis part replaces 241684801. Substitute parts can look different from the original.In Stock$36.88QtyIce maker diagram
Spring-timin
Part #5304408583Replaced by #5304469401
Manufacturer substitutionThis part replaces 5304408583. Substitute parts can look different from the original.In Stock$34.74QtyIce maker diagram
Refrigerator Water Inlet Valve Assembly
Part #240531101Replaced by #242252702
Manufacturer substitutionThis part replaces 240531101. Substitute parts can look different from the original.In Stock$53.9110% OFF Phone Price : $59.91Qty
