Model #JGBC16GPH3 GE gas freestanding range

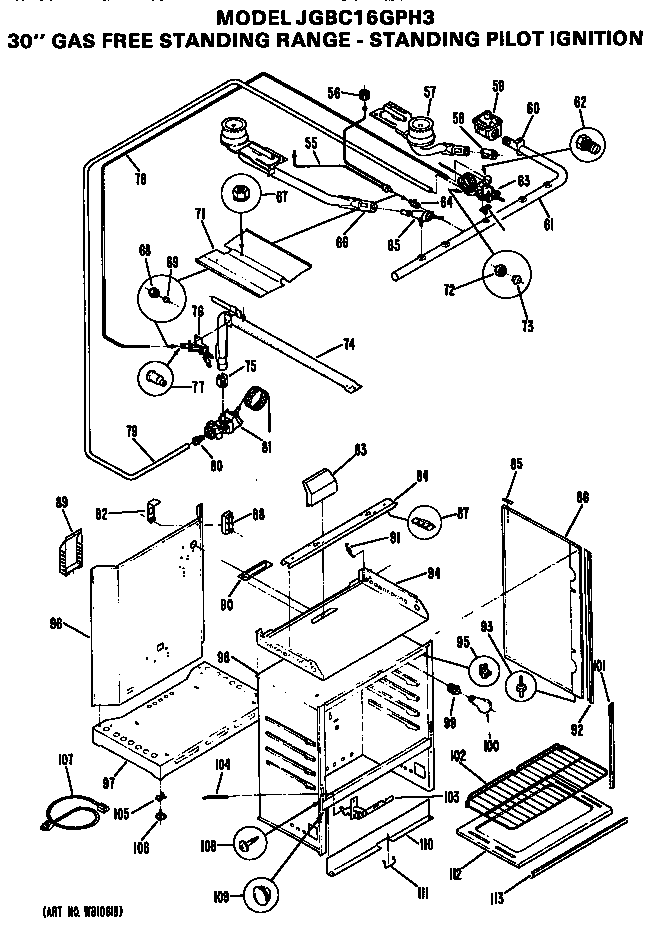

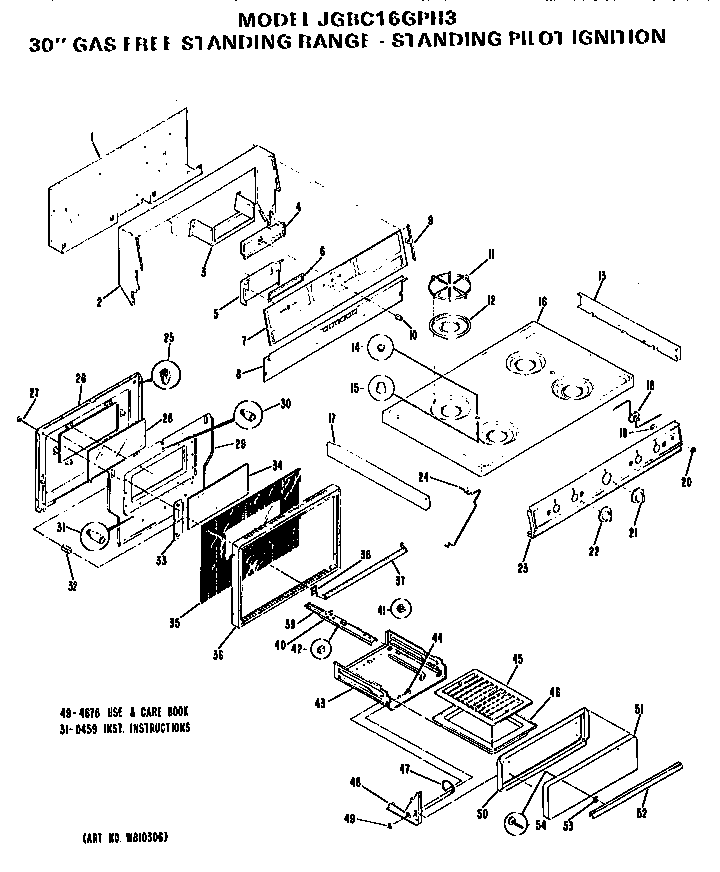

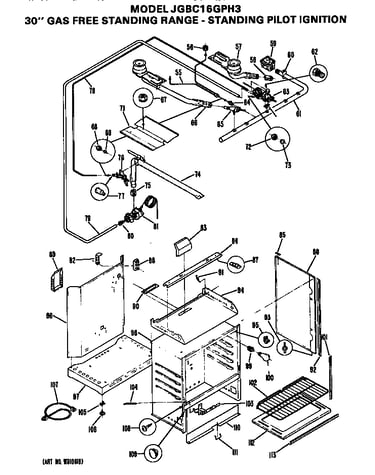

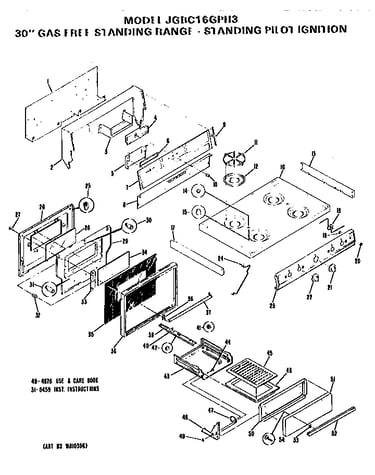

Here are the repair parts and diagrams for your GE JGBC16GPH3 gas freestanding range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 10 parts

Range Drip Pan (Chrome)

#105

All parts Diagram

$20.99

In Stock

BULB OVEN LI

#257

All parts Diagram

Bulb oven li

Part #BUY LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve

#63

All parts Diagram

Burner valve

Part #WB21X386

The manufacturer no longer makes this part, and there's no substitute part

Safety Valve

#81

All parts Diagram

Safety valve

Part #WB21X387

The manufacturer no longer makes this part, and there's no substitute part

Burner

#87

All parts Diagram

Burner

Part #WB28X61

The manufacturer no longer makes this part, and there's no substitute part

Burner

#62

All parts Diagram

Burner

Part #WB28X62

The manufacturer no longer makes this part, and there's no substitute part

Clock

#3

All parts Diagram

Clock

Part #WB19X208

The manufacturer no longer makes this part, and there's no substitute part

Regulator

#88

All parts Diagram

Regulator

Part #WB21X395

The manufacturer no longer makes this part, and there's no substitute part

Light Switch

#16

All parts Diagram

Light switch

Part #WB24X330

The manufacturer no longer makes this part, and there's no substitute part

Thermostat

#63

All parts Diagram

Thermostat

Part #WB21X385

The manufacturer no longer makes this part, and there's no substitute part
